What ignition coils do, and how they fail
Igniting compressed air and fuel takes a spark that can jump a gap under pressure — tens of thousands of volts. The ignition coil is the transformer that makes it: 12 volts in, a precisely timed high-voltage pulse out, delivered to the spark plug beneath it. Modern engines use coil-on-plug design — one dedicated coil sitting directly atop each spark plug — so every cylinder has its own; older designs shared coil packs among cylinders.
Coils live a hard life: engine-bay heat cycles, vibration, and high-voltage stress across their internal windings and insulation, thousands of times a minute. They fail by degrees — insulation develops microscopic cracks, spark energy weakens, and misfires appear first under the highest demand (hard acceleration, full load) before spreading to idle. Heat is the main killer; oil leaking into spark plug wells (a common valve-cover gasket symptom) is the accelerant, softening coil boots and shorting spark to ground.
A failing coil rarely takes the engine down entirely — it takes one cylinder down. The engine shakes, power drops noticeably (one-quarter of a four-cylinder's output is gone), and the computer logs exactly which cylinder is misfiring: P0301 through P0308, the number naming the cylinder. That specificity is a diagnostic gift most repairs don't get.
Coil, plug, or something else — the misfire lineup
A cylinder-specific misfire code names the cylinder, not the culprit, and the coil shares that cylinder with several suspects. The spark plug beneath it is the most common alternative — worn, fouled, or cracked plugs misfire identically. Beyond ignition: a clogged or dead fuel injector on that cylinder, low compression from a mechanical problem (burned valve, worn rings), or a vacuum leak favoring one cylinder all produce the same code.
The elegant free test is the swap: move the suspect coil to a neighboring cylinder (they're identical), clear the code, and drive. If the misfire follows the coil to its new cylinder — P0302 becomes P0303 — the coil is convicted beyond doubt. If the misfire stays home, the coil is innocent and attention turns to the plug, injector, or compression. Shops do exactly this, plus plug inspection and injector checks; DIYers on accessible engines can too.
One pattern worth knowing: multiple random misfires across all cylinders (P0300) usually aren't coils at all — think fuel delivery, vacuum leaks, or a failing crank sensor. Coils fail one at a time; system-wide problems misfire system-wide.
What the job should include — and the plug question

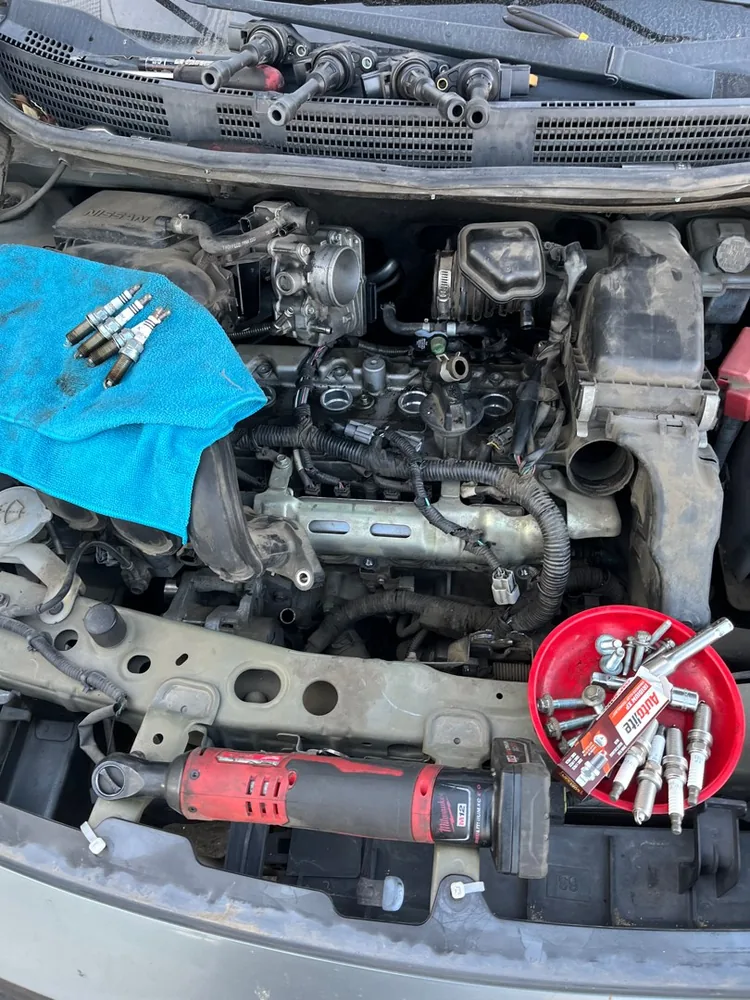

The replacement is mechanically simple: connector off, hold-down bolt out, old coil pulled from the plug well, new coil seated with dielectric grease on the boot, bolt and connector back. Verification matters more than the wrenching: codes cleared, then a drive confirming the misfire counters stay at zero under the same conditions that triggered the complaint — a misfire that 'seems better' isn't a finished diagnosis.
The spark plug beneath a failed coil deserves attention on the same visit. A worn plug with an eroded gap demands more voltage every firing — that extra strain is a classic reason the coil above it died first. Installing a new coil over a tired plug rebuilds the same failure conditions; if the plugs are anywhere near their interval, doing them with the coil (the labor overlaps completely — the coil must come off to reach the plug anyway) is the correct economy.
While the coil is out, the well it lives in gets a look: oil pooling around the plug means a valve-cover gasket is leaking into the well, and it will kill the new coil the way it killed the old one. That gasket becomes part of the honest repair, not an add-on.
One coil or the whole set?
The right answer depends on access and age, and it's worth reasoning rather than defaulting either way. On an accessible four-cylinder, replacing the single failed coil is perfectly sound — the others are individually reachable in minutes whenever their time comes, so there's no labor argument for preemption. On a low-mileage engine with one early coil failure, same logic: replace one, keep the receipts.
The set argument gets strong in two situations. Buried coils: when reaching a rear-bank V6 coil means removing the intake manifold, the other buried coils (and their plugs) should go at the same time — the labor to return next month dwarfs the parts saved. High-mileage patterns: coils on the same engine share age, heat history, and workload; when the second coil of a 150,000-mile set fails months after the first, the remaining coils are forecasting their intentions, and finishing the set ends the every-few-months cycle.
Parts choice matters more here than in most categories: OE-supplier coils (Denso, Hitachi, Delphi, Bosch — often whoever made the originals) have earned their price, while bargain coil sets are a documented source of comeback misfires. On European engines especially, cheap coils are a false economy shops see weekly.
How to save money on this repair
Respect the flashing light — the entire expensive branch of this repair tree (catalytic converter damage) grows from driving through active misfires. Caught promptly, coil problems are among the cheapest drivability fixes there are.
Diagnose with the swap test before buying anything: it's free, definitive, and prevents the classic waste of stacking a new coil on top of a plug or injector problem. Replace plugs alongside coils when they're near their interval — the labor is shared, and fresh plugs protect the new coil's lifespan. Fix oil-filled plug wells at the source (valve-cover gasket) rather than feeding it coils.
Buy OE-supplier parts over bargain sets, accessible-engine work suits mobile mechanics perfectly (a coil swap in your driveway is quick, and good mobile techs carry the swap-test logic with them), and on buried-coil engines bundle ruthlessly — manifold-off labor should never be paid twice in one year. Skipping all of it: keeping plugs changed on schedule is the best coil-life extender ever discovered, and it's already on your maintenance list.
Signs you need this repair
- Check-engine light with a cylinder-specific misfire code (P0301–P0308) — the code number names the cylinder
- A flashing check-engine light under load — active converter-damaging misfire, a stop-driving signal
- Rough, shaking idle you can feel in the wheel and seat
- Noticeable power loss and hesitation, worst under hard acceleration or uphill
- Fuel economy dropping while the exhaust smells of unburned fuel
- Stumbling or bucking in the rain or car washes — moisture finding cracked coil insulation
- An engine that starts hard or runs on fewer cylinders when cold, improving as it warms
Cost by vehicle type
| Vehicle | Typical range | Notes |
|---|---|---|
| Compact / economy car | $90 – $365 | Coils on top, one bolt each, inexpensive parts — the textbook easy version. Misfire diagnosis by coil-swap is a realistic driveway move here. |
| Midsize sedan / small SUV | $100 – $390 | Four-cylinders mirror compacts. Transverse V6 models hide the rear bank's coils under the intake — if a rear coil fails, replacing all three rear coils (and plugs) while the manifold is off is honest economy, not upselling. |
| Full-size truck / large SUV | $115 – $455 | Eight coils but generous access — per-coil labor is easy. High-mileage V8s often see coils fail in sequence; carrying on replacing them one every few months is a pattern worth breaking with a set. |
| Luxury / European | $140 – $560 | OEM-priced coils and engines that genuinely resent bargain aftermarket units — European coil-pack quality complaints are a shop staple. Some models bury coils under covers and plumbing; a few still use coil packs or coil-on-plug hybrids with their own pricing. |
| Hybrid | $105 – $430 | Same coil-on-plug job as the conventional twin. Hybrids' frequent engine restarts are demanding on ignition; misfire codes can also trigger hybrid-system warnings that clear once the coil is fixed. |
| Electric vehicle | No combustion, no spark, no coils — EVs skip the entire ignition system. | |
| Diesel / heavy duty | $135 – $545 | Diesels have no spark ignition — no coils at all. Their cold-start equivalent, glow plugs, is a different system with different diagnosis and pricing. |
Ranges assume national-average labor rates ($95–$140/hr) and quality aftermarket parts.
Cost by state
| State | Typical range | |
|---|---|---|
| Alabama | $90 – $360 | Find a mechanic in Alabama → |
| Alaska | $100 – $405 | |
| Arizona | $100 – $380 | Find a mechanic in Arizona → |
| Arkansas | $90 – $350 | |
| California | $110 – $440 | Find a mechanic in California → |
| Colorado | $100 – $400 | Find a mechanic in Colorado → |
| Connecticut | $100 – $405 | |
| Delaware | $100 – $380 | |
| Florida | $100 – $390 | Find a mechanic in Florida → |
| Georgia | $95 – $375 | Find a mechanic in Georgia → |
| Hawaii | $105 – $420 | |
| Idaho | $95 – $370 | |
| Illinois | $100 – $400 | Find a mechanic in Illinois → |
| Indiana | $90 – $370 | Find a mechanic in Indiana → |
| Iowa | $90 – $360 | |
| Kansas | $90 – $360 | Find a mechanic in Kansas → |
| Kentucky | $90 – $370 | Find a mechanic in Kentucky → |
| Louisiana | $95 – $375 | |
| Maine | $95 – $375 | |
| Maryland | $100 – $405 | |
| Massachusetts | $105 – $420 | |
| Michigan | $95 – $380 | Find a mechanic in Michigan → |
| Minnesota | $100 – $390 | Find a mechanic in Minnesota → |
| Mississippi | $90 – $350 | |
| Missouri | $90 – $370 | Find a mechanic in Missouri → |
| Montana | $95 – $370 | |
| Nebraska | $90 – $360 | |
| Nevada | $100 – $400 | Find a mechanic in Nevada → |
| New Hampshire | $100 – $390 | |
| New Jersey | $105 – $410 | Find a mechanic in New Jersey → |
| New Mexico | $95 – $370 | |
| New York | $105 – $430 | Find a mechanic in New York → |
| North Carolina | $95 – $375 | Find a mechanic in North Carolina → |
| North Dakota | $90 – $360 | |
| Ohio | $90 – $375 | Find a mechanic in Ohio → |
| Oklahoma | $90 – $360 | |
| Oregon | $100 – $400 | Find a mechanic in Oregon → |
| Pennsylvania | $100 – $390 | Find a mechanic in Pennsylvania → |
| Rhode Island | $100 – $400 | |
| South Carolina | $90 – $370 | Find a mechanic in South Carolina → |
| South Dakota | $90 – $360 | |
| Tennessee | $90 – $375 | Find a mechanic in Tennessee → |
| Texas | $100 – $390 | Find a mechanic in Texas → |
| Utah | $100 – $380 | Find a mechanic in Utah → |
| Vermont | $95 – $375 | |
| Virginia | $100 – $390 | |
| Washington | $105 – $420 | Find a mechanic in Washington → |
| Washington DC | $110 – $430 | |
| West Virginia | $90 – $350 | |
| Wisconsin | $95 – $375 | Find a mechanic in Wisconsin → |
| Wyoming | $90 – $360 |
State ranges reflect typical independent-shop labor rates for a midsize vehicle.
Common questions
Can I drive with a bad ignition coil?
With a steady check-engine light and mild miss — short, gentle trips to the repair, yes. With a flashing check-engine light — no: that flash specifically means misfires severe enough to overheat the catalytic converter with unburned fuel, and continued driving is how coil money becomes converter money. The car also simply drives badly: down a cylinder, down real power.
How do I know it's the coil and not the spark plug?
Swap the suspect coil to a neighboring cylinder and see if the misfire code follows it — coils are identical across cylinders, the test is free, and it's definitive. Code follows the coil: coil convicted. Code stays put: look at that cylinder's plug, injector, or compression. It's the rare repair with a perfect five-minute experiment built in.
Should I replace all the coils or just the bad one?
Accessible engine, one failure: just the one — the rest are minutes away whenever needed. Buried coils (under a V6 intake): do the buried group with plugs while the manifold is off, because repeat labor costs more than the parts. High-mileage engine on its second or third coil failure: the survivors are telling you something; finishing the set ends the drip-feed.
Why did my coil fail in the first place?
Usually age and heat — insulation fatigue after years of high-voltage cycling. The preventable accelerants: worn spark plugs whose widened gaps demand extra voltage every firing (the top coil-killer you control), and oil leaking into the plug well from a tired valve-cover gasket. If either is present, fixing it with the coil is what makes the repair stick.
Are expensive coils worth it over the cheap ones online?
In this category, yes. Coils are precision high-voltage components, and bargain units have a well-documented pattern: comeback misfires in months, sometimes out of the box. OE-supplier brands — often literally the company that made your originals — cost more and stay fixed. European engines are the extreme case; shops there often refuse to install bargain coils at all.
Can a mobile mechanic replace ignition coils?
It's close to the ideal mobile job on most four-cylinders — top-of-engine access, hand tools, quick verification drive, driveway-friendly pricing. Rear-bank V6 coils under the intake are the exception; that's bench-and-time work some mobile techs take on and others sensibly refer out. Either way, a good tech runs the swap test before selling you anything.
