Compression

9 concepts

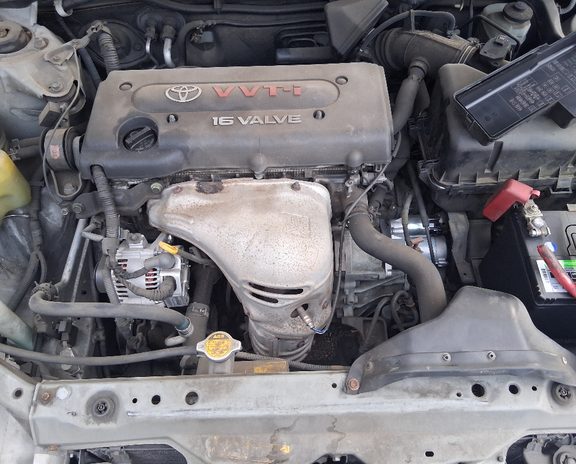

Compression testing is the single most valuable mechanical health check you can run on an engine without pulling it apart.

At a glance — know these cold
  • A wet test (small amount of oil in the cylinder) will raise compression if the leak is at the rings — oil temporarily seals worn rings. If wet numbers match dry, the leak is at valves or head gasket, not rings. This is the fastest way to narrow root cause.
  • Air escaping into the crankcase (heard at the oil filler) indicates ring leakage. Intake valve leakage would be heard at the throttle body, exhaust at the tailpipe, and head gasket at the coolant reservoir or an adjacent cylinder.
  • Industry standard: no cylinder should differ from the highest by more than 10%. Beyond that, drivability and emissions issues typically appear. Some manufacturers spec tighter (7-8%).
  • Air at the tailpipe means the exhaust valve isn't sealing. Common causes: burnt valve, valve seat recession, carbon holding valve open, or bent valve from timing failure. A tear-down is required for repair.
  • Compression tests must be done at operating temperature (rings and bores at proper clearances), throttle wide open (unrestricted airflow), and with all plugs removed (no drag on adjacent cylinders). Cold tests read low across the board and are misleading.
  • Diesel engines have very high compression (350-500 psi typical). Low readings indicate the same causes as gasoline (rings, valves, gasket) but the higher pressures require a diesel-rated compression tester (installed via glow plug or injector hole) — not a gasoline gauge.
  • Compression is only one leg of the combustion triangle. Missing spark (bad coil or plug), missing fuel (bad injector), or extra air (vacuum leak at intake runner) all cause misfire with good compression. Systematic isolation identifies which one — swap parts to good cylinder, observe change.
  • Oil in the cylinder temporarily seals gaps at worn rings or cylinder walls, allowing compression to rise. Valves seal against the head and aren't affected by cylinder-wall oil. Big rise on wet test = ring wear. No change or minimal change = valve/gasket issue.
  • Good compression rules out mechanical wear as the primary cause. Progressive power loss usually means restriction (intake or exhaust) or fuel delivery limitations under load. Test with scan-tool data at wide-open-throttle: fuel trims, MAF readings, boost, and back-pressure measurements narrow the cause.

Every combustion event depends on the cylinder sealing pressure between the rings, the valves, and the head gasket, so a compression or leakdown test tells you where the seal is failing before you commit to a tear-down. Learn to run these tests correctly and read them precisely, and you will stop guessing and start diagnosing.

Running the Test the Right Way

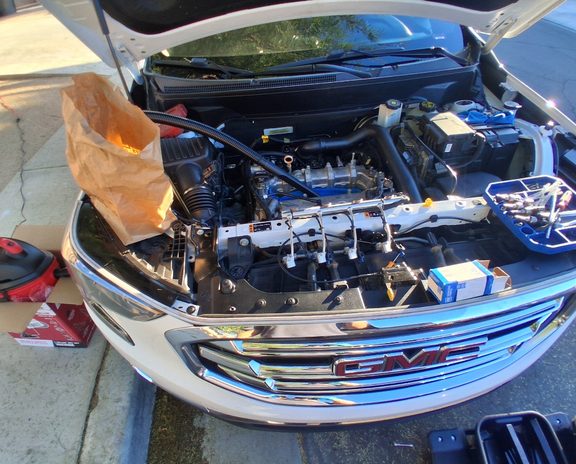

A compression test is only as good as the conditions you run it under. The professional standard is to test at operating temperature, because the rings, pistons, and bores only reach their designed clearances when the engine is hot. A cold engine reads low across every cylinder, and a tech who condemns an engine off a cold test has misled the customer. Hold the throttle wide open so each cylinder can pull a full charge of air, and remove all the spark plugs so the other cylinders are not dragging down cranking speed. Skip any one of these and the numbers lose their meaning.

On a healthy gasoline engine, what matters most is not the absolute number but the spread between cylinders. The industry standard is that no cylinder should read more than 10 percent below the highest cylinder; some manufacturers spec even tighter at 7 to 8 percent. Beyond that spread, you can expect drivability complaints and emissions problems.

Diesels play by different rules. They rely on compression heat to ignite fuel, so cranking pressures typically run 350 to 500 psi. A diesel reading of 300 psi where 400-plus is expected points to the same suspects as a gas engine, worn rings, worn cylinder walls, or valve sealing problems, but before you condemn anything, verify your equipment. Diesel compression testing requires a diesel-rated gauge installed through the glow plug or injector hole; a gasoline gauge is not built for those pressures and will lie to you or fail.

Wet Testing: Rings or Valves?

When one cylinder reads low, say 90 psi while its neighbors sit at 165, the next move is not a rebuild quote and not a head gasket. It is a wet compression test. Squirt a small amount of oil into the low cylinder and retest. The oil temporarily seals the gaps at worn rings and worn cylinder walls, so if the leak path is at the rings, the compression number rises significantly with oil in the bore. Take the oil away and the low number comes right back.

Here is the logic behind it: valves seal against seats machined into the head, up and away from the cylinder walls, so oil pooled on the piston crown does nothing for a leaking valve. A big rise on the wet test means ring or cylinder wall wear. No change, or only a minimal change, means the leak is at a valve or the head gasket. This one simple test is the fastest way to split the diagnosis in half and decide whether you are looking at a bottom-end job or a head job.

Leakdown Testing: Following the Air

A leakdown test pressurizes the cylinder with shop air at TDC compression and measures the percentage that escapes. Its real power is that the escaping air tells you exactly where it is going. Get in the habit of listening at four places.

Air hissing from the oil filler cap means combustion pressure is blowing past the rings into the crankcase, so a reading like 25 percent leakage heard at the filler is a ring or cylinder wall problem. Air at the throttle body means an intake valve is not sealing. Air at the tailpipe means the exhaust valve is not seating; common causes there include a burnt valve, valve seat recession, carbon holding the valve off its seat, or a valve bent by a timing failure, and every one of those requires tear-down to repair. Bubbles in the coolant reservoir, or air crossing into an adjacent cylinder, point to head gasket failure.

Leakdown also confirms an inter-cylinder gasket failure. If cylinders 3 and 4 both test low on compression, pressurize one of them and listen or watch for air escaping into its neighbor. Air crossing between adjacent cylinders proves the gasket has failed between them.

When Compression Is Good but the Engine Still Struggles

Do not tunnel-vision on compression. A cylinder can hold perfect pressure and still misfire, because compression is only one leg of the combustion triangle. If a cylinder with normal compression misfires, work the other legs: ignition (a failing coil, plug, or wire), fuel (a dead or dirty injector), or air (a vacuum leak at that cylinder's intake runner). The systematic move is to swap the suspect component to a known-good cylinder and see whether the misfire follows it.

The same discipline applies to an engine losing power steadily under load with all cylinders at spec. Good compression rules out mechanical wear as the primary cause, so look for what limits the engine under demand: fuel delivery under load (fuel pressure and injector capacity), timing drift from a stretched belt or chain, intake restriction (a dirty air filter or a boost leak on a turbocharged engine), or exhaust restriction from a clogged catalytic converter or muffler. Scan-tool data captured at wide-open throttle, fuel trims, MAF readings, boost pressure, and exhaust back-pressure measurements, will narrow it down without guesswork.

📋 Compression and leakdown interpretation
MeasurementHealthyInterpretation
Gasoline cranking compressionTypically 125–180 psiAbsolute value tracks compression ratio — the spread matters most
Cylinder-to-cylinder spreadWithin 10% of the highestBeyond = misfire, drivability, and emissions trouble
Diesel cranking compression~350–500 psiRequires a diesel-rated gauge through glow plug or injector hole
Wet test responseLarge rise = rings/wallsLittle or no change = valve or head gasket
Leakdown, healthyUnder ~10% (fresh engine ~5%)Where the air exits names the leak path
Leakdown, action level20% and upLocate escape: filler cap, intake, tailpipe, coolant
Running compression at idleRoughly 50–75% of cranking value; snap ~80%Exposes dynamic sealing and breathing problems a cranking test hides

Always test warm, throttle wide open, all plugs out, with healthy cranking speed. Verify against the engine's published spec.

🔩 Low-cylinder workup: dry, wet, then leakdown
  1. Warm engine, all plugs out, throttle blocked wide open, fuel and spark disabled. Crank each cylinder the same count of compression pulses — four to six — and record every dry number.
  2. Read the pattern before reaching for tools: one low hole is a local problem; two adjacent low holes suspect the gasket between them; all cylinders evenly low points at timing, cam wear, or uniform ring wear.
  3. Wet-test only the low cylinders: a teaspoon of oil in the bore, retest. A big rise means the oil temporarily sealed worn rings or walls; little change clears the rings and indicts a valve or the gasket.
  4. Leakdown the low cylinder at TDC compression and listen: air at the oil filler cap is rings, at the throttle body is an intake valve, at the tailpipe is an exhaust valve, and bubbles in the coolant reservoir mean the gasket or a crack.
  5. For an adjacent low pair, pressurize one cylinder and listen in its neighbor — air crossing between them proves the gasket has failed between the bores.
  6. Quote from the evidence. Which seal failed — rings, valve, or gasket — is the difference between a bottom-end job, a head job, and a gasket job, and now you know instead of guessing.
⚠️ Comeback killers
  • Compression testing cold and condemning the engine. Rings and bores only reach designed clearances hot — a cold test reads low across the board and turns a healthy engine into a rebuild quote.
  • Testing with the throttle closed. The cylinders can't pull a full air charge, every reading comes back low and even, and the pattern mimics a uniformly worn engine.
  • Quoting a rebuild off one low dry reading. The wet test and leakdown split rings from valves from gasket in twenty minutes — the difference between a $1,500 head job and a $6,000 rebuild deserves twenty minutes.
  • Chasing compression on a misfiring cylinder that tested healthy. Compression is one leg of the triangle — a cylinder holding perfect pressure still needs spark, fuel, and air, so move the diagnosis to the other legs instead of re-testing the one that passed.
🔧 Shop tip Write down every cylinder's dry number before you wet-test anything. The pattern across the engine, one low hole versus two adjacent low holes versus all cylinders down, often tells you the story before you ever reach for the oil can.
✅ Check yourself
Cylinder 3 reads 95 psi dry while the others hold 160. Wet, it jumps to 150. Verdict?

Rings or cylinder wall wear in cylinder 3. The oil temporarily sealed the gap at the rings, which is why the number recovered — a leaking valve sits up in the head where pooled oil can't help it. Confirm with leakdown expecting air at the oil filler cap, then the conversation is honing and rings versus boring, not valves.

Cylinders 2 and 3 both read 90 psi; the rest read 165. Most likely single cause, and the confirming test?

Head gasket failure between the two adjacent cylinders — one breach explains both low holes. Confirm by pressurizing cylinder 2 with the leakdown tester and listening at cylinder 3's plug hole: air crossing between them proves the bridge is breached.

Every cylinder reads an even 100–110 on a high-mileage engine that runs but has no power. What causes even-low across the board?

Uniform causes: worn rings across all cylinders on a tired engine, retarded cam timing from a stretched chain or jumped belt, or a flawed test — cold engine, closed throttle, or slow cranking from a weak battery. Verify the test conditions first, then check cam/crank correlation on the scan tool before opening anything.

Engine Repair & Rebuild training photo

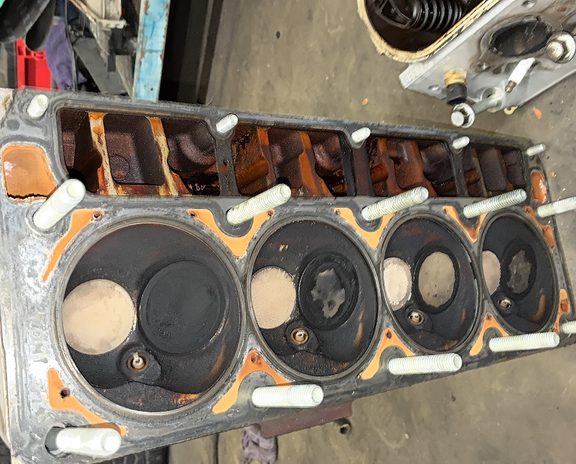

Deck surface checked flat before the new gasket goes on.

Timing

9 concepts

Valve timing is the choreography that keeps pistons and valves sharing the same space without ever touching.

At a glance — know these cold
  • On an interference engine, valve and piston timing are so tight that even a one-tooth shift causes contact. Result: bent valves, damaged guides, and often cracked or dented piston crowns. A full head service (minimum) is required.
  • TDC-cyl-1 alignment before removal, matching marks on installation, and 2-full-turn recheck are non-negotiable. Skipping any step risks a mistimed engine and destroyed valvetrain. Water pump, tensioner, idlers, and often seals are typically replaced simultaneously.
  • The water pump, tensioner, idlers, and any belt-adjacent seals are all buried under the timing cover. Not replacing them together doubles the labor when they fail in the next 20-30k miles. Complete timing kits include all these components.
  • Stretched chains cause cam timing to drift out of spec. Cold start rattle happens before the tensioner takes up slack. P0016/P0017 codes flag the correlation error. Ignored, they eventually jump teeth and cause interference damage. This is a known issue on GM 2.4L Ecotec, VW 2.0T, BMW N20, and others.
  • Chain installation requires crank at TDC on cylinder 1, cams properly indexed, and — on many modern engines — pinning of crank and cams to prevent movement during installation. Missing this step causes mistimed engines and often piston-to-valve contact when starting.
  • Modern crankshaft pulleys have a rubber isolator between the hub and the outer ring where timing marks are located. Age causes rubber degradation and the outer ring can spin, invalidating timing marks. Vibrations may follow. Replacement is required — don't try to shift marks.
  • Rotating by hand tests timing without risking damage. Any resistance means possible interference — stop and investigate. After 2 revolutions, marks should return to alignment. Only then is it safe to start. Skipping this step and finding out after cranking often means bent valves.
  • DOHC engines have separate intake and exhaust camshafts, each with their own timing marks. Some engines have multiple banks or balance shafts. All must align simultaneously at TDC-cyl-1. Missing one mark by a tooth causes running/timing issues that may not be obvious immediately but cause damage over time.
  • Modern engine control units continuously compare cam and crank position sensors. Scan tools display this as a real-time or stored value — often reported as degrees of deviation from ideal. This is the definitive stretch test for engines with variable valve timing sensors.

On most modern engines the margin is so tight that a single tooth of error can destroy the valvetrain, which makes timing work the least forgiving job in engine repair. Precision, verification, and patience here separate professionals from parts-changers.

Interference Engines and Why One Tooth Matters

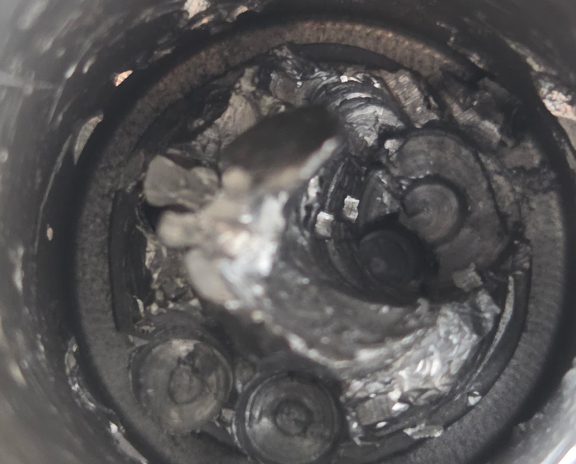

Most modern engines are interference designs: at some point in the cycle, an open valve occupies space the piston will sweep through, and only correct timing keeps them apart. That is why a timing belt that jumps even one tooth on an interference engine usually means piston-to-valve contact. The result is bent valves, damaged valve guides, and often cracked or dented piston crowns. At minimum you are into a full cylinder head service, and you must inspect the pistons before assuming the bottom end survived.

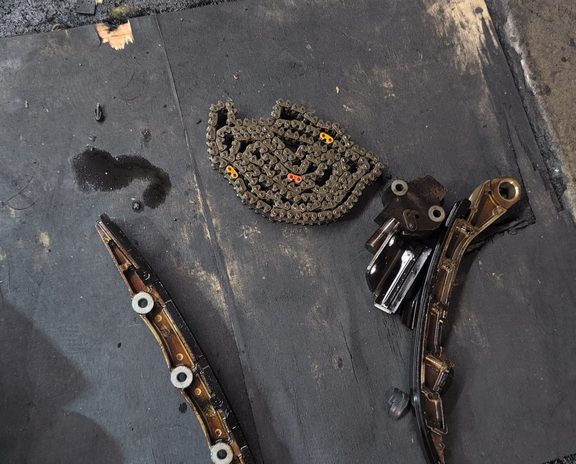

Timing chains fail differently, they stretch gradually rather than snapping. As a chain elongates, cam timing drifts away from crank timing. The classic symptoms are a rattle on cold start, heard in the seconds before the tensioner takes up the slack, a check engine light with cam/crank correlation codes P0016 or P0017, and a gradual loss of power and fuel economy. This is a well-documented pattern on engines like the GM 2.4L Ecotec, VW 2.0T, and BMW N20. Ignore a stretched chain long enough and it jumps teeth, and on an interference engine that ends the same way a broken belt does.

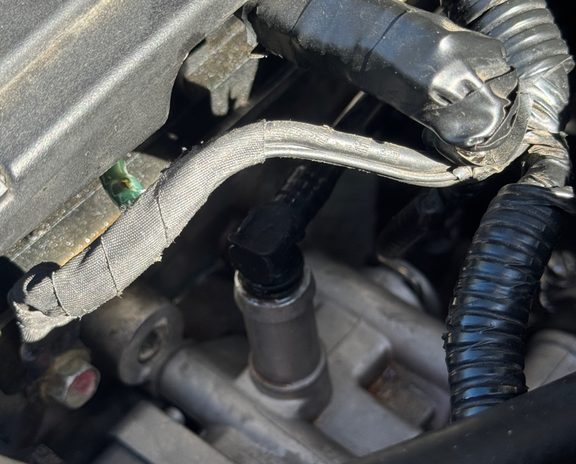

When you suspect stretch but cannot see it, let the ECU tell you. Modern engines continuously compare the cam and crank position sensors, and a scan tool will display the correlation as a real-time or stored value, often in exact degrees of deviation from ideal. On engines with variable valve timing sensors, that scan data is the definitive stretch test, no tear-down required.

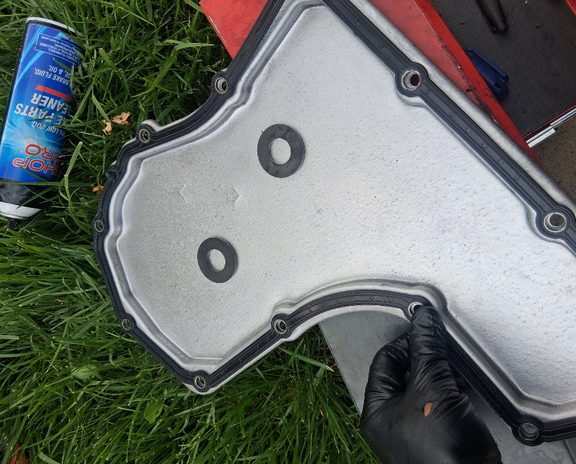

Doing the Job: Belts, Chains, and the Components That Ride Along

Timing belt replacement has a fixed order of operations, and every step exists because someone destroyed an engine skipping it. Set the engine to TDC on cylinder 1 before you touch anything. Mark all the pulleys. Remove the old belt, install the new one matching every mark, and verify alignment. Then rotate the engine two complete revolutions by hand and recheck that every mark returns to alignment. Chain installation follows the same philosophy: crank at TDC cylinder 1, cams properly indexed, and on many modern engines the crank and cams must be pinned with locking tools to keep them from moving while the chain goes on. Miss that step and the engine starts mistimed, often with piston-to-valve contact on the first crank.

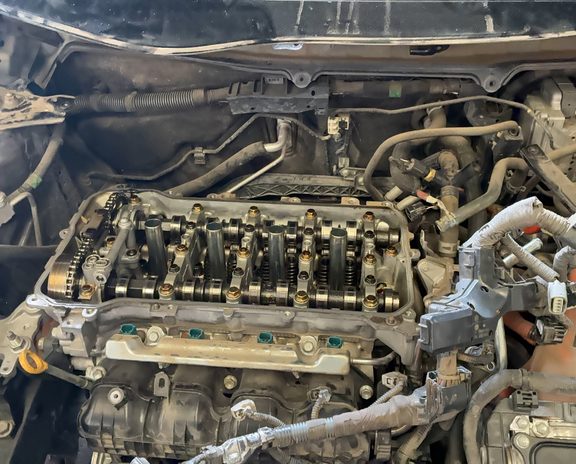

Modern DOHC engines raise the stakes because there are more marks to align. Expect separate marks for the crank sprocket, the intake cam or cams, the exhaust cam or cams, and sometimes an oil pump or balance shaft, and all of them must line up simultaneously per the manufacturer's diagram. Being one tooth off on a single cam may not be obvious immediately, the engine might even run, but it causes running problems and progressive damage over time.

Never quote a timing belt alone. The water pump, tensioner, idler pulleys, and the cam and crank seals (when they live behind the timing cover) are all buried under the same covers, and if you leave 100,000-mile parts in place, they will fail 20,000 to 30,000 miles later and the customer pays the full labor bill twice. Complete timing kits exist precisely because these components are replaced as a set.

Verification Before Startup, and a Trap in the Timing Marks

After any timing job, the final check happens before the key ever turns: rotate the engine by hand at least two complete revolutions and re-verify every timing mark. While you turn it, feel for resistance. Any unusual resistance means possible valve-to-piston interference, so stop immediately and investigate. After two revolutions the marks should return to perfect alignment; only then is the engine safe to start. Discovering a timing error with the starter motor instead of a breaker bar usually means bent valves.

One more trap catches techs who trust the crank pulley blindly. Most harmonic dampers are two-piece: a hub bonded to an outer ring by a rubber isolator, and the timing marks live on the outer ring. As the rubber ages and degrades, the outer ring can spin on the hub, so the marks no longer represent true TDC even though nothing looks broken. If the marks refuse to line up with the pointer at what should be TDC, suspect a spun damper. The fix is replacement, never repositioning or re-marking, and a separated damper often announces itself with engine vibration as well.

📋 Timing service reference points
ItemTypical valueNotes
Timing belt interval60,000–105,000 miles or 7–10 yearsRubber ages by time, not just miles
Cam/crank correlation codesP0016–P0019Set when cam timing drifts against the crank
Chain stretch on scan dataCam deviation beyond about ±5° warrants inspectionExact limits are engine-specific
Verification after any timing job2 full crank revolutions by handAll marks must realign; any resistance = stop
Automatic tensioner checkIndicator within its windowOut of window = worn chain or failed tensioner
Angle-torqued crank/cam boltsOne-time useStretch bolts are never reused

Intervals, deviation limits, and locking-tool requirements are heavily engine-specific — pull the exact procedure before quoting or timing any engine.

🔩 Timing belt job — verification-first sequence
  1. Set the engine to TDC compression on cylinder 1 before removing anything, and photograph every mark, the belt routing, and the tensioner position. The photos settle every mid-job doubt in seconds.
  2. Read the old parts as evidence while they come off: chunked or cracked belt teeth, a wobbling idler, a weeping water pump — the condition tells you how close the customer came and whether anything else was damaged.
  3. Install the full kit — belt, tensioner, idlers, and the water pump and seals where they live behind the covers. Reused 100,000-mile rollers behind a new belt fail first and take the new belt with them.
  4. Fit the new belt with crank and cam marks perfectly aligned, then tension per the procedure — automatic tensioners set to their indicator window, manual tensioners to the specified deflection.
  5. Rotate the crank two full revolutions by hand with a wrench. Any unusual resistance means possible valve contact — stop immediately and investigate. The breaker bar finds a one-tooth error gently; the starter motor finds it with bent valves.
  6. Confirm every mark realigns after the two turns, then reassemble, start, and verify: no cam/crank correlation codes, smooth idle, quiet covers. Only then is the job done.
⚠️ Comeback killers
  • Checking your timing work with the starter motor. Discovering a one-tooth error at cranking speed on an interference engine means bent valves — the two hand revolutions with a wrench exist to catch it for free.
  • Reusing the old tensioner, idlers, or water pump behind a new belt. Those parts carry the same mileage the belt did; when one seizes at 130,000 the customer pays full labor twice and remembers whose shortcut it was.
  • Trusting the harmonic damper's timing marks without question. A spun outer ring on an aged damper lies about TDC while looking perfectly normal — when marks refuse to make sense, verify true TDC before condemning your own work.
  • Calling a running engine with the timing one tooth off 'good enough.' It may start and idle, but it will set correlation codes, lose power and economy, and on VVT engines invite progressive damage — one tooth is a redo, not a tolerance.
🔧 Shop tip Take phone photos of every timing mark and tensioner position before removing anything. When you are deep into reassembly and second-guessing a mark, the photo settles it in ten seconds.
✅ Check yourself
Cold-start rattle for two seconds, a P0017, and sluggish performance. What is the diagnosis and how does the scan tool confirm it without teardown?

A stretched timing chain — the rattle is slack before the tensioner pumps up, and P0017 is the ECU noticing cam-to-crank drift. Modern engines report cam/crank correlation in degrees on the scan tool; deviation beyond roughly ±5 degrees (per the engine's spec) confirms stretch. Left alone, the chain eventually jumps and an interference engine ends like a snapped belt.

An interference engine's belt snapped at highway speed. What must be inspected before quoting the repair?

The valvetrain and pistons — assume contact happened. Expect bent valves; a leakdown or borescope inspection of every cylinder tells the story before disassembly. The quote is a belt kit plus cylinder head service at minimum, and the pistons must be checked for cracks and dents before trusting the bottom end. Quoting just a belt sets up a devastating mid-job surprise.

The crank timing marks will not align at what should be TDC, but the belt was never off and the engine ran fine yesterday. What do you suspect?

A spun harmonic damper. The outer ring carrying the marks is bonded to the hub by rubber, and when the isolator degrades the ring rotates on the hub — the marks lie while true TDC is unchanged. Verify TDC directly through the plug hole with a piston stop or dial indicator. The fix is a new damper, never re-marking the old one.

Engine Repair & Rebuild training photo

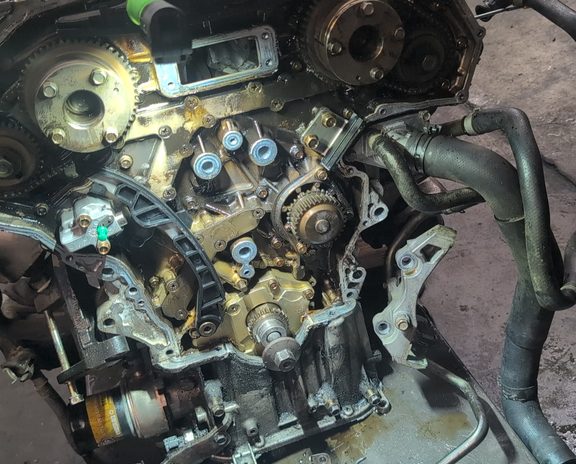

Front of the engine stripped for timing service.

Head Gasket

9 concepts

The head gasket seals three systems against each other.

At a glance — know these cold
  • Head gasket failures show up as combustion gases entering the cooling system (bubbling/pressurized reservoir), coolant entering combustion (white steam smoke, coolant loss), or coolant entering the oil (milky/tan sludge under the oil cap). Any one of these justifies further testing.
  • A block tester detects CO2 in the coolant — a positive result virtually confirms combustion gases are entering. Pressurizing the coolant system to find external or into-cylinder leaks also works. Compression testing may show two adjacent low cylinders if the gasket has failed between them.
  • A warped head or block dooms the new gasket to failure. Straight-edge and feeler gauge check both surfaces. If out of spec, resurfacing is required. Also inspect for cracks (especially in aluminum heads between valve seats), and clean/inspect bolt threads.
  • Sequenced torquing prevents head warpage. Multi-pass torquing (e.g., 25 ft-lb, 45 ft-lb, 65 ft-lb, then +90° angle) is the modern standard. TTY bolts stretch permanently and must never be reused — reusing them can cause failure at the threads or bolt necking.
  • TTY bolts provide more uniform clamping force than standard torque-spec bolts, especially critical on aluminum heads where thermal expansion is significant. The bolt stretches into a controlled range, maintaining tension over temperature cycles. Reuse causes failure.
  • Head gasket failure between two adjacent cylinders shows two low compression readings. Leakdown testing one cylinder while listening or watching the other confirms — air pressurizing cylinder 3 that escapes into cylinder 4 proves the gasket has failed between them.
  • Repeat head gasket failures almost always mean the underlying condition wasn't addressed. Warp not corrected, crack not detected, surface prep skipped, or root cause (chronic overheating, detonation from bad fuel/timing) continues. Verify all machining and root cause before installing another gasket.
  • Aluminum heads and blocks are soft — aggressive tools gouge the surface and cause immediate leaks. Scotch-brite discs used carelessly embed grit in the surface and are now controversial for OEM warranty work. Best practice: gasket scraper, careful cleaning, verify with straightedge.
  • Head gasket jobs open up multiple related components. Head should be machined and pressure-tested. TTY head bolts are one-time-use. Timing components are already disassembled — replace if worn. Thermostat is exposed. Intake/exhaust gaskets are removed anyway. Quoting these upfront prevents costly comebacks.

The head gasket seals three systems against each other: combustion pressure, coolant, and oil, all across one thin layer clamped between the head and the block. When it fails, those systems cross-contaminate in patterns you can learn to read. Head gasket work is also where preparation makes or breaks the job, because a perfect gasket installed on a warped surface is already dead.

Recognizing and Confirming the Failure

Head gasket failures announce themselves through cross-contamination. Combustion gas entering the cooling system shows up as a bubbling or over-pressurized coolant reservoir and overheating. Coolant entering the combustion chamber produces white steam from the exhaust and coolant loss with no external leak to be found. Coolant mixing into the oil produces a milky, tan sludge under the oil cap and on the dipstick. Any one of these symptoms justifies further testing.

Confirming the failure without disassembly is straightforward. A chemical block test draws air from above the coolant through a reagent that changes color in the presence of CO2; a positive result virtually confirms combustion gases are entering the cooling system. Pressurizing the cooling system and watching for pressure loss, external leaks, or coolant entering a cylinder is another route. Compression and leakdown testing across cylinders completes the picture, and a gasket that has failed between two cylinders shows a telltale signature: two adjacent cylinders both reading low. Prove it by running a leakdown test on one of the low cylinders, if air pressurized into cylinder 3 escapes into cylinder 4, the gasket has failed between them.

Remember that milky coolant has more than one possible source. Head gasket failure is the most common, but cracked blocks and heads do it too, and vehicles with engine oil coolers or transmission coolers integrated into the radiator can mix oil or ATF into the coolant when those coolers fail internally. All of these are serious findings that demand a definite diagnosis before repair.

Surface Prep: Where the Job Is Won or Lost

Before a new gasket goes anywhere near the engine, both the head and the block deck must be verified flat. Check both surfaces with a machinist's straightedge and feeler gauges against the manufacturer's flatness spec, typically 0.002 to 0.003 inch. Anything beyond spec goes to the machine shop for resurfacing, because a warped surface cannot clamp a gasket evenly and the new gasket is doomed from day one. While the head is off, inspect it for cracks, aluminum heads crack most often between the valve seats, and check every bolt hole and thread in the block for damage and debris.

Cleaning those surfaces takes restraint. Aluminum is soft, and aggressive tools gouge it, creating leak paths no gasket can bridge. Use a gasket scraper carefully and avoid digging in. Abrasive scotch-brite discs on a die grinder are now controversial for OEM warranty work for good reason: used carelessly they cut low spots into aluminum and shed grit that ends up embedded in surfaces and washed into the cylinders and oil system. If one is used at all, the cylinders must be protected from debris, and aggressive abrasives never belong on an aluminum deck. Finish by verifying flatness with the straightedge, cleaning is not done until the surface measures right.

When a head gasket you replaced comes back with the same symptoms two weeks later, the gasket brand is almost never the villain. Repeat failures nearly always mean the underlying condition was not addressed: warpage that never got machined, a crack that never got found, surface prep that got skipped, or the original root cause, chronic overheating, or detonation from bad fuel or incorrect timing, still active and killing the new gasket. Verify all machining and eliminate the root cause before another gasket goes in.

Head Bolts, Torque Sequence, and Torque-to-Yield

Clamping the head down is an engineered process, not just tightening bolts. Torque the head bolts in the manufacturer's specified sequence, which is typically a spiral pattern working from the center of the head outward, so the head seats progressively and evenly instead of warping around one tight corner. Modern practice uses multiple passes stepping up to final spec, for example 25 ft-lb, then 45, then 65, then an additional 90-degree angle turn. Never run head bolts down with an air impact.

Most modern engines use torque-to-yield (TTY) bolts, and understanding them prevents expensive mistakes. A TTY bolt is deliberately tightened until it stretches into a controlled range, which delivers far more uniform clamping force across all bolts than a standard torque spec can. That consistency matters most on aluminum heads, where thermal expansion is significant and clamping force must survive repeated heat cycles. The trade-off is that the stretch is permanent: TTY bolts are strictly one-time-use. Reusing them invites failure at the threads or necking of the bolt shank, and either one takes your fresh gasket with it. New TTY bolts are part of the job, every time.

Quoting the Whole Job

A head gasket replacement opens up half the engine, and an honest, complete quote reflects that. The head should go to the machine shop for surfacing, a crack check, and pressure testing, and a valve job is often warranted while it is on the bench. TTY head bolts are one-time-use and must be on the estimate. On timing-driven engines, the timing components are already disassembled in front of you, so replacing worn belts, chains, tensioners, and guides now costs the customer only parts. The thermostat is exposed, coolant will be drained and replaced, and the intake and exhaust gaskets come off during disassembly and should be renewed on reassembly.

Quoting these items up front is not padding the ticket, it is preventing comebacks. The alternative is calling the customer mid-job with surprise charges, or worse, reassembling around a worn part that fails a month later and puts the labor on you.

📋 Head gasket job reference values
ItemSpec / typicalNotes
Deck and head flatness0.002–0.003 in. maximum warpMachinist straightedge and feelers, checked in several directions
Cooling system pressure testAt cap rating, ~13–16 psi, hold 10–15 minPressure loss with no external leak = internal breach
Chemical block testReagent color change = combustion gas in coolantConfirms the breach before teardown
Torque sequenceCenter-out spiral, multiple passesExample: 25 → 45 → 65 ft-lb plus a 90° angle turn
TTY head boltsOne-time use, every timeNew bolts belong on every estimate
Head minimum thicknessPer engine spec after resurfacingOver-machining changes compression and valvetrain geometry

The torque steps shown are illustrative only — the exact sequence, values, and angle turns are engine-specific and must come from service data.

🔩 Confirming a head gasket before teardown
  1. Pressure-test the cooling system cold at the cap rating and watch the gauge for 10–15 minutes while walking the engine for external leaks. Pressure falling with nothing wet outside means the coolant is going somewhere internal.
  2. Run a chemical block test on the warm, running engine: the reagent pulling combustion CO2 from above the coolant and changing color virtually confirms a combustion-to-coolant breach.
  3. Compression test all cylinders. Two adjacent low holes are the classic gasket-bridge signature; a single low hole with coolant symptoms still fits a breach into the water jacket.
  4. Leakdown the suspect cylinder at TDC compression and watch the coolant reservoir — bubbles rising under cylinder pressure trace the path directly.
  5. Check both fluids for cross-contamination: milky oil on the cap and dipstick, oil sheen in the coolant. The pattern of what crossed into what maps which passages the breach connects.
  6. Before quoting, identify the root cause — overheat history, a failed fan or thermostat, detonation. A gasket replaced under an unresolved overheat condition is a gasket already dying.
⚠️ Comeback killers
  • Installing the new gasket on unverified surfaces. A head or deck warped past 0.002–0.003 in. cannot clamp evenly, and the fresh gasket fails on schedule — the straightedge check is the whole job in miniature.
  • Reusing torque-to-yield bolts. They stretched permanently the first time; reused, they cannot deliver the designed clamping force and may neck or snap — taking the new gasket with them either way.
  • Running head bolts down with an impact or out of sequence. The head must seat progressively from the center outward in stepped passes, or it warps around the first tight corner — you can ruin the machining you just paid for in thirty seconds.
  • Fixing the gasket but not the overheat that killed it. A stuck thermostat, dead fan, or clogged radiator left in place cooks the replacement gasket the same way — the comeback arrives with the same symptoms and less goodwill.
🔧 Shop tip Bag and label the old head bolts and show them to the customer next to the new set. It makes the one-time-use TTY explanation land instantly and heads off the 'why am I paying for bolts' conversation.
✅ Check yourself
White sweet-smelling steam from the exhaust, steady coolant loss, and no external leak. What is the path, and what is the cheapest confirmation?

Coolant is entering a combustion chamber past the gasket breach and being boiled out the tailpipe — that is the steam and the loss with dry ground. The chemical block test is the cheap confirmation; a cooling system pressure test that loses pressure with nothing wet outside supports it. Expect the plug in the affected cylinder to look steam-cleaned.

A head gasket you replaced two weeks ago is back with identical symptoms. List what was missed, in order of likelihood.

First, surfaces: warpage never machined or prep never verified with a straightedge. Second, the root cause still active: the original overheat condition — fan, thermostat, radiator — or detonation still killing gaskets. Third, a crack in the head or block that was never pressure-checked. Fourth, torque procedure errors or reused TTY bolts. The gasket brand is at the bottom of the list.

Why do TTY bolts clamp better than standard bolts, and why can they never be reused?

Torqueing them into their yield range stretches each bolt into the same controlled tension, so clamping force is far more uniform across the head — critical on aluminum heads that grow and shrink with every heat cycle. That stretch is permanent: a reused TTY bolt starts longer and weaker, cannot reach designed clamp load, and risks breaking — so new bolts are part of the job, every time.

Engine Repair & Rebuild training photo

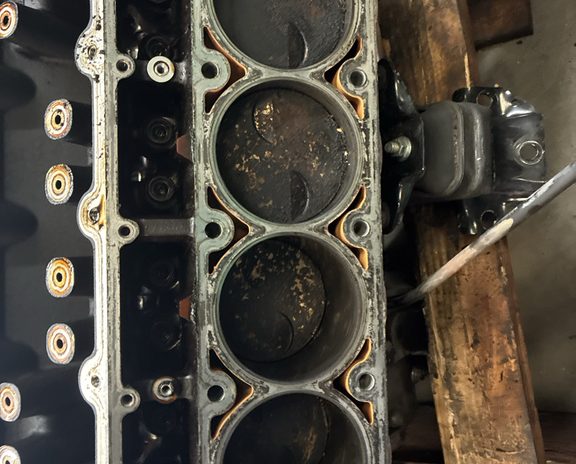

Block deck with the head off, pistons and gasket surface tell the failure story.

Valvetrain

9 concepts

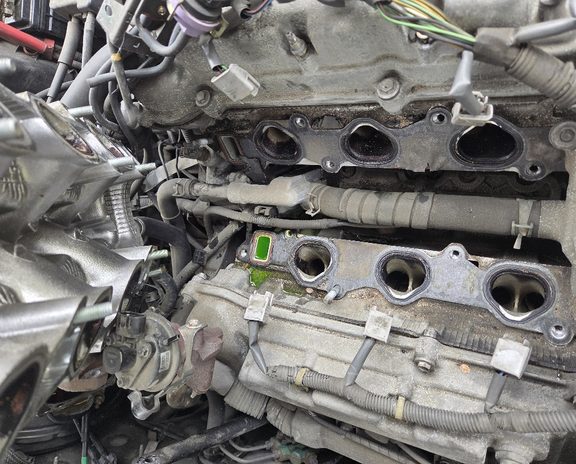

The valvetrain converts cam lobe profiles into precisely timed valve events thousands of times per minute.

At a glance — know these cold
  • Top-end ticking is almost always valvetrain. Hydraulic lifters may not be pumping up (worn or oil-starved). On mechanical valvetrains, valve lash may be out of spec. Rocker arms wear at pivot points. Camshaft lobe wear is a serious finding — usually indicates broader failure.
  • Valve lash spec is temperature-dependent — check the manufacturer's spec for hot or cold measurement. At TDC compression on each cylinder, both valves are closed. A feeler gauge of spec thickness should slide between rocker and valve stem with slight drag. Adjust and lock the adjusting screw.
  • Brief cold-start lifter noise is common and often benign — oil drains from the lifter overnight and needs to re-pressurize. If it persists after warmup or is severe, the lifter check valve or camshaft is degrading. Also verify oil pressure at cold start.
  • A worn cam lobe means the lifter/follower running on it is also worn. Replacing just the cam causes rapid new-cam failure. Also, root cause is often oil starvation (blocked passages, low pressure, wrong oil viscosity) — must be corrected or the new cam fails.
  • Stem-to-guide clearance beyond spec allows oil consumption and valve breakage risk. Thin margins (worn valve heads) can burn through. Bent stems cause seating failure. All three must be checked; failure of any is a valve replacement (or, sometimes, a head replacement).
  • Seats must be cut to spec angle (45° common, some 30°) and width. Lapping (rotating valve on seat with valve grinding compound) creates the final mating surface. Vacuum test after: pour solvent in ports — if it doesn't leak past the closed valves, sealing is good.
  • Valve stems and valvetrain heat up during operation. Without clearance, thermal expansion would hold valves open, causing burnt valves and compression loss. Hydraulic lifters automate this; solid-lifter engines require periodic manual adjustment to maintain spec.
  • Valve springs weaken with cycles. Free height drop indicates weakening. Squareness ensures even pressure distribution — canted springs cause uneven guide wear. Pressure test at installed and open lengths is the definitive check. Failed springs on high-RPM engines cause valve float and interference damage.
  • Valve issues can pass a static compression test but fail under dynamic running conditions. Recessed seats or worn guides cause intermittent sealing loss, showing as random misfires. Confirmed with leakdown testing at rest and — sometimes — with a running compression test.

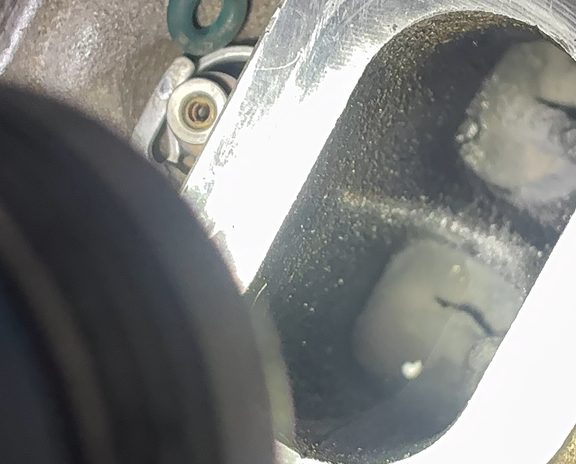

The valvetrain converts cam lobe profiles into precisely timed valve events thousands of times per minute, and it does it with clearances measured in thousandths of an inch. It is also the part of the engine you diagnose with your ears first, because valvetrain trouble almost always talks before it fails. Knowing what the noises mean and how to measure what you find is core engine-builder skill.

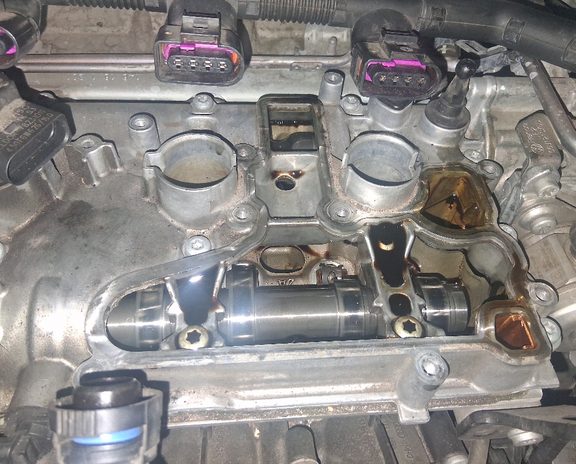

Reading Top-End Noise

A light ticking from the top of the engine at idle is almost always valvetrain. The usual suspects: a worn hydraulic lifter that will not pump up or is oil-starved, valve lash out of spec on engines with mechanically adjustable valvetrains, a collapsed lash adjuster, or wear at a rocker arm pivot or a camshaft lobe. Cam lobe wear is the serious finding on that list, it usually signals a broader failure in progress rather than an isolated noisy part.

Not every tick is a repair. A hydraulic lifter that clatters on cold start and quiets within 30 to 60 seconds has usually just bled down overnight: oil drained out of the lifter while the engine sat, and it needs a moment to re-pressurize. Often the check valve inside the lifter is slightly weak or oil is slow returning to the lifter gallery. If the noise is brief and the engine quiets completely, monitor it. If the noise persists after warmup or gets severe, the lifter check valve or the camshaft itself is degrading, and it is also worth verifying oil pressure at cold start while you are at it.

When you find a cam lobe with visible pitting and scoring, there is one correct repair: replace the camshaft and every lifter or follower that runs on it, together. A worn lobe means its follower is worn too, and a worn follower will chew up a brand-new cam in short order. Then find the root cause, cam and lifter failures usually trace back to oil supply problems: blocked passages, low pressure, or the wrong oil viscosity. Fix the oiling problem or the new cam dies the same death.

Valve Lash: Why It Exists and How to Set It

Valve lash exists because metal grows when it gets hot. Valve stems and the whole valvetrain expand at operating temperature, and the lash clearance is what absorbs that growth. Without it, expansion would hold the valves slightly off their seats when hot, and a valve that cannot fully close cannot shed heat into its seat, the result is burnt valves and compression loss. Hydraulic lifters manage this clearance automatically; solid-lifter engines need periodic manual adjustment to stay in spec.

Measuring lash correctly starts with the spec sheet, because lash is temperature-dependent and manufacturers specify whether to measure hot at operating temperature or cold. Set each cylinder to TDC on its compression stroke, where both valves are fully closed, and slide a feeler gauge of the specified thickness between the rocker and the valve stem tip. Correct lash lets the gauge pass with a slight drag. Adjust the screw until the drag is right, then lock the adjuster and re-verify, tightening the locknut can shift the setting.

Valve Job Fundamentals: What to Measure, What to Cut

During a valve job, three measurements decide whether a valve lives or dies, and eyeballing is not one of them. First, valve stem-to-guide clearance: beyond spec, it lets oil migrate down the guide into the chamber and, worse, allows the valve to rock on its seat with a real risk of valve breakage. Second, margin thickness, the flat edge around the valve head: a valve worn or ground to a thin margin has no thermal mass left at the edge and will burn through. Third, stem straightness: a bent stem can never seat concentrically. Check all three against manufacturer specs; failing any one means valve replacement, and in some cases the guide wear or seat condition makes head replacement the economical call.

The seats get equal attention. Grind or cut each seat to the specified angle, 45 degrees is most common, with some engines using 30, and to the specified seat width. Then lap each valve to its seat by rotating it against the seat with valve grinding compound, which produces the final gas-tight mating surface. Verify your work with a solvent test: pour solvent into the ports with the valves closed, and if nothing seeps past into the chamber, the sealing is good.

Valve springs wear out invisibly, so inspect them by measurement, not appearance. Check free height against spec, a shortened spring has weakened. Check squareness on a flat plate with a machinist's square, because a canted spring loads the valve unevenly and accelerates guide wear. Test pressure at the specified installed and open lengths on a spring tester, which is the definitive check. And look closely for cracks or wear at the spring ends. Weak springs matter most at high RPM, where they allow valve float, and on an interference engine valve float can end in valve-to-piston contact.

The Misfire That Passes Every Test

Here is a diagnosis that separates experienced techs from parts-swappers: a high-mileage engine sets P0300, random misfire. Compression tests fine. Ignition checks out. Fuel checks out. What is often overlooked is the valvetrain, specifically valve seat recession or worn valve guides causing intermittent poor sealing. A static compression test spins the engine slowly at cranking speed, and a valve that seals adequately under those conditions can lose its seal intermittently under real running dynamics. This shows up especially on engines with hardened-seat wear or original guides at high mileage.

Confirm it with a leakdown test at rest, and when that is inconclusive, a running compression test, which reads cylinder pressure with the engine actually operating and exposes dynamic sealing problems a cranking test hides.

📋 Valvetrain measurement reference
MeasurementTypical rangeFailure meaning
Valve lash, solid lifter~0.006–0.010 in. intake; ~0.010–0.014 in. exhaustToo tight = burnt valves; too loose = noise and accelerated wear
Stem-to-guide clearance~0.001–0.003 in.Beyond = oil consumption, valve rock, breakage risk
Valve margin minimum~1/32 in. (0.030 in.)Thinner has no thermal mass and burns through
Seat angle and width45° common (some 30°); ~1/16 in. intake, ~3/32 in. exhaust widthToo wide traps carbon; too narrow transfers heat poorly
Spring squarenessWithin about 1/16 in. lean on a flat plateCanted spring side-loads the valve and eats guides
Hydraulic lifter cold noiseQuiet within 30–60 secondsPersistent tick warm = lifter or oiling problem

Every value here is engine-specific — the ranges tell you what to measure; the service manual supplies the pass/fail number. Lash specs also state hot or cold, and it matters.

🔩 Chasing a top-end tick
  1. Check oil level, condition, and pressure first — a low level or wrong viscosity makes healthy lifters clatter, and no valvetrain diagnosis survives an oil-starved engine.

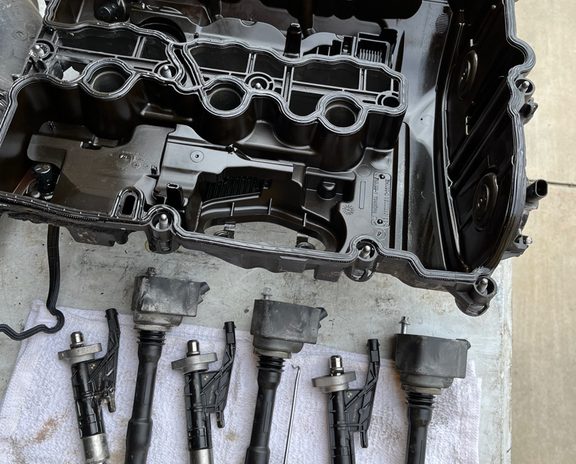

  2. Localize with a stethoscope or long screwdriver along the valve cover. Valvetrain ticks at camshaft speed — half of crankshaft RPM — which separates it from bottom-end knocks at crank speed.
  3. Cold-start test: a tick that fades within 30–60 seconds is lifter bleed-down, usually monitor-only; a tick that persists warm earns a valve cover removal.
  4. Under the cover, measure instead of looking: check lash on adjustable trains against spec, inspect rocker tips and pivots, and examine every cam lobe for scoring and pitting with each follower on its base circle.
  5. If a lobe is going, replace the camshaft and every lifter or follower that runs on it as a set — then find the oiling root cause (pressure, blocked passages, wrong viscosity), because a new cam on an unfixed oiling problem dies the same death.
  6. If the valvetrain checks quiet but a misfire persists on a healthy-testing engine, run a running compression test — valve seat recession and worn guides seal at cranking speed and leak under real operating dynamics.
⚠️ Comeback killers
  • Replacing one noisy lifter on a scored cam lobe. The worn lobe wipes the new lifter in short order — cam and followers are a matched set, replaced together with the oiling cause fixed.
  • Setting lash at the wrong temperature. Specs are written hot or cold for a reason — clearance changes as the valvetrain grows, and a 'perfect' cold setting on a hot-spec engine runs tight and burns exhaust valves.
  • Selling a lifter job for a 30-second cold-start tick. Brief clatter that fades as bled-down lifters refill is normal aging behavior — monitor it. The repair conversation starts when noise persists warm.
  • Judging valve springs by appearance. Springs weaken invisibly — free height, squareness, and tested pressure at installed height are the only verdicts, and weak springs float valves at RPM, which on an interference engine can mean piston contact.
🔧 Shop tip When you replace a cam and lifters, cut open the old oil filter and inspect the pleats. Metal in the filter tells you how far the debris traveled and whether the oiling system needs flushing before the new parts go in.
✅ Check yourself
A tick repeats at half of engine RPM and persists when warm. Where is it, and why half speed?

The valvetrain. The camshaft turns once for every two crank revolutions on a four-stroke, so anything driven by it — lifters, rockers, lash, lobes — announces itself at half crank speed. Persisting warm rules out normal lifter bleed-down, so the cover comes off for lash checks and lobe inspection.

Why does too-tight valve lash burn exhaust valves?

The valve sheds most of its heat through face-to-seat contact while closed. Lash absorbs thermal growth; with too little, the hot expanded valvetrain holds the valve slightly off its seat, the heat path is broken, and the exhaust valve — already the hottest part — erodes and burns. Compression loss and a dead cylinder follow.

A high-mileage engine sets P0300 but passes compression, ignition, and fuel testing. What is left, and which test exposes it?

Dynamic valve sealing — seat recession or worn guides that seal fine at slow cranking speed but leak intermittently under running conditions. A running compression test reads the cylinder while the engine operates: idle readings around half of cranking value and a healthy snap reading are normal, and deviations expose the breathing or sealing fault the static test missed.

Engine Repair & Rebuild training photo

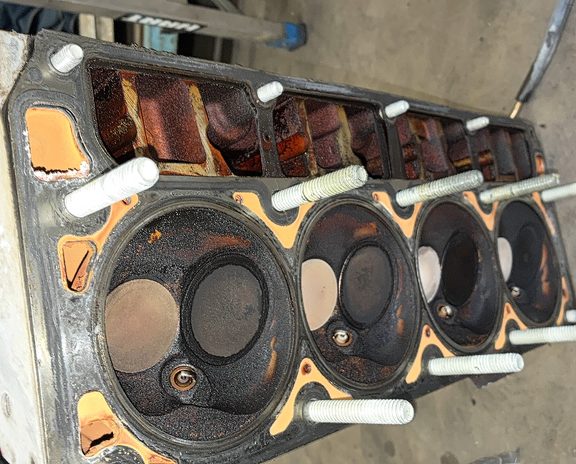

Cylinder head port with the valves in view — where compression is made or lost.

Bottom End

9 concepts

The bottom end, crankshaft, rods, pistons, bearings, and the cylinder bores they live in.

At a glance — know these cold
  • 0.0054" undersized means significant wear. The crank must be reground to a standard undersize (0.010", 0.020", or 0.030" under) at a machine shop, then paired with matching undersize bearings. Reusing a worn crank causes rapid bearing failure.
  • Plastigage is the field standard. Lay a piece across the journal, torque the rod cap to final spec (do NOT rotate crank), then remove. The crushed width against the scale on the Plastigage envelope gives clearance. Typical spec: 0.0010-0.0025". Out of spec = wrong bearing or worn crank.
  • End gap too small causes rings to bind and score cylinder walls when they thermally expand. Too large causes blow-by. Each ring must be measured in the actual cylinder it will run in (bore variance) and filed if necessary. Top rings typically run 0.004" per inch of bore diameter.
  • Ring compressors are non-negotiable — even a partial ring hanging out will break as the piston enters the bore. Wooden or plastic tap on the piston crown prevents damage. Watch the rod bolts to avoid scoring the crank journal (sleeves or tape on the bolts helps).
  • Sequenced torquing prevents warping the block and misaligning the crank. Modern engines with cross-bolted or 4-bolt mains have specific sequences. Multi-pass torquing (30%, 60%, 100% of spec, plus angle if TTY) ensures even clamping.
  • Cylinder walls wear more where the rings travel (upper 2/3 of bore) than below the ring travel zone. Measuring at multiple points reveals taper. Typical acceptable taper is under 0.005". Excessive taper causes rings to lose seal in the worn zone — requires boring to a standard oversize.
  • Even bearing wear across the surface is normal. Uneven wear means uneven loading — bent connecting rod, misaligned journal (crank not straight), or off-center bearing clearance during installation. Installing new bearings without correcting the cause guarantees repeat failure.
  • Full-floating pins have a slight clearance in the piston (secured by wire circlips). Press-fit pins are heat-installed — the piston is heated to expand the pin bore, then the pin is pressed in. Getting this wrong (pressing a floating design or vice versa) damages parts. Always verify manufacturer type.
  • Break-in seats rings and finishes bearing wear-in. Varying RPMs vary cylinder pressures and helps rings seat. Avoiding sustained loads prevents glazing before rings seat. Early oil changes flush break-in debris. Some cam manufacturers (flat-tappet especially) require specific procedures with high-ZDDP break-in oil.

The bottom end, crankshaft, rods, pistons, bearings, and the cylinder bores they live in, is where measurement discipline decides whether a rebuild lasts 200,000 miles or 200. Every clearance down here is specified in thousandths, and every shortcut shows up later as a knock, a spun bearing, or a smoking tailpipe. This is precision work, and the tools and procedures below are how it gets done right.

Measuring the Crank and Bearing Clearances

Every rebuild starts with a micrometer on the crankshaft journals. Suppose a main journal measures 2.4941 inches against a new spec of 2.4995: that journal is 0.0054 inch undersize, which is significant wear, not something to polish out or shim with heavier oil. The correct path is to have a machine shop regrind the crank to the next standard undersize, typically 0.010 inch under, with 0.020 and 0.030 available for worse wear, and then install matching undersize bearings. Run a worn crank on standard bearings and the excessive clearance hammers the new bearings to death quickly.

Once the crank and bearings are selected, verify the actual assembled clearance with Plastigage, the field standard. Lay a strip of Plastigage across the clean, dry journal, install the bearing and cap, and torque the cap to final spec, and critically, do not rotate the crank with Plastigage in place. Remove the cap and compare the width of the crushed strip against the scale printed on the Plastigage envelope; wider crush means tighter clearance. Typical rod bearing clearance runs 0.0010 to 0.0025 inch. A reading out of spec means the wrong bearing shell or a worn journal, and it must be resolved before assembly continues.

Bearings also testify about problems beyond simple wear. Used bearings should wear evenly across their surface. A rod bearing worn on only one side, top or bottom half, means the load was uneven: a bent connecting rod, a crank journal out of alignment because the crank is not straight, or improper clearance at installation. Dropping new bearings onto an uncorrected cause guarantees a repeat failure, so diagnose the why before you install the replacement.

Bores, Rings, and Piston Installation

Cylinder walls do not wear evenly, they wear where the rings travel, which is roughly the upper two-thirds of the bore, while the area below the ring travel zone stays close to original size. Measure with a dial bore gauge, or a telescoping gauge read with a micrometer, at the top, middle, and bottom of each bore; the difference between them is the taper. Acceptable taper typically stays under 0.005 inch. Beyond that, rings expand and contract with every stroke chasing the changing bore diameter, lose their seal in the worn zone, and the fix is boring the block to a standard oversize with matching pistons.

Ring end gap is the measurement inexperienced builders skip and regret. Place each ring square in the cylinder, use the piston to push it down evenly, and measure the gap with a feeler gauge. Top rings typically spec around 0.010 to 0.020 inch, and a useful rule of thumb is about 0.004 inch of gap per inch of bore diameter. The gap exists because rings grow with heat: a gap too small lets the ring ends butt together as they expand, binding the ring and scoring the cylinder wall, while a gap too large bleeds combustion pressure past as blow-by. Measure every ring in the actual cylinder it will run in, because bores vary, and file the gaps to spec when necessary.

Piston pin fit is design-specific, so verify the manufacturer's arrangement before touching a press. Full-floating pins should slide through the piston with a light push at room temperature and are retained by wire circlips. Press-fit pins require heating the piston to expand the pin bore, then pressing the pin in. Force a floating design or cold-press an interference design and you damage parts.

Installing the piston-and-rod assemblies takes two protections. A ring compressor is non-negotiable: even one ring partially hanging out of the compressor will snap as the piston enters the bore. Tap the piston in with a wooden or plastic hammer handle on the crown, never steel, while guiding the rod's big end so the rod bolts cannot drag across and score the crank journal. Slipping sleeves or tape over the rod bolts is cheap insurance.

Torquing the Mains and Breaking In the Build

Main bearing caps clamp the crankshaft's spine, and how you torque them determines whether the crank spins in a straight line. Follow the manufacturer's sequence, on a typical V8 that means the inner main caps first, then working outward in the specified pattern, and torque in multiple passes, roughly 30 percent, then 60, then 100 percent of spec, plus the angle turn if the bolts are torque-to-yield. Random order or a single full-torque pass can warp the block's main saddle alignment and bind the crank. Engines with four-bolt or cross-bolted mains have their own specific sequences; look them up every time.

The rebuild is not finished when the engine starts, it is finished when break-in is complete. Follow the engine or cam manufacturer's break-in specification. The general pattern: vary the RPM constantly during the first 500 to 1000 miles, because changing cylinder pressures is what seats the rings against the fresh cross-hatch. Avoid sustained steady loads, which let the rings ride one pressure and glaze the bores before seating. Change the oil at 500 and again at 1000 miles to flush out break-in debris. And where specified, use a dedicated break-in oil, flat-tappet camshafts in particular demand high-ZDDP break-in oil and a specific cam break-in procedure, or the new lobes wipe within minutes.

📋 Bottom-end clearance reference
MeasurementTypical rangeOut-of-spec consequence
Rod bearing clearance0.0010–0.0025 in.Tight = wiped bearing; loose = knock and low oil pressure
Main bearing clearance0.0015–0.0030 in.Same failure logic on the crank's spine
Crank regrind undersizes0.010 / 0.020 / 0.030 in.Each requires matching undersize bearings
Cylinder taper limit~0.005 in. maxBeyond = bore to oversize with new pistons
Top ring end gap~0.010–0.020 in.; rule of thumb 0.004 in. per inch of boreTight = ring butt and scuffing; loose = blow-by
Crank end play~0.002–0.010 in.Excess = thrust bearing wear

Field-typical ranges for common gas engines — every build runs on the manufacturer's numbers, measured and recorded on the build sheet.

🔩 Plastigage bearing clearance check
  1. Wipe the journal and bearing shell clean and dry — oil under the strip distorts the crush and the reading.
  2. Lay a strip of Plastigage across the full width of the journal, slightly off center.
  3. Install the cap and torque to full spec in the proper steps. Do not rotate the crank — turning it smears the strip and the reading is garbage.
  4. Remove the cap and compare the widest point of the crushed strip against the envelope scale. Wider crush means tighter clearance; the scale converts width to thousandths.
  5. If it reads out of spec, stop and find out why before assembly continues: micrometer the journal against the bearing size — a wrong shell, a worn or reground journal, or debris under the shell are the usual answers.
  6. Clean every trace of Plastigage off, oil the bearing with assembly lube, and do the final assembly. Record the clearance on the build sheet while it is in front of you.
⚠️ Comeback killers
  • Rotating the crank with Plastigage in place. The strip smears, the reading is meaningless, and the check starts over — it is the one rule of the product.
  • Installing standard bearings on a worn or reground crank. A journal 0.005 in. undersize on standard shells leaves double clearance — the oil film can't support the load, and the fresh bearings hammer out in short order. Undersize journals take undersize bearings, matched.
  • Skipping ring end-gap measurement because the rings came 'pre-gapped.' Bores vary — a gap that is right in one cylinder butts in a tighter one, and butted ring ends at temperature scuff the bore and break the ring. Every ring gets measured in its own cylinder.
  • Careless piston installation: no ring compressor, a steel hammer on the crown, or unprotected rod bolts dragged across the crank journal. Each one turns a precision assembly into a scored journal or a snapped ring in a single second.
🔧 Shop tip Keep a build sheet and write down every measured clearance, journal size, ring gap, and torque value as you go. Six months later when a question comes back, that sheet is the difference between an answer and a tear-down.
✅ Check yourself
Plastigage shows 0.004 in. on a rod bearing with a 0.0010–0.0025 in. spec. What are the candidate causes, and in what order do you check them?

Clearance is nearly double the limit. First micrometer the journal — a worn or previously ground crank is most likely. Then verify the bearing shells are the size the crank actually needs (standard shells on an undersize grind produce exactly this). Last, check for stacked tolerance or a mis-machined cap. Never shim it or 'run thicker oil' — resolve the mismatch before the engine goes together.

A used rod bearing shows wear concentrated on one half only. What does that pattern testify to?

Uneven loading, not normal wear. The candidates are a bent connecting rod, a crank that is not straight, or improper clearance at the original assembly. Installing new bearings without correcting the cause guarantees the same pattern again — the bearing is the witness, not the problem.

Why does ring end gap exist at all, and what happens at each extreme?

Rings grow with heat, and the gap is the room they grow into. Too tight and the ends butt as the ring expands — the ring binds against the cylinder wall, scuffs it, and can shatter. Too loose and combustion pressure leaks past as blow-by: down on power, oil contamination, crankcase pressure. About 0.004 in. per inch of bore is the classic rule; the spec sheet is the law.

Engine Repair & Rebuild training photo

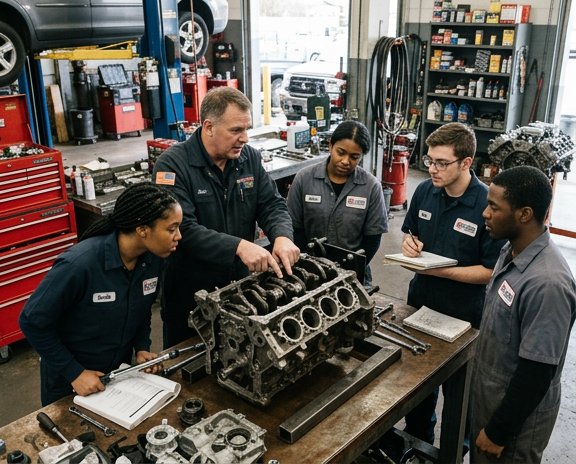

Engine class, tearing down a V8 block and reading every wear surface.

Oil Systems

8 concepts

Oil pressure is the heartbeat of the engine: every bearing, lifter, and cam lobe survives on a pressurized film of oil a few ten-thousandths thick.

At a glance — know these cold
  • Oil consumption without external leaks is being burned or ingested. PCV failure sucks oil into intake. Bad valve seals leak oil past guides during shutdown (start smoke). Worn rings let oil past on power strokes. Turbo seals show smoke under load. Test systematically.
  • Low oil pressure means either the pump isn't producing (pump wear, relief stuck open) or the engine is passing too much oil (worn bearings, wrong viscosity). Check oil level and condition first (cheapest), then measure. Persistent low pressure with correct oil often means bearing wear.
  • A dry pump won't self-prime immediately — priming prevents dry startup. A loose or improperly positioned pickup tube causes air ingestion and pressure loss. Gaskets between pump and block must seal correctly. All three are common failure points on rebuilds.
  • If a properly installed gasket keeps failing, look upstream — excessive crankcase pressure is blowing it out. PCV system failure is most common (stuck valve, plugged hose, blocked breather). Worn rings can also cause chronic positive pressure. Fix the pressure source first.
  • The PCV system routes crankcase blow-by (unavoidable combustion gases past the rings) into the intake for re-burning, reducing emissions and preventing pressure buildup that would push oil past seals. A failed PCV causes gasket leaks, oil consumption, and elevated crankcase pressure.
  • A dry rebuild that starts and runs without oil pressure will destroy bearings in seconds. Priming (or on many engines, spinning the pump directly with a drill through the distributor hole) charges the system. Then cranking without spark verifies pressure before actual startup.
  • First start after rebuild is the highest bearing-failure-risk moment. Oil pressure must be verified BEFORE the engine runs on its own — install a mechanical gauge, crank until pressure builds, then release for start. No pressure = stop cranking immediately.
  • Fuel-diluted oil loses viscosity and lubrication capacity. Short trips (engine never gets hot enough to evaporate fuel that condenses during warmup) is a common cause. Direct-injection engines (like Ford EcoBoost, GDI engines) can have significant fuel dilution as a known issue, requiring shortened oil intervals.

Oil system diagnosis is about two questions, where is the oil going, and why is the pressure wrong, and rebuild survival depends on getting oil moving before the engine ever fires. Master this system and you prevent the most expensive failures in the trade.

Finding Where the Oil Goes

When an engine loses oil with no drip on the floor and no visible external leak, the oil is being burned or ingested, and there are four classic paths. A failed PCV system pulls oil mist directly into the intake. Worn valve stem seals let oil seep down the guides while the engine sits, producing a puff of blue smoke at startup. Worn rings pass oil into the chamber under power, showing blue smoke on acceleration. And on turbocharged engines, failed turbocharger shaft seals feed oil into the charge air, showing blue smoke under boost. The smoke timing is your roadmap, test each candidate systematically instead of guessing.

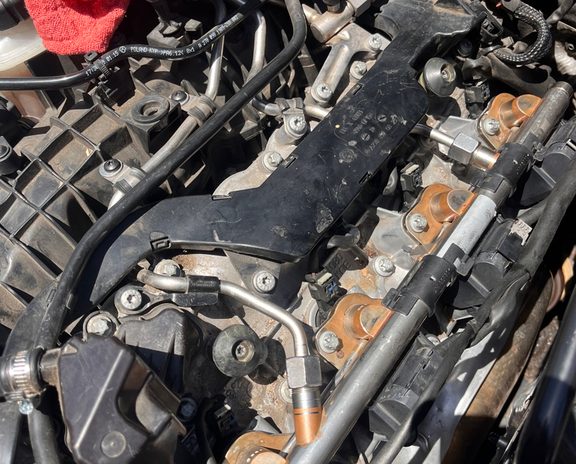

Oil can also be contaminated rather than consumed. Fuel dilution thins the oil, cutting its viscosity and its ability to protect bearings. The common cause is short-trip driving: cold-start enrichment puts extra fuel into the cylinders, some condenses past the rings into the pan, and an engine that never fully warms up never evaporates it back out. Leaky injectors that dribble while the engine is off do the same thing, and heavy blow-by conditions on direct-injection engines wash fuel down the cylinder walls. Fuel dilution is a known issue on DI engines such as Ford EcoBoost and other GDI designs, and the practical answer there is shortened oil change intervals.

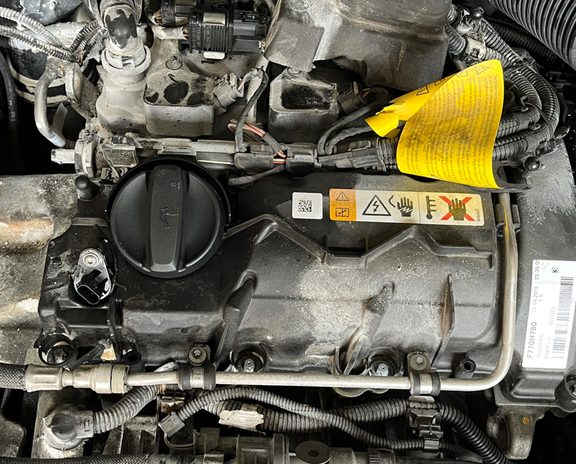

One more consumption-adjacent pattern: a valve cover gasket that keeps leaking no matter how many times you replace it. If the gasket is properly installed and keeps blowing out, stop replacing it and look upstream at crankcase pressure. A failed PCV system, a stuck valve, a plugged hose, or a blocked breather, is the most common cause of positive crankcase pressure, and badly worn rings pumping blow-by into the case do it too. Fix the pressure source first; the gasket was never the problem.

That leads to what the PCV system actually does: it routes crankcase blow-by, the combustion gases that unavoidably slip past the rings, back into the intake to be re-burned, and in doing so maintains a slight vacuum in the crankcase. That vacuum is what keeps oil from being pushed past every seal and gasket. A dead PCV system means gasket leaks, oil consumption, and elevated crankcase pressure all at once.

Diagnosing Low Oil Pressure

Take a warm engine showing 8 psi at idle against a 20 psi minimum spec. Low pressure comes from one of two directions: the pump is not producing enough, or the engine is bleeding off more than the pump can supply. On the supply side, suspect oil pump wear or a pressure relief valve stuck open, dumping output back to the pan. On the demand side, worn bearings with excessive clearance let oil escape the journals faster than it can be fed, and this is the classic cause on high-mileage engines. Oil itself belongs in the equation too: the wrong viscosity, oil thinned by fuel dilution, or simply a low oil level all read as low pressure.

Diagnose cheapest-first. Check the oil level and condition before anything else, then verify actual pressure with a mechanical gauge rather than trusting the dash sender. If pressure is persistently low with the correct oil at the correct level, the finding usually points to bearing wear, and that is an internal repair conversation, not an oil additive conversation.

Rebuild Lubrication: Priming, Pump Installation, and First Start

The first sixty seconds of a rebuilt engine's life carry the highest bearing-failure risk it will ever face, because a freshly assembled engine full of dry galleries can start, rev, and destroy its bearings before the pump ever delivers oil. The defense is priming. Before startup, spin the oil pump with the engine off, using a priming tool, or on many engines a drill driving the pump through the distributor hole, until pressure shows at the gauge and oil reaches the galleries. Then crank the engine with spark and fuel disabled until oil pressure is confirmed on the gauge. Only then does it get spark.

Installing the oil pump itself has three failure points that show up constantly on rebuilds. Prime the pump with assembly lube or oil before installation, because a dry pump will not necessarily self-prime instantly and a dry startup can wipe it. Verify the pickup tube is properly sealed and positioned, a loose or misplaced pickup sucks air and kills pressure. And confirm the correct pump-to-block gasket is fitted where applicable, since a leak at that joint bleeds pressure invisibly inside the engine.

At first start, know your pass/fail criteria in advance. Pressure should build within seconds of cranking, expect at least 10 psi at cranking speed on a mechanical gauge. If no pressure appears, stop cranking immediately and diagnose. Never let a rebuilt engine run on its own until oil pressure has been proven; an engine running without pressure destroys its new bearings in seconds.

📋 Oil pressure and consumption reference
ConditionExpectedConcern
General pressure rule~10 psi per 1,000 RPMBelow on a mechanical gauge = investigate
Hot idle pressure~20–25 psi typical (some engines spec less)Sustained single digits = bearing risk
Fresh rebuild, crankingPressure within seconds, ≥10 psiNo pressure = stop cranking immediately
Blue smoke at startupValve stem sealsOil seeped down the guides overnight
Blue smoke on accelerationRingsOil pulled past under power
Blue smoke under boostTurbo shaft sealsOil into the charge air
Parasitic draw on oil: fuel dilutionShort-trip and DI enginesThinned oil reads as low pressure and poor protection

Dash gauges and lights are slow and vague — verify every pressure complaint with a mechanical gauge at the sender port. Minimum specs vary by engine; verify service data.

🔩 Low oil pressure diagnosis, cheapest first
  1. Check level and condition before anything: overfull or low, a fuel smell (dilution), or the wrong viscosity each produce a low-pressure complaint with nothing mechanically wrong.
  2. Tee a mechanical gauge into the sender port and compare against the complaint. A healthy mechanical reading with a low dash reading means a failed sender — a common and cheap conclusion to an alarming symptom.
  3. Read the pattern on the real gauge: low at hot idle but healthy at RPM points at clearance bleed-off — worn bearings — since the pump keeps up once it spins faster. Low everywhere points at the pump, pickup, or relief valve.
  4. Cut open the oil filter and read the pleats: glitter or bearing material means worn clearances are the story and tells you how far along it is.
  5. If the pump side is suspect, drop the pan: a sludge-blocked pickup screen, a stuck-open relief valve, or measurable pump wear are all visible from there.
  6. Deliver the verdict from evidence: correct oil at the correct level with a verified low reading and metal in the filter is a bearing-wear conversation — a repair decision, not an additive.
⚠️ Comeback killers
  • Replacing the oil pump first. The pump is last on the probability list, behind level, viscosity, fuel dilution, the sender, and worn bearings — it is the easy part to blame and the rare part to fail.
  • Trusting the dash gauge or light. Senders lie in both directions, and warning lights trip far too late to protect anything — a mechanical gauge at the sender port is the arbiter before any repair decision.
  • Masking bearing wear with thicker oil. Heavier viscosity props up the pressure reading while the clearances keep growing — it buys a quieter gauge, not a healthier engine, and it delays the honest conversation.
  • Starting a fresh rebuild without priming. Dry galleries plus a first-start rev destroys new bearings in seconds — prime the pump, crank with spark and fuel disabled until pressure shows, and only then let it fire.
🔧 Shop tip Keep a dedicated mechanical oil pressure gauge in your rebuild kit and plumb it in for every first start. Dash gauges and warning lights respond too slowly and read too vaguely to protect fresh bearings.
✅ Check yourself
A warm engine shows 8 psi at idle but 35 psi at 2,500 RPM. What does that pattern say?

The pump can generate pressure — it proves that at RPM — but at idle speed its output bleeds through somewhere. Worn bearing clearances are the classic cause on a high-mileage engine; hot thin oil makes it worse. It is the opposite of a dead pump: this is an engine quietly reporting its bearing condition.

A valve cover gasket keeps leaking no matter how many times it is replaced. What is the upstream cause?

Crankcase pressure. A failed PCV system — stuck valve, plugged hose, blocked breather — stops relieving blow-by, pressure builds, and oil gets pushed past every gasket and seal on the engine. Heavy ring blow-by does the same. Fix the pressure source; the gasket was never the problem, and neither is the next one.

Why does short-trip driving dilute the oil with fuel, and what is the practical mitigation?

Cold-start enrichment puts extra fuel in the cylinders, some condenses past the rings into the pan, and an engine that never fully warms up never evaporates it back out — so fuel accumulates and thins the oil, cutting its protection. It is a known pattern on DI engines especially. The mitigation is shortened change intervals and, where possible, occasional longer fully-warm drives.

Engine Repair & Rebuild training photo

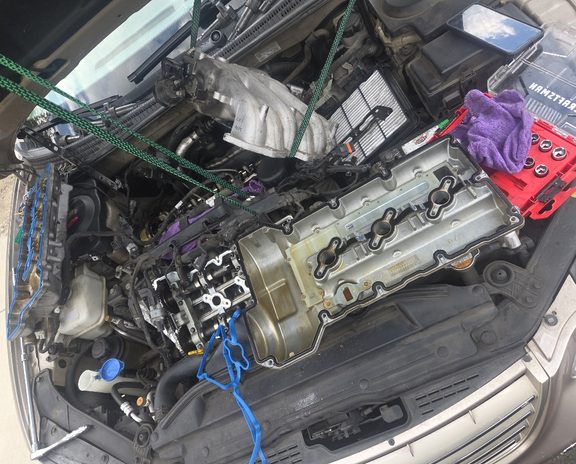

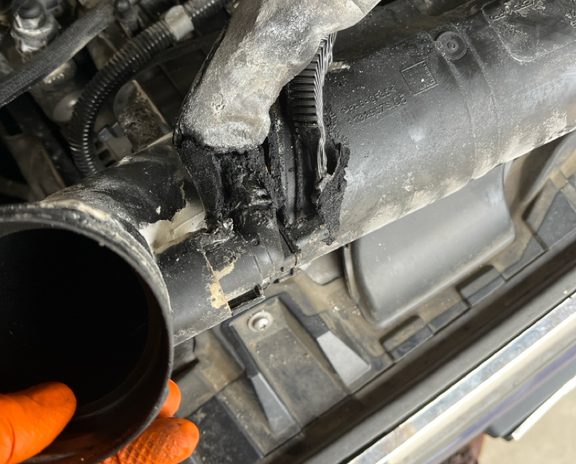

Hoses off and set aside while chasing a valve-cover oil leak.

Cooling

7 concepts

The cooling system carries away roughly a third of the engine's combustion heat, and it only takes one weak link, a lazy fan, a stuck thermostat.

At a glance — know these cold
  • Load-dependent overheating means the system can handle idle demand but not full flow requirements. Water pumps with worn impellers can cavitate at high RPM. Partial radiator blockage reduces flow capacity. Collapsed lower hoses restrict at high pump vacuum. Head gasket issues can push out on load.
  • If coolant isn't flowing to the lower hose, the thermostat is stuck closed or there's a blockage. The engine heats the top hose but no return flow means no radiator dissipation. Replace thermostat first, then investigate further if the issue persists.
  • Trapped air causes hot spots, overheating, and poor heater performance. Modern engines often have bleeder valves that must be opened during fill. Running to operating temp cycles the thermostat and pushes air toward the top. Some vehicles (BMW, VW) require specific bleeding procedures with vacuum tools.
  • Milky coolant means oil is entering the cooling system. Head gasket is most common. Cracked blocks or heads can also do it. Some vehicles have integrated transmission or engine oil coolers in the radiator — if these fail internally, ATF or oil mixes with coolant. All are serious findings.
  • At idle, airflow through the radiator depends entirely on the cooling fan. If the fan isn't running when it should, temps climb. Highway speeds have ram-air cooling. Diagnose the fan system: mechanical clutch (should engage when hot), electric fan (verify with scan tool bidirectional or direct voltage).
  • Thermostats have a heat-sensing element (wax pellet or bimetallic) that must be exposed to engine coolant, not the cool radiator return. Reversed installation makes the thermostat respond to the wrong flow — usually stuck closed relative to what's needed — causing overheating.
  • Water pumps have a weep hole below the seal — early seal failure drips through this hole (feature to warn before catastrophic failure). If a new pump weeps quickly, either the pump was defective (rare) or installation error (bolts not evenly torqued, gasket damaged during install, wrong gasket).

The cooling system carries away roughly a third of the engine's combustion heat, and it only takes one weak link, a lazy fan, a stuck thermostat, a tired pump, for that heat to start warping heads and killing gaskets. The diagnostic gold here is in the pattern: when the engine overheats tells you why it overheats. Learn the patterns and the hardware, and cooling diagnosis becomes fast and certain.

Diagnosing by Pattern: When It Overheats Tells You Why

An engine that overheats only at idle in traffic but cools down at speed is telling you the fan system has failed. At highway speed, ram air through the radiator does the cooling for free; at idle, the fan is the only airflow. Diagnose the fan system directly: a mechanical fan clutch should firm up and engage when hot, and an electric fan needs its motor, relay, temperature sensor, and wiring verified, a scan tool with bidirectional control can command the fan on, or you can check for voltage at the motor directly.

The opposite pattern, overheating only under high load or at sustained highway speed, means the system keeps up with idle demand but cannot handle full heat flow. The candidates: a weak water pump whose worn impeller cavitates at high RPM instead of moving coolant, a partially restricted radiator that caps flow capacity, a lower radiator hose that collapses under high pump suction, or a head gasket problem that pushes combustion gas into the system under load.

Hose temperatures give you a free flow test during any overheat diagnosis. If the upper radiator hose is hot but the lower hose stays cold, coolant is not circulating through the radiator, the thermostat is stuck closed or flow is blocked before the radiator return. The engine heats the top hose, but with no return flow there is no heat rejection happening. Replace the thermostat first as the cheap, likely fix, and investigate deeper only if the problem persists.

Milky, tan coolant in the reservoir is a different class of finding: oil is entering the cooling system. Head gasket failure is the most common source, cracked blocks and heads also do it, and on vehicles with an engine oil cooler or transmission ATF cooler integrated into the radiator, an internal cooler failure mixes oil or ATF into the coolant. Every one of these is a serious finding requiring pinpoint diagnosis before repair.

The Hardware: Thermostats, Water Pumps, and Weep Holes

A thermostat is a temperature-sensing valve, and its sensing element, the wax pellet, must sit in the coolant whose temperature it is supposed to read: the engine's. Install the thermostat with the spring and sensing side toward the engine, into the hot coolant flow, not toward the radiator. Installed backwards, the pellet reads the cool radiator return instead of engine temperature and responds to the wrong flow, effectively staying closed relative to what the engine needs, and the engine overheats with a brand-new thermostat in it.

Water pumps carry their own built-in diagnostic: the weep hole, a small drain below the shaft seal. When the seal begins to fail, coolant escapes through the weep hole as a deliberate early warning before the seal, and then the bearing, fails outright. So a slow drip from the weep hole on an old pump is the pump telling you its seal is done. When a newly installed pump starts leaking from behind within a couple of weeks, be honest about the two possibilities: a genuinely defective new pump, which is rare, or an installation error, bolts not torqued evenly, a gasket damaged or misaligned during install, or the wrong gasket used.

Filling and Bleeding Without Trapping Air

Air trapped in a cooling system after service causes hot spots at the head, erratic gauge readings, overheating, and a heater that blows lukewarm, and it will not always work itself out. Bleed deliberately every time.

  • Fill the system through its highest point so air has somewhere to go as coolant rises.
  • Open the bleeder valves in the manufacturer's specified sequence during the fill and close each when solid coolant flows.
  • Run the engine to full operating temperature with the heater set on high, so the thermostat cycles and coolant flows through the heater core, pushing air toward the high points.
  • Let the system cool completely, then top off the coolant level.
  • Check the service information first: some vehicles, BMW and VW notably, require specific bleeding procedures or a vacuum-fill tool, and the generic method will leave air in them.
📋 Cooling system reference values
ItemTypical valueNotes
Thermostat rating~180–195°F start-to-open; fully open ~20°F higherRating is stamped on the unit
Normal operating coolant temp~195–220°FTrust the ECT PID over the dash gauge
Pressure cap rating~13–16 psiEach psi raises the boiling point roughly 2–3°F
System pressure testAt cap rating, hold 10–15 minLoss with no external leak = internal breach
Radiator in-to-out temperature dropRoughly 20–40°F across the coreLittle drop = no flow or no airflow; IR thermometer reads it in seconds
Coolant mix50/50 antifreeze and distilled waterFreeze protection to about −34°F and boil protection
Electric fan on-temperature~215–230°F typicalVerify commanded state with the scan tool

Ratings vary by system — verify against service data, and never open a hot pressurized system.

🔩 Overheat diagnosis by pattern
  1. Verify the overheat is real: compare the ECT PID against the dash gauge and an infrared reading at the thermostat housing. Gauges and senders lie, and a false overheat diagnosis wastes everything that follows.
  2. Establish WHEN it overheats — that is the diagnosis in miniature. Idle-only points at the fan system; load or highway-only points at flow capacity (pump, restricted radiator, collapsing lower hose); always-hot points at the thermostat, low coolant, trapped air, or a gasket breach.
  3. Cold-start hose test: hold the upper hose as the engine warms. It should stay cool, then warm rapidly when the thermostat opens around ten minutes in. Upper hot with the lower cold means no circulation through the radiator.
  4. Sweep the radiator face with an IR thermometer: cold dead zones reveal internal blockage, and the overall in-to-out drop (roughly 20–40°F) tells you whether the core is rejecting heat.
  5. Prove the fan: command it with the scan tool's bidirectional control or verify a mechanical clutch stiffens when hot, and confirm the on-temperature is actually reached.
  6. If everything above passes and the reservoir pressurizes quickly with the overheat, test for combustion gas with a chemical block test — the overheat may be the symptom of a gasket breach, not the cause of one.
⚠️ Comeback killers
  • Installing a thermostat backwards. The wax pellet must face the engine's hot coolant to read it — reversed, it responds to cool radiator return and effectively stays closed, and the engine overheats with a brand-new part in it.
  • Skipping the bleed procedure after refill. Trapped air pockets cause head hot spots, a lukewarm heater, and erratic gauges — and on vehicles that require vacuum-fill or a specific sequence, the generic fill guarantees the comeback.
  • Ignoring a weep-hole drip as 'just a little seep.' That hole is the pump's designed early warning — the shaft seal is failing, the bearing follows, and the customer chooses between a scheduled repair now or a tow later.
  • Opening a hot pressurized system. The pressure that raises the boiling point flashes to steam the moment the cap breaks loose — cooling diagnosis waits for a cool engine, every time.
🔧 Shop tip An infrared thermometer turns cooling diagnosis into minutes. Sweep the radiator face for cold dead zones that reveal internal blockage, and compare upper and lower hose temperatures without burning your hands.
✅ Check yourself
The engine overheats in traffic but runs cool on the highway. Which subsystem, and why?

The fan system. At highway speed, ram air through the radiator does the cooling for free; at idle the fan is the only airflow, so an inoperative fan, failed clutch, bad relay, or dead sensor shows up exactly and only in traffic. Command the fan with the scan tool or verify clutch engagement hot — the pattern already named the suspect.

Upper radiator hose is hot, lower hose is cold, and the temperature is climbing. What is the diagnosis?

No circulation through the radiator. The engine is heating the top hose, but nothing is returning through the core — a thermostat stuck closed is the classic cause, with a blocked core behind it. The thermostat is the cheap, likely first repair; if the problem persists, pursue radiator restriction and pump output.

After a thermostat replacement and refill, the engine runs hot and the heater blows lukewarm. What was missed?

Air in the system. A trapped pocket at the thermostat or heater core blocks flow and insulates the sensor — lukewarm heat plus overheating right after a refill is the textbook signature. Bleed properly: fill at the high point, work the bleeders in sequence, run to temperature with the heater on high, cool, and top off — using the vehicle-specific procedure where one exists.

READY TO PROVE IT?

Studied the material? Get ENG certified.

The Engine Repair & Rebuild exam turns what you just learned into a verifiable credential drivers and shops can look up. 60 questions · 90 minutes · 75% to pass · $19.99.

Studying here is free forever. There's no obligation to take the exam.

WHAT THIS WORK PAYS / COSTS

Real-world cost guides for this system.

See what customers pay for the jobs this track teaches, parts, labor hours, and state-by-state ranges from our repair cost estimator.

Standards and further reading

Primary sources behind this page. Federal safety, emissions and consumer-protection references, worth reading before you authorize any repair.
