Transmission & Drivetrain
Automatics, manuals, transaxles, transfer cases.
Transmission & Drivetrain covers automatic and manual transmissions, transfer cases, and differentials. Includes external service work, most mobile mechanics don't rebuild internally, but should be able to diagnose and service externally. Everything below is free, no login, no paywall. Work through the skill areas, drill them in Study Mode, and when you're ready, prove it with the certification exam.
Your readiness to certify
Drill all 60 concepts in Study Mode. Mark each one "Got it" once you know it cold. When every concept is cleared, you're ready for the TRN exam.
What you'll be able to do
- Automatic transmission diagnosis: shift quality, slippage, codes
- Manual transmission diagnosis: synchros, throwout bearings, clutch systems
- Transmission fluid service (proper procedures, correct fluid types)
- Solenoid and valve body diagnosis
- Transfer case service on 4WD/AWD systems
- Differential service and diagnosis

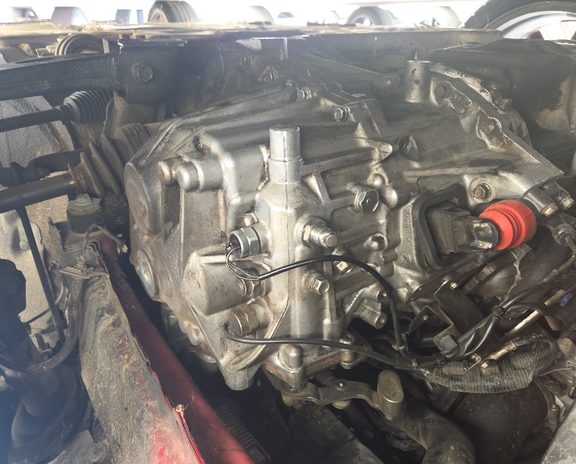

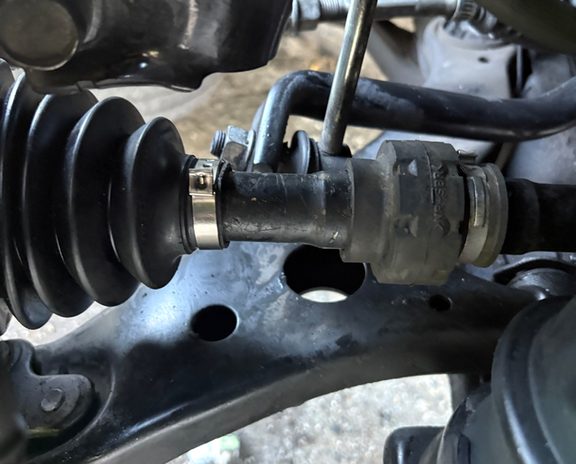

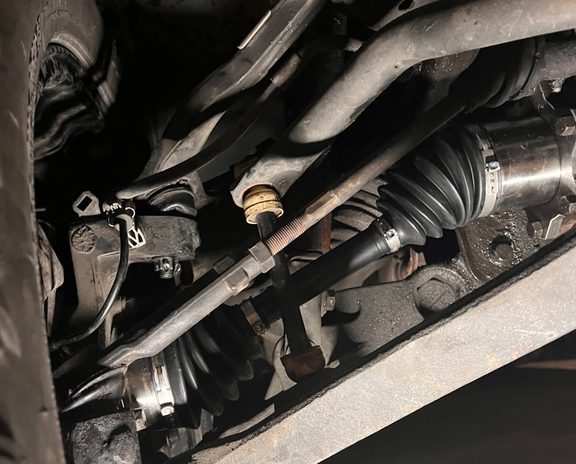

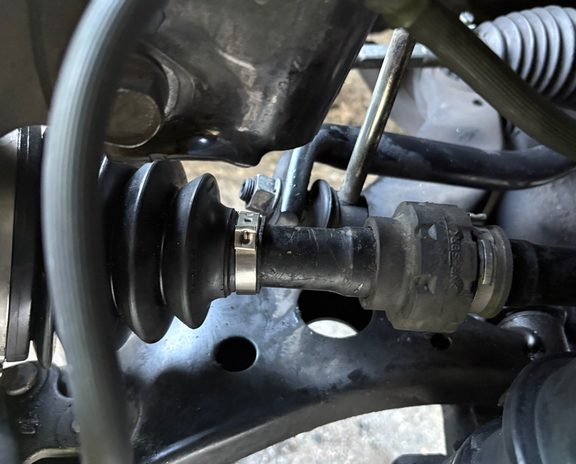

- CV axles and driveline components
- When to send it out vs. service in-place
Skill areas
Jump to any area, each lesson teaches the system from the ground up, then recaps the key takeaways you'll drill in Study Mode.
Fundamentals
2 conceptsEverything downstream of the flywheel exists to solve one problem.
- An automatic transmission automatically selects gear ratios to keep the engine in its efficient operating range across all road conditions.
- A torque converter uses fluid coupling to transmit power. It multiplies torque at low speeds and locks up (via a clutch) at cruise to eliminate slippage.
Everything downstream of the flywheel exists to solve one problem: an engine only makes useful power in a narrow RPM band, but the vehicle needs to move from a dead stop to highway speed. Understanding what the transmission and torque converter actually do is the foundation for every diagnosis you will ever make on a driveline.

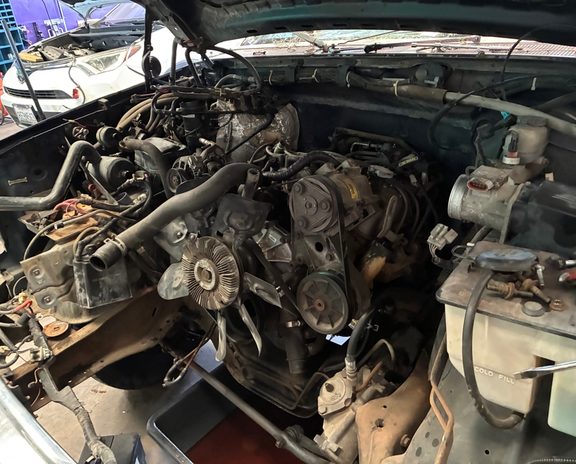

What the transmission and torque converter actually do
An automatic transmission's job is to match engine speed and torque to whatever the road is demanding. It does this by automatically selecting gear ratios so the engine stays in its efficient operating range whether the vehicle is pulling away from a light, climbing a grade, or cruising at 70 mph. Low gears multiply torque for acceleration; high gears drop engine RPM for economy. The transmission is not there to raise engine speed, cool the engine, or merely provide reverse — it is a ratio-matching device, full stop.
Between the engine and the transmission sits the torque converter. It is a hydraulic coupling: the engine spins fluid, and that moving fluid transmits power to the transmission input. Because the connection is fluid rather than mechanical, the engine can idle at a stop while still in gear. The converter does two more things that matter in the shop. First, it multiplies engine torque at low speeds — that extra shove you feel pulling away is the converter working. Second, at cruise it locks the engine to the transmission mechanically through a torque converter clutch, eliminating fluid slippage and the heat and fuel waste that come with it. When you hear a customer complaint about launch feel, cruise-speed shudder, or overheating, the converter should be on your mental list from the start.
| Item | Typical value | What it tells you |
|---|---|---|
| Torque converter multiplication | Roughly 1.8–2.5:1 at stall | The extra shove pulling away — a weak stator loses it |
| TCC lockup engagement | Commonly ~40–50 mph light-throttle cruise | Where shudder complaints live — smooth elsewhere |
| First-gear ratio, typical automatic | Roughly 3:1–5:1 | Torque multiplied for launch; RPM traded for force |
| Overdrive ratios | Below 1:1 (e.g., 0.6–0.8:1) | Engine RPM dropped for cruise economy |
| Normal ATF operating temperature | Roughly 175–200°F | Sustained heat above this range shortens fluid life fast |
Ratios, lockup strategy, and temperatures vary by transmission — these bands are for orienting a diagnosis. Verify the unit's specifics in service data.
- Before driving, name the path out loud: engine, converter, gearsets, output, shafts, differential, wheels. Every symptom you are about to feel lives somewhere on that line.
- From a stop, evaluate launch feel. Weak or flared take-off points at the converter or forward apply elements; a normal launch moves your suspicion downstream.
- Accelerate through several shifts. A problem tied to one specific shift localizes to that shift's solenoid, accumulator, or clutch pack; roughness in all shifts points at fluid, pressure, or control.
- Hold steady light throttle in the 40–50 mph band and feel for rumble-strip vibration at lockup. Shudder only in that window is the TCC talking, not wheels or brakes.
- Coast, then re-apply power, and listen for clunks. Lash noises on load reversal live in U-joints, differential, axle splines, and mounts — the back half of the path, not inside the case.
- Diagnosing 'the transmission' as one lump. The torque path has distinct stations, and every symptom belongs to one of them — a tech who cannot say which station is guessing, and guesses on drivelines are expensive.
- Blaming the transmission for what the converter is doing. Launch feel, cruise-speed shudder, and unexplained overheating are converter territory — it sits in the path ahead of every gearset and deserves its own place on the suspect list.
- Forgetting the transmission is a ratio-matching device. It does not exist to cool the engine or fix low power — a customer's 'transmission problem' with weak acceleration in every gear is often an engine output problem wearing a disguise.
A customer reports vibration only at steady 45 mph light throttle — smooth when accelerating hard or coasting. Where on the torque path do you look first and why?
The torque converter clutch. That speed band is where lockup engages, and light throttle is exactly when a marginal TCC grips-slips-grips instead of locking cleanly. Hard acceleration unlocks the clutch and coasting unloads it, which is why the symptom vanishes outside that window.
Why can a car idle at a stoplight in Drive without stalling, when a manual would need the clutch pushed in?
The converter is a fluid coupling — the engine spins the impeller, but at idle the fluid transfers so little torque that the brakes easily hold the car while the engine keeps running. There is no rigid connection to break, so nothing has to disengage.
What two extra jobs does the torque converter do beyond simply coupling engine to transmission?
It multiplies torque at low speed — the stator's redirection of returning fluid gives roughly 1.8–2.5 times engine torque at stall, which is the launch shove — and at cruise the torque converter clutch locks the engine mechanically to the input shaft, eliminating fluid slip and the heat and fuel waste that come with it.
Torque Converter
4 conceptsThe torque converter is the fluid coupling between engine and transmission.
- The impeller (pump) is driven by the engine, the turbine drives the transmission input, and the stator redirects fluid for torque multiplication.
- TCC shudder often stems from friction material or fluid contamination. Fresh ATF and sometimes a shudder-fix additive resolve it if caught early; severe cases require a converter.
- Stall test compares actual stall RPM to spec. Low stall = weak converter or engine. High stall = slipping clutches. Do not exceed 5 seconds — heat damage happens fast.
- TCC shudder at lockup is a common complaint. Fresh transmission fluid may help; damaged friction requires converter replacement.
The torque converter is the fluid coupling between engine and transmission, and it generates more misdiagnoses than almost any other driveline component. Learn its three internal elements, its classic failure symptom, and the one bench-free test that tells you how healthy it is.
Impeller, turbine, and stator
Inside the converter shell are three main sections. The impeller — also called the pump — is welded to the converter housing and driven directly by the engine; it flings fluid outward and forward. The turbine faces the impeller and is splined to the transmission input shaft; fluid striking its vanes drives the transmission. Between them sits the stator, a small vaned wheel on a one-way clutch. The stator's job is to redirect fluid returning from the turbine so it re-enters the impeller helping rather than fighting it. That redirection is what produces torque multiplication at low speeds. Don't confuse this trio with clutch-and-band hardware or planetary members — pump, turbine, stator is the converter's anatomy.
Bolted or built into most modern converters is the torque converter clutch (TCC). At cruise, the TCC mechanically locks the turbine to the housing, eliminating fluid slip. That lockup is efficient, but it is also where the converter's most common complaint lives.
TCC shudder: the classic complaint
TCC shudder feels like driving over rumble strips — a vibration that appears on light acceleration, typically right at lockup speed, commonly in the 40 to 50 mph range. If a vehicle vibrates only at TCC lockup RPM and is smooth everywhere else, think TCC shudder before you condemn wheels, brakes, or steering.
The root causes are contaminated or degraded ATF, worn TCC friction material, or valve body problems that give the clutch the wrong apply pressure. The clutch is being applied partially and gripping-slipping-gripping instead of locking cleanly. Caught early, fresh transmission fluid — sometimes with a shudder-fix friction additive — resolves it, because the problem is the fluid's friction characteristics rather than the hardware. Once the friction material itself is damaged, no fluid will save it and the converter must be replaced. This is why you fluid-service a shudder complaint first and re-evaluate before selling a converter.
The stall test
A stall test measures how much the converter and transmission will let the engine rev against a locked output. With the vehicle restrained and the brakes firmly applied, briefly go to wide-open throttle and record the RPM where the engine stops climbing — the stall speed — then compare it to the manufacturer's specification. Never hold the test longer than about 5 seconds; the converter is converting all that engine power into fluid heat, and heat damage happens fast.
Read the result like this: stall RPM well below spec points to a weak converter (often a failed stator one-way clutch) or an engine that isn't making power. Stall RPM above spec means something in the transmission is slipping — clutches that can't hold the input torque. The stall test won't tell you which clutch, but it separates converter-and-engine problems from internal slippage in one controlled pull.
- Block the wheels and hold the brakes firmly
- Transmission in Drive, briefly apply wide-open throttle
- Record peak (stall) RPM — 5 seconds maximum
- Low stall vs spec: weak converter or weak engine
- High stall vs spec: slipping clutches inside the transmission
| Item | Reference | Interpretation |
|---|---|---|
| Stall test duration | 5 seconds maximum | All engine power becomes fluid heat — damage happens fast |
| Stall RPM vs spec: low | Hundreds of RPM under spec | Weak converter (failed stator one-way clutch) or weak engine |
| Stall RPM vs spec: high | Hundreds of RPM over spec | Transmission clutches slipping — they cannot hold input torque |
| TCC slip, locked | Near 0 RPM on scan data | Oscillating slip at lockup = shudder in progress |
| TCC shudder window | Light throttle, commonly ~40–50 mph | Rumble-strip feel at lockup speed, smooth elsewhere |
| Typical stall speed | Roughly 1,800–2,400 RPM, application-specific | Compare against the exact converter/engine spec, not a universal number |
Stall speeds are matched to the engine and converter combination — always test against the manufacturer's specification, and never stall-test a unit with burnt fluid you intend to save.
- Reproduce the complaint precisely: steady light throttle through the customer's speed range, typically 40–50 mph. Note the exact speed and load where the rumble-strip feel appears — repeatability is the diagnosis.
- Watch TCC slip RPM on the scan tool through the event. Slip oscillating rapidly during apply is shudder confirmed at the clutch; steady slip or zero slip during the vibration acquits the TCC and sends you to the driveline.
- Command or force the TCC off (scan tool, or light brake-pedal touch on many platforms) at the complaint speed. Vibration that disappears with the clutch released is TCC shudder, full stop; vibration that continues is driveshaft, balance, or engine misfire territory.
- Check fluid condition — dark, degraded, or wrong-spec fluid is the leading cause. Fresh fluid with correct friction characteristics, sometimes with a shudder-fix additive, cures early shudder because the problem is the fluid, not the hardware.
- Fluid-service, then re-road-test at the exact recorded speed and load. Shudder gone: done, and document it. Shudder persisting after correct fluid: the friction material is damaged and the converter is due — now the quote is backed by a completed test sequence.
- Selling a converter before trying fluid. Early TCC shudder is a fluid friction problem, and a hundred dollars of correct ATF fixes a large share of them — the converter quote comes after the fluid service fails, not before.
- Holding a stall test past five seconds 'to be sure.' The converter is converting full engine power into fluid heat with zero airflow help — extended stalls cook fluid and damage the transmission you were testing.
- Reading high stall RPM as a bad converter. High stall means the transmission's clutches let go before the converter reached its limit — the slippage is internal. Low stall is the converter (or engine) story; mixing up the directions sends the wrong part out the door.
Stall test comes in 400 RPM below spec, and the truck also feels lazy pulling away. Converter or transmission — and what specifically inside?
Converter or engine, not the transmission. Low stall means the engine could not rev against the converter — classically a failed stator one-way clutch that free-wheels instead of redirecting fluid, killing torque multiplication, which also explains the lazy launch. Rule out low engine power, then the converter is condemned.
Why does TCC shudder show up at light throttle and not under hard acceleration?
Under hard acceleration the TCM unlocks the converter clutch entirely, so there is no partial engagement to shudder. Light steady throttle at cruise is when the TCM applies the clutch — and a marginal friction interface grips-slips-grips at exactly that partial-apply condition, producing the rumble-strip feel.
Name the three converter elements and the one that most techs forget — including what happens when its one-way clutch fails.
Impeller (driven by the engine), turbine (drives the input shaft), and the stator between them — the forgotten one. The stator redirects returning fluid so it helps the impeller, creating torque multiplication. If its one-way clutch fails and it spins freely, multiplication is lost: weak launch and low stall RPM with an otherwise healthy unit.
Planetary Gearsets
2 conceptsPlanetary gearsets are the mechanical heart of nearly every conventional automatic transmission.
- Planetary gearsets provide multiple ratios by holding one member and driving another. Nearly all automatics use compound planetary sets or Lepelletier arrangements.
- By holding one member (via a brake or band) and driving another (via a clutch), the third becomes the output — giving different ratios depending on which member is held.
If you understand how holding one member and driving another creates a ratio, the whole hydraulic control system suddenly makes sense — every clutch and band exists only to grab or release a planetary member.
How a planetary set makes ratios
A simple planetary gearset has three members: a sun gear in the center, several planet gears mounted on a carrier that orbit the sun, and a ring gear with internal teeth surrounding the whole assembly. All three are in constant mesh — nothing slides in and out of engagement the way it does in a manual gearbox.
The magic is in what you do with the three members. Hold one stationary — using a hydraulically applied brake or band — while driving a second member through a clutch, and the third member becomes the output. Which member you hold and which you drive determines the ratio: reduction, overdrive, direct drive, or reverse all come out of the same gearset. That is the entire operating principle of an automatic transmission: the valve body and solenoids simply choose which clutches and bands apply, which chooses which members are held and driven, which sets the gear ratio.
A single simple planetary can't provide enough ratios for a modern car, so nearly all automatics use compound planetary sets — multiple gearsets sharing members — or the Lepelletier arrangement common in 6-, 8-, and 10-speed units. The principle never changes; there are just more members to hold and drive.
| Held member | Driven member | Output member | Result |
|---|---|---|---|
| Ring gear | Sun gear | Carrier | Large reduction (torque multiplied) |
| Sun gear | Ring gear | Carrier | Mild reduction |
| Sun gear | Carrier | Ring gear | Overdrive (output faster than input) |
| Carrier | Sun gear | Ring gear | Reverse (output direction flipped) |
| None (two members locked together) | Any | All rotate as one | Direct drive, 1:1 |

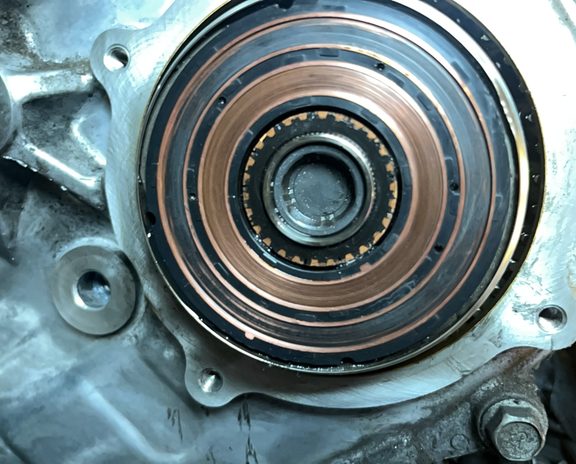

Every clutch and band in an automatic exists only to hold or drive one of these members — the valve body chooses the combination, the combination is the gear. Compound and Lepelletier sets stack this same logic across shared members.
- Write down exactly which gears misbehave and which are normal — slips in 3rd, binds in reverse, fine everywhere else. Precision here is the whole method.
- Pull the clutch-and-band application chart for the exact transmission from service data. It lists which elements are applied in every gear.
- Cross off every element that is applied in a known-good gear — an element that works in 2nd is proven healthy. What remains applied only in the bad gears is your suspect list, usually one or two elements.
- Sanity-check with the symptom type: slipping points at a clutch or band that cannot hold; binding points at an element applying when it should not — a stuck valve or failed release.
- Walk into the teardown (or valve body inspection) already knowing what you expect to find. The chart converts a road-test impression into a named component before a bolt comes out.
- Condemning the whole transmission for a single-gear problem. Specific clutches and bands carry specific gears — the application chart localizes the fault to one or two elements, and skipping that step is skipping the thinking.
- Forgetting that everything is in constant mesh. Planetary members never slide in and out of engagement like a manual's gears — 'it jumped out of gear' means an apply element released, a hydraulic or control fault, not gear teeth disengaging.
- Ignoring the double-duty logic of compound sets. In Lepelletier-style units one element failure can disturb several gears at once — map the symptoms against the chart before assuming multiple failures.
A unit slips in 2nd and 4th but is perfect in 1st, 3rd, and reverse. How do you use the application chart, and what kind of answer do you expect?
Cross off every element applied in the good gears — they are proven. The element or elements applied only in 2nd and 4th (commonly a shared band or clutch in many designs) remain as suspects, usually narrowing to a single component. You expect to name the failed element before teardown, and the teardown to confirm it.
How does holding the carrier produce reverse?
With the carrier fixed, the planet gears cannot orbit — they can only spin in place, acting as idlers. Drive the sun gear and the planets transfer motion to the ring gear in the opposite rotational direction. Same gearset, no extra hardware: reverse is just another hold-and-drive combination.
Why does an automatic need clutches AND bands at all if the gearset makes the ratios?
The gearset only produces a ratio when specific members are held stationary or driven. Bands and holding clutches grab members to the case; driving clutches connect members to the input. The hydraulic system's entire job is choosing those combinations — the friction elements are the hands that grab the gearset's levers.
Fluid
5 conceptsTransmission fluid is not just a lubricant — it is a hydraulic medium, a coolant, and a precisely engineered friction surface all at once.
- Modern ATFs (Dexron VI, Mercon LV, ATF-WS, Type F, T-IV, and many OEM-specific) differ in friction modifiers. Using wrong fluid immediately affects shift feel and can damage friction elements.
- Healthy ATF is clear red. Burnt smell and dark color mean thermal breakdown, damaged clutches, or heavy debris.
- Coolant contamination looks milky/pink. Common source is a cracked cooler inside the radiator. Full flush, cooler replacement, and often transmission overhaul are required.
- 'Lifetime' fluid usually gets 100k+ miles before degrading, but proactive service extends transmission life. Recommend service intervals aligned with severe-duty schedules.
- Manuals use gear oil (GL-4 for brass synchros, GL-5 for hypoid). Some German manuals use ATF-type fluid. Wrong fluid causes shift issues or synchro damage.
More transmissions are killed by wrong fluid, old fluid, or contaminated fluid than by any manufacturing defect, and reading the fluid is the first diagnostic step on nearly every driveline complaint.
Fluid is a specification, not a commodity
There is no universal ATF. Modern specifications — Dexron VI, Mercon LV, Toyota ATF-WS, Type F, T-IV, and a long list of OEM-specific fluids — differ primarily in their friction modifiers, the additives that control exactly how clutch plates grab and release. Put the wrong fluid in and the effect is immediate: harsh shifts, shudder, and in time real damage to the friction elements. Always look up the exact spec for the unit in front of you, not just the make.
The same discipline applies to manuals. Manual transmission fluid is typically GL-4 or GL-5 rated gear oil — GL-4 where brass synchronizers are present, because GL-5's extreme-pressure additives can attack yellow metals, and GL-5 for hypoid gearing. Some transmissions, notably many German manuals, specify an ATF-type fluid instead, and a few call for CVT-specific fluid. Wrong fluid in a manual shows up as balky shifting and eventually synchro damage.
Be skeptical of 'lifetime fill' claims. In manufacturer language, lifetime means the warranty period, not the life of the vehicle. The fluid typically survives 100,000-plus miles before degrading badly, but proactive service well before 100k extends transmission life. Recommend intervals aligned with the severe-duty schedule — most real-world driving qualifies.
Reading the fluid
Healthy ATF is clear and red. Everything else is a diagnostic clue.
Brown fluid with a burnt smell means the fluid has thermally broken down. By the time ATF smells burnt, friction material damage is likely — the clutches have been slipping and cooking the fluid, or the fluid overheated and let the clutches wear. Dark, burnt fluid warrants a full inspection, not just a top-off; look for debris in the pan and expect internal damage.
Milky or pink, strawberry-milkshake fluid means coolant contamination. The classic source is a cracked or leaking transmission cooler inside the radiator, letting engine coolant mix with ATF. Coolant destroys friction material and clutch adhesives quickly, so the fix is a full flush, replacement of the failed cooler or radiator, and very often a transmission overhaul — the damage is usually already done by the time the fluid looks milky.
- Clear red: healthy fluid
- Dark brown, burnt smell: thermal breakdown, likely clutch damage — full inspection
- Milky or pink: coolant intrusion from the radiator cooler — flush, replace cooler, expect overhaul
- Glitter or heavy debris in the pan: mechanical wear in progress
| Observation | Meaning | Action |
|---|---|---|
| Clear red, faint sweet oil smell | Healthy fluid | Service on schedule |
| Dark brown, burnt smell | Thermal breakdown; clutch damage likely already | Full inspection and pan-drop, not a top-off |
| Milky pink 'strawberry milkshake' | Coolant intrusion — radiator cooler failure | Flush, replace cooler/radiator, expect overhaul |
| Glitter or heavy friction debris in pan | Mechanical wear in progress | Diagnose before any fluid-only service promise |
| Wrong spec in the unit | Friction modifiers mismatched to clutches | Immediate harshness/shudder — exchange to correct spec |
| 'Lifetime fill' claim | Means the warranty period, not vehicle life | Recommend severe-duty interval service well before 100k |
Fluid specification is exact — Dexron VI, Mercon LV, ATF-WS, and OE-specific fluids differ in friction behavior, not just color of the jug. Look up the spec for the unit, and GL-4 vs GL-5 matters the same way in manuals.
- Smell before you look: pull the dipstick or catch fill-plug drips and smell them. Burnt odor changes the job from 'fluid service' to 'inspection and estimate' before you are committed to either.
- Drip a sample on a white paper towel and read the color and spread. Clear red spreading evenly is healthy; dark centers, debris rings, or a burnt halo are breakdown evidence you can show the customer.
- Check for the milkshake: milky pink fluid means coolant intrusion from the radiator's internal cooler. Stop — this is a flush-cooler-and-probable-overhaul conversation, not a drain-and-fill.
- Verify the level per the unit's actual procedure (dipstick ranges or sealed-unit temperature check). Low fluid explains slipping and delayed engagement; overfull explains foaming and erratic pressure.
- Confirm the specification called for and what is actually in it, if history exists. A shudder that started right after someone else's 'universal ATF' service is a fluid-spec diagnosis with a paper trail.
- Topping off burnt fluid. By the time ATF smells burnt, the friction material has been cooking — new fluid on top of debris changes the color, not the outcome. Burnt fluid triggers inspection, estimate, and honest conversation.
- Trusting 'lifetime fill.' In manufacturer language lifetime means the warranty period; the fluid degrades meaningfully long before the vehicle dies. Proactive service on the severe-duty schedule is what actually produces a lifetime transmission.
- Using multi-vehicle 'universal' ATF in spec-sensitive units. Friction modifiers are the specification — wrong modifiers change how every clutch grabs and releases, and modern many-speed units show it immediately as shudder and harshness.
- Putting GL-5 gear oil in a manual box with brass synchros. GL-5's extreme-pressure additives attack yellow metals — the balky shifting starts later, after the synchros are damaged, disconnected from the service that caused it.
The fluid is milky pink. What failed, what is happening inside the transmission, and what is the honest repair scope?
The transmission cooler inside the radiator failed, letting coolant mix with ATF. Coolant destroys friction material and clutch adhesives quickly, so by the time fluid looks like a strawberry milkshake, damage is usually done. The scope is a full flush, radiator or cooler replacement, and very likely an overhaul — quoting less sets up a comeback.
Why does wrong-spec ATF cause harsh shifts even when it is brand-new, clean fluid?
Because ATF is an engineered friction surface, not just a lubricant. Each specification's friction modifiers control exactly how clutch plates grab and release; the wrong modifiers change apply feel immediately — harshness or shudder on day one — and degrade the friction elements over time. Clean is not the same as correct.
A manual gearbox got 'good synthetic gear oil' at its last service and now shifts balky when cold. What question do you ask first?
Was it GL-4 or GL-5 — and does this box call for GL-4 or even ATF? GL-5's EP additives can attack brass synchronizers, and many transmissions (notably German manuals) specify ATF-type fluid entirely. Balky shifting after a well-intentioned fluid change is the classic wrong-fluid presentation in a manual.
Service
3 conceptsRoutine transmission service is where shops either extend a transmission's life by 100,000 miles or quietly shorten it.
- The filter traps debris from clutch and gear wear. A clogged filter starves the pump, causing shifting issues and premature wear. Change with every fluid service.
- Sealed transmissions use a fill plug and level check port. Fluid must be at spec temperature (often 100-120°F) when checked. Overfilling causes foaming and shift issues.
- Overheating is the top killer of automatics. Common causes: restricted cooler, low fluid, TCC slipping, or towing beyond design load. Add an auxiliary cooler for towing.
Filters, fill procedures, and heat management are unglamorous, and that is exactly why inexperienced techs get them wrong.

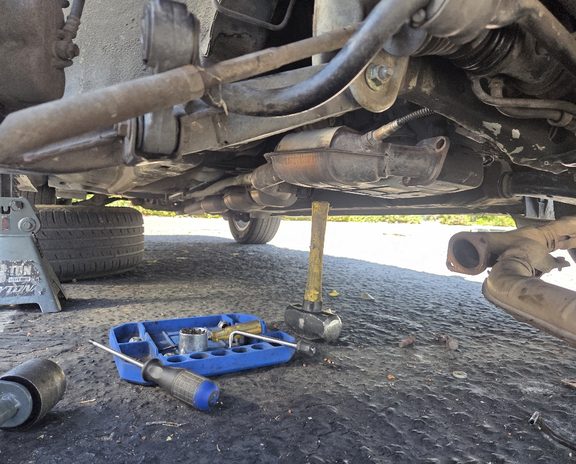

Filters and sealed-unit fill procedures
Every clutch application and gear mesh sheds a little friction material and metal, and the filter's job is to catch it before it reaches the pump and valve body. As the filter loads up with debris it restricts flow, and a clogged filter starves the pump — the result is erratic or hard shifting, delayed engagement, and component starvation that accelerates wear. The rule is simple: replace the filter with every fluid service. It is cheap insurance on a component that costs thousands.
Many late-model transmissions have no dipstick at all. These sealed units are checked and filled through a fill plug and a level-check port, and the procedure only works if the fluid is at the specified temperature — often 100 to 120 degrees F, confirmed with a scan tool reading transmission fluid temperature. Fill until fluid just dribbles from the check port at that temperature. Guessing, or filling cold, gets the level wrong; and overfilling is not harmless — excess fluid gets whipped into foam by the rotating parts, and aerated fluid can't hold hydraulic pressure, causing shift problems that mimic internal failure.
Heat: the number one killer
Overheating kills more automatic transmissions than anything else. The common causes are a restricted cooler, low fluid level, a slipping torque converter clutch generating constant friction heat, and towing beyond the vehicle's design capacity. Any of these pushes fluid temperature past its design range, the fluid oxidizes, friction material glazes and burns, and the failure cascade begins.
When you see a vehicle that tows, plows, or hauls, the correct recommendation is an auxiliary transmission cooler and a shortened fluid service interval. When you see repeat overheating on a vehicle that shouldn't run hot, check cooler flow and fluid level before assuming internal problems — the cheap causes are also the common ones.
| Item | Value / rule | Why |
|---|---|---|
| Filter replacement | With every fluid service | A loading filter starves the pump — erratic shifts, accelerated wear |
| Sealed-unit level-check temperature | Commonly ~100–120°F on scan tool | Fluid volume changes with temperature; cold fills read wrong |
| Level-check condition | Engine running, vehicle level, per OE procedure | Skipping any condition gives a wrong level with confidence |
| Overfill consequence | Fluid aerated into foam by rotating parts | Aerated fluid cannot hold pressure — mimics internal failure |
| Normal operating temperature | Roughly 175–200°F | Sustained higher temps oxidize fluid and glaze clutches |
| Service interval reality | Use the severe-duty schedule | Most real-world driving qualifies as severe duty |
Level-check temperatures and procedures are unit-specific — some want Park, some Neutral, some a specific gear sequence first. Pull the OE procedure every time; two similar-looking units can differ.
- Get the vehicle dead level on the lift and connect the scan tool to read live transmission fluid temperature — the procedure only means anything at the specified temperature, often 100–120°F.
- Run the engine per the OE procedure (typically idling in Park or Neutral), cycling through the ranges first if the procedure calls for it, so the converter and circuits are full.
- Watch fluid temperature come into the specified window. Too cold reads low and invites overfilling; too hot reads high and invites underfilling — the window is the measurement.

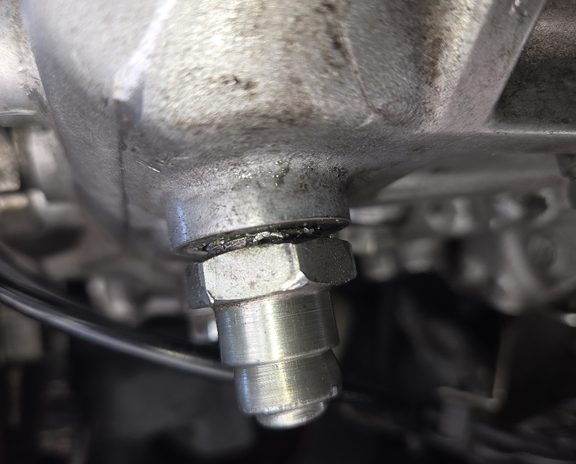

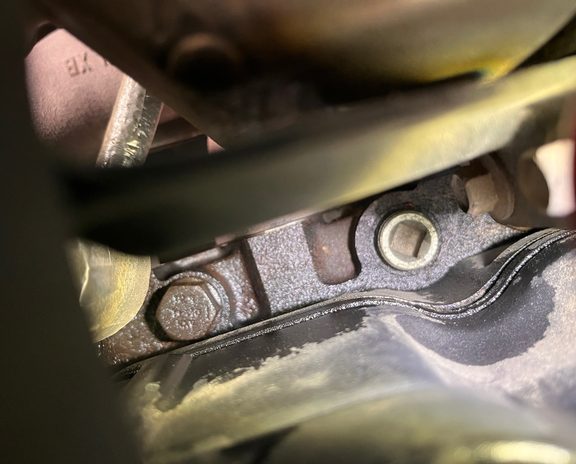

- Open the level-check port. A small dribble at temperature is correct; a stream means overfull (drain to a dribble), nothing means low (add correct-spec fluid until the dribble appears).
- Close it up and road test. Delayed engagement or slipping after a 'correct' fill means recheck your temperature and level conditions before blaming the transmission — the check is only as good as its setup.
- Reusing the filter to save the customer money. Every clutch apply sheds friction material, and the loading filter restricts flow to the pump — the cheapest part in the job protects the most expensive component in the vehicle.
- Checking a sealed unit's level cold, or on an unlevel lift, or engine-off. Each shortcut skews the reading; overfilling follows, the rotating parts whip the excess into foam, and aerated fluid produces shift complaints that mimic internal failure.
- Treating repeat overheating as an internal fault first. Restricted cooler, low fluid, slipping TCC, and over-capacity towing are the common causes — the cheap external causes come before the teardown, every time.
A sealed transmission was topped off cold in someone's driveway and now shifts erratically. What happened mechanically?
Cold fluid reads low, so it got overfilled. At operating temperature the excess fluid contacts the rotating assembly and gets whipped into foam, and aerated fluid compresses — hydraulic pressure becomes unreliable, so shifts flare and stumble like an internal failure. Set the level correctly at temperature and re-evaluate before any repair talk.
Why does the filter earn replacement at every service when it 'looks fine'?
The filter catches friction material and metal shed by normal clutch operation, loading gradually from the inside where looks tell you nothing. As restriction builds, the pump starves — erratic or hard shifting and delayed engagement follow, and starvation wear accelerates the shedding that loads the filter further. It is cheap insurance against its own failure spiral.
The customer tows a camper every summer and wants to know why you recommend a cooler AND shorter fluid intervals — is one not enough?
They attack the same enemy from both sides. The auxiliary cooler lowers peak temperature, slowing the rate at which fluid degrades; the shorter interval removes the partially degraded fluid before its lost friction and protective properties can damage clutches. Heat management plus fluid turnover is the complete answer; either alone leaves half the risk.
Shift Issues
2 conceptsShift complaints are the bread and butter of transmission diagnosis, and the single most valuable habit is localization.
- Modern transmissions have shift-specific solenoids and clutches. Isolate by which shift is affected. Scan tool bidirectional controls confirm solenoid function.
- Each gear uses specific clutches/bands. A single-gear slip localizes to those elements. Full teardown is usually required to replace friction discs.
Shift complaints are the bread and butter of transmission diagnosis, and the single most valuable habit is localization: figuring out which shift or which gear misbehaves narrows a thousand possible causes down to a handful of specific components.
Localize the complaint to the shift or the gear
Modern automatics dedicate specific solenoids, accumulators, and clutch packs to specific shifts. That architecture is your diagnostic gift. If the 1-2 shift is late and harsh but 2-3 and 3-4 are normal, you are not looking at a general transmission problem — you are looking at the specific shift solenoid for that shift, the 1-2 shift accumulator that cushions its apply, or the clutch pack applied on the 1-2 shift. A tech who replaces 'the transmission' for a single bad shift has skipped the thinking. Use scan tool bidirectional controls to command the suspect solenoid and confirm whether it responds before touching hardware.
The same logic applies to slipping. If the unit slips in a single gear only — the classic 'third-gear slip' — the worn friction elements are the specific clutch pack or band that carries that gear, identified from the clutch application chart. The bad news is that friction discs live inside the transmission, so a confirmed single-gear slip usually means a full teardown to replace them. The good news is you can walk into that teardown already knowing what you'll find.
| Condition | Typical behavior | Deviation means |
|---|---|---|
| Idle in Drive | Baseline pressure, roughly 50–100 psi on many units | Low baseline = pump wear, filter restriction, or EPC fault |
| Throttle/load increase | Pressure rises smoothly with load | No rise = pressure control (EPC) or sensor input problem |
| Reverse | Highest pressures, often 2x+ Drive baseline | Reverse-only complaints often track pressure demands |
| During a shift | Momentary controlled dip, then recovery | Big sag = leaking apply circuit or worn seals on that clutch |
| Single shift late/harsh | Other shifts normal | That shift's solenoid, accumulator, or clutch pack — not 'the transmission' |
| Slip in one gear only | Ratio error in that gear on scan data | The specific clutch or band carrying that gear (application chart) |
Actual pressure values vary widely between units — read them against the OE specification and pressure-test port procedure. The behavior pattern (baseline, rise with load, recovery after shifts) transfers everywhere.
- Road test with the scan tool graphing gear command, actual gear ratio, and slip speed. First question answered: does the TCM command the shift at the right moment? A correct command with a wrong result moves the fault into the transmission.
- Pin the complaint to a specific shift — 1-2, 2-3, 3-4 — and confirm the others are clean. One bad shift with the rest normal converts a thousand possibilities into a handful of components dedicated to that shift.
- Watch slip speed through the bad shift. Flare (RPM rise before engagement) = the oncoming clutch is late or soft — pressure or sealing. Harshness with no flare = cushioning problem, pointing at the accumulator or pressure control.
- Use bidirectional control to command the suspect shift solenoid and confirm it responds. A solenoid that clicks and shifts on command shifts suspicion to the hydraulic circuit or the clutch itself.
- Cross-reference the application chart for the elements applied on that shift. You now have a named solenoid, accumulator, and clutch pack — a short list that survives contact with the teardown.
- Replacing 'the transmission' for a single bad shift. Specific solenoids, accumulators, and clutch packs serve specific shifts — a one-shift complaint is a localized fault, and the application chart names the suspects before any hardware moves.
- Skipping the command check. If the TCM never commanded the shift on time, the transmission executed perfectly — the fault is inputs, sensors, or software, and no mechanical repair fixes a control decision.
- Confusing flare with harshness. Flare is the oncoming element arriving late (pressure, sealing); harshness is the apply arriving uncushioned (accumulator, pressure control). They feel different in the seat and they name different parts — record which one you felt.
The 2-3 shift flares 400 RPM before engaging; every other shift is crisp. Walk the reasoning.
Flare means the engine briefly spun free between gears — the oncoming clutch for the 2-3 shift arrived late or soft. Since other shifts are clean, line pressure and the pump are fine globally; the fault is local to the 2-3 apply circuit: its shift solenoid, a leaking seal on that clutch, or its accumulator. The application chart names the exact clutch to expect worn.
Why does a scan tool road test come before a pressure gauge on a modern shift complaint?
The TCM already measures what you need: commanded gear, actual ratio, and slip in real time. That data answers the first fork in the diagnosis — did the computer command correctly and the transmission fail to execute, or was the command itself wrong? A gauge cannot answer that question, and half of shift complaints resolve on the command side.
A unit slips only in 3rd. What does the repair usually require, and what is the consolation prize of good diagnosis?
The friction elements carrying 3rd are worn, and friction discs live inside the case — a confirmed single-gear slip generally means teardown. The consolation is walking into that teardown already knowing which clutch pack you will find burned, having identified it from the application chart, so the estimate and parts order are right the first time.
Solenoids
2 conceptsShift solenoids are the electro-hydraulic translators of a modern automatic.
- Modern automatics have PWM shift solenoids. When one fails, that shift point is missed or defaults to limp mode. DTCs typically identify which solenoid.
- Verify with a scan tool that PCM is commanding solenoid activation, then check solenoid response with lab scope or scan-tool bidirectional. Isolate electrical vs. hydraulic.
Shift solenoids are the electro-hydraulic translators of a modern automatic: the computer speaks in current, the valve body speaks in pressure, and solenoids convert one to the other. When shifts go missing, this interface is where you look — and where you must separate electrical faults from hydraulic ones.
How solenoid failures present and how to isolate them
Modern automatics use pulse-width-modulated (PWM) shift solenoids, each controlling specific shift valves. When one solenoid sticks — electrically open or shorted, or hydraulically jammed with debris — you don't lose all shifting; you lose the specific shift or shifts that solenoid controls. Often the TCM detects the fault, sets a diagnostic trouble code identifying which solenoid, and may drop the transmission into limp mode. A missed shift point plus a solenoid-specific DTC is a strong lead, but a code alone is not a diagnosis.
The key scenario to master: the PCM or TCM is commanding a solenoid, but the shift never happens. That could mean the solenoid itself is stuck, the wiring to it is broken or shorted, or the hydraulic circuit downstream of a perfectly good solenoid is blocked. Isolate in layers. First confirm with a scan tool that the computer really is commanding the solenoid at the right moment. Then verify the solenoid's electrical response — a lab scope on the circuit shows current ramp and pintle movement, or use scan tool bidirectional control to click it on demand. If the electrical side checks out and the shift still doesn't happen, the problem is hydraulic: a stuck valve or blocked passage in the valve body. Command, circuit, solenoid, hydraulics — in that order, so you never replace a good part.
- Confirm the TCM/PCM is commanding the solenoid (scan data)
- Test the circuit and solenoid response (lab scope or bidirectional control)
- If electrical checks pass, suspect a stuck valve or blocked hydraulic passage
- Match the failed shifts to the solenoid application chart before replacing anything
| Test | Typical result | Interpretation |
|---|---|---|
| On/off shift solenoid resistance | Roughly 15–30 ohms (verify spec) | Open or shorted winding = electrical failure, code usually set |
| PWM / pressure-control solenoid resistance | Roughly 3–8 ohms (verify spec) | Low-resistance designs — do not condemn by on/off standards |
| Bidirectional command | Audible/felt click, shift executes | Solenoid and circuit alive; suspicion moves to hydraulics |
| Lab scope current ramp | Inductive bump (pintle movement) visible | No bump with good current = mechanically stuck pintle |
| Fault presentation | Specific shifts lost, not all shifting | Match failed shifts to the solenoid application chart |
Resistance specs vary by design and temperature — verify against service data. A solenoid-specific DTC identifies a circuit, not automatically a bad solenoid: wiring, connector, and the TCM driver share that circuit.
- Confirm on scan data that the TCM actually commands the solenoid at the expected moment. No command = control-side problem (inputs, software, TCM) — stop chasing the solenoid.
- Test the circuit: resistance at the connector against spec, and voltage/ground integrity through the harness. An open, short, or corroded connector produces the identical symptom set as a dead solenoid at a fraction of the price.
- Prove the solenoid responds: bidirectional-command it and listen or feel for the click, or scope the current ramp and look for the inductive bump of pintle movement. Current flowing with no pintle bump = mechanically stuck.
- If command, circuit, and solenoid all pass and the shift still fails, the fault is hydraulic: a stuck shift valve or blocked passage downstream of a healthy solenoid. That is valve body work, not a solenoid swap.
- Whatever you find, inspect the fluid and filter before closing the ticket — solenoids stick because of debris more often than they die of their own accord, and the debris source is still in there.
- Replacing the solenoid a DTC names without testing the circuit. The code identifies a circuit — solenoid, wiring, connector, and TCM driver all live on it, and a chafed harness sets the same code as a dead solenoid.
- Ending the diagnosis when a solenoid tests good. A stuck valve or blocked passage downstream produces a missing shift behind a perfectly healthy solenoid — 'commanded, circuit good, no shift' is the hydraulic signature, not a dead end.
- Swapping one stuck solenoid and ignoring the fluid full of debris that stuck it. The second failure is already in progress; the fluid and filter inspection is part of the solenoid repair, not an upsell.
Scan data shows the TCM commanding the 3-4 solenoid on time, the circuit measures in spec, bidirectional control clicks the solenoid — and the shift still never comes. Where is the fault?
In the hydraulics downstream: a stuck shift valve or a blocked passage in the valve body. The isolation sequence proved command, circuit, and solenoid; what remains is the fluid path the solenoid controls. This is exactly the case that layer-by-layer testing exists to catch — a parts-swapper would have installed two good solenoids by now.
Why does one stuck solenoid take out specific shifts instead of all shifting?
Each solenoid controls specific shift valves, which control specific clutch applies. The architecture is dedicated, so the failure is dedicated too — you lose exactly the shifts that solenoid participates in. That mapping is also the diagnostic gift: match the missing shifts to the solenoid application chart and the suspect names itself.
What does the inductive 'bump' on a solenoid current waveform actually show, and why is it worth scoping?
As the pintle physically moves, it changes the coil's inductance, which puts a visible inflection in the current ramp. Current with a bump proves the solenoid moved mechanically; current with no bump proves it is stuck — an electrical measurement that answers a mechanical question, without removing the valve body.
Diagnostics
7 conceptsTransmission diagnostics is a discipline of ruling things out in the right order: codes first, fluid always, then localize by symptom.
- P0700 is a generic 'see the TCM' code. The specific fault is stored in the TCM (or U-code linkages). Pull the TCM to find the actual root fault.
- Limp/fail-safe mode locks the transmission in a safe gear to protect the transmission. The vehicle can be moved but performance is limited.
- Input and output speed sensors let the TCM calculate slip and gear ratios. Faults confuse the TCM into incorrect shift decisions or trigger limp.
- Speed-band vibration in this range often localizes to driveshaft balance or angle. Full diagnosis: measure driveline angles at ride height and check driveshaft runout.
- The clunk-on-shift comes from driveline slack. Multiple sources: worn U-joints, worn differential, worn transmission mount, and worn axle splines all contribute.
- No-drive across all gears is a major failure. Check fluid level first, then look for input torque path failure — pump, converter, or shaft.
- Directional gear failure isolates to the specific clutch or band for that direction. In many designs, a forward clutch failure means teardown.
The transmission is expensive and buried, so the techs who thrive are the ones who extract the maximum information before anything comes apart.
Codes, limp mode, and speed sensors
Start with the electronic evidence. P0700 confuses new techs constantly: it is not a specific fault. It is a generic 'transmission control system fault' flag set in the PCM that means one thing — a real code exists in the TCM, and you need an OE-level scan tool to pull it. A generic code reader that only shows P0700 has told you where to look, not what is wrong. Pull the TCM codes and diagnose the actual fault.
When the TCM detects a fault serious enough to threaten the transmission, it drops into limp mode (fail-safe). Limp mode locks the unit into a single fixed gear — commonly 3rd or 4th — chosen so the vehicle can still be driven to a shop without destroying anything. A customer describing 'stuck in one gear, sluggish takeoff, won't upshift' is describing limp mode; go pull codes, don't start pulling pans.
Input and output speed sensors deserve special respect. The TCM compares input and output speeds to calculate actual gear ratio and clutch slip in real time — that comparison is how it verifies its own shifts. A faulty speed sensor feeds the TCM garbage, and the result is incorrect shift timing, harsh shifts, or a drop to limp mode. A sensor costing very little can perfectly imitate a dying transmission.
No-drive and directional failures
A no-drive condition in every gear is a break in the main torque path, and the diagnostic order matters. Check fluid level first — a transmission critically low on fluid can't build pressure and drives nothing, and it is embarrassing to quote a rebuild for a leak. If fluid is good, work through the input torque path: a failed pump that can't build line pressure, a failed torque converter, or a broken input shaft. All of these kill drive in every range because every range depends on them.
Contrast that with a directional failure: no forward movement, but reverse works fine. That instantly exonerates the pump, converter, and input shaft — reverse proves the torque path works. The failure is in the forward clutch pack or other forward-only apply components. In most designs a failed forward clutch means teardown, but you go into it with the fault already localized. Directional and single-gear failures are the transmission telling you exactly where to look; listen.
Driveline vibrations and clunks
Not every driveline complaint is inside the case. A rear-wheel-drive vehicle that vibrates in a speed band — say 40 to 55 mph — but is smooth above and below it is showing a classic driveshaft signature: driveline balance or driveshaft angle problems. Wheel imbalance tends to worsen continuously with speed; a bounded speed-band vibration points at the shaft. Proper diagnosis means measuring driveline working angles at ride height and checking driveshaft runout with a dial indicator, not throwing wheel balances at it.

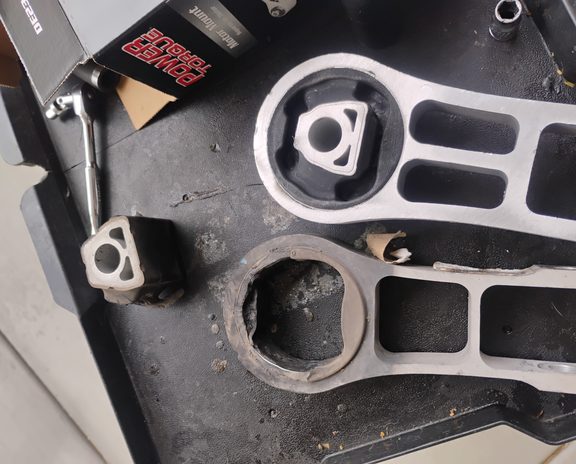

Then there's the clunk: a single click or thump shifting from Park to Drive on a solid-rear-axle vehicle. That sound is driveline slack being taken up all at once as torque loads the system. The slack accumulates from multiple wear points — worn U-joints, a worn differential (including a loose pinion nut), worn axle splines, and a worn transmission mount can all contribute. Get under the vehicle and have a helper cycle between ranges while you watch and feel where the lash lives, because the clunk is usually the sum of several small clearances, not one big one.
| Observation | Meaning | Next move |
|---|---|---|
| P0700 in the PCM | Generic flag: a real code lives in the TCM | Pull TCM codes with an OE-capable tool — P0700 is a pointer, not a fault |
| Locked in one gear (often 3rd/4th) | Limp mode — TCM protecting the unit | Pull codes; do not start with the pan |
| Input vs output speed mismatch vs commanded ratio | Real slip, measured | Identify the slipping element via application chart |
| Erratic speed sensor signal | Garbage data to the TCM | Cheap sensor perfectly imitates a dying transmission — test first |
| No drive in any range | Main torque path broken | Fluid level first, then pump, converter, input shaft |
| No forward, reverse works | Forward apply elements failed | Pump/converter/input exonerated — reverse proved them |
The comparison of input speed, output speed, and commanded gear is the TCM's own self-check — learn to read it and you are seeing the transmission the way its computer does.
- Check fluid level and condition before anything else. A unit critically low on fluid cannot build pressure and drives nothing — and it is embarrassing to quote a rebuild for a leak.
- Ask the directional question: does reverse work? Reverse working with no forward exonerates the pump, converter, and input shaft in one stroke — the fault is in forward-only apply elements.
- If nothing drives in any range, listen at engagement for the pump: a whine change or buzz at idle in gear hints the pump is trying. No line pressure at the test port confirms a pump, filter pickup, or converter drive fault.
- Scan for codes and speed sensor plausibility even on a 'mechanical' no-drive — some units default to no-apply strategies on certain electronic failures, and a five-minute scan beats a five-hour teardown.
- Only after fluid, direction, pressure, and electronics are answered does the unit come out. You arrive at the teardown with the failure already cornered: torque path (pump/converter/input) versus forward clutch, not 'it doesn't move.'
- Diagnosing from P0700 alone. It is a flag that a real code exists in the TCM — a generic reader that only shows P0700 has told you where to look, not what is wrong, and parts hung on P0700 are guesses.
- Pulling the pan for a limp-mode complaint. Limp mode is a strategy, not a mechanical state — the TCM chose one fixed gear to protect the unit. The codes that triggered it are the diagnosis; the pan comes later if they point there.
- Overlooking speed sensors because the symptom feels mechanical. The TCM calculates ratio and slip entirely from input and output speed — one faulty sensor feeds it garbage and produces harsh shifts, wrong timing, and limp mode from a part that costs almost nothing.
- Throwing wheel balance at a speed-band vibration. Wheel imbalance worsens continuously with speed; a vibration bounded to 40–55 mph that changes with load is driveshaft territory — angles and runout, not another balance.
A customer arrives 'stuck in one gear, sluggish from a stop, won't upshift.' What state is the transmission in and what is the correct first move?
Limp mode — the TCM detected a fault serious enough to threaten the unit and locked a single middle gear so the vehicle could reach a shop. The correct move is pulling TCM codes with an OE-capable tool and diagnosing the actual fault. Starting with mechanical teardown on a limp-mode complaint is diagnosing the symptom instead of reading the message.
No forward movement, but reverse is strong. What did reverse just prove, and where does the diagnosis go?
Reverse proved the pump builds pressure, the converter transmits torque, and the input shaft is intact — the whole common torque path works. The failure is isolated to forward-only apply components, classically the forward clutch pack. The teardown is still likely, but it begins with the fault already localized.
Why can a $40 speed sensor imitate a dying transmission?
The TCM verifies its own shifts by comparing input and output speeds to compute actual ratio and slip. A faulty sensor corrupts that comparison, so the TCM reacts to slip that is not happening — wrong shift timing, harsh applies, limp mode. The behavior looks mechanical because the TCM's responses are mechanical; the cause is one bad signal.
Cooler
2 conceptsThe transmission cooler is a simple loop of tubing with an outsized influence on transmission life.
- Correct cooler flow direction matters. Reversed lines can cause overheating or aeration. Always confirm OEM routing before installing an aux cooler.
- Aux coolers should be installed after the factory cooler so factory temp management is preserved. Bypassing the factory cooler removes thermostatic warm-up on cold starts.
The transmission cooler is a simple loop of tubing with an outsized influence on transmission life — get the plumbing wrong and you cook the unit you just repaired. Routing direction and auxiliary cooler placement are the two details that separate a correct install from a comeback.
Flow direction and auxiliary cooler placement
Cooler flow has a direction, and it matters. The pressure line carries hot fluid out of the transmission to the cooler; the return line brings cooled fluid back, typically entering toward the front area of the transmission so cool fluid returns where it's needed. Reverse the lines and you can cause overheating or fluid aeration — the system was designed for one flow path. Never assume; always confirm the OEM routing diagram before connecting lines, especially when installing an auxiliary cooler where it's easy to plumb backwards.
When you add an aftermarket auxiliary cooler for towing duty, install it in line with the factory cooler — usually after it, so fluid passes through the factory cooler first and then the aux cooler on its way back. Do not bypass the factory cooler. The factory cooler, sitting in the radiator, doesn't just cool: it also warms cold fluid on startup, and many systems rely on its thermostatic temperature management. Bypass it and you lose cold-weather warm-up, which means poor cold shift quality and accelerated wear every winter morning.
- Identify pressure (out) and return (in) lines from the OEM diagram before touching fittings
- Plumb the aux cooler in series, downstream of the factory cooler
- Never delete or bypass the factory cooler — it provides warm-up as well as cooling
- After installation, verify flow and recheck fluid level at temperature
| Item | Value / rule | Why it matters |
|---|---|---|
| Flow test at return line | Roughly one quart in ~20 seconds at idle | Weak flow = restriction cooking the unit you just repaired |
| Pressure line | Hot fluid OUT of the transmission to cooler | Reversed lines cause overheating and aeration |
| Aux cooler placement | In series, downstream of the factory cooler | Factory cooler also warms cold fluid — never bypass it |
| Factory in-radiator cooler failure mode | Internal crack = coolant in ATF | The strawberry-milkshake source |
| Post-repair verification | Confirm flow, then level at temperature | A kinked hose announces itself in 30 seconds or 30 days |
Flow-rate rules of thumb vary by unit and pump design — treat a weak or erratic stream as the finding and confirm against the OE cooler-flow procedure where published.
- Identify the pressure and return lines from the OEM routing diagram — not by guess. Knowing which line carries hot fluid out is the difference between a valid test and a backwards install.
- Disconnect the return line at the transmission and route it into a measuring container, with a plan to add fluid back as it pumps out.
- Start the engine and idle in Park or Neutral per the unit's design, timing the flow. A healthy circuit delivers roughly a quart in about 20 seconds — a strong, steady stream.
- Read the result: full flow means cooler and lines are clear — an overheating complaint moves to fluid level, TCC slip, or load. Weak or dribbling flow means restriction in the cooler or lines, found before it burned up a fresh repair.
- Restore the connection, set the fluid level at temperature, and recheck for leaks. After any converter failure or clutch debris event, flush or replace the cooler — trapped debris in the cooler is the classic killer of the replacement transmission.
- Skipping the cooler flush after a converter or clutch failure. The debris the old unit shed is sitting in the cooler waiting to flow back into the replacement — the 30-day repeat failure that follows is self-inflicted.
- Plumbing an auxiliary cooler to bypass the factory cooler. The in-radiator cooler warms cold fluid as well as cooling hot fluid; bypass it and every winter morning brings thick fluid, poor shifts, and accelerated wear.
- Connecting cooler lines by assumption. Flow has a designed direction — reversed lines aerate and overheat the fluid, and the failure builds slowly enough that it never gets connected back to the install.
A shop replaced a failed transmission and the replacement died the same death in a month. What step did they almost certainly skip?
Flushing or replacing the cooler and lines. The original failure shed friction material and metal into the cooler circuit; the debris waited there and flowed straight back into the new unit's fresh fluid. After any internal failure, the cooler is contaminated until proven clean — that flush is part of the transmission job, not an option.
Why does the auxiliary cooler go downstream of the factory cooler instead of replacing it?
The factory cooler sits in the radiator and does two jobs: it cools hot fluid, and on cold starts it warms cold fluid toward operating temperature, often with thermostatic management. The aux cooler adds capacity for towing without giving up warm-up. Bypassing the factory cooler trades summer capacity for winter shift quality and wear — a bad trade the customer feels every cold morning.
CVT
3 conceptsContinuously variable transmissions throw out the whole idea of fixed gears, and they punish techs who service them like conventional automatics.
- CVTs use pulleys with movable sheaves and a steel belt or chain to provide infinite ratios within a range. Very different fluid and service requirements vs. planetary automatics.
- CVT fluid's friction properties are tuned for belt-pulley contact. Using ATF or wrong CVT fluid causes belt slip, judder, and total failure — often within days.
- CVT shudder is a symptom of belt slippage. Fluid change may help early; advanced wear requires major overhaul or replacement — many CVTs are non-rebuildable in the field.
Knowing how the belt-and-pulley system works — and how absolutely fluid-critical it is — keeps you from destroying one with a well-intentioned fluid change.
How a CVT works and why its fluid is non-negotiable
A CVT has no fixed gear ratios at all. It uses two variable-diameter pulleys — each made of movable sheaves that squeeze together or spread apart under hydraulic pressure — connected by a steel push belt or chain. As one pulley pinches tighter (larger effective diameter) and the other opens up (smaller diameter), the ratio changes smoothly and continuously, giving an infinite number of ratios within its range. The engine can sit at its most efficient RPM while the pulleys do all the ratio work. This is a fundamentally different machine from a planetary automatic, with very different fluid and service requirements.
Here is the part that ends careers of transmissions: the belt drives the pulleys by friction at the metal-to-metal contact between belt and sheave faces. CVT fluid is engineered so its friction characteristics support exactly that grip. Pour conventional ATF into a CVT — or the wrong CVT fluid — and the belt loses its engineered grip, slips against the pulleys, and machines both surfaces. Judder appears, then total failure, often within days. There is no 'close enough' fluid for a CVT. Use exactly what the OE specifies.
CVT shudder and the repair reality
The classic CVT complaint is shudder or judder on light acceleration. That symptom means the belt is slipping, and the causes are belt or pulley wear, degraded fluid that has lost its friction properties, or a failing start clutch on designs that use one. As with TCC shudder on a conventional automatic, timing matters: caught early, a fluid change with correct CVT fluid may restore the friction interface and cure it.
Once wear is advanced, the picture is grimmer than with a planetary automatic. Belt and pulley damage requires major overhaul or unit replacement, and many CVTs are effectively non-rebuildable in the field — internal parts availability is limited and OEs push replacement units. Set customer expectations accordingly: a CVT shudder complaint is either a fluid service today or a transmission tomorrow, which is the strongest argument you'll ever have for proactive CVT fluid maintenance.
| Item | Rule / value | Consequence of getting it wrong |
|---|---|---|
| Fluid type | Exact OE CVT fluid only — never conventional ATF | Belt loses engineered grip: slip, judder, failure within days |
| Fluid across generations | Even one maker's CVT fluids can be incompatible | Write the exact part number on the RO before ordering |
| Service interval, real world | Roughly every 30,000–60,000 miles severe duty | 'Lifetime' CVT fluid is how CVTs die at 90k |
| Judder on light acceleration | Belt slipping on the sheaves | Early: fluid may cure it. Late: overhaul or replacement unit |
| Rebuild reality | Many CVTs effectively non-rebuildable in the field | Set expectations: fluid service today or transmission tomorrow |
Verify the exact fluid and interval in OE service data for the generation in front of you — CVT fluid compatibility does not follow badge logic, and the belt-sheave friction interface is the entire transmission.
- Reproduce the complaint on a road test: light acceleration from low speed is where belt slip judders. Note speed, load, and temperature — CVT complaints are often worse cold or hot, and the pattern matters.
- Scan for codes and look at any available slip or ratio data. Some platforms expose pulley ratio versus commanded — a ratio that wanders under steady load is slip made visible.
- Check the fluid: correct exact spec, level per procedure, condition and smell. Degraded or wrong fluid is the most fixable cause of judder and the first suspect in any CVT that has been 'serviced somewhere.'
- Service with the exact OE fluid if condition or history justifies it, then road test the same profile. Early judder that clears after correct fluid was a friction-interface problem — document and set a shortened service interval.
- Judder that persists after correct fluid means belt or pulley wear (or a failing start clutch on designs that use one). Quote honestly: on most CVTs that is a major overhaul or replacement unit, not a parts repair.
- Topping a CVT with conventional ATF 'just to get them home.' The belt drives by friction at the sheave faces, and ATF's friction profile is wrong — slip begins immediately and machines the belt and pulleys. There is no close-enough fluid for a CVT.
- Assuming one manufacturer means one CVT fluid. Generations within the same badge use incompatible fluids — the exact part number, verified twice, is the only safe practice.
- Letting 'lifetime fluid' end the service conversation. The belt-sheave interface lives and dies on fluid condition, and proactive changes are the single cheapest thing that extends a CVT's life. A judder complaint later is the expensive version of the conversation.
Why does wrong fluid kill a CVT in days when a conventional automatic might tolerate it for months?
A conventional automatic's wrong-fluid problem is clutch friction chemistry — harmful but gradual. A CVT transmits every foot-pound through metal-to-metal friction between belt and sheave faces, and the fluid's engineered friction characteristics are what make that grip work. Wrong fluid means the belt slips under load immediately, machining the belt and pulley surfaces — mechanical destruction, not chemical degradation.
A CVT judders on light take-off. What decides whether this is a $300 ticket or a $5,000 one?
How much wear has accumulated before the fluid gets corrected. Caught early, judder is often the fluid's lost friction properties — an exchange with exact OE fluid restores the interface. Once the belt and sheaves are worn, no fluid recovers them, and many CVTs are effectively non-rebuildable in the field, pushing the repair to a replacement unit. Timing is the whole difference.
What is mechanically happening in the pulleys when a CVT 'changes ratio'?
Each pulley is a pair of sheaves squeezed by hydraulic pressure. One pulley pinches together, forcing the belt to ride at a larger effective diameter, while the other spreads apart, letting the belt drop to a smaller diameter. The ratio between those effective diameters is the gear ratio — varied smoothly and continuously, with no fixed gears anywhere.
DCT
2 conceptsA dual-clutch transmission is best understood as a computer-shifted manual with two clutches.
- DCTs have two clutches allowing the next gear to be pre-engaged. This gives near-instant shifts without a torque converter. Fluid, clutch service, and mechatronic issues are common failure modes.
- Dry DCTs are efficient but wear clutches rapidly in stop-and-go. Wet DCTs handle high torque better. Mechatronic (valve body + TCM) is a major failure point on both.
A dual-clutch transmission is best understood as a computer-shifted manual with two clutches — it delivers lightning shifts without a torque converter, and it fails in ways that are unique to its design. Knowing the dry-versus-wet split and the mechatronic unit's reputation will make you the shop's DCT person.
Two clutches, pre-selected gears, and the known weak points
A DCT uses two independent clutches: one drives the odd-numbered gears, the other drives the even-numbered gears. While you're accelerating in 3rd on one clutch, the control system has already pre-selected 4th on the other shaft; the shift is just a handoff — one clutch releases as the other applies — giving near-instant gear changes with no torque converter in the driveline at all. Launch feel comes from slipping a clutch, exactly like a manual, except a mechatronic unit is doing the footwork.
The failure modes follow the design. Fluid condition, clutch wear, and mechatronic problems are the common DCT trouble spots. Dry-clutch DCTs — the 7-speed DSG (DSG7) being the famous example — run their clutches in air for efficiency, but that means limited heat capacity: stop-and-go driving, with its constant partial clutch engagement, wears dry clutch packs rapidly. Wet-clutch DCTs bathe the clutches in fluid, shed heat far better, and handle high torque more reliably. On both types, the mechatronic module — the integrated valve body and TCM that actually executes every shift — is a major failure point; a failing mechatronic causes erratic shifts, gear refusals, and warning lights that mimic mechanical failure.
When a DCT comes in with harsh engagement or shudder at launch, think like a clutch tech and an electronics tech at once: is the friction material worn, is the fluid degraded, or is the mechatronic misbehaving? The road test plus scan data on clutch adaptation values usually separates them.
| Attribute | Dry clutch DCT | Wet clutch DCT |
|---|---|---|
| Clutch environment | Runs in air — efficient, limited heat capacity | Bathed in fluid — sheds heat well |
| Typical application | Lower-torque engines (DSG7/DQ200 the famous case) | Higher-torque and performance applications |
| Worst duty cycle | Stop-and-go: constant partial engagement wears packs fast | Tolerates traffic far better |
| Fluid demands | Gear oil for the box; clutches dry | DCT-specific fluid is a friction spec — exact fill only |
| Shared weak point | Mechatronic unit (valve body + TCM) | Mechatronic unit — erratic shifts, refusals, warning lights |
Clutch adaptation data on the scan tool is the honest wear gauge on most DCTs — pull it before promising a fluid service will fix a launch shudder.
- Interview for duty cycle first: daily stop-and-go on a dry-clutch DCT makes clutch wear the leading suspect before any test runs. The commute is data.
- Road test for the three signatures: shudder on launch (clutch friction interface), harsh or erratic gear changes (mechatronic control), and refusals or wrong gears (mechatronic or position sensing).
- Pull clutch adaptation values with the scan tool. Adaptations near the end of their range are the TCM confessing how much clutch it has already compensated away — the wear gauge you cannot see mechanically.
- Check fluid condition and spec on wet-clutch units — degraded or wrong fluid causes shudder exactly as it does in a conventional automatic's TCC, and it is the cheapest fix on the list.
- Separate the verdicts: worn clutches (adaptations maxed, shudder under load) get clutch packs; mechatronic misbehavior (erratic execution, codes, refusals with healthy adaptations) gets the module path. The two produce different estimates — do not let one masquerade as the other.
- Treating a DCT like a torque-converter automatic. There is no converter — launch feel is a slipping clutch run by a computer, so launch complaints are clutch-and-control diagnosis, and 'it shudders at take-off' means friction interface, not fluid coupling.
- Ignoring the commute on a dry-clutch complaint. Stop-and-go traffic keeps a dry clutch in partial engagement with limited heat capacity — the wear is a duty-cycle outcome, and a replacement clutch behind the same commute has the same lifespan.
- Condemning clutches for what the mechatronic is doing. A failing mechatronic causes erratic shifts, refusals, and warnings that mimic mechanical failure — clutch adaptation data and codes separate them before a very expensive wrong guess.
Why is a dual-clutch transmission's shift nearly instant compared to a conventional automatic?
Because the next gear is already engaged before the shift happens. One clutch drives the odd gears, the other the even gears, and while you accelerate in 3rd the control system has pre-selected 4th on the other shaft. The 'shift' is just a handoff — one clutch releasing as the other applies — with no ratio change to execute in the moment.
A DSG7 owner who commutes through city traffic complains of launch shudder at 60k miles. What do the adaptation values likely show, and what is the honest conversation?
Clutch adaptations near the end of their compensation range — the TCM has been progressively adjusting for wear that stop-and-go partial engagement inflicts on a dry clutch with limited heat capacity. The honest conversation is clutch replacement plus duty-cycle expectations: the same commute will consume the next clutch on a similar schedule.
What is the mechatronic unit, and why does its failure look mechanical?
It is the integrated valve body and TCM that executes every clutch apply and gear selection. When it fails, gears arrive late, harshly, or not at all — symptoms indistinguishable from worn hardware from the driver's seat. Codes, adaptation data, and execution patterns are what separate a control failure from a friction failure.
Manual
6 conceptsManual transmissions and their clutches are refreshingly mechanical.
- Hydraulic clutches use brake fluid. Air, low level, or a failing master/slave produces a spongy or dead pedal. Bleed and inspect for leaks.
- Pop-out is internal wear — synchros, shift forks, or detent springs. Requires transmission removal and rebuild.
- Slippage = friction loss. Sources: worn disc, oil contamination from rear main or input shaft seal, warped pressure plate, or worn flywheel surface.
- Labor to reach these components is the same. Replace as a set (clutch kit + flywheel machined or replaced) to avoid pulling the transmission again.
- Synchro brass ring friction matches speeds before the collar engages the dog teeth. Worn synchros grind on shift, especially into 2nd from rest.
- Older manuals often have no reverse synchro. Grinding is normal if you shift too fast. Briefly touching a forward gear stops the countershaft, allowing clean reverse engagement.

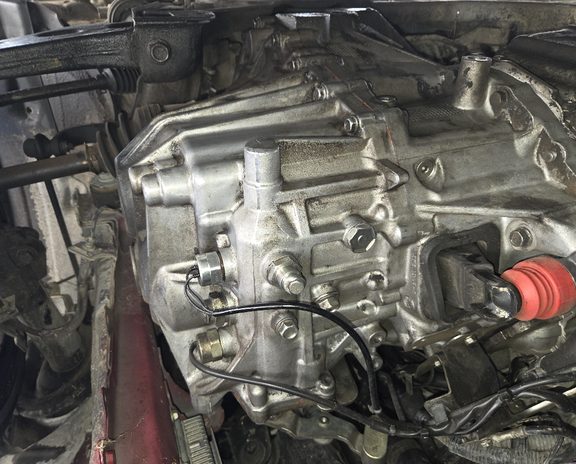

Manual transmissions and their clutches are refreshingly mechanical — almost every complaint traces to friction surfaces, hydraulics, or worn engagement hardware. The skill is in reading the symptom precisely: a slipping clutch, a spongy pedal, a pop-out, and a grind each point to a different part of the system.
Clutch hydraulics and clutch slip
Most modern manuals use a hydraulic clutch: a master cylinder at the pedal, a slave cylinder (often concentric around the input shaft) at the transmission, and a line between them, all filled with brake fluid. A spongy or dead pedal means the hydraulics have a problem — air in the line, low fluid level, or a failing master or slave cylinder that leaks internally. The fix is to inspect for leaks, correct the fluid level, and bleed the system; the clutch disc itself has nothing to do with pedal feel going soft.
Clutch slip is the opposite kind of failure: the pedal feels fine, but under load the engine revs climb without the vehicle accelerating to match. Slip means lost friction at the disc, and the sources are a worn-out disc, oil contamination of the friction surfaces — classically from a leaking rear main seal or transmission input shaft seal dripping onto the disc — a warped pressure plate that can't clamp evenly, or a worn, glazed flywheel surface. Note that oil contamination means a new clutch alone won't fix it; the leaking seal must be repaired or the new disc dies the same death.
Replace the clutch as a system
Pulling a transmission is hours of labor, and every wear component behind the flywheel is accessible only during that job. Best practice, every time: replace the pressure plate, the throw-out (release) bearing, and the pilot bearing along with the disc, and inspect the flywheel — resurface it or replace it (mandatory replacement for many dual-mass flywheels). Installing just a disc against a worn pressure plate and glazed flywheel guarantees poor engagement and a short service life, and reusing a cheap throw-out bearing risks doing the entire job again for a part that costs almost nothing. The labor is the expensive part; the parts are cheap by comparison.
- Clutch disc
- Pressure plate
- Throw-out (release) bearing
- Pilot bearing or bushing

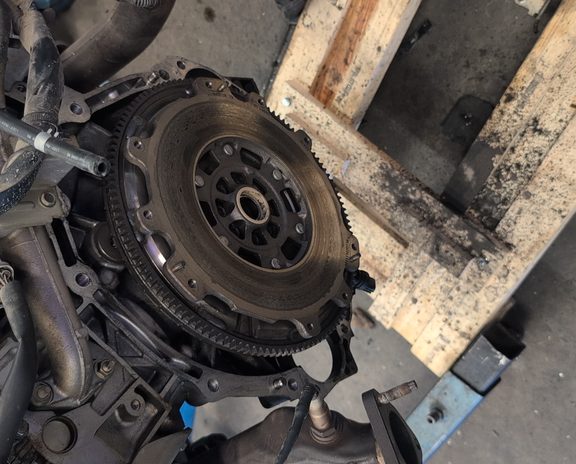

- Flywheel: inspect, resurface, or replace

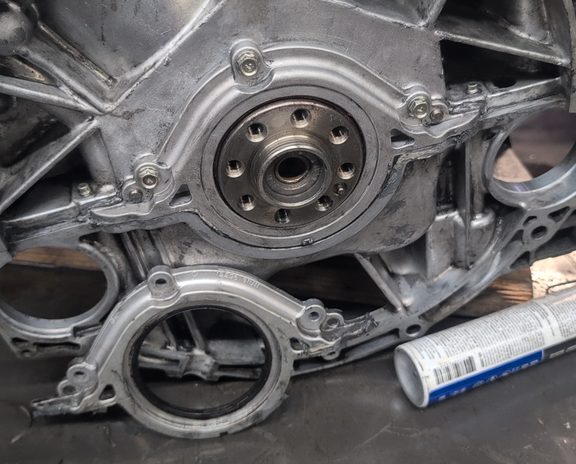

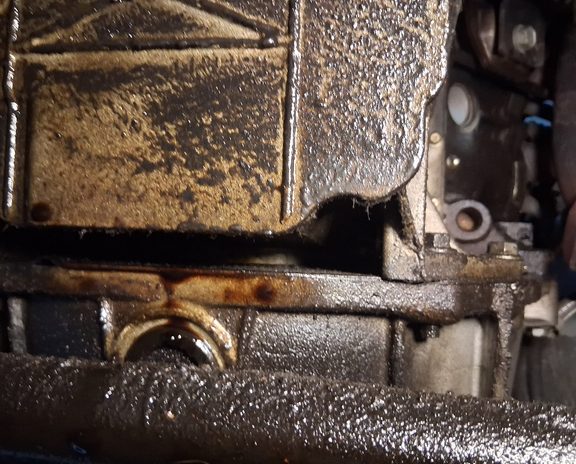

- Fix any oil leaks (rear main, input shaft seal) while you're in there
Synchros, pop-out, and the reverse grind
Inside the gearbox, the synchronizer is what makes smooth shifting possible. Its brass ring acts as a small cone clutch, using friction to match the speed of the gear to the shaft before the sliding collar engages the dog teeth. When synchros wear, that speed-matching fails and the shift grinds — classically into 2nd gear from a stop, the highest-load synchro in the box.
A transmission that pops out of gear — most often 3rd or 5th, frequently under deceleration — is telling you about internal wear: a worn synchronizer, a worn or bent shift fork, or weak detent springs that no longer hold the shift rail in position. None of that is clutch-related and none of it is fixable from outside; pop-out means transmission removal and internal repair.
One grind, though, is not a defect. Many transmissions — especially older ones — have no synchronizer on reverse. Shift into reverse too quickly after pressing the clutch and the still-spinning countershaft grinds against the reverse idler. The technique fix: pause a moment for the gears to spin down, or briefly engage a forward gear first — the forward synchro stops the countershaft — then slide it into reverse cleanly. Teach the customer that trick before selling them a repair they don't need.
| Item | Spec / rule | Why |
|---|---|---|
| Clutch hydraulic fluid | Brake fluid (typically DOT 3/4) | Same hygroscopic rules and bleeding logic as brakes |
| Spongy/dead pedal | Hydraulic fault — air, leak, failing cylinder | Pedal feel is hydraulics; the disc has nothing to do with it |
| Gear oil, boxes with brass synchros | GL-4 (not GL-5) | GL-5's EP additives attack yellow metals |
| Hypoid final drives / some boxes | GL-5 where specified | Match the spec — some manuals even take ATF or CVT fluid |
| Flywheel runout / surface | Resurface or replace; ~0.005 in. runout typical limit | Glazed or warped surface guarantees poor engagement |
| Dual-mass flywheel | Replacement often mandatory at clutch service | Resurfacing is usually not an option — quote it up front |
Runout limits and fluid calls vary by unit — verify in service data. The system rule does not vary: disc, pressure plate, release bearing, pilot, and flywheel condition travel together.
- Read the pedal: spongy, low, or dead pedal is hydraulic — air, fluid loss, or a bypassing master or slave cylinder. Firm pedal with driveline symptoms moves you to the friction side. The pedal itself sorts the diagnosis.
- For suspected slip: parking brake on, wheels blocked, high gear, and gently load the engine against the brakes at modest throttle. A healthy clutch stalls the engine almost immediately; RPM climbing without movement is slip, confirmed cheap and fast.
- For hydraulic complaints: check fluid level and look for leaks at the master, line, and slave (including inside the bellhousing for concentric slaves — a wet bellhousing seam tells the story). Correct, bleed, and retest.
- If slip is confirmed, look for the contamination question before quoting: oil leaking from the rear main or input shaft seal onto the disc means the seal repair is part of the clutch job, or the new disc dies the same death.
- Quote the job as a system: disc, pressure plate, release bearing, pilot bearing, flywheel resurfaced or replaced (mandatory replacement for many dual-mass units), plus any leaking seals. The labor is the expensive part — doing it twice for a skipped cheap part is the failure mode.
- Replacing the clutch disc for a spongy pedal. Pedal feel is the hydraulic system — air, leaks, or failing cylinders. The disc affects grip, not pedal softness, and a clutch job cannot fix a bleeding problem.
- Installing a new disc against a glazed flywheel and worn pressure plate. Engagement quality and service life come from the whole friction system; a fresh disc between two worn surfaces chatters, slips early, and buys the labor twice.
- Skipping the seal repair on an oil-contaminated clutch. The rear main or input shaft seal that oiled the old disc will oil the new one — the leak is part of the clutch job, not a separate line item to defer.
- Selling a synchro repair for a reverse grind on a box with unsynchronized reverse. Pausing a beat, or touching a forward gear first to stop the countershaft, cures it — teach the technique before quoting the teardown.
Engine RPM climbs on the highway but road speed lags behind, worst in high gear up a grade. Pedal feels normal. What is happening and what must you check beyond the disc?
The clutch is slipping — lost friction between disc, pressure plate, and flywheel, showing first in high gear where torque multiplication is least. Beyond disc wear, check for oil contamination from a rear main or input shaft seal, a warped pressure plate, and a glazed flywheel. If oil is present, the seal repair is mandatory or the new clutch inherits the failure.
A transmission pops out of 5th on deceleration. The customer wants a clutch. What do you tell them?
The clutch is innocent — pop-out is internal gearbox wear: a worn synchronizer, worn or bent shift fork, or weak detent springs no longer holding the shift rail in position. None of that is serviceable from outside; the transmission comes out for internal repair. A clutch job would spend their money and keep the symptom.
Why does the grind-into-2nd complaint point at a synchro, and why is 2nd the classic victim?
The synchronizer's brass cone clutch matches the gear's speed to the shaft before the collar engages the dog teeth — worn friction means the speeds never match and the teeth grind. Second gear takes the biggest speed change under the most frequent, highest-load shifts (every launch and every downshift into town speeds), so its synchro wears first in most boxes.
Driveshaft
2 conceptsThe driveshaft looks like a dumb steel tube.
- Speed-dependent driveshaft vibration comes from balance or U-joint issues. Load-sensitive vibration often points more specifically to U-joint or angle problems.
- Grab the yokes and try to move them in every direction. Any play, staining, or rust color from needle bearings failing means replacement.
The driveshaft looks like a dumb steel tube, but it spins at engine-multiplied speeds and any imbalance or joint wear turns into vibration the whole vehicle feels. Driveshaft diagnosis is mostly about reading the vibration's behavior and putting hands on the U-joints.
Vibration behavior and U-joint inspection
A vibration that increases with road speed points down the driveline, and if it changes character when you change load — backing off the throttle, coasting versus pulling — you have a strong driveshaft lead. Speed-dependent vibration comes from driveshaft imbalance (lost balance weight, dented tube, mud or undercoating on the shaft) or a worn U-joint. When the vibration is load-sensitive, that leans more specifically toward a U-joint or a driveline working-angle problem, because joint angles change with torque load while pure imbalance does not.
U-joint inspection is a hands-on job. Grab the yokes on both sides of each joint and try to move them in every direction — up-down, side-to-side, and rotationally against each other. Any perceptible play means the joint is done. Also look for the tell-tale rust-colored powder staining around the caps: that red dust is the needle bearings turning themselves to oxide after moisture got past the seals, and it means the joint is failing even if play is still slight. Missing or destroyed needle bearings finish the story. Any play, any staining, any roughness — replace the joint; U-joints are cheap and driveshafts that let go at speed are not.
- Grab both yokes and check for play in every direction
- Look for rust-red powder around the caps — moisture killed the needle bearings
- Check for missing needle bearings when a joint is disassembled
- Rotate the joint through its travel feeling for binding or notchiness
| Item | Typical limit / rule | What exceeding it means |
|---|---|---|
| U-joint working angle | Keep small — commonly ~3° maximum at ride height | Larger angles = velocity fluctuation and vibration under load |
| Angle matching, front vs rear joint | Equal within roughly 0.5° | Unequal angles defeat the joints' cancellation — vibration |
| U-joint play | None perceptible in any direction | Any felt movement = replace the joint |
| Rust-red powder at caps | None acceptable | Needle bearings turning to oxide — joint failing regardless of play |
| Driveshaft tube runout | Roughly 0.010–0.020 in. typical limit (location-specific) | Bent shaft — balance cannot fix a bend |
| Vibration signature | Speed-band bounded (e.g., 40–55 mph), load-sensitive | Shaft/joint/angle problem, not wheel balance |
Angle and runout limits vary by vehicle and shaft design — measure against the OE's driveline angle procedure, especially after lift kits, lowering, or suspension work that changes ride height.
- With the vehicle safely supported and the shaft unloaded, grab both yokes at each joint and force them against each other in every direction — up-down, side-to-side, rotational. Any perceptible play condemns the joint.
- Inspect around every cap for rust-red powder staining. That dust is needle bearings grinding themselves to oxide after moisture beat the seals — a failing joint even when play is still slight.
- Rotate each joint through its full travel feeling for binding or notchiness — a dry, notchy joint vibrates and fails soon even without measurable play.
- Check shaft phase: on a standard two-joint shaft, the yokes at each end should be in line with each other per the OE configuration. An out-of-phase shaft — often from a slip yoke reinstalled a spline off — vibrates exactly like an imbalance.
- Measure working angles at ride height with an inclinometer: engine/transmission angle, shaft angle, pinion angle. Joints should run small angles, matched front to rear within roughly half a degree; anything else after suspension work or a lift is your vibration source.
- Before removal for any service, paint-mark shaft-to-flange orientation. Reinstalling clocked differently can introduce a vibration that was never there — and you will chase it for a day.
- Balancing wheels for a driveline vibration. A vibration bounded to a speed band that changes with load is shaft territory — imbalance from a lost weight, a worn U-joint, or working angles. Wheel imbalance worsens continuously with speed; know the signature before spending the customer's money.
- Passing a U-joint because it has no play. The rust-red powder around the caps means the needle bearings are already oxide; the joint is failing regardless of how tight it feels today. Staining is a condemnation finding on its own.
- Reinstalling a slip yoke without checking phase. One spline off puts the shaft out of phase, and the resulting vibration gets blamed on the new parts just installed. Mark before removal; verify phase after.
A truck got a 3-inch lift and now vibrates under acceleration at 45 mph, smooth coasting. Nothing is worn. What changed?
The driveline working angles. Lifting the truck steepened the shaft angle, and unequal or excessive joint angles produce velocity fluctuations that appear under torque load — which is why it vibrates pulling and smooths out coasting. The fix is measuring the angles and correcting them (pinion shims, carrier-bearing spacing), not parts replacement.
Why do the U-joint angles at each end of a shaft need to be equal?
A single U-joint running at an angle speeds up and slows down twice per revolution — it is not a constant-velocity joint. The second joint, running at an equal angle, cancels that fluctuation. Equal angles: smooth shaft. Unequal angles: the cancellation fails and the leftover velocity fluctuation becomes a torsional vibration the whole vehicle feels.
What does rust-colored dust around a U-joint cap actually consist of, and why does it condemn the joint?
It is the needle bearings themselves, ground to iron oxide after moisture got past the seals and displaced the grease. The joint may still feel tight, but its bearings are literally turning to powder — play, noise, and separation follow. Staining is the early warning; waiting for play is waiting for the failure.
CV Joint
2 conceptsConstant-velocity joints let front-drive axles deliver power through steering and suspension travel.
- Outer CV clicking while turning under acceleration is the classic failure symptom. Once clicking, the boot is torn and contamination has damaged the joint. Replace axle or joint.
- Inner CV joints allow axial plunge as suspension moves. Worn inner joints or incorrect axle installation cause speed-related vibration.
Constant-velocity joints let front-drive axles deliver power through steering and suspension travel, and each of the two joints on an axle fails with its own signature sound or feel. Learn the outer joint's click and the inner joint's vibration and you can diagnose most FWD axle complaints from the driver's seat.
Outer click, inner vibration
The outer CV joint lives at the wheel and handles steering angles. Its classic failure symptom is a clicking or popping noise while turning at low speed under acceleration — tight parking-lot turns make it loudest. By the time a joint clicks, the story is usually already written: the boot tore, the grease slung out, dirt and water got in, and the balls and races are damaged. Once it's clicking, the joint is beyond saving — replace the joint or, as most shops do, the complete axle assembly. This is also why torn boots caught early matter: a re-booted joint that never ran contaminated is a cheap fix, while a clicking one is not.
The inner CV joint is a different animal: a plunge joint, designed to slide axially in and out as the suspension moves and the effective axle length changes. Worn inner joints announce themselves not with clicks but with vibration at highway speed on a front-wheel-drive vehicle — often felt in the floor or seat under acceleration. Be especially suspicious of the inner joint or an incorrectly installed, out-of-phase axle when the vibration appeared right after axle work. A new-axle vibration complaint is not automatically a defective part; verify the axle is fully seated, correctly phased, and the right part number before condemning anything else.
| Joint | Design job | Failure signature |
|---|---|---|
| Outer (fixed) joint | Handles steering angles at the wheel | Clicking/popping in low-speed turns under power — loudest in tight turns |
| Inner (plunge) joint | Slides axially as suspension changes axle length | Vibration at highway speed under acceleration, felt in floor/seat |
| Boot condition | Keeps grease in, contamination out | Torn boot caught early = cheap re-boot; caught late = axle |
| Clicking joint | Balls and races already damaged | Beyond saving — replace joint or complete axle assembly |
| Vibration right after axle work | Suspect the installation | Seating, phasing, or wrong part — verify before condemning others |
Most shops replace complete axle assemblies rather than joints — inspect remanufactured axles before install, and verify part numbers; a wrong-length or out-of-spec axle creates the vibration it was bought to fix.

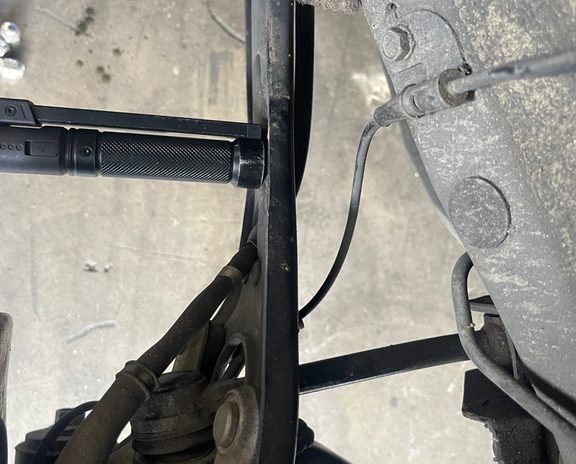

- Find an empty lot and drive slow, tight circles in one direction under light throttle, then the other direction. Outer CV clicking is loudest in tight turns under power.
- Note which direction is loudest: clicking loudest turning one way points at the outer joint on the loaded (outside) side — a thirty-second localization from the driver's seat.
- Confirm on the lift: rotate each front wheel with the axle loaded at an angle and listen; inspect both boots for tears, slung grease, and shiny witness marks around the boot area.
- Check the inner joints while you are there — grab the shaft near the inner joint and feel for excessive radial play, and look for grease slung radially from a torn inner boot.
- Match the finding to the symptom before quoting: click-in-turns = outer joint (replace axle); highway-speed vibration under power = inner plunge joint — and if that vibration appeared right after axle work, verify seating, phasing, and part number before condemning anything else.
- Re-booting a joint that already clicks. The click means the balls and races are damaged — the boot job seals contamination inside a ruined joint. Re-boot is the early-catch repair; clicking joints get replaced.
- Condemning a 'defective' new axle for a post-repair vibration without checking the installation. Not fully seated, out of phase, or the wrong part number produces the same vibration — the axle earns the blame only after the install is verified.
- Ignoring a torn boot because the joint is quiet. Quiet is temporary: the grease is leaving and grit is arriving. The gap between a torn boot and a clicking joint is exactly the window where the repair is cheap.
Clicking during tight parking-lot turns, quiet driving straight. Which joint, and why does the geometry make it click only in turns?
The outer joint. Steering swings the outer joint through large working angles, and worn balls and races load and unload against the damaged tracks each revolution at high angle — the click. Straight-line driving runs the joint at minimal angle where the damaged areas are barely engaged, so the noise vanishes.
Why is the inner CV joint a 'plunge' design, and what happens when plunge is lost or worn?
As the suspension travels, the effective distance between transmission and wheel changes — the inner joint slides axially to absorb it. Worn plunge sections produce highway-speed vibration under acceleration on FWD cars, felt in the floor and seat, because the joint binds and releases as it tries to slide under torque.
A customer declined a $40 boot last year and now needs a $300 axle. Explain the chain that connected those two invoices.
The torn boot slung out the grease and let water and grit into the joint. The contaminated balls and races wore until the joint clicked — and a clicking joint is beyond saving because the damage is in the hardened surfaces. The boot was never the part being sold; it was the joint's service life.
Differential
2 conceptsThe differential quietly splits torque between drive wheels while letting them turn at different speeds in corners, and it mostly asks for two things.
- Rear diff whines relate to gear tooth wear, worn bearings, or incorrect pinion depth. Fluid check first — burnt fluid confirms gear damage.
- LSD clutches need friction modifier additive to prevent chatter. Wrong oil or missing modifier causes ratcheting sounds during turns.
The differential quietly splits torque between drive wheels while letting them turn at different speeds in corners, and it mostly asks for two things: the right fluid and functioning bearings. When it starts talking — whining or chattering — it is telling you exactly what's wrong.
Whines, chatter, and the right oil
A whining noise from the rear differential that rises and falls with vehicle speed is the sound of metal unhappiness: a worn ring and pinion, failing bearings, or gears running at incorrect pinion depth from a bad setup. The pitch typically changes between drive (accelerating) and coast (decelerating) as the load shifts across the gear faces, which helps distinguish gear wear from bearing wear. Before any teardown, check the fluid — it is the fastest diagnostic in the book. Burnt, dark, glitter-laden gear oil confirms gear damage is underway; clean fluid with a whine points you toward bearings and setup.
Limited-slip differentials add a clutch pack that transfers torque to the wheel with grip, and those clutches have a specific fluid demand: gear oil with a friction modifier additive. The modifier tunes how the clutches slip smoothly during normal cornering. Run an LSD on plain gear oil — or forget the modifier bottle after a fluid change — and the clutches grab-release-grab, producing chatter or ratcheting sounds in turns, classically in slow parking-lot corners. The noise sounds alarming and expensive; often the cure is simply draining and refilling with the correct friction-modified oil.
| Item | Typical value / rule | Significance |
|---|---|---|
| Ring-and-pinion backlash | Roughly 0.005–0.012 in. (unit-specific) | Wrong backlash = whine and short gear life |
| Pinion bearing preload, new bearings | Roughly 15–30 in-lb rotating torque (verify) | Loose preload = pattern walk and eventual howl |
| Gear oil | GL-5 hypoid gear oil, correct viscosity | Hypoid sliding contact demands EP protection |
| Limited-slip additive | Friction modifier required (often ~4 oz) | Missing modifier = chatter in slow corners |
| Whine behavior | Pitch changes drive vs coast | Load shifts across gear faces — helps separate gears from bearings |
| Fluid inspection | Glitter/burnt = gear damage underway | The fastest pre-teardown diagnostic in the book |
Backlash and preload specs are unit-specific and setup is measured with a dial indicator and pattern compound — verify against the axle's service data. When in doubt on an LSD, the friction modifier bottle is cheaper than any teardown.
- Characterize the noise on a road test: whine rising and falling with vehicle speed (not engine speed) belongs to the axle. Note whether it is loudest under drive, coast, or float — load position moves the contact across the gear faces and separates gear wear from bearing wear.
- Pull the fill plug and inspect the fluid first. Burnt, dark, glitter-laden oil confirms gear or bearing damage in progress; clean fluid with a whine leans toward bearings or setup rather than destroyed gears.
- Check for chatter specifically in slow, tight corners on limited-slip units. Grab-release ratcheting in parking-lot turns is the LSD clutch pack missing its friction modifier — a fluid fix, not a hardware fix.
- With the wheels safely off the ground, feel for play: pinion flange radial and axial movement (bearing/preload), and total lash rotating the pinion against held wheels — excessive lash contributes to the Park-to-Drive clunk.
- If teardown is justified, read the story from the parts: the wear pattern on the ring gear faces reports pinion depth and backlash history — evidence that tells you whether the last setup, the bearings, or plain miles did the damage.
- Quoting clutch packs for LSD chatter before trying friction modifier. A limited-slip that was 'just serviced somewhere else' and now chatters in corners almost certainly got straight gear oil — the modifier or a correct refill plus figure-eights often cures it completely.
- Ignoring the drive-versus-coast character of a whine. Loudest accelerating versus loudest decelerating points at different gear faces and different causes — that free observation shapes the whole teardown expectation.
- Skipping the fluid check before teardown talk. Thirty seconds at the fill plug — color, smell, glitter — tells you whether you are walking into damaged gears or a setup/bearing story, and it changes the estimate honestly.
A limited-slip rear chatters and ratchets in slow parking-lot turns right after a fluid service elsewhere. Diagnosis and fix?
The LSD clutch pack is grabbing and releasing because the new gear oil has no friction modifier — the additive that tunes smooth clutch slip during normal cornering. Drain and refill with correct friction-modified oil (or add the modifier bottle), drive figure-eights to work it in, and re-evaluate. It sounds expensive; it is usually a fluid fix.
Why do corners require the differential to exist at all?
In a turn, the outside wheel travels a longer arc than the inside wheel — they must rotate at different speeds. The differential splits torque to both wheels while allowing that speed difference. Without it, the tires would fight each other in every corner, scrubbing and hopping — which is exactly what a fully locked differential does on dry pavement.
A rear axle whines on acceleration but goes quiet on coast. What does that asymmetry tell you?
The noise lives on the drive side of the gear teeth — the faces loaded when torque flows engine-to-wheels. Wear, pattern, or depth problems on that face sing under power and unload on coast. A coast-side whine reverses the logic. Either way the load-dependence points at gear contact rather than bearings, whose growl tends to persist in both states.
Transfer Case
2 conceptsThe transfer case splits power to both axles on 4WD vehicles.
- Transfer case shift actuators (electric on modern, vacuum on some older) are common failure points. Verify actuator movement before deeper diagnosis.
- Manual locking hubs disconnect the front wheels from the axle in 2WD. Must be locked before shifting into 4WD or the front axle spins but the wheels don't drive.
The transfer case splits power to both axles on 4WD vehicles, and most 'my four-wheel-drive won't engage' complaints never require opening the case at all — the failure is usually in whatever actuates the shift, or in hubs the driver forgot about.
Engagement failures and locking hubs
When 4WD won't engage, work from the actuator inward. Modern transfer cases shift with an electronic shift motor bolted to the case; older designs on some trucks used vacuum actuators; and lever-shifted cases rely on mechanical linkage. All three are common failure points — a dead shift motor, a cracked vacuum line or failed actuator diaphragm, or worn and misadjusted linkage will each produce a no-engage complaint with a perfectly healthy transfer case behind it. So verify actuator movement first: command the shift and confirm the motor or actuator physically moves before you dive deeper into diagnosis.
On older 4WD trucks with manual locking hubs, there's a step the driver owns. The hubs connect and disconnect the front wheels from the front axle shafts; in 2WD they're unlocked so the front axle doesn't spin uselessly and waste fuel. Before using 4WD, the hubs must be manually turned to LOCK — that engages the wheel to the axle so the front wheels can actually be driven. Shift the transfer case into 4WD with the hubs unlocked and the front driveline spins merrily while the front wheels contribute nothing. When a vintage truck comes in as 'transfer case engages but no four-wheel drive,' check the hubs before you check anything else — it's free and it's often the whole repair.
| Actuation type | Common failure | First test |
|---|---|---|
| Electronic shift motor | Dead/stuck motor on the case | Command the shift; confirm the motor physically moves |
| Vacuum actuator (older trucks) | Cracked line, failed diaphragm | Verify vacuum supply and actuator movement |
| Mechanical lever linkage | Worn or misadjusted linkage | Watch linkage travel at the case during a shift |
| Manual locking hubs | Left unlocked or seized | Turn hubs to LOCK; free = check them before the case |
| Case internals (chain, forks) | Least common failure point | Suspect last, after actuation is proven |
Most 'four-wheel-drive won't engage' complaints resolve outside the case — the actuator and the hubs fail far more often than the gears and chain inside. Fluid type is case-specific (many use ATF); verify before topping off.
- Confirm what the customer means by 'won't engage': indicator light behavior, noise, or no front-axle pull. Each points to a different depth in the system.
- Command the shift and physically verify the actuator moves — shift motor turning on the case, vacuum actuator stroking, or linkage traveling. A dead actuator with a healthy case is the most common finding in this diagnosis.
- On trucks with manual locking hubs, check them before anything deeper: hubs left in FREE let the front driveline spin while the wheels contribute nothing — 'transfer case engages but no four-wheel drive' is often the whole repair, at zero parts cost.
- If the actuator moves and hubs are locked, verify engagement at the output: with the vehicle safely raised per procedure, confirm the front driveshaft is being driven in 4WD.
- Only with actuation proven and outputs dead do you open the case conversation — chain stretch, shift fork wear, or internal damage. Check the fluid on the way in; burnt or glittered case fluid supports the internal story.
- Opening the transfer case before testing the actuator. Shift motors, vacuum lines, and linkage fail far more often than the gears and chain — the case is the last suspect, not the first.
- Forgetting manual hubs exist on older trucks. The transfer case can engage perfectly while unlocked hubs leave the front wheels disconnected — checking the hubs is free and is frequently the entire repair.
- Letting a 4WD system sit unexercised between winters. Actuators and hubs that never move are the ones that seize — the failure is discovered in the first snowstorm, which is the worst possible test environment.
An older truck's transfer case shifts into 4WD, the front driveshaft spins, but the front wheels do nothing in the snow. What did the driver forget?
The manual locking hubs. They connect the front wheels to the axle shafts, and in FREE the axle spins uselessly while the wheels coast. Turning the hubs to LOCK completes the path from transfer case to pavement — a no-cost fix and a driver-education moment, not a repair.
Why do manual hubs exist at all — why not leave the front axle permanently connected?
In 2WD, a connected front axle means the wheels back-drive the axle shafts, differential, and front driveshaft constantly — parasitic drag, wear, and wasted fuel with no benefit. Unlocking the hubs lets the front driveline rest while the truck runs 2WD, which is why the trade-off of a manual step existed.
Adaptive Learning
2 conceptsModern transmission control modules constantly learn — adjusting clutch apply pressures and timing to compensate for wear.
- Modern TCMs adapt shift feel over time. After service, perform a manufacturer-specific relearn (often includes driving cycles or scan tool procedure) for optimal shift feel.
- TCMs (like PCMs) are VIN-locked on most modern vehicles. Used TCMs need to be reprogrammed by a dealer or with J2534 tools before they'll fully function.
That intelligence becomes a trap after repairs: a TCM running values learned on old, worn parts will abuse brand-new components until you tell it to start over.
Relearns after repair and replacement TCMs
Over its life, a TCM adapts shift characteristics to the exact transmission it controls — trimming apply pressure and timing as clutches wear and fluid ages. Install a new valve body or fresh clutch packs and those learned values are suddenly wrong: calibrated for worn parts, applied to tight new ones. The result is harsh, flared, or erratic shifting on components that are perfectly good. Best practice after a valve body or clutch pack replacement is a manufacturer-specific adaptive relearn, which lets the TCM relearn shift characteristics for the new hardware. Depending on the OE this means a scan tool procedure, a prescribed sequence of driving cycles, or both — look up and follow the exact procedure, because 'drive it and it'll figure itself out' produces comeback-grade shift quality in the meantime.
Replacing the TCM itself raises a second hurdle: on most modern vehicles, TCMs — like PCMs — are locked to the vehicle's VIN. A used TCM from a donor vehicle will not simply plug in and work. It must be reprogrammed to the recipient vehicle's VIN, done at a dealer or in-shop with J2534 pass-through tools, and it typically still needs the adaptive learn afterward since it carries no valid history for this transmission. Quote TCM jobs with the programming time included, or the job isn't done when the part is in.
- Look up the manufacturer-specific relearn procedure before quoting the repair — some are a scan-tool routine, some are a prescribed drive cycle with fluid-temperature windows, many are both, and the road time belongs in the estimate.
- After a valve body or clutch pack replacement, reset or initialize adapts per the procedure. The TCM's stored values were learned on worn parts; applied to tight new components they produce harsh, flared, or erratic shifts on perfectly good hardware.
- For a replacement TCM, program first: modern TCMs are VIN-locked, so a donor module will not simply plug in — it needs reprogramming to this vehicle (dealer or J2534), and it carries no valid adaptive history afterward.
- Execute the drive-cycle portion exactly — specified temperatures, throttle levels, and shift sequences. 'Drive it and it will figure itself out' eventually works, but the customer experiences comeback-grade shifting in the meantime.
- Road-test to confirm shift quality after the relearn and document the procedure performed. Shift complaints that persist after a correct relearn are real faults, now cleanly separated from adaptation noise.
- Skipping the relearn after a valve body or clutch replacement. The TCM applies pressures learned on worn parts to new tight ones — the customer's 'it shifted better before you fixed it' call is scheduled the moment the relearn is skipped.
- Installing a used TCM as a plug-and-play part. Modern TCMs are locked to the VIN and must be reprogrammed to the recipient vehicle, then relearned — quote the programming time or the job is not done when the part is in.
- Eating the relearn road time because it was never quoted. Some OE procedures need specific fluid temperatures and drive patterns that take real time — print the procedure before the estimate, and bill for it up front.
A fresh valve body shifts worse than the worn one it replaced. What is the most likely explanation?
The TCM is still running adapts learned around the old, worn valve body — apply pressures and timings trimmed for leaky, loose components now being applied to tight new ones. The result is harsh or erratic shifts on good hardware. Perform the manufacturer's adaptive relearn; the shift quality complaint usually leaves with the stale values.
Why will a known-good used TCM from an identical donor vehicle not work when installed?
Modern TCMs are VIN-locked like PCMs. The module must be reprogrammed to the recipient vehicle's VIN — at a dealer or with J2534 pass-through tooling — before it will function, and it then needs an adaptive relearn because its learned history belongs to a different transmission's wear state.
Cooling
2 conceptsHeat is the single biggest enemy of automatic transmission life, and vehicles that tow live in the danger zone.
- Heat is the enemy. Fluid life is halved for every 20°F over spec. Aux cooler + more frequent fluid service is critical for tow duty.
- Thermostatic bypass warms fluid quickly, improving cold shift quality. When fluid reaches operating temp, valve opens and cooler flow begins.
Understanding how heat destroys fluid — and how thermal management systems protect it — turns you from a parts replacer into the tech customers trust with their tow rigs.
Why towing kills transmissions and how thermal bypass works
The most common transmission killer in heavy-towing vehicles is overheating: sustained load pushes fluid temperature up, hot fluid degrades and loses its protective and friction properties, and burned fluid lets the clutches burn next. The rule of thumb worth memorizing: fluid life is roughly halved for every 20 degrees F over its design temperature. A transmission towing at 40 degrees over spec is aging its fluid four times faster than designed. The mitigation is two-pronged — add an auxiliary fluid cooler to pull temperatures back down, and shorten the fluid service interval so degraded fluid gets out before it takes the clutches with it. For any customer who tows near the vehicle's capacity, both recommendations belong on the repair order.
Cold fluid is a subtler problem in the other direction — thick, sluggish fluid shifts poorly. That's why many transmissions use a thermostatic bypass valve in the cooler circuit. When the fluid is cold, the valve routes fluid around the cooler, letting it come up to operating temperature quickly and restoring good shift quality on cold mornings. Once fluid reaches operating temperature, the valve opens and diverts flow through the cooler, and cooling begins. Know this device exists: a stuck-open bypass causes chronic overcooling and poor cold shifting, while a stuck-closed one causes overheating that looks exactly like a plugged cooler.
| Sustained fluid temp | Effect on fluid life | Typical cause at that temp |
|---|---|---|
| ~175°F | Design baseline — full fluid life | Normal operation |
| ~195°F | Roughly half of baseline life | Heavy traffic, hot climates, light towing |
| ~215°F | Roughly one quarter of baseline | Towing near capacity without an aux cooler |
| ~235°F | Roughly one eighth — degradation is rapid | Overloaded, restricted cooler, or slipping TCC |
| 255°F+ | Fluid and clutches being actively damaged | Stop-and-repair territory, not monitor territory |
The halved-every-20°F rule is a field approximation of fluid oxidation chemistry — exact numbers vary by fluid, but the direction and steepness do not. Fluid temperature is the one number that predicts transmission life.
- Log transmission fluid temperature on a scan tool during a loaded road test — ideally a grade or acceleration profile resembling the customer's actual towing. Sustained readings, not momentary peaks, are the data.
- Compare against the reference bands: living around 175°F is design life; sustained 200°F+ under the customer's normal load means fluid is aging at several times the design rate.
- If temperatures run hot, check the cheap causes first: fluid level, cooler flow (quart in ~20 seconds), and TCC slip data — a slipping converter clutch is a constant internal heater that no cooler can out-cool.
- Verify the thermal bypass valve where fitted: chronic overcooling and poor cold shifting = stuck open; overheating that mimics a plugged cooler = stuck closed. Test before condemning the cooler itself.
- For vehicles that genuinely run hot under normal duty, recommend the two-part fix — auxiliary cooler in series after the factory cooler, plus a shortened fluid interval — and put both on the RO with the logged temperatures as the evidence.
- Selling an aux cooler without checking why the unit runs hot. A slipping TCC, low fluid, or restricted cooler makes heat no add-on cooler can keep up with — the cooler treats the symptom while the cause keeps cooking the clutches.
- Forgetting the thermostatic bypass exists. A stuck-closed bypass presents exactly like a plugged cooler, and a stuck-open one causes cold-shift complaints that get blamed on fluid or valve bodies — test the valve before replacing around it.
- Dismissing 200°F as 'not that hot.' Against a 175°F design point, sustained 215°F is quartering fluid life — the failure arrives tens of thousands of miles early, long after the hot towing summer everyone forgot.
A customer tows at a sustained 215°F fluid temperature. Their fluid is rated for 100,000 miles of normal service. What is its realistic life, and what do you recommend?
Roughly a quarter of baseline — call it 25,000 miles — because fluid life halves for about every 20°F over the ~175°F design point, and 215°F is two doublings up. Recommend an auxiliary cooler in series after the factory cooler to pull temperature down, plus a fluid interval matched to the measured temperature, and re-log temps after the cooler goes in.
Why does cold fluid get routed AROUND the cooler by the thermostatic bypass valve?
Cold ATF is thick and shifts poorly — the transmission wants operating temperature quickly. The bypass keeps fluid out of the cooler until it warms, restoring shift quality on cold mornings, then opens to begin cooling at operating temperature. It is thermal management, not just cooling — which is why deleting or bypassing coolers breaks winter behavior.
Two identical trucks, one dies at 120k with burnt clutches, one runs past 250k. The service records differ only in towing use. Reconstruct the failure chain on the first truck.
Sustained towing heat pushed fluid past design temperature, oxidizing it at several times the normal rate. The degraded fluid lost its protective and friction properties, clutches began to micro-slip and glaze, slip made more heat, and the cascade finished the friction material. The second truck's fluid lived at design temperature — same hardware, different thermal history.
Programming
1 conceptModule flashing is now routine transmission work — TCM updates fix shift complaints and replacement modules need software.
- Interrupted flashes can brick a TCM. Battery maintainer keeps voltage stable during long flashes. Some vehicles have recovery mode; others need TCM replacement.
Module flashing is now routine transmission work — TCM updates fix shift complaints and replacement modules need software — but an interrupted flash can turn a good module into a paperweight. Knowing the recovery path keeps a bad afternoon from becoming a module purchase.
Surviving a failed J2534 flash
J2534 pass-through programming lets the aftermarket flash OE software into modules, TCMs included. When a flash fails partway through, don't panic and don't immediately condemn the TCM. The correct move is the OE's recovery procedure — most manufacturers document a re-flash or recovery mode path for interrupted programming, and it frequently requires a stable battery voltage above 13.5 volts before the retry will take. Voltage sag is the number one cause of failed flashes in the first place: a long flash on a marginal battery, with modules awake and cooling fans cycling, drags system voltage down until the session aborts. A proper battery maintainer (not a basic charger, which can be too noisy) holding voltage steady for the entire session is cheap insurance.
Be honest about the stakes: an interrupted flash can brick a TCM. Some vehicles have a robust recovery mode that revives the module every time; others do not, and the only fix is TCM replacement plus programming the new one. That risk profile is exactly why the pre-flash checklist — battery maintainer connected, ignition state correct, no accessories cycling, stable laptop and cable — matters more than the flash itself.
- Connect a battery maintainer and verify voltage above 13.5V before starting
- Follow the OE's session prerequisites exactly (ignition state, accessories off)
- If the flash fails, look up the OE recovery procedure and retry with stable voltage
- If no recovery mode exists and the module won't respond, plan for TCM replacement and programming
| Item | Requirement | Why |
|---|---|---|
| Battery support | Maintainer holding above ~13.5V for the whole session | Voltage sag is the number one cause of failed flashes |
| Charger type | Proper maintainer, not a basic charger | Basic chargers are electrically noisy — noise corrupts sessions |
| Battery health | Conductance-test before flashing | Five minutes of testing has saved more TCMs than every recovery procedure |
| Session discipline | OE prerequisites exact: ignition state, accessories off | Modules awake and fans cycling drag voltage down mid-flash |
| Failed flash | OE recovery procedure, stable voltage, retry | Many modules recover; some brick — the checklist is the insurance |
An interrupted flash can permanently brick a TCM on platforms without a recovery mode — the pre-flash checklist matters more than the flash itself.
- Before any flash: conductance-test the battery, connect a proper maintainer, and verify system voltage above 13.5V. A thirty-minute flash on a marginal battery is a module gamble.
- Set the session up per the OE's prerequisites exactly — ignition position, accessories off, doors closed if specified — so no module wakes up and no fan cycles mid-session.
- If a flash fails partway, do not cycle the key in a panic and do not condemn the TCM. Note exactly where it stopped and leave the session hardware connected.
- Look up the OE's recovery procedure for interrupted programming — most manufacturers document a re-flash or recovery-mode path, and it typically requires the same stable voltage the first attempt should have had.
- Retry the flash under corrected conditions. If the platform has no recovery mode and the module no longer responds, the outcome is TCM replacement plus programming — which is the estimate conversation the pre-flash checklist exists to prevent.
- Flashing on an untested battery. Voltage sag mid-session is the leading cause of interrupted flashes, and an interrupted flash can brick the module — the five-minute conductance test is the cheapest step in the entire job.
- Using a basic battery charger as flash support. Chargers can be electrically noisy, and noise corrupts programming sessions — a proper maintainer holds clean, stable voltage, which is the actual requirement.
- Condemning the TCM the moment a flash fails. Most OEs document a recovery path for interrupted programming — the module is often recoverable with stable voltage and the documented retry; replacement is the last resort, not the reflex.
A TCM flash aborted at 60% and the module is unresponsive. What is the correct sequence before ordering a TCM?
Stabilize power — maintainer connected, voltage verified above 13.5V — then find and follow the OE's documented recovery procedure for interrupted programming; most platforms have a re-flash or recovery-mode path. Only if the platform lacks recovery and the module stays dead does replacement (plus programming to this VIN) become the repair.
Why is a battery maintainer specified instead of the shop's regular battery charger?
Two different jobs: a maintainer holds a steady, clean voltage for hours, while a basic charger pushes current with electrical noise and voltage ripple. Programming sessions are corrupted by both sag and noise — so the requirement is stable and quiet, which is exactly what a maintainer provides and a charger may not.
Modern Automatics
2 conceptsThe 8-, 9-, and 10-speed automatics in late-model vehicles are refined, efficient.
- Modern many-speed automatics use compound planetary sets and precise solenoid control. They require exact OE fluid specs and are less tolerant of poor service.
- Many modern automatics use electronic shift-by-wire selectors — buttons, rotary dials, or joystick shifters — decoupled from the transmission mechanically.
The 8-, 9-, and 10-speed automatics in late-model vehicles are refined, efficient, and far less forgiving of casual service than the 4-speeds that trained the last generation of techs. Their gearing, controls, and even their shifters have changed — and your service habits have to change with them.
More gears, tighter tolerances, and shift-by-wire
Modern many-speed automatics achieve 8, 9, or 10 ratios using Lepelletier and similar compound planetary gearing — clever combinations of gearsets sharing members — controlled by a larger array of shift solenoids executing precise, overlapping clutch handoffs. Despite the ratio count, these are not necessarily bigger or heavier units; they're denser and smarter. The service consequence is unforgiving: they demand exact OE fluid specifications and are far less tolerant of poor service than older designs. The tight clutch clearances and precise solenoid control that make a 10-speed shift imperceptibly also mean the wrong fluid's friction characteristics show up immediately as shudder and harshness. 'Universal' multi-vehicle ATF has no place in these units.
The driver interface changed too. Transmissions like the ZF 8HP and GM 8L90 commonly pair with electronic shift-by-wire selectors — pushbuttons, rotary dials, or joystick-style shifters — that have no mechanical connection to the transmission at all. The selector is just an input device; the TCM engages Park, Reverse, or Drive electronically and often auto-Parks the vehicle when the driver exits. For the tech, this means 'shifter problems' are now electronics diagnostics — selector modules, network messages, and TCM logic — and towing or moving a dead vehicle requires knowing the manual park-release procedure, because there's no cable to pop loose.
| Unit | Common applications | Service-critical notes |
|---|---|---|
| ZF 8HP | BMW, Ram, Jeep, many others | Exact OE-spec fluid; unit-specific level procedure; relearn after service |
| GM 8L45/8L90 | GM trucks and cars | Fluid-sensitive (shudder TSBs exist); follow current fluid guidance |
| Ford 10R80 / GM 10L80 | F-150, Mustang / GM trucks | Co-developed 10-speeds; exact fluid and relearn discipline |
| Shift-by-wire selectors | Dials, buttons, joysticks | 'Shifter problems' are electronics diagnosis; know the manual park release |
| All of the above | 8–10 ratios via compound gearing | No 'universal' ATF, ever — friction spec shows up immediately |
Applications and fluid guidance change across model years and TSBs — pull current OE service info for the exact unit even if you have done 'one like it.' Two units that look identical under the car can differ in fluid, level procedure, and relearn.
- Identify the exact transmission — RPO code, door tag, or service info by VIN — before ordering anything. 'It's the 8-speed' is not an identification; families contain incompatible variants.
- Pull the current OE fluid specification, including any TSB superseding it — several many-speed units have updated fluid guidance specifically for shudder complaints.
- Follow the unit's own level-check procedure: these are sealed units with specific temperature windows and conditions, and the procedure from the 'similar' unit next door may be wrong for this one.
- Check whether the unit requires an adapt reset or relearn after fluid service — many do, and skipping it produces the 'it shifted weird after you touched it' call.
- Before releasing a shift-by-wire vehicle, verify Park engagement behavior and know the manual park-release procedure — there is no cable to pop loose, and a dead vehicle in a stall with no release knowledge blocks a bay all morning.
- Servicing a 10-speed with multi-vehicle ATF. Tight clutch clearances and precise overlapping handoffs expose wrong friction characteristics immediately — shudder and harshness on day one, in a unit whose fluid was the entire specification.
- Assuming experience with 'one like it' transfers. Fluid spec, level-check procedure, and relearn requirements vary between visually identical units — the five minutes in service info is cheaper than the comeback.
- Treating a shift-by-wire complaint as a mechanical shifter problem. The selector is an input device with no mechanical connection — diagnosis lives in the selector module, network messages, and TCM logic, and towing the car requires the manual park release, not a cable trick.
Why are modern 8–10 speed units so much less tolerant of wrong fluid than the old 4-speeds?
Their shift quality depends on precise, overlapping clutch handoffs with tight clearances, all calibrated around the fluid's exact friction characteristics. The old units had wider margins and simpler applies that masked fluid variation. In a 10-speed, wrong friction modifiers change apply behavior beyond what the calibration can absorb — and the driver feels it as immediate shudder and harshness.
A shift-by-wire vehicle is dead in the shop and needs to move. What do you need to know that a cable-shifted car never required?
The manual park-release procedure. There is no mechanical connection between selector and transmission — Park is engaged and released electronically, so a dead vehicle stays locked in Park until the OE's documented release (often a hidden mechanical override) is used. Knowing where it is on the vehicles you service is basic shop readiness now.
Adaptive
1 conceptBeyond the full relearn, many modern automatics offer a shortcut.
- Clearing adapts avoids the TCM using stale learned values that don't match new components. Perform the OE procedure after fluid or component service.
Beyond the full relearn, many modern automatics offer a shortcut: a quick-learn or flash-clear procedure that wipes the TCM's learned shift adaptations after service. Knowing when and how to reset adapts is the difference between a transmission that shifts right on delivery and one that comes back in a week.
Clearing adapts after service
The TCM's adaptive tables are learned around the specific wear state of the transmission — old fluid, worn clutches, aged seals. Perform a fluid service or replace components, and those stored values no longer match reality. If the TCM keeps applying stale learned values calibrated for the old parts, the result is drivability complaints: harsh or flared shifts on hardware that's actually fine.
That's the purpose of the 'flash' or 'quick learn' procedure many manufacturers provide: it sets the shift adapts to zero, giving the TCM a clean slate so it relearns quickly against the transmission's new condition instead of slowly unlearning wrong values. Perform the OE-specified procedure after fluid or component service — it's usually a few minutes with a capable scan tool, and it prevents the awkward two weeks of mediocre shifting while adapts drift back to correct on their own.
- After a fluid service or component replacement, check whether the unit supports a quick-learn / adapt-clear procedure — most late-model units do, via a capable scan tool.
- Perform the OE-specified reset: it zeroes the stored shift adaptations so the TCM relearns against the transmission's new condition instead of slowly unlearning values calibrated for old fluid and worn parts.
- Complete any specified initialization drive — some units want specific shifts or temperatures to seed the new tables quickly.
- Road test and confirm shift quality; expect the first several shifts to refine noticeably as the TCM learns. Document the reset on the RO as its own line item.
- If harshness persists well after a correct reset and learning period, treat it as a real fault — the reset has now cleanly separated adaptation problems from mechanical and hydraulic ones.
- Skipping the adapt reset after a fluid service on units that support it. The TCM keeps applying values learned on old degraded fluid, producing two weeks of mediocre shifting and the 'it shifted weird after you touched it' phone call — five minutes of scan-tool work prevents it.
- Resetting adapts as a 'fix' for a mechanical problem. Clearing tables masks symptoms briefly while the TCM relearns around the fault — the complaint returns, now with a service event between you and the truth. Reset after service; diagnose before reset when there is a complaint.
Why would a transmission shift worse for a couple of weeks after a perfectly good fluid service?
The TCM's adaptive tables were learned around the old, degraded fluid and the transmission's worn state. Fresh fluid changed the friction behavior, so the stored values are now wrong — and without a reset, the TCM slowly unlearns them while the driver experiences flares and harshness. The quick-learn procedure zeroes the tables so relearning is fast instead of gradual.
A shop clears adapts and a slipping complaint 'goes away' for a week before returning. What actually happened?
The reset gave the TCM a clean slate, and its first-pass learned values temporarily compensated around the real fault — a worn clutch or hydraulic leak. As adaptation converged back to the limits of what it could mask, the slip re-emerged. The adapt reset was used as a treatment when it is actually a diagnostic separator: the recurrence proves the fault is mechanical.
Safety
2 conceptsTransmissions are among the heaviest, most awkward assemblies you'll handle.
- Transmission jacks safely support the heavy, awkward assembly and allow controlled positioning. Never use a floor jack alone — instability causes drops and injuries.
- Weld current takes the path of least resistance and can burn out modules if it flows through the vehicle. Ground the weld properly, disconnect battery, and address fuel vapors.
Transmissions are among the heaviest, most awkward assemblies you'll handle, and drivetrain repair puts you near fuel systems and sensitive electronics. Two safety disciplines — proper lifting equipment and proper welding precautions — prevent the injuries and fried modules that shortcuts invite.
Lifting transmissions and welding around the driveline
A transmission is heavy, top-heavy, and shaped like nothing a regular floor jack was designed to hold. Use a transmission jack with an adjustable saddle: the saddle tilts and cradles the case, straps secure it, and the jack allows the controlled, precise positioning you need to mate an input shaft to a clutch or converter. Never balance a transmission on a bare floor jack — the instability causes drops, and a falling transmission causes crushed hands and worse. The right jack is also just faster: fighting a wobbling case on a flat jack pad turns a one-hour R&R into an afternoon.
Welding on or near a vehicle brings two separate hazards. First, electronics: welding current takes the path of least resistance back to the welder's ground clamp, and if that path runs through the vehicle's wiring, it can burn out control modules. Disconnect the battery before welding, and clamp the welder's ground as close to the weld as possible so current never wanders through the harness. Second, fuel: welding near a fuel tank, or near transmission and drivetrain components close to fuel lines, demands fuel-vapor precautions — vapors, not liquid, are what explode. Treat every weld near the driveline as a two-checklist job: electrical isolation and fuel safety, every time.
- Use a transmission jack with an adjustable saddle and secure the case with straps
- Never substitute a bare floor jack for transmission removal or installation
- Disconnect the battery before any welding on the vehicle
- Clamp the welder ground directly adjacent to the weld point
- Address fuel vapor hazards before striking an arc near the tank or fuel lines
- Stage the right equipment before the job: a transmission jack with an adjustable, tilting saddle and straps. A bare floor jack under a top-heavy case is how hands get crushed — and it is slower anyway.
- Support, strap, and balance the case on the saddle before the last crossmember bolt comes out; adjust the saddle tilt so the unit sits stable, not balanced.
- Before lowering, drop the jack one inch and stop. Look and feel around the entire unit for anything still attached — one forgotten harness connector or cooler line has ripped apart more wiring than any other single mistake in driveline work.
- Lower in stages, walking the perimeter, keeping body parts out of the drop path entirely. The strap is the restraint; your shoulder is not.
- For any welding on the vehicle during the job: disconnect the battery, clamp the welder ground immediately adjacent to the weld so current never wanders through the harness, and clear fuel-vapor hazards before striking an arc near the tank or lines.
- Balancing a transmission on a bare floor jack. The case is heavy, top-heavy, and shaped like nothing the jack was designed to hold — drops crush hands, and even successful jobs take longer fighting the wobble than the proper jack would have taken.
- Welding on the vehicle with the battery connected and the ground clamp far from the weld. Welding current returns by the path of least resistance, and if that path runs through the harness, modules die — electrical isolation and a close ground are the two-line checklist.
- Lowering the unit without the one-inch pause. The forgotten connector check takes ten seconds; the ripped harness it prevents takes a day of repair and an awkward phone call.
Why does welding current destroy control modules, and what two steps prevent it?
Welding current returns to the ground clamp by the lowest-resistance path — and if the clamp is far from the weld, that path can run through the vehicle's wiring and module grounds, burning them out. Prevention: disconnect the battery, and clamp the welder's ground immediately adjacent to the weld so current never enters the harness at all.
What makes fuel-system welds dangerous even when the tank is 'empty'?
Vapors, not liquid, are what explode — and an 'empty' tank is full of fuel vapor at its most ignitable. Any weld near the tank or fuel lines demands vapor precautions first: distance, purging or removal per procedure, and treating the area as an ignition-controlled zone before an arc is struck.
Regulation
1 conceptWarranty law shapes what fluid and parts you should use on in-warranty transmission work.
- Magnuson-Moss allows aftermarket parts but requires the manufacturer to prove non-OE caused failure. Using OE-spec fluid documents proper service.
Warranty law shapes what fluid and parts you should use on in-warranty transmission work, and knowing the rules protects both your customer's coverage and your shop's liability when a repair is questioned later.
Magnuson-Moss and OE fluid on warranty vehicles
The Magnuson-Moss Warranty Act is the federal law governing consumer warranties, and its rule for our trade cuts both ways. On one hand, it permits aftermarket parts and independent service: a manufacturer cannot void a warranty simply because a vehicle was serviced outside the dealer or with non-OE parts. On the other hand, if a failure occurs, the manufacturer only has to cover it if the aftermarket part or fluid didn't cause the failure — and they are entitled to argue the point. If they can show the non-OE product caused the damage, the warranty claim on that damage can be denied.
Transmission fluid is exactly where this bites, because fluid choice demonstrably affects clutch life and shift quality. For warranty-required transmission repairs and services, using OE-spec fluid preserves the customer's powertrain warranty position: it documents proper service and removes the manufacturer's easiest argument for denial. This isn't about looking professional or padding the bill — it's about not handing the OEM a reason to walk away from a $6,000 claim over a $40 fluid decision. Document the exact fluid used on the invoice so the paper trail exists when it matters.
- Establish warranty status before choosing fluid or parts on any powertrain job — an in-warranty transmission changes the calculus on a $40 fluid decision guarding a $6,000 claim.
- On in-warranty units, use OE-spec fluid and document it: brand, specification, and quantity on the invoice. That one line removes the manufacturer's easiest denial argument.
- Know the two sides of Magnuson-Moss when advising customers: the manufacturer cannot void a warranty merely because service happened outside the dealer or with aftermarket parts — but they can deny a claim if they show the non-OE product caused the failure.
- When a customer insists on a non-OE product on an in-warranty unit, note the choice and the advice given on the RO — the paper trail protects the shop when the claim dispute surfaces later.
- Keep the records retrievable: in a warranty dispute, the documented fluid spec and procedure are worth more than any verbal account of what was probably used.
- Telling a customer that independent service voids their warranty — or that it cannot affect it. Both halves are wrong: Magnuson-Moss protects independent service, but a manufacturer can deny coverage for damage they show a non-OE part or fluid caused. The accurate version is the useful version.
- Using close-enough fluid on an in-warranty transmission. Fluid choice demonstrably affects clutch life, which makes it exactly the item an OEM can argue about — the OE-spec fill plus documentation costs a few dollars and closes the argument before it opens.
- Doing everything right and writing none of it down. An undocumented correct fluid choice is indistinguishable from a wrong one in a dispute — the invoice line is the evidence.
A manufacturer denies a transmission warranty claim because the vehicle was serviced at an independent shop. Is that denial valid on its own?
No. Magnuson-Moss forbids voiding a warranty merely because service happened outside the dealer or with aftermarket parts. The manufacturer's valid path is narrower: they must show the aftermarket part or fluid actually caused the failure in question. Documentation of correct-spec service is what forces them onto — and usually off of — that narrow path.
Why is transmission fluid the classic battleground for warranty disputes rather than, say, air filters?
Because fluid choice demonstrably affects clutch life and shift quality — friction modifiers are the specification. That gives a manufacturer a plausible causation argument when non-OE fluid meets a failed clutch pack. OE-spec fluid, documented on the invoice, removes the easiest denial theory an OEM has on a powertrain claim.
Documentation
1 conceptThe repair isn't finished when the fluid is in and the codes are cleared — it's finished when the paperwork tells the whole story.
- Detailed documentation supports warranty, provides service history for future diagnosis, and is required by CA BAR for shop invoices.
Documentation protects the customer's warranty, arms the next diagnosis, and in some states is legally required.
What to record after every transmission service
After a transmission service, document what was actually done: the specific fluid used (brand and specification), the procedure performed, any diagnostic trouble codes found and cleared, and the vehicle mileage. That record does three jobs at once. It supports warranty claims — yours and the manufacturer's — by proving correct fluid and procedure. It builds a service history that makes future diagnosis dramatically easier; knowing a shudder complaint started 5,000 miles after a fluid service at another shop reframes the whole diagnosis. And in California, the Bureau of Automotive Repair (BAR) requires detailed shop invoices, so thorough documentation isn't merely best practice there — it's a regulatory obligation.
Just noting the mileage, or just the price, doesn't do it. Codes you cleared without recording them are diagnostic evidence you destroyed. Write it all down while the job is fresh — the tech who reads that ticket in two years might be you.
- Fluid brand, specification, and quantity installed
- Exact procedure performed (drain and fill, exchange, filter, adapt reset)
- All DTCs present, and which were cleared
- Vehicle mileage at time of service
- Record the fluid exactly: brand, specification, and quantity installed. In a warranty or comeback dispute, this line is the difference between evidence and recollection.
- Record the procedure actually performed — drain and fill, exchange, filter replacement, adapt reset — so the next diagnosis knows what state the unit was left in.
- Record every DTC found and which were cleared. Codes cleared without recording them are diagnostic evidence destroyed — the shudder complaint that arrives in 5,000 miles needs that history.
- Record the mileage, and photograph fluid condition and the pan or drain plug before refill; attach photos to the RO. Pictures end later conversations that words prolong.
- Where state rules apply — California's BAR being the strict example — verify the invoice meets the required detail level. There, thorough documentation is a regulatory obligation, not just best practice.
- Clearing codes without recording them. The stored codes were the transmission's history — destroying them undocumented turns the next tech's diagnosis (possibly yours) into archaeology without artifacts.
- Writing 'transmission serviced' with no fluid spec. When a shudder complaint or warranty question surfaces later, an invoice that cannot say what went in the unit protects nobody — and in BAR states it may not even be a legal invoice.
- Skipping the before photos. Fluid condition and pan debris at the moment of service are one-time evidence — the customer or warranty administrator who questions the work in six months can be answered with a picture or with an argument.
A vehicle comes in with TCC shudder, and the history shows a fluid service 5,000 miles ago at another shop — with no fluid spec recorded. How does the missing line change your diagnosis?
It puts wrong-spec fluid squarely on the suspect list with no way to rule it out on paper. Shudder appearing after an undocumented fluid service is the classic wrong-fluid timeline, so the pragmatic move is an exchange with the correct OE-spec fluid and a road test before any converter conversation — and documenting yours properly, which is the lesson the last invoice teaches.
What three jobs does a complete transmission service record do at once?
It supports warranty positions — the shop's and the manufacturer's — by proving correct fluid and procedure; it builds the service history that makes future diagnosis dramatically easier; and in states like California it satisfies a regulatory requirement for detailed invoices. One thorough ticket, three kinds of protection.
Studied the material? Get TRN certified.
The Transmission & Drivetrain exam turns what you just learned into a verifiable credential drivers and shops can look up. 60 questions · 75 minutes · 75% to pass · $19.99.
Studying here is free forever. There's no obligation to take the exam.
The work these lessons teach.
Real jobs from Supercanic trucks — the systems above, out in the field.
Real-world cost guides for this system.
See what customers pay for the jobs this track teaches, parts, labor hours, and state-by-state ranges from our repair cost estimator.
Standards and further reading
Primary sources behind this page. Federal safety, emissions and consumer-protection references, worth reading before you authorize any repair.
- ASE certification The national standard for automotive technician testing and certification.
- SAE International The engineering body behind fluid, fastener and diagnostic standards.
- fueleconomy.gov maintenance guide DOE and EPA guidance on how maintenance affects fuel economy and engine life.
- California Bureau of Automotive Repair Licensing, consumer complaints and shop regulation in California.
