Suspension, Steering & Alignment
Rides right. Handles right. Wears right.
Suspension, Steering & Alignment covers the chassis systems that keep vehicles safe and comfortable. Includes basic alignment theory even though most mobile mechanics don't do wheel alignments themselves. Everything below is free, no login, no paywall. Work through the skill areas, drill them in Study Mode, and when you're ready, prove it with the certification exam.
Your readiness to certify
Drill all 60 concepts in Study Mode. Mark each one "Got it" once you know it cold. When every concept is cleared, you're ready for the SUS exam.
What you'll be able to do
- Strut and shock diagnosis and replacement

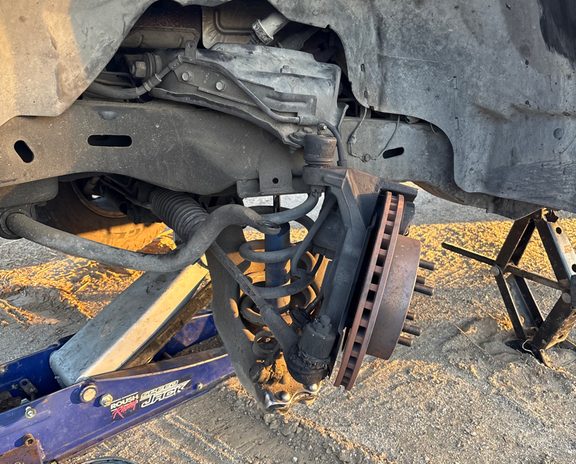

- Control arms, ball joints, tie rods, sway bar links

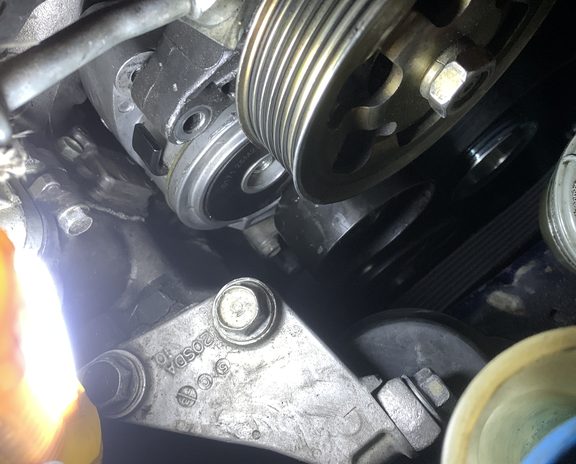

- Rack and pinion service, power steering diagnosis

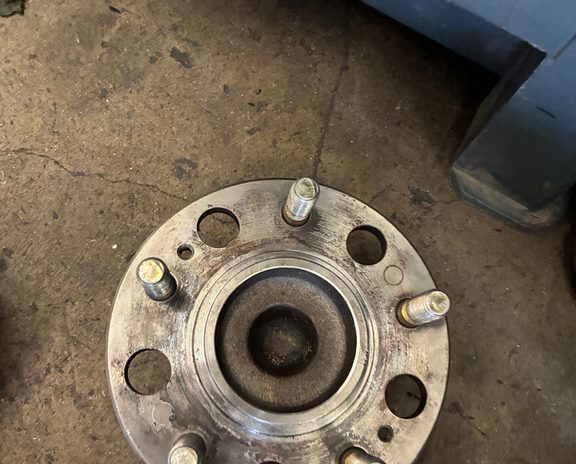

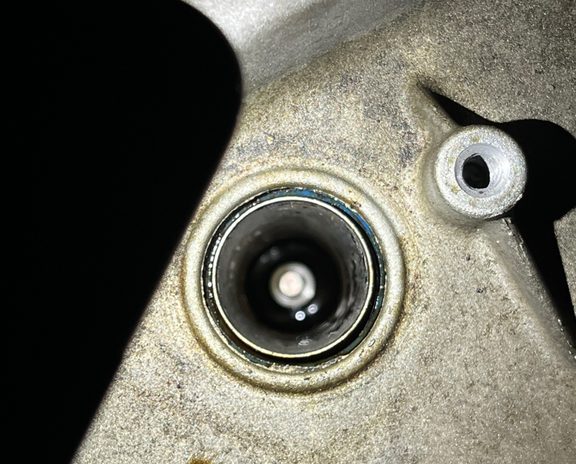

- Wheel bearings and hubs
- Alignment theory: caster, camber, toe, thrust angle
- Ride height and adjustable suspension systems

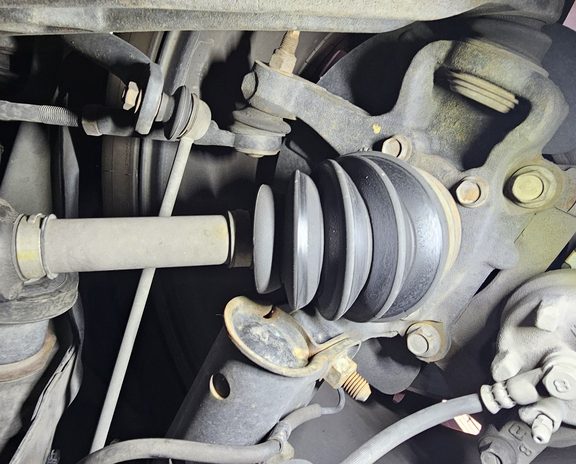

- CV axles and driveline vibration diagnosis
Skill areas
Jump to any area, each lesson teaches the system from the ground up, then recaps the key takeaways you'll drill in Study Mode.
Fundamentals
1 conceptBefore you can diagnose a clunk or dial in an alignment, you need to be clear on what the suspension is actually there to do.
- Suspension isolates the chassis while maintaining tire-to-road contact for grip, braking, and steering control.
Every angle, bushing, and damper on the vehicle serves one core mission, and understanding that mission makes every other lesson in this track fall into place.
What the Suspension Really Does
The suspension system has one primary job: isolate the chassis and its occupants from road irregularities while keeping the tires in constant contact with the road surface. Those two halves matter equally. Isolation is the comfort half — springs and dampers soak up bumps so the body doesn't take every hit. Tire contact is the safety half — a tire that skips, hops, or unloads off the pavement can't grip, and without grip you lose braking, acceleration, and steering control all at once.
A lot of apprentices think of suspension as a comfort system first. Flip that thinking. Ride comfort is a byproduct; keeping the contact patch planted through bumps, braking dives, and corners is the real engineering goal. When a customer complains about a bouncy ride, what you should hear is a vehicle whose tires are spending part of their time off the road — a traction and stopping-distance problem, not just an annoyance. Suspension work is safety work, every time.
- On a level floor, eyeball the stance at all four corners. A low corner points at a spring before anything else — dampers, bushings, and tie rods do not hold the car up.
- Run your palm across every tread in both directions. Feathering says toe, matching edge wear on both sides says camber, and scalloped cupping says dampers or balance — the tires have been logging the chassis condition for months.
- Bounce test each corner: push down hard and release. Settling within one to two oscillations is healthy damping; a corner that keeps bobbing has a tired damper letting the tire hop.
- Do a quick under-car scan for oil-streaked damper bodies, torn joint boots, broken coils hiding under the lower isolator, and shiny witness marks where loose parts have been knocking.
- Road test and duplicate the complaint before the lift, noting speed, load condition, and where the symptom is felt. Those notes turn an open-ended hunt into a short checklist.
- Treating a ride-quality complaint as a comfort issue. A bouncing body means tires spending part of their time unloaded — that is a traction and stopping-distance problem, and it should be diagnosed and sold as one.
- Going straight to the lift and shaking unloaded parts. Joints that carry load can feel perfectly tight with the suspension hanging, so the complaint survives your inspection and the customer loses confidence.
- Replacing parts before duplicating the complaint on a road test — if you never felt the symptom, you cannot know you fixed it, and the comeback proves it.
A customer says the car feels bouncy, but everything feels tight when you shake it on the lift. Why can the lift check miss the problem?
Worn dampers do not produce play — they produce uncontrolled motion, which only shows under load and movement. The bounce test and a road test over dips expose it; shaking hanging components never will. Back it up with a look for oil streaking on the damper bodies and cupped tire wear.
Why is a worn shock absorber a braking-distance problem and not just a comfort complaint?
The damper's job is to keep the tire planted after every bump. Worn damping lets the wheel hop, and a tire that is skipping off the pavement cannot grip — so braking, steering, and stability all degrade exactly when the road gets rough. That is why damper replacement is a safety recommendation.
Alignment
14 conceptsAlignment is where suspension geometry meets the real world of tire wear, pulls, and off-center steering wheels.

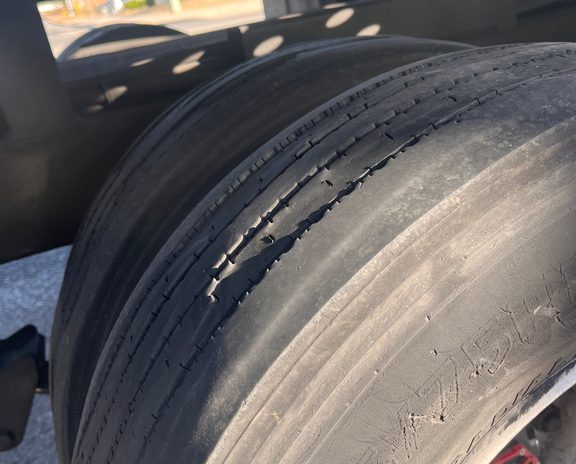

- Excessive camber wears the inner or outer edge; incorrect toe scrubs the tread across its full width — both cause rapid tire wear.
- Positive camber tips the top of the wheel outward. Most modern vehicles run slight negative camber for cornering grip.
- Vehicles pull toward the side with less positive caster. A cross-caster imbalance is a classic pull cause once tire, brake drag, and road crown are ruled out.
- Toe-in: fronts of tires angle toward each other. Toe-out: they angle away. Small toe settings compensate for suspension movement under load.
- Thrust angle is the rear axle's pointing direction vs. the geometric centerline. Non-zero thrust causes a crab-walk and requires a thrust-angle or four-wheel alignment.
- Setback measures whether one front wheel sits farther back than the other. Excess setback usually indicates collision damage to the frame or a subframe.
- SAI is the inward tilt (viewed from the front) of the steering axis. It contributes to steering return, straight-ahead stability, and is a diagnostic angle.
- Steering wheel position is set by the split of toe between the two tie rods. Center the wheel and re-adjust toe evenly to correct it.
- After alignment, tie rod work, or SAS replacement, the steering angle sensor must be re-zeroed. Most scan tools have this procedure.
- More positive caster increases steering effort and centering force. It also improves straight-line stability at speed.
- Caster isn't directly measurable — it's calculated by measuring camber at two steering positions (typically ±10° or ±20°) and applying trig.
- MacPherson camber adjustment is done at the strut mount — either eccentric cams at the knuckle-to-strut bolts or slotted upper mounts.
- A tire with an internal defect can pull the vehicle. Swapping front tires side-to-side confirms it — if the pull follows the tire, it's the tire.
- With camber and toe in spec, the remaining alignment cause is caster (cross-caster split). If caster is also good, check for a radial pull tire.
A tech who truly understands camber, caster, toe, thrust angle, SAI, and setback can diagnose problems the alignment machine alone will never explain — and that skill separates alignment techs from people who just chase green numbers on a screen.
The Three Primary Angles: Camber, Caster, Toe
Camber is the tilt of the wheel viewed from the front. Positive camber means the top of the tire tilts outward, away from the vehicle; negative camber tips the top inward. Most modern vehicles run slight negative camber because it plants the outside tire flatter on the road during cornering, improving grip. Get camber wrong in either direction and the tire rides on one shoulder — excessive negative camber wears the inner edge, excessive positive wears the outer edge.
Toe describes whether the wheels point at each other or away from each other viewed from above. Toe-in means the front edges of the tires angle toward each other; toe-out means they angle away. Static toe settings are deliberately small — they exist to compensate for the way suspension and steering linkage deflect under driving load, so the wheels end up rolling parallel down the road. When toe is wrong, the tire gets dragged sideways across the pavement with every rotation, scrubbing rubber off the full width of the tread. That is why camber and toe are the two angles that dominate tire wear in straight-line driving. Caster, by contrast, is not a tire-wearing angle.
Caster is the fore-aft tilt of the steering axis viewed from the side. Positive caster tilts the top of the steering axis rearward, like the fork on a bicycle. More positive caster increases steering effort and return-to-center force, and it improves straight-line stability at speed — the wheels want to self-center and track straight. That self-centering behavior is also the key to a classic diagnosis: a vehicle pulls toward the side with less positive caster. If a car pulls right on a level road with equal tire pressures — and you have ruled out brake drag, tire problems, and road crown — suspect cross-caster, meaning the left side has more positive caster than the right.
The Diagnostic Angles: SAI, Thrust Angle, Setback
Steering axis inclination (SAI) is the inward tilt, viewed from the front, of a line drawn through the steering pivots — the upper and lower ball joints on an SLA suspension, or the strut's upper pivot and lower ball joint on a MacPherson design. SAI contributes to steering return and straight-ahead stability, but on the alignment rack its biggest value is as a diagnostic angle. SAI is built into the parts, not adjusted; a wrong SAI reading points to a bent strut, spindle, or control arm.
Thrust angle is the direction the rear axle points relative to the vehicle's geometric centerline. When thrust angle isn't zero, the rear axle steers the car slightly, the front wheels correct for it, and the vehicle goes down the road crab-walking — dog-tracking with the body slightly sideways. That is why a thrust-angle or full four-wheel alignment is required rather than a front-only alignment: front toe has to be set relative to where the rear axle actually pushes the car.
Setback measures whether one front wheel sits farther rearward than the other. A small amount can be normal manufacturing tolerance, but excessive setback is a red flag for collision damage — a shifted subframe or bent frame rail. If setback is way out, stop adjusting and start measuring the structure.
Reading the Rack: Measurement and Adjustment
Caster can't be measured directly the way camber can. The machine calculates it by sweeping the wheels through a steering arc — measuring camber at two steering positions, typically plus and minus 10 or 20 degrees — and applying trigonometry to derive the caster value. That's why the alignment procedure has you turn the wheels through the caster sweep; skip it or do it sloppily and your caster numbers are garbage.
On a MacPherson strut vehicle, camber is adjusted at the strut: either eccentric cam bolts at the knuckle-to-strut connection or slotted upper strut mounts let you move the strut base or top laterally, which tilts the wheel. Rotating the strut or fiddling with tie rods does nothing for camber.
An off-center steering wheel with camber and caster in spec is a toe-split problem. Toe is divided between the left and right tie rods relative to a centered steering wheel, so the fix is to lock the wheel dead center and re-adjust toe evenly on both tie rods — never pull the wheel and re-clock it on the column.
One more modern requirement: after any alignment, tie rod work, or steering angle sensor replacement, the steering angle sensor (SAS) must be recalibrated. Electronic stability control relies on the SAS knowing where straight ahead is. Most scan tools have the re-zero procedure, and skipping it can cause ESC faults or, worse, the stability system intervening when it shouldn't.
Chasing a Pull Like a Pro
When a vehicle pulls and the alignment printout looks clean, work the list in order. Camber in spec, toe in spec — the remaining alignment suspect is caster, specifically the cross-caster split between sides. The vehicle drifts toward the side with less positive caster, so compare the two readings, not just whether each is inside its individual tolerance.
If cross-caster checks out too, get off the rack and think tires. Radial pull is caused by a defective tire — a belt or ply defect built into the carcass — and it will drag the vehicle to one side no matter how perfect the alignment is. The confirmation test is simple: swap the front tires side to side. If the pull changes direction or follows the tire, the tire is the problem, not the geometry. This test costs ten minutes and saves you from chasing your tail through a second and third alignment.
| Angle | Typical range | Effect when wrong |
|---|---|---|
| Front camber | About -0.5°, tolerance ±0.5° | Excess negative wears inner edges; positive wears outer |
| Cross-camber (side-to-side split) | 0.5° max | Vehicle drifts toward the more positive side |
| Caster | +3° to +6° positive on most modern vehicles | Not a tire-wearing angle; affects stability and return |
| Cross-caster | 0.5° max split | Vehicle pulls toward the side with less positive caster |
| Total front toe | Slight toe-in, roughly 0 to 1/8 in. (0-0.2°) | The fastest tire-wearing angle on the sheet |
| Thrust angle | 0° target, about ±0.10° tolerance | Off-zero = crooked wheel and dog-tracking |
| SAI | Read-only — built into the parts | An off reading means bent strut, spindle, or arm |
These are typical passenger-car ranges — always verify against the vehicle-specific specification before adjusting.
- Set tire pressures, note tread wear, verify ride height, and load the vehicle per spec. Every one of these changes the numbers, and half of comeback alignments trace to something that should have been caught here.
- Run a dry-park and component check before compensating a single head. Worn tie rods and ball joints make the readings meaningless — the geometry will not hold, so worn parts get fixed first.
- Perform the compensation and caster sweep carefully. Caster is calculated from camber measured through the steering arc, so a sloppy sweep produces garbage caster numbers.
- Read the cross values, not just the individual tolerances. The vehicle drifts toward more positive camber and away from more positive caster, so a big side-to-side split can pull even when both sides read 'green.'
- If the numbers are clean and it still pulls, swap the front tires side to side. A pull that reverses or follows the tire is radial pull — a defective tire carcass no alignment can fix.
- Finish with the wheel centered and locked for toe, then recalibrate the steering angle sensor. Stability control needs to know where straight ahead is, and skipping the relearn invites ESC faults.
- Aligning over worn parts. A loose tie rod or ball joint lets the angles wander under load — the printout looks perfect and the tires wear out anyway.
- Passing a big cross-caster or cross-camber split because each side is individually in tolerance. A 0.8° caster split pulls the car all day while both numbers read green.
- Fixing an off-center steering wheel by pulling it and re-clocking it on the column. The wheel is off because toe is split unevenly — lock the wheel centered and adjust both tie rods.
- Skipping the steering angle sensor recalibration after adjustment — the stability control system now believes straight ahead is a slight turn, which can trigger faults or false interventions.
The alignment printout is green, but the car pulls right. You swap the front tires side to side and the pull moves to the left. What is the diagnosis?
Radial tire pull — a belt or ply defect built into one tire's carcass drags the car regardless of geometry. The pull following (or reversing with) the tire is the confirmation. Replace or relocate the offending tire; a third alignment would fix nothing.
On a strut car, camber on one side will not come into spec and the SAI reading on that side is also off. What is SAI telling you?
SAI is built into the parts, not adjustable — a wrong SAI reading means something is bent: strut, knuckle, or control arm. Camber that cannot be corrected plus off SAI is collision-damage territory. Stop adjusting and start measuring components.
After an alignment the wheel is straight and the car tracks true, but the ESC light comes on during the test drive. What step got skipped?
The steering angle sensor recalibration. Adjusting toe changed where 'straight ahead' physically is, but the SAS still reports the old zero point. The stability module sees a steering input that does not match the yaw and wheel speeds, and it flags the fault. Re-zero the SAS with the scan tool.
Shocks & Struts
5 conceptsDampers are the most misunderstood parts on the car.
- Springs absorb road impacts; shocks (or the shock portion of a strut) dampen the resulting oscillations so the tire settles back on the road quickly.
- A strut is a structural component that supports the vehicle, locates the wheel, and dampens motion — replacing an upper control arm in MacPherson designs.
- Strut replacement disturbs camber and often SAI. An alignment is required after every strut replacement.
- Push down hard on a corner and release. A healthy shock lets the vehicle rise back and stop within 1-2 oscillations. More than that indicates worn dampers. It's a rough check — not definitive.
- Struts fail most often via seal wear — the oil in the strut leaks past the shaft seal, reducing damping progressively.
Dampers are the most misunderstood parts on the car — customers think they're springs, and plenty of techs replace them without knowing exactly what they do. Get the spring-versus-damper division of labor straight, learn how struts differ structurally, and know what has to happen after you install new ones.
What Dampers Do, and How Struts Differ
Springs and shock absorbers split the job of managing road impacts. The spring absorbs the hit and supports the vehicle's weight; the shock does neither. A shock absorber's job is to dampen the spring's oscillations — without it, the spring would bounce the body and the tire up and down repeatedly after every bump. The damper converts that oscillating energy into heat so the tire settles back onto the road quickly and stays planted. A worn shock doesn't lower the car and doesn't make it sag; it lets the car keep bouncing, and it lets the tire hop.
A strut is a different animal from a plain shock. A strut is a structural suspension member: it supports the vehicle's weight, locates the wheel, and dampens motion all in one assembly. In a MacPherson strut front end, the strut actually replaces the upper control arm — the strut body itself is the upper locating link for the knuckle. That structural role has consequences. The strut carries steering loads through its upper bearing mount, it defines part of the steering axis, and its position sets camber.
Failure Modes, Testing, and What Follows Replacement
The most common way a strut cartridge dies is not sudden collapse — it's a gradual oil leak past the shaft seal. As oil escapes, damping fades progressively, which is exactly why owners rarely notice: the ride degrades a little at a time over tens of thousands of miles. Look for oil streaking down the strut body, and pair that visual evidence with a performance check.
The classic quick check is the bounce test: push down hard on a corner of the vehicle and release. A healthy damper lets the body rise and settle within one to two oscillations. If the corner keeps bobbing beyond that, the damper is worn. Understand its limits, though — the bounce test is a rough roadside screen, not a definitive verdict, and a damper can pass a bounce test while still performing poorly at highway speed. Use it to build a case alongside oil leakage, cupped tire wear, and ride complaints.
After you replace struts on a MacPherson strut vehicle, an alignment is not optional. Removing and reinstalling the strut disturbs camber — the strut position defines it — and often SAI as well. Every strut job ends on the alignment rack. Sending the car out without one guarantees tire wear and a comeback.
| Item | Standard | Notes |
|---|---|---|
| Bounce test | Body settles within 1-2 oscillations | A rough screen, not a final verdict |
| Oil on damper body | Light misting acceptable; running streaks = replace | Misting is the shaft seal doing its job |
| Inspection interval | Every brake and tire service; formal check ~50,000 mi | Wear is gradual — owners rarely notice |
| Replacement policy | Axle pairs | One new and one tired damper handles unevenly |
| Post-strut alignment | Mandatory | Strut position sets camber and part of SAI |
| Cupped tire wear | Damper or balance cause | Fix the cause before mounting new tires |
On vehicles with electronically adjustable dampers, scan for suspension codes before condemning hardware.
- Road test over dips and washboard surface. Excessive float, wallowing after crests, nose dive under braking, and extra bounce cycles are the ride signatures of dead damping.
- Inspect each damper body. Light misting around the shaft seal is normal; oil streaking down the body means the seal has let go and damping is fading with every mile.
- Bounce test each corner and count oscillations — more than one or two after release fails the corner, but remember a damper can pass this test and still perform poorly at highway speed.
- Check the tires for cupping and check strut mounts and bearings — a scalloped tread confirms tire hop, and a worn upper mount adds clunks and memory steer that new struts alone will not cure.
- Build the case from all four findings together, then quote in axle pairs with the alignment included on strut jobs, and inspect spring seats and mounts while the assembly is apart.
- Condemning a damper for light misting around the shaft seal — that is normal lubrication of the shaft. Running streaks and wetness are the failure; misting is not.
- Replacing one damper on an axle. The new unit controls its corner while the old one floats, and the mismatched handling is worse than what the customer came in with.
- Skipping the alignment after strut replacement. The strut sets camber, and pulling it disturbs the angle every time — the tires pay for the shortcut in 5,000 miles.
- Reusing a worn strut mount or bearing on a strut job — the clunk and steering bind survive the new struts, and the comeback has your name on it.
A customer's new tires are cupped again 8,000 miles after replacement. What did the previous shop skip?
The cause. Cupping comes from the tire hopping — worn dampers or imbalance — and new rubber does nothing about either. Evaluate the dampers and road-force balance the wheels, fix what is found, and then the next set of tires survives.
A strut passes the bounce test, but the body shows oil streaks, the tires are starting to cup, and the customer reports float at highway speed. What is the call?
Replace. The bounce test is a rough, low-speed screen and a damper can pass it while performing poorly at speed. Streaking oil plus cupping plus the ride complaint is a complete case — three independent pieces of evidence agree.
After a strut replacement the car pulls slightly and later shows inner-edge tire wear. What was omitted?
The post-repair alignment. Removing and reinstalling a strut disturbs camber — the strut physically positions the top of the knuckle — and often the toe follows. Every strut job ends on the alignment rack, no exceptions.

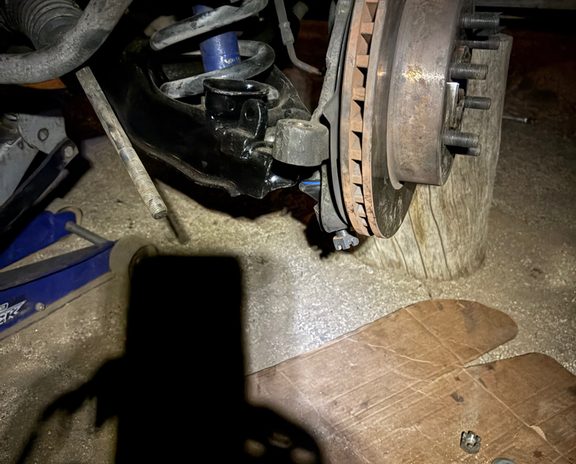

Ball Joints
2 conceptsBall joints are the pivots that let the wheel steer and the suspension travel at the same time.
- To test a loaded ball joint, you must unload it. Support the load-bearing control arm (upper in this case) at the coil spring location, then check for play.
- Wear-indicator joints have a raised nipple that recedes as the joint wears. When it's flush with or below the housing under vehicle load, replace the joint.

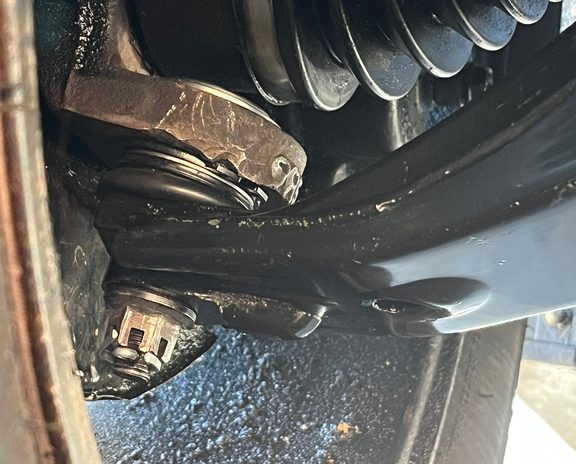

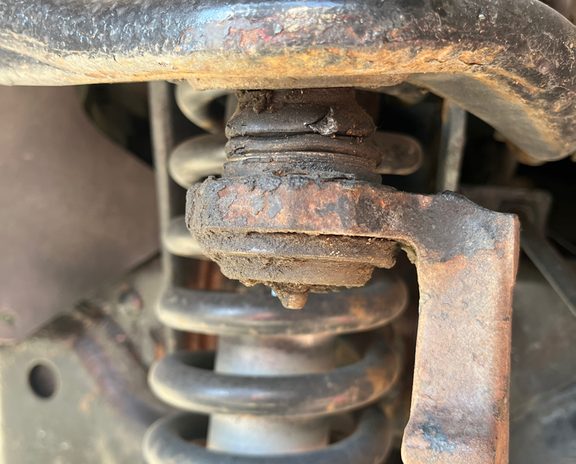

Ball joints are the pivots that let the wheel steer and the suspension travel at the same time, and a failed one can separate and drop a corner of the car on the road. Testing them correctly — and knowing which joint carries the load — is a core chassis skill.
Testing Loaded Joints and Reading Wear Indicators
The cardinal rule of ball joint testing: to measure play in a loaded ball joint, you must first unload it. On an SLA suspension, the load-bearing joint is the one on the control arm that carries the spring. If the coil spring sits on the upper control arm, the upper joint is loaded — so you support the upper control arm at the spring location to take the vehicle weight off the joint, then check for play with a pry bar or dial indicator. Lift the vehicle the wrong way and the spring keeps the joint compressed; a badly worn joint will show zero play and you'll pass a part that's about to fail.
Some ball joints take the guesswork out with a built-in wear indicator — a raised grease-fitting nipple or boss that recedes into the housing as the internal bearing wears. The rule is specific: check it with the vehicle's weight on the joint, and replace the joint when the indicator is flush with or below the housing surface. A torn boot or a little escaping grease is a separate issue (covered under safety practice); the indicator measures internal wear, and it must be read under load to mean anything.
| Item | Standard | Notes |
|---|---|---|
| Loaded joint testing | Unload the spring-carrying arm first | Spring preload masks play in a loaded joint |
| Axial play limit | Many joints spec near zero; some designs allow up to ~0.050 in. | Always verify the manufacturer's figure |
| Wear-indicator joints | Replace when the indicator is flush or below the housing | Read with vehicle weight ON the joint |
| Torn boot with time on it | Replace the joint regardless of measured play | Contamination destroys it from the inside |
| Castle nut with cotter pin | Torque to spec, then advance to the next slot | Never back off to align the pin |
Play specifications vary widely by design — condemning by feel without the spec is guessing.
- Identify the load path first. The joint on the arm that carries the spring is the loaded joint — spring on the lower arm means support the lower arm near the joint to unload it; spring or torsion bar acting on the upper arm means support the upper arm instead.
- With the joint unloaded, set a dial indicator against the knuckle or joint housing and lever vertically under the tire with a pry bar. The reading is axial play — compare it to the spec, not to your gut.
- Rock the tire at 12 and 6 o'clock while a helper watches or feels the joint. Movement at the ball stud is joint wear; lash at the hub with a quiet joint is wheel bearing — the hand on the component tells them apart.
- On wear-indicator joints, set the vehicle weight back on its wheels and read the indicator boss: flush or recessed means replace, no measurement debate required.
- Finish by inspecting the boot. A torn boot that has been in service — dirt tracked into the grease, rust staining — condemns the joint even at zero play, because the abrasive is already inside doing its work.
- Checking a loaded ball joint without unloading it — the spring holds the joint compressed, a badly worn joint reads zero play, and you pass a part that is about to separate.
- Condemning a joint by feel when the design allows measurable lash. Some joints spec real allowable play when new; without the number you are replacing good parts or missing bad ones.
- Reading a wear-indicator joint with the wheel hanging — the indicator only means something with vehicle weight on the joint.
- Backing a castle nut off to line up the cotter pin hole. That releases the taper's clamp load and the stud works loose — always tighten forward to the next slot.
You get movement rocking the tire at 12 and 6 o'clock. How do you split wheel bearing play from ball joint play?
Put a hand (or a helper's eyes) on each suspect while rocking. Motion at the ball stud in its housing is the joint; lash felt at the hub/rotor with the joints staying still is the bearing. On a hub-bearing vehicle you can also watch whether the movement is between knuckle and arm, or knuckle and hub.
A truck with the spring on the lower control arm gets lifted by the frame, wheels hanging, and the ball joints all feel tight — but the clunk persists. Why might the test be invalid?
With the frame lifted and the wheel hanging, the coil spring is still pushing the lower arm down, which keeps the loaded lower joint compressed — its wear is masked. Support the lower arm near the joint to take the spring load, then re-test; the play often appears immediately.
A ball joint boot has clearly been torn for months, but the joint shows no measurable play. Replace it?
Yes. The boot was the only thing keeping grease in and grit out; once water and abrasive get inside, they grind the bearing surfaces invisibly. The joint can feel tight right up until it separates, and separation drops the corner of the vehicle. A long-contaminated joint is condemned on contamination, not on play.
Tie Rods
2 conceptsTie rods are the last link between the steering gear and the wheels.
- A worn inner tie rod causes play in the steering linkage, producing clunks on turn-in, wander, and often uneven tire wear.
- Outer tie rod length directly sets toe. After replacement, toe must be reset — full alignment is best practice.

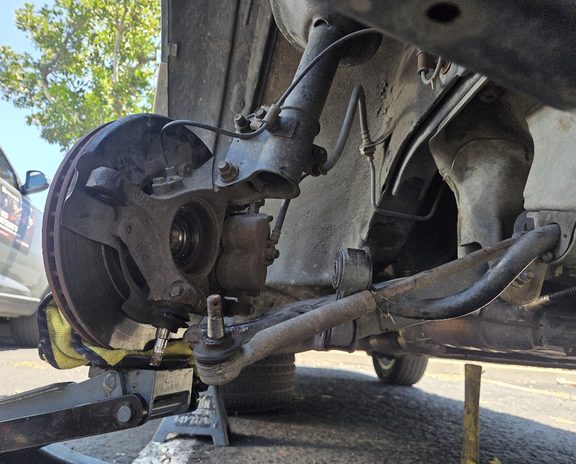

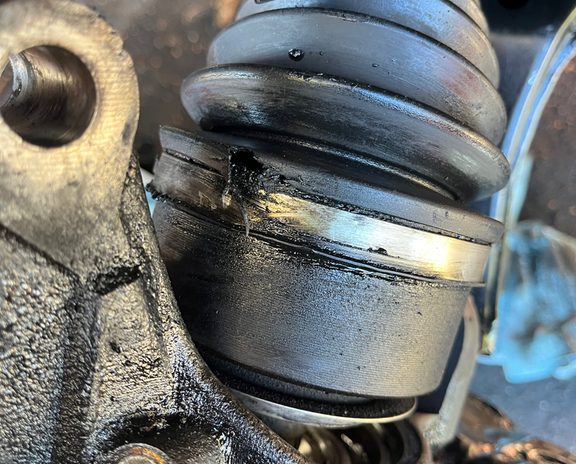

Tie rods are the last link between the steering gear and the wheels — the inner rod threads into the rack, the outer rod bolts to the knuckle, and together their length sets the toe angle. When they wear, the driver feels it, and when you replace one, the alignment rack is your next stop.
Symptoms, Diagnosis, and the Mandatory Follow-Up
A failing inner tie rod introduces play right in the middle of the steering linkage. The classic presentation is clunking during steering input — you turn the wheel and hear or feel a knock as the loose joint takes up its slack — along with wandering on the highway, because the wheel can drift within the play before any steering input reaches it. Uneven tire wear usually follows, since the toe angle is no longer held steady. Inner tie rods live inside the rack boot, so you can't see them; grab the tire at three and nine o'clock and rock it, or squeeze the boot to feel the joint while an assistant rocks the steering wheel.
The repair itself is straightforward, but the follow-up is non-negotiable: after replacing an outer tie rod, toe must be reset before the vehicle goes back into service. The outer tie rod's threaded position on the inner rod is literally the toe adjustment — there is no way to install a new one and land on the exact same toe setting. Count the turns off the old rod to get close, but that only gets the car safely to the alignment rack. Best practice is a full alignment, since a car that wore out a tie rod has often disturbed other settings too. Skip the toe reset and the customer gets a feathered pair of front tires within a few thousand miles.
| Item | Standard | Notes |
|---|---|---|
| Outer tie rod end play | No perceptible lash under dry-park load | Any felt knock or visible movement condemns it |
| Inner tie rod check | Squeeze the boot and feel the socket while the wheel is rocked | Hidden inside the boot — you cannot see it |
| Jam nut torque | Commonly 35-70 ft-lb | Verify against service data; a loose jam nut lets toe walk |
| Replacement length | Match old assembly center-to-center | Turn-counting alone is unreliable across brands |
| Toe reset after replacement | Mandatory before return to service | The rod's threaded position IS the toe adjustment |
Fastener torques vary by vehicle — verify against service data.
- Measure the old assembly's length center-to-center (grease fitting to jam nut works as a repeatable reference) and mark the jam nut position. This is your rough toe baseline.
- Break the jam nut loose before unthreading anything, then count turns as the old end comes off — the count plus the length measurement together get you close.
- Thread the new end on to the same measured length, seat the taper, and torque the stud nut and jam nut to spec. A jam nut left loose lets toe drift with every bump.
- Road test briefly: a steering wheel that sits crooked or a car that darts tells you the rough setting is off — that is expected, which is why the job is not done yet.
- Finish with a proper alignment. The turns-and-length method only makes the car safe to drive to the rack; a vehicle that wore out a tie rod has usually disturbed other settings too, and only the machine proves the toe.
- Skipping the toe reset after tie rod replacement — there is no way to thread on a new end and land on the exact toe setting, and the customer gets a feathered pair of front tires within a few thousand miles.
- Matching turn count across brands. Different manufacturers cut threads differently; center-to-center length is what actually sets toe, so measure length, not just turns.
- Leaving the jam nut loose or reusing one with damaged threads — the tie rod end rotates in service and the toe setting walks away from wherever you set it.
- Missing a worn inner tie rod because it lives inside the rack boot. Squeeze the boot and feel the socket during the dry-park check, or the new outer end gets blamed for the old inner's play.
A customer reports a clunk during steering input, highway wander, and you find feathered front tires. Which component fits all three, and how do you confirm it?
A worn tie rod — the loose joint knocks as it takes up slack, lets the wheel drift inside the play, and stops holding toe steady, which feathers the tread. Confirm with a dry-park test: helper rocks the wheel with the tires loaded while you feel each joint for lash, squeezing the boot to reach the inner socket.
After an outer tie rod replacement the car tracks straight but the steering wheel sits off-center. What is wrong and how is it fixed?
Total toe ended up close enough to track straight, but it is split unevenly between the two sides. Lock the steering wheel dead center and adjust both tie rods to re-split the toe evenly. Never fix it by re-clocking the wheel on the column — that hides the geometry error instead of correcting it.
You counted turns exactly when swapping the tie rod end, but toe still measures well out. Why?
The new end's geometry differs from the old — thread start position, taper depth, and overall length vary between brands, so the same turn count lands at a different length. This is why the check is center-to-center length and the final answer is always the alignment rack.
Wheel Bearings
3 conceptsWheel bearings hum along invisibly until they don't, and then they announce themselves with a growl that changes with load.
- Turning right unloads the right bearing and loads the left. If noise gets louder turning right (load on left), the LEFT bearing is bad. Standard rule: bad bearing is on the OPPOSITE side of the direction that makes it louder.
- Sealed bearings require specific axle nut torque per manufacturer spec — often high values (150-250 ft-lb). Under- or over-torque destroys the bearing.
- Many modern bearings have integrated WSS or magnetic encoder rings. If the encoder ring is damaged, ABS/traction faults follow.
Learning to localize a bad bearing by ear, torque the new one correctly, and check the sensor that rides along with it will save you from the two most common bearing comebacks.
Localizing a Bad Bearing by Load
A worn wheel bearing typically hums or growls at road speed, and the noise changes when you steer because steering shifts the load between the left and right bearings. Turn right, and weight transfers onto the left-side bearing while the right side unloads. A damaged bearing gets louder under load. So the rule of thumb: the bad bearing is on the side opposite the direction of the turn that makes the noise louder. Noise gets louder turning right — the left bearing is loaded and complaining, so the left bearing is bad. Louder turning left points to the right bearing. Confirm on the lift by spinning each wheel by hand and feeling the knuckle for roughness.
Installation Torque and the Sensor You Can't Ignore
Sealed hub bearings are torque-critical. The axle nut sets the bearing's internal preload, and the manufacturer's specification must be followed exactly — these are often high values, commonly in the 150 to 250 ft-lb range, and some procedures require rotating the hub while torquing or a specific tightening sequence. Under-torque leaves the bearing loose so the rollers hammer themselves apart; over-torque crushes the preload and cooks the bearing just as fast. Never run the nut down with an impact and call it done, and never substitute guesswork for the published spec and method.
Before the new bearing goes in, look at what's built into it. Many modern hub bearings carry an integrated wheel speed sensor or a magnetic encoder ring for the ABS system. Whenever you diagnose or replace a bearing, inspect the WSS and encoder ring. A damaged encoder ring — or a new bearing installed with the encoder facing the wrong way — produces ABS and traction control faults, and the customer comes back with warning lights instead of a growl. Check the sensor tip for metallic debris too; a disintegrating bearing often contaminates it.
| Item | Standard | Notes |
|---|---|---|
| Axle nut torque | Commonly 150-250 ft-lb, procedure-specific | Torque wrench and published method — never an impact |
| Sealed hub bearing play | Essentially zero; over ~0.004 in. at a dial indicator = replace | No adjustment exists — worn means replace |
| Noise localization | Louder turning right = left bearing (the loaded side) | Louder turning left = right bearing |
| Adjustable tapered bearings | Seat, back off, set end play ~0.001-0.005 in. | Older spindles and trailers; verify procedure |
| Encoder ring orientation | Verify magnetic side before pressing | Backwards = ABS faults after installation |
| One-time-use axle nuts | Replace where specified | Staked and TTY nuts do not get reused |
Axle nut values vary enormously by vehicle — verify against service data every time.
- Road test at highway speed with gentle lane-change sweeps. Noise that grows when you steer one way and fades the other is load-sensitive — the bearing on the side opposite the louder turn is your suspect.
- On the lift, spin each wheel by hand with your other hand on the coil spring or knuckle. A gritty rumble you can feel through the metal localizes the corner better than your ears can.
- If it is still ambiguous, use chassis ears on a road test — clamping a microphone near each hub turns a guess into a certainty before you press anything apart.
- Set a dial indicator on the hub and check for play. A sealed hub with measurable rock is done regardless of how it sounds.
- Pull up wheel speed sensor live data for that corner. A failing bearing often chews its encoder ring or spreads metal onto the sensor, so an erratic WSS signal corroborates the mechanical finding.
- After replacement, torque the axle nut to the published spec using the published method, and confirm on the road test that the noise is gone and the ABS light stays off.
- Running the axle nut down with an impact — the nut sets the bearing's internal preload, and a hammered guess either leaves it loose to pound itself apart or crushes it to an early death.
- Confusing tire noise with bearing noise. Cupped or chopped tread growls like a bearing; rotate the tires front to back and see if the noise moves before condemning a hub.
- Pressing in a hub or bearing with the magnetic encoder facing the wrong way, or setting the new bearing magnet-face-down on a dirty steel bench — the ABS light on the test drive is how you find out.
- Reusing a staked or single-use axle nut. It will not hold the preload it was designed to set, and the bearing pays for the two-dollar saving.
A growl at highway speed gets louder during gentle right-hand sweeps and quiets on left sweeps. Which bearing is bad?
The left. Steering right transfers weight onto the left-side bearing, and a damaged bearing complains under load. The rule: the bad bearing is on the side opposite the turn that makes it louder. Confirm on the lift by feel at the knuckle.
You replace a hub bearing and the ABS light comes on during the test drive. The old bearing was quiet on the scan. What likely happened?
The integrated encoder ring is the problem — the new bearing went in with the magnetic encoder facing the wrong direction, or the ring was damaged during handling or pressing. The wheel speed sensor now reads nothing or garbage at that corner. Verify encoder orientation with a detection card before installation, not after.
A highway growl does not change at all with steering load or lane changes. Does that clear the bearings?
It makes them less likely and moves tires up the list. Cupped or heel-toe worn tread produces a steady growl that ignores cornering load. Inspect the tread, and rotate tires front to rear — if the noise moves with the tires, the diagnosis just finished itself.
Springs
4 conceptsSprings set the ride height and store frightening amounts of energy doing it.
- Ride height is set by the spring. A broken coil, sagged spring, or (on trucks) a broken leaf reduces ride height at that corner.
- Spring compressors contain the enormous stored energy in a coil spring during strut disassembly and reassembly. Skipping them can be fatal.
- An electric air compressor (usually underbody or in a wheel well) supplies pressurized air to the air springs, controlled by ride height sensors.
- Air suspensions can activate and lift/lower the vehicle unexpectedly. Disable via the service switch or fuse before working underneath.
Whether you're diagnosing a saggy corner, disassembling a strut, or sliding under an air-suspension vehicle, spring work is where careless techs get hurt — so this is as much a safety lesson as a diagnostic one.
Ride Height Lives in the Spring
When a vehicle sits low on one corner, think spring first. Ride height is set by the spring — a broken coil, a sagged and fatigued spring, or on trucks a broken leaf drops that corner. Shocks and struts don't hold the car up (the spring does), so a worn damper won't cause a lean, and neither will a soft bushing or a worn tie rod. Measure ride height at all four corners against spec; a corner that's low tells you where to look, and a broken coil often hides in the lower perch under the rubber isolator where you have to look deliberately to spot it. Remember the downstream effect too: wrong ride height changes every alignment angle, so fix the spring before you align.
Working Safely: Coil Compressors and Air Suspension
A compressed coil spring on an assembled strut stores enormous energy — enough to maim or kill if it releases uncontrolled. Coil spring compressors exist to contain that energy during strut disassembly and reassembly. You clamp the compressor onto the coils, take the spring tension off the upper mount, and only then remove the strut shaft nut. Skipping the compressor, using a damaged one, or seating the jaws carelessly can be fatal. This is one of the few jobs in the shop where the failure mode is a projectile.
Air suspension adds its own hazards and hardware. These systems replace steel springs with air springs fed by an electric compressor, typically mounted under the vehicle near the air reservoir (or in a wheel well), with ride height sensors telling the control module when to add or release air. The critical safety step: before working under an air-suspension vehicle, disable the system using the service switch or by pulling its fuse. The system is happy to self-level with the ignition off in some designs — the compressor can kick on or air can vent, and the vehicle can lift or drop unexpectedly while you're under it. Disable first, then lift, then work.
| Item | Standard | Notes |
|---|---|---|
| Side-to-side ride height difference | Typically 0.5 in. max | Measured at manufacturer-specified points — verify |
| Low corner cause | Spring — broken, sagged, or fatigued | Dampers do not set ride height |
| Broken coil location | Commonly the bottom coil, hidden under the isolator | Look deliberately; it hides |
| Replacement policy | Axle pairs | Keeps rate and height matched across the axle |
| Air suspension service prep | Disable via service switch or fuse before lifting | System can self-level with the key off |
| Corrosion pitting on coil wire | Replace | Pits are stress risers that grow fatigue cracks |
Ride height specs and measuring points are vehicle-specific — verify against service data.
- On a level floor, measure ride height at all four corners at the manufacturer's specified points. The numbers tell you which corner is low and by how much — eyeballing lies on sloped floors and low tires.
- Inspect the low corner's spring deliberately: pull back the lower isolator to check the bottom coil for a break, and on leaf springs look for a cracked or flattened leaf and a sheared center bolt.
- Rule out the impostors — a collapsed spring isolator, a shifted spring seat, or prior collision damage can drop a corner with the spring itself intact.
- On air suspension, scan for codes, watch the ride height sensor data, and soap-spray the air springs and lines. A compressor that runs constantly is chasing a leak; a corner down overnight has one.
- Replace springs in pairs, then send the car to the alignment rack. Ride height sets every alignment angle, so the spring gets fixed first and the alignment is measured after.
- Quoting shocks or struts for a sagging corner — dampers control motion, springs hold the car up. The sag survives the new dampers and so does the complaint.
- Disassembling a strut with a worn or carelessly seated spring compressor. A compressed coil stores enough energy to maim, and a compressor that slips at full tension is a shrapnel event.
- Sliding under an air-suspension vehicle without disabling the system — some designs will self-level with the ignition off, and the vehicle can drop while you are under it.
- Replacing one spring on an axle. Mismatched rate and height across the axle changes handling and cocks the alignment.
The left rear sits 3/4 in. lower than the right, and the damper on that corner is dry and passes a bounce test. Where do you look?
The spring. Ride height is the spring's job — check the bottom coil under the isolator for a hidden break, and compare against the other side. The healthy damper is irrelevant to height; it never held the car up in the first place.
An air-suspension SUV is level at night and down on one corner by morning. What is your diagnostic approach?
A leak hunt. Overnight sag means air is escaping with the system asleep — soap-spray that corner's air spring, its line, and the valve block connections and watch for bubbles. Check compressor runtime too; a compressor working overtime to mask a leak is on its way to burning out.
Why does a spring replacement always end with an alignment?
Ride height defines the suspension's working position, and camber, caster, and toe all change as the suspension moves through its arc. New springs restore the height the geometry was designed around, which shifts every angle away from where the worn springs had settled — so the angles must be re-measured and set at the corrected height.
Sway Bars
2 conceptsThe sway bar doesn't hold the car up and doesn't absorb bumps.
- A sway bar links opposite wheels through a torsion bar, transferring load between them during cornering to reduce body roll.
- Sway bar end link and bushing wear produce distinctive clunks over small bumps at low speed — a common misdiagnosis often blamed on struts.
The sway bar doesn't hold the car up and doesn't absorb bumps — it fights body roll, and its little end links are one of the most common noise sources on the front end. Knowing what it does keeps you from misdiagnosing its symptoms as strut problems.
How the Bar Works and How It Complains

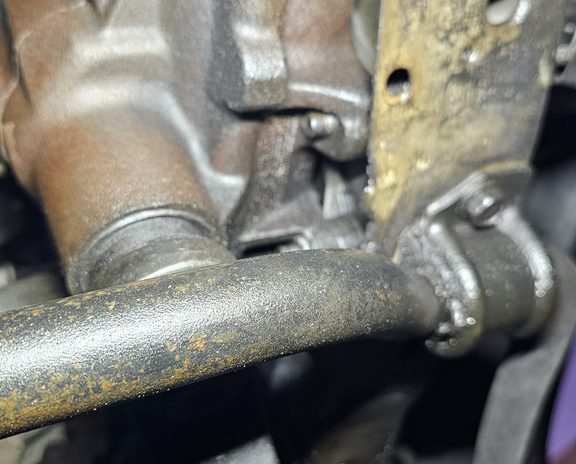

A sway bar — anti-roll bar — is a torsion spring connecting the left and right wheels of an axle, mounted to the body through bushings and tied to the suspension through end links. When the body leans in a corner, one wheel compresses and the other extends; the bar twists between them and transfers load from one side to the other, resisting the lean. Its primary purpose is reducing body roll during cornering. It doesn't support vehicle weight and it doesn't absorb road impacts, and it isn't simply an anti-oversteer device — bar stiffness front versus rear tunes the handling balance in both directions.
When sway bar hardware wears, it makes a very specific noise: clunking or rattling over small bumps at low speed. That's the signature of worn end links or bar bushings — the loose joint knocks every time one wheel moves relative to the other. This is one of the most misdiagnosed noises in the shop, routinely blamed on struts. Before anyone quotes struts for a low-speed clunk, disconnect or grab the end links and check them: with the vehicle's weight settled, worn links show play you can feel by hand, and a quick drive with the links disconnected (short, careful, low speed) silences the noise if they were the source.
- Duplicate the complaint first: roll slowly over small bumps or a driveway lip. A rattle or clunk that fires on small, one-wheel bumps at low speed is the sway bar's signature move.
- With the vehicle at ride height on a drive-on lift or ramps, grab each end link and work it hard by hand. Play you can feel — a knock at the link ends — condemns the link.
- Pry the bar at its body mounts and watch the bushings. A bar that shifts in crushed, worn, or oil-soaked bushings knocks every time one wheel moves relative to the other.
- If it is still ambiguous, disconnect the end links and take a short, careful, low-speed drive. Silence with the links disconnected convicts them — expect more body lean, and reconnect immediately after.
- Replace links in pairs and torque link and bushing hardware at ride height where the spec calls for it, then re-drive the bump course to prove the noise is gone.
- Quoting struts for a low-speed clunk over small bumps — worn end links are the most misdiagnosed noise on the front end, and the strut invoice does not silence them.
- Checking end links only at full droop. A link that feels tight with the suspension hanging can knock like a hammer at ride height where the bar is loaded — check loaded, not just hanging.
- Replacing end links while leaving crushed, worn bar bushings in place — half the noise source stays on the car and the comeback is scheduled.
- Missing torn end link boots on an inspection. Once the boot is gone, the joint is on borrowed time, and it will be back as a noise complaint within months.
A car clunks over speed bumps at parking-lot speed but is silent on the highway. Struts are dry and pass the bounce test. What do you check first?
Sway bar end links and bar bushings. The low-speed, small-bump clunk is their signature — one wheel moves relative to the other, and the worn joint knocks as it takes up slack. Check the links loaded at ride height, and pry the bar in its bushings.
A customer asks whether a broken sway bar link makes the car sag or ride harsher. What actually changes?
Neither — the sway bar carries no vehicle weight and absorbs no bumps, so height and ride stay the same. What changes is body roll: the axle loses its side-to-side coupling, so the car leans noticeably more in corners and the handling balance shifts. That plus the clunk is the whole symptom set.
Control Arms
2 conceptsControl arms locate the wheel, and their bushings are the quiet rubber parts that decide whether the arm moves precisely or sloppily.

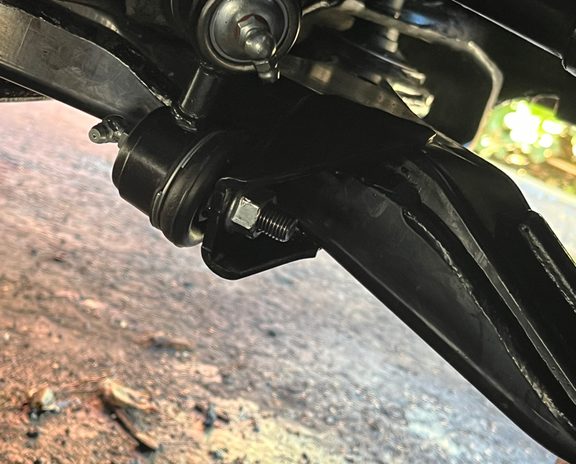

- Control arm bushings allow the arm to pivot through its arc while damping road vibration into the chassis.
- Bushings resist torsion. If bolted at full droop, they'll be pre-loaded when the vehicle sits, causing premature failure. Torque at ride height puts them at neutral.
The detail most inexperienced techs miss — torquing the bushing bolts at the wrong suspension height — kills brand-new bushings in months.
What Bushings Do and the Ride-Height Torque Rule
A control arm bushing has a dual job: allow controlled movement of the arm as it pivots through its travel arc, while isolating road vibration and noise from the chassis. The rubber (or polyurethane) element flexes to permit rotation and small deflections, but holds the arm's pivot point firmly enough that the alignment geometry stays where it belongs. When bushings wear, the arm's pivot point wanders — you get clunks, vague steering, alignment angles that shift under braking, and inner-edge tire wear that no alignment can hold.
Here's the installation detail that separates good bushing jobs from comebacks: torque the bushing fasteners at ride height, not with the suspension hanging. A conventional bonded rubber bushing doesn't spin on its bolt — it twists. Once the through-bolt is torqued, the inner sleeve is clamped, and all suspension movement happens by winding the rubber up in torsion. If you tighten the bolt with the arm at full droop, you've set the bushing's neutral, relaxed position at full droop — which means the moment the car sits on its wheels, the rubber is permanently pre-loaded in twist. It rides around wound up all day, and it tears itself apart prematurely. Tighten at ride height and the bushing sits relaxed where the car actually lives, flexing equally in both directions.
Get the arm to ride height with the vehicle on a drive-on lift, or support the knuckle with a jack stand or screw jack until the suspension is compressed to normal height, then final-torque the bushing bolts.
- Inspect visually: cracked or torn rubber, bushings soaked in leaked oil (oil swells and softens rubber), the arm sitting shifted in its bracket, and shiny witness marks where metal has been contacting metal.
- Lever the arm near each bushing with a pry bar. Controlled rubber deflection that springs back is normal; the inner sleeve shifting position or the pivot point relocating under the bar is a worn bushing.
- Watch the arm under a brake-torque test — helper holds the brake and loads the drivetrain in gear while you watch the bushing. An arm that walks under torque explains alignment angles that move under braking even when static numbers look fine.
- On installation, snug the pivot hardware only enough to hold position, finish the rest of the assembly, then set the suspension at ride height with a drive-on lift or a jack under the knuckle before final-torquing the bushing bolts. Bonded bushings must be clamped in their at-rest position.
- Paint-mark each bolt as it is final-torqued so nothing gets missed, and finish with an alignment — the arm's pivot position defines the geometry.
- Final-torquing bonded bushings with the suspension at full droop. The rubber's neutral position gets set at droop, so at ride height it rides permanently wound up in torsion and tears itself apart within months — the classic reason new bushings clunk again by winter.
- Ignoring the oil leak that soaked the bushings — oil-softened rubber fails fast, and the new bushings soak in the same leak.
- Replacing a fluid-filled (hydraulic) bushing's arm based only on visual crack inspection, or conversely missing one that has burst — hydro bushings can look intact while leaked empty and knocking. Listen and pry; do not just look.
- Skipping the alignment after arm or bushing replacement. The pivot points moved; the angles moved with them.
New control arms were installed three months ago and the clunk is back, with the fresh bushings already cracked. What install error does that point to?
Bushing bolts torqued at full droop. Clamping a bonded bushing with the suspension hanging sets its relaxed position at droop, so at ride height the rubber lives permanently twisted. It fatigues and tears in months. Replace again and final-torque only with the suspension supported at ride height.
A vehicle's static alignment numbers are in spec, but it darts under braking and the front tires wear the inner edges. What component behavior explains this?
Worn control arm bushings letting the pivot points shift under load. The rack reads the geometry at rest; under braking torque the arm walks in its soft bushings, camber and toe move, and the tires get scrubbed. The brake-torque test while watching the bushings exposes it.
Power Steering
3 conceptsPower steering has split into two worlds: hydraulic systems with pumps and fluid, and electric systems with torque sensors and software.
- Low or wrong fluid is the most common cause. Always check level and confirm correct fluid type before replacing components.
- EPS uses a torque sensor (usually in the column) to detect driver input and modulate the assist motor's output.
- EPS torque sensors typically require a zero-point calibration relearn after replacement, done with a scan tool.
You need the diagnostic habits for both — checking fluid before condemning pumps on one side, and running scan-tool calibrations on the other.
Hydraulic Systems: Fluid First, Always

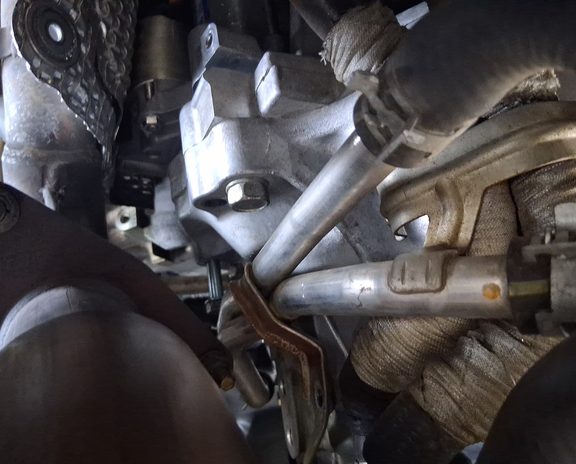

When a hydraulic power steering system whines and the steering goes heavy, the first check is always the fluid — both level and type. Low fluid is the single most common cause of pump whine and hard steering: the pump pulls in air, cavitates, and howls, while assist fades. Wrong fluid is nearly as common a culprit, because the wrong chemistry can swell seals, foam, or fail to lubricate the pump. Verify the level, verify you're looking at the manufacturer-specified fluid, and find where any missing fluid went (a leak that emptied the reservoir will empty it again) before you spend the customer's money on a pump or rack. Replacing components before checking fluid is the classic rookie sequence — components rarely fix a fluid problem, and fluid often fixes a 'component' problem.
Electric Power Steering: Torque Sensors and Relearns
Electric power steering (EPS) replaces the pump and hydraulics with an electric assist motor on the column or rack. The key input that makes the whole system work is the steering torque sensor, usually mounted in the steering column (sometimes at the rack). It measures how hard the driver is twisting the wheel, and the control module uses that signal — along with vehicle speed — to command how much assist the motor delivers. No torque signal, no assist; a skewed torque signal, and the car pulls or assists unevenly.
Because the torque sensor's zero point is everything, replacing an EPS module or torque sensor is not plug-and-play. A calibration or relearn procedure with a scan tool is typically required — most systems need a torque sensor zero-point calibration so the module knows what 'no driver input' looks like. Skip the relearn and the customer gets uneven assist, a pull to one side, or a steering warning lamp. Treat every EPS component replacement like a job that ends at the scan tool, the same way every strut job ends at the alignment rack.
| Item | Typical spec | Notes |
|---|---|---|
| Idle pressure, wheels straight | Roughly 50-150 psi | High idle pressure = restriction in the system |
| Relief pressure at full lock | Commonly 1,000-1,500 psi | Test momentarily — never hold full lock more than a few seconds |
| Fluid specification | Manufacturer-specific: ATF, PSF, or CHF synthetics | Wrong chemistry swells seals and foams |
| Whine after service | Air in the system | Re-bleed before condemning the pump |
| EPS component replacement | Torque sensor zero-point relearn required | Scan tool procedure; skipping it causes pull or uneven assist |
Pressure specs vary by system — verify against service data and use the correct gauge adapters.
- Check fluid level and identify the fluid before anything else. Low fluid makes the pump cavitate and howl while assist fades, and wrong fluid foams and attacks seals — both are cheaper than any component.
- If fluid is low, find where it went: rack boots (squeeze them), pump shaft seal, hose crimps, and the cooler. A refill without the leak found is a refill you will do again.
- Inspect the belt and tensioner — a glazed, slipping belt drops assist under load and gets misdiagnosed as a dying pump.
- Bleed the system lock-to-lock per procedure. A whine that persists after bleeding means air is still there — check the suction side for a leak drawing air in, because pressure-side leaks drip and suction-side leaks aerate.
- Pressure-test with a gauge: read idle pressure, then relief pressure at momentary full lock. Low relief pressure means a worn pump; healthy pump pressure with heavy steering means the rack is bypassing internally.
- On EPS, scan for codes, watch torque sensor data for a skewed zero point, and run the relearn procedures — the scan tool is the pressure gauge of electric steering.
- Replacing the pump before checking fluid level, fluid type, and bleed state — components rarely fix a fluid problem, and fluid often fixes a 'component' problem.
- Topping off with whatever ATF is on the shelf. The wrong chemistry swells seals and foams, and the slow failure never gets connected back to that one courtesy top-off.
- Holding the wheel at full lock during pressure testing or bleeding for more than a few seconds — the pump sits at relief pressure and cooks itself.
- Skipping the torque sensor relearn after EPS work — the module's idea of 'no driver input' is skewed, and the customer gets uneven assist or a steady pull.
You install a new steering rack and now the pump whines. The old rack never whined. Is the new pump-and-rack combination faulty?
Almost certainly not — the system is full of air from being opened. Air makes the pump cavitate, and cavitation whines. Repeat the bleed procedure, check the suction line connections for leaks pulling air in, and let aerated fluid settle before re-testing. Condemning parts for an incomplete bleed is a classic misstep.
Pump pressure tests healthy at relief, but the steering is heavy in both directions. Where is the problem?
Inside the rack. The pump is delivering; the rack's internal seals are bypassing fluid past the piston instead of turning it into assist. Heavy steering with good pump pressure is the rack's signature — reseal or replace the rack, not the pump.
After a steering column replacement on an EPS car, the vehicle pulls lightly right with no codes. What procedure was likely skipped?
The torque sensor zero-point calibration. The new column's sensor reports a slight twist as 'driver input,' so the module quietly adds assist in that direction and the car pulls. Run the relearn with the scan tool so the module learns what hands-off actually looks like.
Steering Rack
2 conceptsThe rack-and-pinion is the heart of most modern steering systems, converting steering wheel rotation into side-to-side tie rod movement.
- Fluid in an inner tie rod boot means the rack's internal seal has failed. The rack (or its seal kit) must be serviced.
- Toe is split between left and right tie rods relative to a centered steering wheel. If not centered, the wheel will sit off-center after alignment.
Two things every tech must know cold: what a wet inner boot means, and why the steering wheel gets locked dead center before toe is touched.
Reading a Leaking Boot and Centering Before Alignment

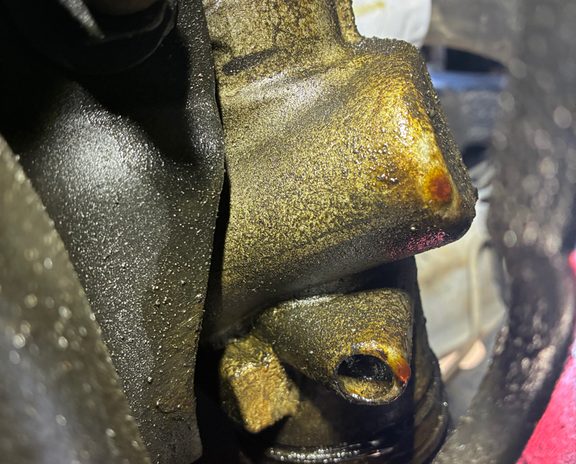

The rack's inner tie rod boots are supposed to contain grease and keep dirt out — they are not part of the hydraulic circuit. So when you squeeze an inner boot and find it heavy with fluid, or see it dripping when disturbed, that fluid came from inside the rack: the rack's internal seal at that end has failed and power steering fluid is leaking past it into the boot. This is not normal wear you can ignore, and it isn't fixed with a boot. The rack must be serviced — resealed with a seal kit where that's supported, or more commonly replaced or exchanged for a reman unit. Left alone, the system loses fluid, the pump starves and whines, and assist eventually dies.
The second fundamental is procedural: center and lock the steering wheel before setting toe during an alignment. Total toe is split between the left and right tie rods, and that split is only meaningful relative to a centered steering wheel. Set toe with the wheel sitting five degrees off, and the geometry will read perfect on the machine while the customer drives home holding a crooked wheel — the classic sign of a careless alignment. Center the wheel, lock it with a steering wheel holder, and adjust each tie rod to bring its side into spec. The result is correct total toe and a straight wheel at the same time.
- Squeeze both inner tie rod boots by hand. A boot heavy with fluid means the rack's internal end seal has failed — power steering fluid does not belong in a grease boot, and a new boot fixes nothing.
- With the wheels on the ground, have a helper rock the steering wheel through its free play while you watch the rack in its mounts. The rack body shifting means worn mount bushings; a knock from inside the housing means internal wear.
- Feel each inner socket through its boot during the same rocking — lash at the inner joint hides where eyes cannot go.
- Note any cold-morning symptoms in the writeup: hydraulic racks that steer heavy for the first minutes and free up warm have internal valve-housing wear — the classic 'morning sickness' that fluid will not cure.
- If the rack is replaced, center it before installing the tie rods, then finish with a full alignment and a steering angle sensor calibration — the rack's center defines straight ahead for both the driver and the stability control.
- Selling a new boot for a boot full of fluid. The fluid came through a failed internal rack seal — the boot is the messenger. The rack gets resealed or replaced, or the system keeps losing fluid until assist dies.
- Setting toe without centering and locking the steering wheel — total toe reads perfect while the customer drives home holding a crooked wheel.
- Installing a replacement rack off-center, so the wheel clocks crooked and lock-to-lock travel is unequal side to side — center the rack before the tie rods go on.
- Skipping the steering angle sensor calibration after rack replacement — the stability control's zero no longer matches the rack's, inviting ESC faults.
During an inspection you squeeze an inner rack boot and it sloshes. What failed, and what is the honest repair?
The rack's internal seal at that end is leaking power steering fluid into the boot — the boot is not part of the hydraulic circuit, so any fluid in it came from inside. The repair is rack service: reseal where supported, otherwise replacement or a reman exchange. A new boot alone just hides the leak until the pump starves.
The alignment machine shows perfect toe, but the customer's steering wheel sits fifteen degrees off-center. What happened?
Toe was set without centering and locking the steering wheel. Total toe is correct, but it is split unevenly between the two tie rods relative to wheel center. Lock the wheel dead center and re-split the toe across both rods — and never re-clock the wheel on the column to fake the fix.
A hydraulic-rack car steers heavy on cold mornings and loosens up after a few minutes of driving. Fluid is full and clean. What is the classic diagnosis?
Internal rack wear — the 'morning sickness' pattern. Worn grooves in the valve housing let pressurized fluid bypass when the components are cold and contracted; as the rack warms, clearances close and assist returns. It progresses until assist loss is constant. The fix is rack replacement, not fluid service.
Tires
3 conceptsTires are the suspension system's report card — every alignment error, worn damper, and balance problem eventually writes itself into the tread.
- Inner-edge wear on both sides is the classic pattern for excessive negative camber or toe-out. Toe issues wear one edge more than the other; camber wears the same edge on both.
- Cupping happens when the tire hops as it rolls — bad dampers or balance are the top causes. Fix the underlying issue before replacing the tire.
- Directional tires must stay on the same side. Rotate front-to-back on the same side only, unless the tires are dismounted and reversed.
Learn to read wear patterns and you can diagnose half the chassis without putting the car on the rack.
Reading Wear Patterns
Inner-edge wear on both front tires is the classic signature of excessive negative camber or toe-out. The detail that sharpens the diagnosis: camber problems wear the same edge on both sides (both inners, or both outers), because each wheel is leaned the same way relative to its own contact patch. Toe problems scrub the tread and often wear one edge more than the other, frequently with a feathered, saw-tooth texture you can feel by running your palm across the tread. Both tires worn on the inside edge, smooth wear — think camber. Feathering, or one side markedly worse — think toe. Either way, the tires are telling you the alignment was out long before the customer noticed.
Cupping — a scalloped, wavy dish pattern around the tread — is a different animal entirely. Cupping is caused by the tire hopping as it rolls, and the two top causes are worn shocks or struts and an out-of-balance wheel. The tire leaves the road slightly, lands, scuffs, and repeats, machining little scoops into the tread. Cupping is not a pressure pattern and not an alignment pattern. The critical repair rule: fix the underlying cause — dampers or balance — before installing new tires, or the new set gets cupped exactly the same way.
Rotation Rules for Directional Tires
Directional tires have a tread pattern designed to roll one way, marked by an arrow on the sidewall. That constraint dictates the rotation pattern: directional tires stay on the same side of the vehicle, rotating front-to-back only — including on a rear-wheel-drive vehicle where you might otherwise use a cross pattern. Cross a directional tire to the other side and it rolls backward, which hurts wet traction and noise and can void the tire warranty. The only way a directional tire legitimately changes sides is if it's dismounted from the wheel and remounted facing the correct direction. Non-directional tires follow the traditional patterns, but always check the sidewall before you start pulling wheels — assuming a rotation pattern without looking is how directional sets end up running backward.
| Item | Spec | Notes |
|---|---|---|
| Legal minimum tread | 2/32 in. | Legal is not the same as safe |
| Wet-performance threshold | 4/32 in. | Wet braking degrades sharply below this — recommend here |
| Winter/snow threshold | 6/32 in. | Snow traction needs tread depth to bite |
| Rotation interval | 5,000-8,000 mi | Directional tires rotate front-to-back same side only |
| Inflation pressure | Door placard, set cold | Sidewall number is the tire's max, not the spec |
| Road force variation | Under roughly 15 lb preferred on passenger cars | Verify your balancer's guidance; high readings cause speed-dependent shake |
Tread thresholds are industry-standard guidance; state inspection minimums and placard pressures govern the individual vehicle.
- Run your palm across every tread in both directions. A smooth feel one way and a saw-tooth catch the other is feathering — the toe is scrubbing the tire sideways down the road.
- Compare the edges on both front tires. Both inner edges worn smooth points at camber or toe-out across the axle; one tire wearing one edge points at that corner's geometry or a worn component on that side.
- Feel for cupping — scalloped dished spots around the tread. That is the tire hopping from worn dampers or imbalance, and it is neither a pressure nor an alignment pattern.
- Check center versus shoulder wear: center-worn means overinflation, both-shoulders-worn means underinflation — set pressures to the placard, cold.
- Check the DOT date code and sidewall condition, then quote the tires together with the cause — alignment for toe and camber wear, dampers or balance for cupping — because tires without the cause fixed are a subscription, not a repair.
- Replacing tires without fixing the wear cause — the new set inherits the same alignment or damper problem and wears out the same way, and the customer blames the tires or the shop.
- Crossing directional tires to the other side of the vehicle during rotation — the tread now runs backward, hurting wet traction and noise. Directional tires go front-to-back on the same side only.
- Inflating to the sidewall number. That is the tire's maximum, not the vehicle's spec — the door placard is the spec, set cold.
- Skipping the wear-pattern read entirely and quoting off tread depth alone — the pattern is a free chassis diagnosis, and ignoring it sends a customer out with new tires and an old problem.
Both front tires are worn on the inner edge with a smooth, even wear face. Camber or toe?
Camber — or steady toe-out — but the smooth texture is the discriminator. Camber wear is smooth because the tire simply leans on that shoulder; toe wear scrubs, leaving a feathered saw-tooth you can feel with your palm. Smooth inner wear both sides says check camber first; feathering says toe.
A customer's fronts measure 3/32 and they point out that 2/32 is the legal limit. What is your professional guidance?
Recommend replacement now, with the reason: wet braking and hydroplaning resistance degrade drastically below 4/32, so at 3/32 the tires are legal but already compromised in rain. 'Still legal' and 'still safe' are different statements, and the customer deserves the distinction before the wet season, not after the skid.
The rear tires on a front-wheel-drive car are cupped. What is the likely story?
Worn rear dampers or imbalance letting the lightly loaded rear tires hop, usually with a missed rotation schedule letting the pattern establish. Fix the dampers or balance first and rotate on interval — new tires installed onto the same worn dampers will cup identically.
Steering
5 conceptsSteering complaints arrive as noises, wanders, and vague descriptions — and several of the classics aren't even steering problems.
- Clicking near steering lock at low speed under acceleration is classic outer CV joint wear — often misdiagnosed as steering.
- Worn intermediate shaft U-joints or slip joints in the steering column rattle over rough roads. Common on many trucks and SUVs.
- Wrong fluid can swell seals, damage the pump, or cause noise. Always use the exact fluid specified by the manufacturer.
- Air causes cavitation and whine. Vehicle-specific bleed procedures (turning wheel lock-to-lock with engine off or on) usually work air out.
- Dry-park test: with the vehicle on the ground, have someone rock the steering wheel while you watch each joint for play. Reveals worn tie rods, idler arms, ball joints, and racks.
This lesson covers the sounds and symptoms that trip up inexperienced techs, plus the fluid and bleeding fundamentals for hydraulic systems.
Noises That Fool You
A clicking sound while turning near full lock, especially at low speed under acceleration, is the textbook symptom of a worn outer CV joint on a front-drive axle — not a steering component at all. Turning to lock articulates the CV joint to its extreme angle, and worn balls and races click rhythmically with wheel speed. This complaint routinely lands on steering techs and gets misdiagnosed as tie rods or ball joints; the axle is the answer. Confirm by driving in tight circles both directions under light throttle.
A different classic: a rattly, morse-code-like tapping over rough roads that comes from the steering column area. That's the intermediate steering shaft — the jointed shaft connecting the column to the rack. Its U-joints and slip joint wear, and the resulting slop rattles over bumps. It's a famously common failure on trucks and SUVs. Grab the intermediate shaft with the wheels on the ground and have a helper rock the steering wheel; play you can feel at the joint confirms it.
Diagnosing Wander: The Dry-Park Test
When a customer reports wandering — the car needs constant correction to hold a lane — and nothing looks obviously worn, run a dry-park test. With the vehicle on the ground (or on a drive-on lift so the linkage is loaded), have an assistant rock the steering wheel back and forth through the free play while you watch and feel each steering joint in sequence: inner and outer tie rods, idler and pitman arms where fitted, ball joints, and the rack itself in its mounts. Because the tires are planted, every joint is loaded and any play shows up as visible lash or a felt knock at the worn component. The dry-park test finds wear that a hanging-suspension shake test misses completely, because unloaded joints can feel tight. It's the single most efficient way to localize wander to a specific part.
Hydraulic Fluid and Bleeding
Hydraulic power steering fluid is not one-size-fits-all. Use exactly what the manufacturer specifies — for some vehicles that's ATF, for others a dedicated power steering fluid, for many European and newer vehicles a specific synthetic. The wrong fluid can swell and destroy seals, damage the pump, or cause foaming and noise. 'ATF works in everything' is an old-timer myth that ruins modern systems.
After opening a hydraulic system — replacing a rack, pump, or hoses — it must be bled of air. Vehicle-specific procedures vary, but most involve filling the reservoir and turning the steering wheel slowly lock-to-lock, engine off (using a vacuum bleeder or cranking without starting on some) or engine running on others, until the fluid runs bubble-free. Here's the diagnostic tell: if a whining noise persists after bleeding, there is still air in the system. Air makes the pump cavitate, and cavitation whines. Don't condemn the new pump — repeat the bleed procedure, check for suction-side leaks pulling air in, and let the system sit to purge aerated fluid before re-testing.
| Symptom | Condition | First suspect |
|---|---|---|
| Clicking | Turning near full lock, under power, low speed | Outer CV joint — not a steering part |
| Rattly tapping from the column area | Rough roads | Intermediate steering shaft joints |
| Whine plus heavy steering | Hydraulic system | Fluid level and type first, then air, then pump |
| Wander needing constant correction | Highway | Dry-park test to localize the loose joint |
| Self-steering toward the last turn | After corners | Binding strut mount or seized ball joint — not alignment |
| Whine that survives bleeding | After hydraulic service | Air still entering — suction-side leak |
Establish speed, steering angle, and load conditions for any steering noise before touching a wrench.
- Put the vehicle on its wheels on the ground or a drive-on lift — the whole point is that the tires are planted so every steering joint is loaded.
- Have a helper rock the steering wheel briskly back and forth through the free play while you work down the linkage: inner tie rods (squeeze the boots to feel them), outer tie rod ends, idler and pitman arms where fitted, and the rack in its mounts.
- Watch and feel for lash — steering input that arrives at one side of a joint before the other side moves is the worn spot announcing itself. A loaded joint cannot hide the way a hanging one can.
- Check the intermediate shaft at the same time: a hand on the shaft while the wheel rocks catches U-joint and slip-joint play that rattles over bumps.
- Follow up on ball joints separately with proper unloading, then match what you found to the complaint before quoting — play at the inner rod explains wander; play nowhere sends you toward binding or tires instead.
- Hunting wander by shaking hanging wheels on a frame-contact lift. Unloaded joints feel tight; the dry-park test with the tires planted is what exposes the lash that lets the car wander.
- Condemning tie rods or ball joints for a click at full lock under power — that is the outer CV joint's textbook symptom, and it lands on steering techs constantly.
- Topping any hydraulic system with generic ATF on the 'works in everything' theory — modern systems specify their fluid, and the wrong one swells seals and foams.
- Replacing a pump for a whine that appeared right after hydraulic service — the whine is un-purged air until proven otherwise. Bleed again and check the suction side.
A front-drive car clicks rhythmically when turning left out of parking lots under light throttle, and the noise disappears coasting. What is the component?
An outer CV joint — typically the right side, which is the outside, loaded joint in a left turn. Full-lock articulation plus drive torque makes worn balls and races click with wheel speed, and removing the torque silences it. Confirm by driving tight circles both directions under light power.
A truck has a morse-code rattle from the column over gravel roads. How do you confirm the intermediate shaft?
With the wheels on the ground, grab the intermediate shaft while a helper rocks the steering wheel through its play. Slop you can feel at the U-joints or slip joint confirms it — a famously common failure on trucks and SUVs, and cheap to fix compared to the racks that get wrongly replaced for it.
A customer reports wander; your dry-park test finds lash at the left inner tie rod. Why did the hanging-suspension shake test at the last shop find nothing?
With the wheel hanging, the linkage is unloaded and the worn socket sits stacked in one direction, feeling tight. Planted tires load every joint, so rocking the wheel forces each socket to reverse direction and the lash shows as visible, feelable movement. Loaded testing is the difference.
Diagnostics
5 conceptsChassis diagnosis is pattern recognition: speed ranges, load conditions, and noise character each point to a short list of causes.
- Speed-related steering wheel vibration is almost always tire balance, wheel runout, or force variation issues. Check the tires and wheels first.
- Memory steer is a binding condition — the upper strut mount, strut bearing, or a stiff ball joint prevents the wheels from centering.
- Low-speed shimmy that disappears at higher speed often points to driveline balance or a bent wheel/tire imbalance. Inspect driveshaft, U-joints, and wheels.
- Bent dust shields or loose heat shields are the top causes of scraping when turning. Straighten or replace, and confirm before deeper diagnosis.
- Truck clunks on shift can come from worn leaf bushings, loose U-bolts, or worn drivetrain mounts. Inspect the whole load path.
This lesson collects the high-value patterns — vibrations by speed, memory steer, low-speed shimmy, scraping on turns, and driveline clunks — that let you walk toward the right component instead of guessing.
Vibration and Shimmy by Speed Range
Steering wheel vibration that appears only above 60 mph is a balance-and-runout problem until proven otherwise. Speed-dependent vibration felt in the wheel is almost always tire balance, wheel or tire runout, or tire force variation — the small stiffness inconsistencies in a tire carcass that a road-force balancer measures. Check tires and wheels first; alignment doesn't cause vibration (it causes pulls and wear), and worn ball joints or bushings can amplify a vibration but rarely originate one at a specific speed. Road-force balance the fronts, measure runout, and most high-speed shakes disappear.
The opposite pattern — a shimmy or wobble at 15 to 25 mph on a rear-wheel-drive vehicle that smooths out above 40 mph — points down a different path: a bent wheel, a tire imbalance or defect, or driveline balance issues like a worn U-joint or an out-of-balance driveshaft. Low-speed wobble that self-clears at speed is characteristic of first-order rotating faults large enough to feel at low frequency. Inspect the driveshaft and U-joints, check wheels for visible bend and runout, and examine the tires before touching the suspension.
Memory Steer and Other Binding Clues
Memory steer is the complaint where the car keeps trying to steer in whatever direction it was last turned — come out of a right turn and it keeps drifting right instead of self-centering. This is a binding condition, not an alignment problem. Something in the steering's pivot path is too stiff to let caster do its self-centering job: a binding upper strut mount or strut bearing, or a seized, overly stiff ball joint are the usual suspects. Diagnose by lifting the front end and feeling each pivot through its motion, and by checking whether the steering returns freely after a turn during a test drive. Aligning a car with memory steer wastes the customer's money; replace the binding component.
Noises: Scraping on Turns and Clunks on Shift
A metallic scraping or zinging noise while turning — at any speed, often changing with steering angle — should send you first to the simplest cause: a bent brake dust shield contacting the rotor, or a loose heat shield rubbing. Dust shields get bent during tire changes, brake jobs, and curb strikes, and they scrape with an alarming sound that costs nothing to fix. Bend the shield back or replace it, confirm the noise is gone, and only then move to deeper diagnosis. Techs who skip this check end up condemning bearings and struts for a piece of sheet metal.
A driveline clunk when shifting between Drive and Reverse on a rear-drive truck has a load-path story behind it: torque reversal snaps every loose joint through its slack. The suspension-side suspects are worn leaf spring bushings and loose spring U-bolts, which let the axle rotate slightly under torque before the slack takes up with a bang. Worn transmission or differential mounts produce the same complaint from the drivetrain side — not strictly suspension, but part of the same load path. Inspect the whole torque path: mounts, leaf bushings, U-bolt torque, and driveline joints, rather than fixating on one component.
| Symptom | Speed / condition | First suspects |
|---|---|---|
| Steering wheel shake | Appears above ~60 mph | Balance, wheel/tire runout, road force variation |
| Wobble that smooths out | 15-25 mph, gone above 40, RWD | Bent wheel, tire defect, driveshaft or U-joint |
| Clunk or rattle | Small bumps at low speed | Sway bar end links and bushings |
| Self-steer toward last turn | Exiting corners | Binding strut mount or seized ball joint |
| Metallic scraping | While turning, any speed | Bent brake dust shield on the rotor |
| Clunk on D-R shifts | Torque reversal, RWD trucks | Leaf bushings, U-bolts, mounts, driveline slack |
Vibration felt in the wheel is usually front; felt in the seat is usually rear or driveline.
- Interview first: when does it happen, at what speed, under what load, and turning which way. The answers cut the suspect list in half before the engine starts.
- Duplicate with a steady sweep from 10 to 70 mph, noting the speed where the symptom appears and where it clears. Felt in the steering wheel points front; felt in the seat points rear or driveline.
- Run load tests: brake, accelerate, and coast through the symptom range. A vibration or clunk that changes with torque is driveline or mounts; one that changes with steering load is a wheel bearing.
- Take a low-speed bump course and log the clunk character — single knock, rattle, or morse-code tap each implicate different hardware.
- Rank the suspects, then go to the lift with a target list and verify hands-on: dry-park the steering, pry the bushings, spin the wheels. The road test aims the wrench; the lift confirms it.
- Selling an alignment for memory steer. The car self-steers because something is binding — a strut mount or seized joint — and no toe setting frees a stuck pivot.
- Trying to balance away a 15-25 mph wobble on a RWD vehicle — if the source is a worn U-joint or driveshaft, the tire machine never touches the cause.
- Condemning bearings or struts for a metallic scrape that is a bent dust shield touching the rotor — the free fix that embarrasses techs who skipped the simple look.
- Skipping the customer interview and road test, then diagnosing by parts-swapping — the most expensive way to learn what question you should have asked.
A vibration is felt in the seat at 65 mph but the steering wheel stays calm. Front or rear?
Rear — or driveline. Vibration telegraphs to the nearest contact point: wheel shake means front tires/wheels, seat shake means rear tires/wheels or the driveshaft. Start with rear balance and runout, and on RWD check the driveline angles and U-joints.
A RWD pickup clunks once every time it shifts between Drive and Reverse. What is your inspection list?
The whole torque path, in order: leaf spring bushings and U-bolt torque (the axle rotating in worn bushings bangs on reversal), transmission and differential mounts, then driveline slack — slip yoke and U-joints. Torque reversal snaps every loose joint through its slack at once, so inspect the path rather than betting on one part.
After a right turn the car keeps drifting right instead of returning to center. The alignment printout is clean. What is happening?
Memory steer — a binding condition. Caster cannot self-center the steering because a pivot is too stiff: a binding upper strut mount/bearing or a seized ball joint. Lift the front end and feel each pivot through its travel; replace the binding part. More alignment money would change nothing.
Fasteners
2 conceptsSuspension work lives and dies by fasteners and pressing technique.
- TTY bolts stretch permanently when torqued to spec. Reuse loses clamping force and risks failure. Always replace.
- Pressed-in ball joints require a hydraulic press and adapters. Hammering damages the arm and rarely works.
Two rules protect you here: torque-to-yield bolts never get reused, and pressed-in ball joints come out with a press — not a hammer.
TTY Bolts and Pressed Joints
A torque-to-yield (stretch) bolt is tightened past its elastic limit on purpose — the installation spec deliberately stretches the bolt into permanent, plastic deformation, which gives extremely consistent clamping force. The trade-off is absolute: the stretch is permanent, so a TTY bolt must be replaced with a new one every time it's removed. Reusing one means torquing an already-stretched bolt; it can't develop the designed clamp load and it may neck down and snap, either during installation or later on the road. At a suspension mount, that failure mode is a separated component at speed. Identify TTY fasteners from the service information — the tightening spec usually reads as a torque value plus an angle (for example, 90 Nm plus 90 degrees) — and put new bolts on the parts order before you start the job.
Pressed-in ball joints are the other place technique matters. When a ball joint is press-fit into a control arm, removal and installation require a hydraulic press (or a screw-type ball joint press) with the correct adapters — cups and sleeves that support the arm and push squarely on the joint housing. Hammering a pressed joint in or out damages the control arm, distorts the bore so the new joint won't seat with proper interference, and rarely works anyway. The adapters exist to put thousands of pounds of force exactly where it belongs; use them, keep the joint square in the bore, and press until it seats fully against its shoulder.
| Fastener / joint | Rule | Why |
|---|---|---|
| Torque-to-yield (TTY) bolt | Single use — replace every removal | Already stretched past yield; cannot develop clamp load again and may snap |
| TTY identification | Spec reads torque plus angle, e.g. 90 Nm + 90° | The angle step is the giveaway |
| Standard bolts | Reusable with clean, undamaged threads, torqued to spec | Elastic-range clamping is repeatable |
| Castle nut with cotter pin | Torque to spec, then advance to the next slot | Backing off releases the taper's clamp |
| Prevailing-torque (lock) nuts | Replace once removed | The locking feature is spent after one use |
| Pressed-in ball joints | Press with correct adapters only | Hammering distorts the bore and ruins the interference fit |
When in doubt, the service information's fastener notes rule — reuse policies are model-specific.
- Inspect the bore after the old joint comes out. Scoring, galling, or an ovaled bore means the arm is done — a new joint pressed into a damaged bore will not hold its interference and will walk out in service.
- Select adapters that support the arm fully around the bore and drive on the joint's housing edge — never on the stud or the boot. The adapters put thousands of pounds exactly where the part can take it.
- Start the joint dead square and press smoothly, watching the effort. A sudden force spike means the joint has cocked in the bore — back it out and re-square rather than powering through, because a cocked press shaves the bore.
- Press until the housing seats fully against its shoulder, and install the snap ring where fitted, confirming it drops completely into its groove — a half-seated ring is a joint waiting to migrate.
- Fit the boot in the correct orientation, grease if a fitting is provided, and torque the stud nut to spec — advancing, never backing off, to align the cotter pin slot.
- Reusing a torque-to-yield bolt. It has already stretched into plastic deformation — it cannot deliver the designed clamp load and may neck down and snap, and at a suspension mount that means a separated component at speed.
- Hammering a pressed ball joint in or out — it distorts the control arm bore so the new joint never seats with proper interference, and it rarely works anyway.
- Backing a castle nut off to line up the cotter pin — the taper loses its clamp and the stud works loose. Always tighten forward to the next slot.
- Guessing suspension fastener torque with an impact. Too little clamp lets joints fret and move; too much yields the bolt — both end in a loose suspension component.
The service info lists a control arm bolt spec as 60 Nm plus 90 degrees. What does that format tell you before you start?
Torque-plus-angle is the signature of a torque-to-yield bolt — the angle step deliberately stretches it past its elastic limit for consistent clamp. That makes it single-use: put a new bolt on the parts order before the job starts, because the one you remove is scrap.
A freshly pressed-in ball joint shows play on the very first test drive. What are the likely installation causes?
Either the joint never seated fully against its shoulder — so it is shifting in the bore — or the bore was already distorted, often from a previous hammer job, and cannot hold the interference fit. Pull it, inspect the bore, and if the bore is ovaled or scored, the control arm gets replaced, not re-pressed.
Suspension Types
2 conceptsSuspension architecture determines how the wheel moves through its travel.
- Short-Long Arm (SLA) or double-wishbone uses independent upper and lower control arms. Ideal for camber control across the suspension travel.
- Multi-link designs use separate links to control each degree of freedom (typically 3-5 links per side), giving better handling and packaging vs. simpler designs.
Suspension architecture determines how the wheel moves through its travel — and how much control the engineers have over camber, toe, and caster as it does. Knowing the layouts helps you find components faster and understand why different designs wear and align differently.
Double-Wishbone and Multi-Link Designs
A double-wishbone suspension — also called short-long arm, or SLA — uses two control arms per side: an upper and a lower, with the steering knuckle mounted between them at the ball joints. The arms are deliberately different lengths (the upper shorter than the lower, hence short-long arm), and that geometry is the design's superpower: as the suspension compresses, the unequal arms tilt the wheel to control camber through the travel, keeping the tire flatter on the road in corners. That's why double-wishbone remains the choice for trucks, performance cars, and anywhere precise camber control across suspension travel matters. Compare it to a MacPherson strut layout, where the strut itself replaces the upper arm — cheaper and more compact, but with less camber control.
Multi-link suspension, common at the rear of modern independent-rear vehicles, takes the idea further: instead of two wishbones, it uses multiple separate links — typically three to five per side — each controlling a specific degree of freedom. One link manages toe, others control camber and longitudinal location, so engineers can tune how camber, toe, and caster change through travel almost independently. The payoff is better handling and better packaging than simpler designs. For the tech, the practical notes are that multi-link rears usually have a dedicated toe link (often adjustable — which is why four-wheel alignments matter), and that each small link has bushings at both ends, multiplying the places wear can hide. Check every link, not just the big ones.
- Look at the top of the front strut tower and the knuckle. A strut bolted to the knuckle with no upper arm is MacPherson; upper and lower control arms with the knuckle between them is SLA/double-wishbone. This decides where camber lives and what a strut job disturbs.
- At the rear, count the links. Two or three big arms is a simpler independent design; four or five slim links per side is multi-link — and one of them is a dedicated toe link, usually with an adjustment cam.
- Map where the adjustments are for this layout: strut-to-knuckle cam bolts or slotted mounts for MacPherson camber, arm shims or cams on SLA, toe-link cams at a multi-link rear. Knowing what is adjustable is half the alignment quote.
- List the wear points the layout creates — every link has a bushing at each end, so a five-link rear has ten rubber parts per side where play can hide.
- Pull the factory alignment spec before quoting: if a needed angle is non-adjustable from the factory, the correction requires aftermarket cam bolts or parts, and the customer should hear that up front.
- Quoting a camber correction without checking whether the layout provides an adjustment — many MacPherson fronts have no factory camber provision, and the fix requires aftermarket cam bolts you did not price.
- Checking only the big obvious arms on a multi-link rear — the slim toe link's soft bushing is exactly where the tire-wearing play hides.
- Assuming the rear is non-adjustable and doing a front-only alignment — most multi-link rears have adjustable toe, and rear toe is what sets the thrust angle the front is aligned to.
Why does a double-wishbone suspension control camber through travel better than a MacPherson strut?
Its two arms are deliberately unequal lengths — short upper, long lower — so as the suspension compresses, the arms swing through different arcs and tilt the wheel progressively into negative camber. That keeps the tire flatter on the road in body roll. A strut, replacing the upper arm entirely, has far less ability to shape that camber curve.
One rear tire on a multi-link car wears its inner edge, but the static alignment numbers are in spec. What is the suspect?
A deflecting toe-link bushing. The rack measures the geometry at rest; under cornering and drive loads, a soft bushing lets that link's effective length change, so the wheel steers itself a fraction of a degree and scrubs the tire. Pry every link bushing — one soft toe link undoes a perfect printout.
Safety
2 conceptsSuspension parts fail differently from most car parts: when they let go, they let go all at once, at speed, with the driver aboard.
- Once a boot tears, water and grit reach the bearing. Damage is invisible until it fails. Replace to avoid catastrophic separation.
- Corrosion pits are stress concentrators. Coil failures usually happen without warning and can destroy tires, brake lines, or send parts through the fender.
Two habits define a safe chassis tech — condemning contaminated joints before they show play, and respecting what a corroded spring can do.
Torn Boots and Corroded Springs: Replace Before Failure
A ball joint that has been driven for months with a torn boot should be replaced even if it shows no measurable play yet. The boot is the only thing keeping grease in and contamination out; once it tears, water and grit reach the bearing surfaces and begin grinding them away. That damage is invisible from outside — the joint can feel tight right up until the abrasive paste inside finishes eating the bearing, and a ball joint that separates drops the corner of the vehicle and takes steering control with it. 'No play, so it's fine' is exactly the wrong conclusion for a long-contaminated joint. Replacing only the boot doesn't help either, because the contamination is already inside doing its work. Replace the joint.
Coil springs carry a parallel lesson. Corrosion pitting on the spring wire is not cosmetic. Every pit is a stress concentrator — a notch where the constant flexing of the steel focuses fatigue, and fatigue cracks grow from pits until the coil snaps without warning. When a pitted spring fails, the broken end can slash a tire, sever a brake line, or punch through the fender, and it happens with no symptom beforehand. When you find real pitting on the wire (not just surface bloom on the coating), recommend replacement, and replace springs in pairs so ride height and rate stay matched across the axle.
- Spread every joint boot with your fingers or a pick and look for splits, grease weeping out, and dirt tracks leading in. The boot is the joint's only defense, and a breach is the beginning of the end.
- Judge the tear's age: dirt mixed into the grease and rust staining mean the contamination has been inside grinding for a while — that joint is condemned regardless of how tight it feels today.
- On coil springs, look at the wire itself under the lower isolator and at the paint breaks. Distinguish real pitting — craters in the steel — from surface bloom on the coating, because only true pits are stress risers.
- Photograph what you find at the moment you find it. These are 'nothing feels wrong yet' failures, and the photo is what lets the customer make the honest call.
- Write the recommendation as replace-before-failure with the reason: a contaminated joint can separate without warning, and a pitted spring can fracture and cut a tire or brake line — the symptom-free window is exactly the danger.
- Passing a long-torn boot because the joint 'has no play.' The abrasive paste inside grinds invisibly, and the joint feels tight right up until it separates and drops the corner — no play is not the same as no damage.
- Installing a new boot over a contaminated joint — the grit is already inside doing its work, and the fresh boot just seals it in with the wreckage.
- Dismissing corrosion pitting on spring wire as cosmetic. Every pit concentrates fatigue stress, cracks grow from pits, and the coil snaps without a single warning symptom.
- Replacing one spring of an axle after a fracture — the surviving spring has the same age, mileage, and corrosion exposure, and mismatched rate and height cock the axle anyway.
A ball joint's boot has been torn for roughly six months, and your play check reads within spec. What is the correct call, and why?
Replace the joint. Six months of water and grit have been grinding the bearing surfaces from the inside — damage no external measurement can see. Contaminated joints hold spec until shortly before separation, and separation means a dropped corner and lost steering control. Long contamination condemns the joint on its own.
Why is a corrosion-pitted coil spring dangerous when the customer reports zero symptoms?
Because the failure mode has no warning stage. Each pit is a stress concentrator where the constantly flexing steel focuses fatigue; a crack grows from the pit until the coil fractures suddenly — and the broken end can slash a tire, sever a brake line, or punch through bodywork at speed. The absence of symptoms is normal right up until the snap, which is why pitting itself is the finding.
Regulation
1 conceptOn commercial vehicles, suspension condition isn't a judgment call — it's regulated.
- Commercial vehicles are inspected against Federal Motor Carrier Safety Administration or CVSA out-of-service criteria — steering play, cracked components, and broken springs all trigger fail.
Techs inspecting trucks and buses work against published federal criteria, and knowing where those standards come from is part of the job.
FMCSA and CVSA Standards
Commercial vehicle inspections measure suspension and steering components against Federal Motor Carrier Safety Administration (FMCSA) regulations and the Commercial Vehicle Safety Alliance (CVSA) out-of-service criteria — not against shop opinion or whatever a tech thinks looks acceptable. These published standards define specific wear limits and load-carrying requirements: maximum allowable steering wheel free play, cracked or broken suspension components, broken or missing spring leaves, and compromised load-bearing parts are all defined conditions that trigger a failed inspection or place the vehicle out of service on the spot.
For the working tech, the practical meaning is that commercial suspension work carries a documentation and compliance layer that passenger car work doesn't. A cracked hanger, a shifted leaf, or excessive steering lash on a truck isn't a 'recommend repair' line item — it can be a violation that grounds the vehicle until repaired. Know the CVSA out-of-service criteria for the components you touch, inspect to the published limit rather than to feel, and document what you measured. When a DOT roadside inspection finds what you missed, the paper trail matters.
| Steering wheel diameter | Manual steering max lash | Power steering max lash |
|---|---|---|
| 16 in. or less | 2 in. | 4-1/2 in. |
| 18 in. | 2-1/4 in. | 4-3/4 in. |
| 20 in. | 2-1/2 in. | 5-1/4 in. |
| 22 in. | 2-3/4 in. | 5-3/4 in. |
Power-steering lash is measured with the engine running. CVSA out-of-service criteria are updated annually — always inspect to the current published edition.
- Measure steering wheel lash with the wheels straight ahead and the engine running on power-steering vehicles. Rock the wheel until the tires just begin to move each way — travel beyond the table limit for that wheel diameter is a defined violation, not a judgment call.
- Inspect every spring assembly against the criteria: cracked or broken leaves, a broken main leaf, leaves shifted out of position or contacting a moving part — each is a defined condition with a defined consequence.
- Work through hangers, U-bolts, torque arms, and attachment points for cracks, looseness, and missing fasteners. On commercial equipment these are compliance items, not 'recommend' lines.
- Record what you measured, not just what you concluded — the measured lash, the specific leaf, the photo. When a roadside inspection follows your work, the paper trail is your defense.
- Anything at or past an out-of-service limit grounds the vehicle until repaired. Write it that way and hold the line — releasing an OOS-condition truck puts your certification and the public on the same road.
- Inspecting commercial suspension to feel and shop opinion instead of the published FMCSA/CVSA limits — 'looks okay to me' is not a defense when the roadside inspection finds the defined defect you passed.
- Working from an outdated out-of-service criteria edition. The CVSA updates annually, and inspecting to last decade's limits is inspecting wrong.
- Writing an out-of-service condition as 'recommend repair.' A defined OOS condition grounds the vehicle — softening the language transfers the liability to you.
- Skipping documentation of measured values — without the recorded lash measurement or photo, your inspection is your word against a violation notice.
A truck with a 20-inch steering wheel and power steering shows 5-1/2 inches of lash with the engine running. What is the call?
It exceeds the 5-1/4 in. limit for a 20-inch wheel under 49 CFR 393.209, so it is a violation and, at that level, an out-of-service condition — the vehicle does not go back in service until the steering lash is corrected. Measure and record the value; the number is the finding.
You find one broken leaf in a multi-leaf spring pack on a trailer. Is the vehicle automatically out of service?
Not automatically — under the CVSA criteria, out-of-service is typically triggered by a broken main leaf or one-fourth or more of the leaves in the assembly broken. A single broken non-main leaf is still a federal defect requiring repair, just not necessarily OOS. Verify against the current edition and document exactly which leaf, because the distinction decides whether the truck moves.
Studied the material? Get SUS certified.
The Suspension, Steering & Alignment exam turns what you just learned into a verifiable credential drivers and shops can look up. 45 questions · 60 minutes · 75% to pass · $19.99.
Studying here is free forever. There's no obligation to take the exam.
The work these lessons teach.
Real jobs from Supercanic trucks — the systems above, out in the field.









Real-world cost guides for this system.
See what customers pay for the jobs this track teaches, parts, labor hours, and state-by-state ranges from our repair cost estimator.
Standards and further reading
Primary sources behind this page. Federal safety, emissions and consumer-protection references, worth reading before you authorize any repair.
- NHTSA TireWise Federal guidance on tire age, load ratings, pressure and tread depth.
- ASE certification The national standard for automotive technician testing and certification.
- SAE International The engineering body behind fluid, fastener and diagnostic standards.
- California Bureau of Automotive Repair Licensing, consumer complaints and shop regulation in California.
