Preventive Maintenance & Inspection

Reading fluid condition is diagnosis; choosing the right replacement fluid is engine and transmission survival. This is where a tech's discipline shows — the wrong fluid in the right hole destroys components just as surely as no fluid at all.

Transmission Fluids: ATF, CVT, and Manual Gearboxes

Fresh automatic transmission fluid is red or pink. As it works, it darkens — and very dark brown or black ATF is not just old fluid, it's evidence of overheating and severe degradation. By the time ATF is black, the transmission itself has already suffered heat damage, so the right recommendation is a fluid service plus a thorough inspection of the transmission, not just a drain and fill that papers over the problem.

Continuously variable transmissions are a separate world. A CVT uses a belt or chain running on variable pulleys, and its fluid is engineered specifically for that friction interface. Pouring standard ATF into a CVT causes the belt to slip and can destroy the transmission within a few thousand miles. There is no acceptable substitute: use the exact manufacturer-specified CVT fluid, every time.

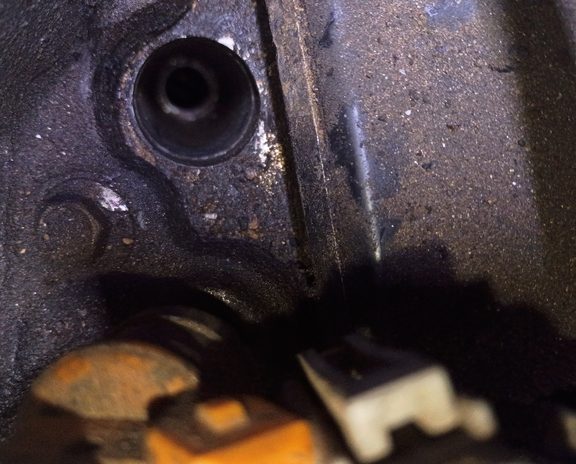

Manual transmissions have no dipstick. They use a drain plug at the bottom and a fill plug on the side of the case, and the height of that fill plug is the level gauge. The correct procedure is to remove the drain plug and drain the old fluid, reinstall it, then fill through the side fill plug until fluid seeps out level with the plug opening. When it overflows at the plug, the level is correct — reinstall the fill plug and you're done.

Automatic Transmission Service: The Three Classic Mistakes

A pan-drop ATF service with filter replacement is straightforward work, but three mistakes show up over and over in the field. First, forgetting that the torque converter holds 40 to 60 percent of the total fluid — a simple pan drain leaves most of the old, degraded fluid circulating in the system, so understand what fraction of the fluid your service actually exchanged and set customer expectations accordingly. Second, overfilling: too much ATF gets whipped into foam by the rotating parts, and aerated fluid causes erratic shifting. Third, overtightening the pan bolts, which strips the threads in the case or warps the pan flange and creates leaks. A proper ATF service accounts for all three.

Coolant: Mix Ratio and Chemistry Compatibility

The correct coolant fill is a 50/50 mixture of coolant concentrate and distilled water, or a pre-mixed 50/50 product. That ratio gives the best combined freeze protection, boiling point, corrosion inhibition, and heat transfer. Two shortcuts ruin it: tap water carries dissolved minerals that build scale inside the radiator and passages, and straight 100% coolant actually transfers heat worse than the 50/50 mix — more antifreeze is not more protection.

Coolant chemistry is the other trap. IAT (the traditional green), OAT (orange Dex-Cool), HOAT (often yellow), and other formulations use different corrosion-inhibitor packages, and mixing incompatible types can trigger chemical reactions that form gelatinous deposits. That gel clogs cooling passages, radiators, and heater cores — a self-inflicted cooling system failure. Always drain, flush, and refill with the chemistry the manufacturer specifies. Universal coolants exist, but use them only where the manufacturer has approved them for that application.

Brake Fluid: Moisture, Boiling Point, and Bleeding

Brake fluid is hygroscopic — it pulls water out of the atmosphere continuously through hoses, seals, and the reservoir vent. That absorbed water lowers the fluid's boiling point, and here's why that matters: under hard, repeated braking the fluid gets hot enough that the water flashes to steam. Steam compresses where liquid doesn't, and the pedal goes soft or to the floor — brake fade. This is why moisture testing exists: it measures boiling-point degradation directly, and it's why fluid can need a flush regardless of how clean it looks. Color is not the test; moisture content is.

The industry action threshold is 2% moisture content. A reading at or above 2% calls for a full flush, so a fluid testing at 3.5% is well past the line — the boiling point is severely compromised and brake fade risk is elevated. That's an immediate flush recommendation, not a 'keep an eye on it.'

When you service brake fluid, air removal has to be systematic. Bleed at each caliper, typically starting at the wheel furthest from the master cylinder and working closer — right rear, left rear, right front, left front on most vehicles — continuing at each corner until clean fluid flows with no bubbles. Just pumping the brake pedal a few times does not remove air trapped in the lines. And be aware that many modern vehicles require a scan-tool-controlled ABS bleed procedure after fluid service to purge air from the ABS modulator.

Power Steering and Differential Fluids: Reading the Evidence

Healthy power steering fluid is pinkish-red or clear depending on the brand, and it should be free of foam. Dark, foamy power steering fluid tells you two things: the fluid is degraded, and air is getting into the system. Chase the air source — a low fluid level, worn pump seals, a cracked return hose, or simply fluid that's overdue for replacement are the common causes.

Differential fluid has its own normal. Fine metallic particles suspended in the fluid — a glitter-like shimmer — are expected, because gears mesh steel-on-steel and shed microscopic material as they wear. What's not normal is chunky, larger metallic particles or an excessive quantity of debris, especially in dark fluid. That indicates real gear or bearing damage, and simply changing the fluid won't fix the underlying wear. When you see chunks, recommend a full differential inspection before the vehicle keeps racking up miles.

Done right, it catches failures before they strand or injure someone, and it gives the customer an honest picture with clear priorities. Done wrong — either sloppy or padded — it either misses a ball joint about to let go or reads like an upsell sheet. Learn to see accurately and report honestly.

The Tiered Report: How Professionals Communicate Findings

The professional standard for reporting inspection findings is a tiered system organized by urgency: Immediate Safety Issue, Recommended Now, and Watch for Next Service. Immediate Safety items require action before the vehicle should be driven. Recommended Now items should be addressed within days or weeks. Watch items are documented and monitored at future visits. This structure communicates severity clearly, keeps the customer in control of decisions, and kills the perception that the shop is just building an invoice.

Documentation is part of the standard, not an extra. A comprehensive inspection produces a written report with photos of significant findings, severity ratings, and rough repair cost estimates — and the customer gets that report whether or not they approve any repairs. Written, photographic documentation builds trust, gives the customer a reference they can act on later, and protects the shop legally if a dispute ever arises.

And when you inspect a well-maintained vehicle and find nothing wrong, say so. Report that the vehicle is in excellent condition, list what was inspected, and thank the customer for taking care of it. Manufacturing findings to pad a ticket destroys trust permanently the moment a customer suspects the pattern — and an honest 'everything looks good' brings that customer back for years.

Brakes: Pads, Rotors, and the Parking Brake

Brake pads start life at roughly 10 to 12mm of friction material, and the wear threshold is around 2 to 3mm. So a set measuring 4mm front and 5mm rear is used but not dangerous — the right call is a brake service recommendation within the next few thousand miles or 3 to 6 months, with a re-check at the next visit. Not an emergency, not ignorable. Learning to place findings on that spectrum is the core inspection skill.

Rotors are a different calculation. Deep grooves and heat spots (bluish discolored patches) mean replacement, not resurfacing. Deep grooves consume material below serviceable thickness, and heat spots are areas of crystallized, hardened metal that resurfacing can't remove — they'll keep causing pulsation and eventually crack. Modern rotors are also manufactured thinner than they used to be, so turning them frequently drops them below minimum thickness anyway. When in doubt, replace.

Don't skip the parking brake. A non-functional parking brake is an Immediate Safety finding, not a convenience item — it's the redundant hold that prevents a rollaway if the transmission's park pawl fails, and it's required equipment for state safety inspections. Recommend immediate service.

Tires, Alignment, and Wheel Bearings

Know your tread depth numbers cold. The legal minimum is 2/32 inch, but wet-braking performance degrades drastically below 4/32 inch — that's the real safety threshold. A tire at 3/32 is between the two, which means recommend replacement now, before the wet season or winter, not 'wait until it's legal-minimum bald.' Customers deserve the wet-performance explanation, because 'it's still legal' and 'it's still safe' are not the same statement.

Read the wear pattern before you quote tires. Feathered or scalloped wear concentrated on the inside edge indicates an alignment problem — typically excessive toe-out. If you replace the tires without correcting the alignment, the new set wears out the exact same way, and the customer blames the tires or the shop. Always inspect alignment and quote it alongside any tire recommendation when the wear pattern points to it.

Wheel bearings escalate faster than people expect. Slight play felt at the left front today is near-term failure, and a wheel bearing that fails at highway speed can seize the wheel or, in the worst case, allow separation. Slight play earns a 'replace soon' recommendation measured in weeks, not months. On modern sealed hub bearings there is no adjustment to perform — worn means replace.

Suspension, Driveline, and Engine Mounts

A lower ball joint with visible play is one of the highest-priority safety findings you can make. Ball joints tie the suspension together, and complete failure — which follows visible play — drops the wheel angle catastrophically and can cause total loss of vehicle control. That's an Immediate Safety classification and an immediate replacement recommendation.

A torn CV boot slinging grease is a Recommended Now item. Once the boot tears, grease escapes and road grit enters the joint. The joint may keep running for months, but it's deteriorating the entire time, and replacing a boot (or an axle, if the joint is already contaminated) now is far cheaper than the full CV joint and axle replacement it becomes if ignored.

Shocks and struts get replaced in axle pairs — both fronts or both rears — even when only one has failed. A unit that's gone soft, allows excessive body movement, and shows oil leaking around the housing is done; but pairing a fresh damper with a worn one on the same axle creates uneven ride and handling. Pair replacement is the industry standard, and it's a legitimate recommendation, not an upsell.

Check differential fluid while you're under the car. A fine glitter of metallic particles is normal gear wear, but larger metallic particles or chunks suspended in dark fluid indicate excessive wear on internal gears or bearings. Servicing the fluid alone won't fix that — recommend a full differential inspection before continued use.

Motor mounts round out the underhood-and-underneath check. A torn mount — visible rubber failure — is Recommended service: not an immediate safety issue, but a real one. The engine shifting under acceleration strains and can damage attached hoses, wiring harnesses, and drivetrain components, and it produces the vibration the customer has probably already noticed. Left alone, it causes cascading failures.

Ignition, Intake, Exhaust, Lighting, and Cabin Air

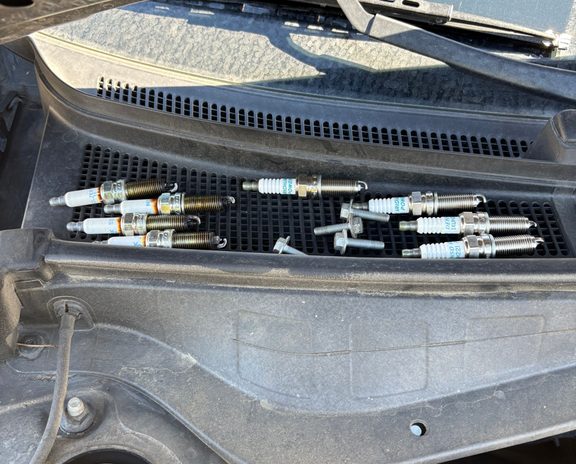

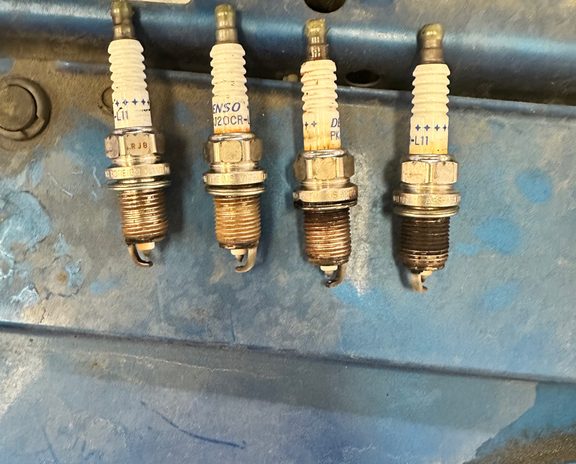

Spark plug electrodes start out sharp-edged, and wear rounds them off. A rounded electrode means a widened gap and a higher voltage requirement to fire — and eventually the ignition system can't reliably jump that gap under load, producing misfires. Worn plugs are a wear item, not a coil problem; replace them at the manufacturer's interval, which runs 60,000 to 100,000 miles on iridium and platinum plugs.

A cracked engine air intake tube matters more than its size suggests. The tube sits downstream of the MAF sensor, so any air entering through a crack is unmetered — the ECU never sees it and can't add fuel to compensate. The result is a lean condition, MAF-related driveability complaints, potential misfires, and classically the P0171/P0174 lean codes. When you're chasing lean codes, cracked intake plumbing is one of the first suspects.

Exhaust systems teach the opposite lesson: restraint. Surface rust throughout an older exhaust with no holes is normal — classify it as Watch and recommend replacement only when actual leaks or structural problems appear. Recommending exhaust replacement over cosmetic rust reads as predatory and erodes trust.

When one headlight bulb is out, note both. Headlight bulbs age together, so the surviving bulb is close behind. Recommending pair replacement isn't upselling — it saves the customer a return trip and a possible state inspection failure.

Finally, treat a heavily contaminated cabin air filter as a health finding, not a cosmetic one. A filter packed with leaves, debris, and mold blows contaminated air into the cabin every time the HVAC runs, which can trigger allergic reactions, aggravate asthma, and expose occupants to airborne mold chronically. Replace it as a priority.

One more judgment call that comes up on high-mileage vehicles: the leaking rear main seal. The repair requires transmission removal on most vehicles, which makes it major labor. If the leak is minor — marking the driveway but not affecting the oil level — monitoring can genuinely be the more cost-effective path. If it's losing enough oil to move the dipstick, address it. Either way, lay out the tradeoffs honestly and let the customer decide with full information.

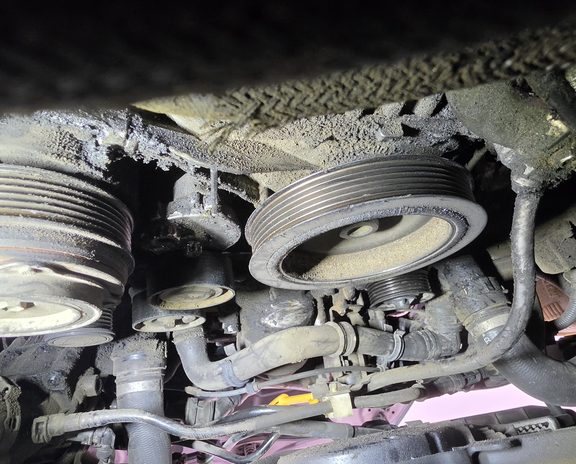

A serpentine belt failure strands the car; a timing belt failure on an interference engine destroys it; a burst coolant hose cooks it on the shoulder of the highway. Inspection here is mostly hands and eyes — and knowing which failures are catastrophic versus merely inconvenient.

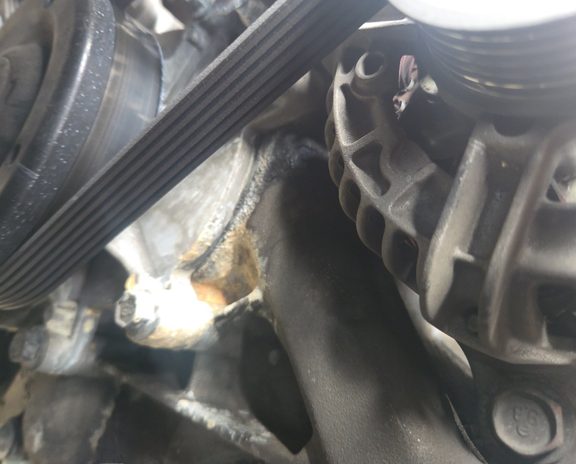

Serpentine Belt Inspection

A serpentine belt tells you it's done in four visual ways: cracks running perpendicular to the ribs, missing chunks of rubber, a glossy glazed surface, or fraying edges. Any of those means replacement. But visual condition isn't the whole test — a belt that has exceeded the manufacturer's mileage or age interval should be replaced even if it still looks serviceable, because modern EPDM belts wear by losing rib material rather than cracking dramatically. Dirt and a little noise at cold start, on their own, are not condemnation criteria.

The Tensioner: Replace It With the Belt

When a serpentine belt tensioner starts squeaking, that's a failing bearing — and tensioner bearings are sealed units that cannot be lubricated or repaired. A squeaking tensioner is headed for seizure or shaft failure, so the fix is replacement. Replace the belt along with it, because a belt that's been running on a failing tensioner carries extra wear from the misalignment and vibration. Squirting lubricant at a noisy tensioner is a band-aid that solves nothing and contaminates the belt.

Timing Belts: The Interval Is a Deadline, Not a Suggestion

Timing belt intervals are safety-critical for the engine itself. Most modern engines are interference designs, meaning the pistons and valves share the same space at different moments — the belt is the only thing keeping them apart. When a timing belt snaps on an interference engine, pistons strike open valves and the engine is destroyed internally. That's why a vehicle 3,000 miles past a 105,000-mile timing belt interval needs immediate replacement, not 'we'll get to it at the next major service.' The math is brutal and simple: a timing belt job runs roughly $800 to $1,500, while the engine rebuild that follows a failure runs $4,000 to $8,000 or more.

While you're in there, do the water pump. On most timing-belt engines the water pump is driven by the timing belt and lives behind the same covers and components you've already removed. Skipping it means repeating all of that labor when the pump fails at 130,000 miles. Combining the water pump with every timing belt replacement is the standard recommendation.

Coolant Hoses: The Squeeze Test

You can catch most coolant hose failures before they rupture without any disassembly — squeeze the hoses when the engine is cold. A healthy hose feels firm but pliable. A hose that's gone sponge-soft is deteriorating from the inside out; one that's brittle and hard has dry-rotted; and localized soft spots or bulges are pre-failure warnings that the reinforcement layers have let go. Looking at a hose tells you almost nothing, and waiting for a visible leak means waiting for the failure. Squeeze every accessible hose on every inspection.

Belt Routing: Photograph First

Before you pull any belt off an unfamiliar engine, take a clear photo of the routing, and verify the correct path against the service manual diagram or the routing sticker many manufacturers place under the hood. Belt routing is not something to reconstruct from memory or guesswork: a belt routed wrong can spin the water pump backwards, cause alternator failure, or shred the new belt within minutes of startup. Thirty seconds with your phone camera prevents an embarrassing and expensive comeback.
