Fundamentals

1 concept

Everything in forced induction comes back to one idea: an engine is an air pump, and power is limited by how much air you can burn per cycle.

At a glance — know these cold
  • Forced induction packs more air (and therefore more fuel) into each combustion cycle, producing more power without changing displacement.

Understand this and every turbo, supercharger, and tuning decision starts making sense.

Why Compressing Air Makes Power

A naturally aspirated engine can only pull in as much air as atmospheric pressure will push into the cylinder on the intake stroke. Fuel is easy to add; oxygen is the bottleneck. Forced induction solves that by compressing air into the engine, packing more oxygen into each cylinder on every intake stroke. More oxygen means more fuel can be burned per combustion cycle, and more fuel burned means more energy released and more power at the crank, all without changing the engine's displacement.

That is the entire point of a turbocharger or supercharger. It is not about cooling, weight reduction, or friction. It is about charge density: a 2.0-liter engine running 14.7 psi of boost is ingesting roughly the air mass of a 4.0-liter naturally aspirated engine. Every other topic in this track, intercooling, fueling, ignition timing, knock control, exists to manage the consequences of stuffing that extra air and fuel into cylinders that now see far higher pressures and temperatures.

📋 Boost pressure vs airflow (sea level)
Boost (psi)Pressure ratioApprox. airflow multiple
0 (atmospheric)1.0Baseline — naturally aspirated
7.41.5~1.5x — a 2.0L breathing like a 3.0L
14.72.0~2x — a 2.0L breathing like a 4.0L
22.12.5~2.5x
29.43.0~3x — serious build territory

Actual air-mass gain runs below the pressure ratio because compression heats the charge and hot air is less dense — intercooling recovers most of the difference. At altitude, the same boost gauge reading means a lower absolute pressure ratio.

🔩 Baseline the engine before any boost build
  1. Run a compression and leakdown test on every cylinder. Boost multiplies cylinder pressure — a tired engine that idles fine naturally aspirated becomes a grenade under 15 psi, and this test is what tells you whether the foundation can take it.
  2. Datalog the stock engine: fuel trims, knock counts, AFR, and intake temps on a full pull. This is your known-good reference; every post-build oddity gets compared against it.
  3. Record a performance baseline — dyno run or consistent acceleration data. Without a before, the after is marketing.
  4. Inventory the fuel system capacity: injector size, pump rating, line condition. The airflow math tells you how much more fuel the build will demand, and this is where you find out if the stock system has headroom.
  5. Document everything with the customer. The baseline both protects you (pre-existing conditions on record) and sells the build honestly (real numbers, not seat-of-pants claims).
⚠️ Comeback killers
  • Boosting a worn engine because 'it runs fine.' Forced induction raises cylinder pressures dramatically, and marginal rings, bearings, and gaskets that survive atmospheric duty fail fast under boost — the leakdown test before the build is cheaper than the engine after it.
  • Talking about boost pressure as if it were power. Pressure is the symptom; oxygen mass in the cylinder is the mechanism. A heat-soaked 15 psi can carry less oxygen than a well-intercooled 12 psi — chasing gauge numbers instead of charge density leads builds in the wrong direction.
  • Skipping the stock datalog. When the tuned car shows 5 degrees of knock retard, you need to know whether the knock sensor was already busy before the build — no baseline, no way to tell new problems from old ones.
🔧 Shop tip When someone asks what boost does, answer in terms of air mass, not pressure. Pressure is just the symptom; the oxygen packed into the cylinder is what makes power.
✅ Check yourself
A customer wants 'more boost' on a car already struggling with heat soak. Why might a smaller number make more power?

Because power comes from oxygen mass, not gauge pressure. Compressing air heats it, and hot air carries fewer oxygen molecules per volume — past a point, extra boost through a saturated intercooler adds mostly heat and knock risk. Fixing charge cooling at moderate boost often beats raising boost on a heat-soaked system, and it does so with a wider safety margin.

Why does a 2.0L at 14.7 psi of boost roughly match a 4.0L naturally aspirated engine, and what is the catch?

At 14.7 psi the intake charge sits at twice atmospheric pressure, so each intake stroke ingests roughly twice the air mass — displacement-equivalent to doubling engine size. The catch is that the 2.0L's components now see the cylinder pressures and heat of a 4.0L's output, which is why fueling, ignition, knock control, and hardware strength all have to be managed to match.

Turbocharger

6 concepts

The turbocharger is the dominant forced induction device in modern performance and OEM applications because it makes power from energy that would otherwise blow out the tailpipe.

At a glance — know these cold
  • Turbos use waste exhaust energy to spin a turbine that drives the compressor wheel on the same shaft. Highly efficient but has spool-up lag.
  • At low RPM, exhaust flow is insufficient to spin the turbine fast enough. Lag is reduced by smaller turbos, twin-scroll designs, VGTs, or e-boosters.
  • Ball bearings have less friction, allowing faster spool and higher shaft speeds. More sensitive to oil quality and heat, and generally more expensive.
  • A/R (area over radius) is the ratio of the turbine housing's inlet area to the distance from housing centerline. Smaller A/R = quicker spool but less flow at high RPM.
  • Twin-scroll routes pulses from paired cylinders (e.g., 1-4 and 2-3 on I4) through separate housing passages, avoiding cross-interference and improving response.
  • Failed bearings let the shaft wobble, seals fail, and oil enters air and exhaust paths. Blue smoke and low-boost complaints indicate turbo replacement time.

Knowing how a turbo spools, how its housing geometry shapes its behavior, and how it fails is core knowledge for any performance tech.

How a Turbo Works and Why It Lags

A turbocharger is driven by exhaust gas energy. Hot exhaust flows through a turbine housing and spins a turbine wheel; that wheel shares a common shaft with a compressor wheel on the intake side, so as the turbine spins, the compressor pressurizes intake air. Because the turbo recycles waste exhaust energy instead of taking power off the crankshaft, it is a highly efficient way to make power.

The trade-off is turbo lag. At low RPM there simply is not enough exhaust flow to accelerate the turbine to boost-producing shaft speeds. When you stab the throttle, there is a delay while exhaust energy builds and the rotating assembly spins up. Lag is not caused by cold weather or anything on the chassis; it is purely the time needed to accelerate the turbine. Engineers attack lag with smaller turbos that spool on less exhaust energy, twin-scroll housings, variable geometry turbos (VGTs), and electric boost assist (e-boosters) that spin the compressor before exhaust energy arrives.

Housing Geometry: A/R and Twin-Scroll

A turbo's A/R ratio describes the turbine housing geometry: the area of the housing inlet divided by the radius from the housing centerline to that area's centroid. It is not wheel diameter, compressor efficiency, or a boost target. A smaller A/R accelerates exhaust gas onto the turbine harder, so the turbo spools faster, but it chokes flow at high RPM and costs top-end power. A larger A/R does the opposite: lazier spool, better high-RPM flow. Picking A/R is always a compromise between response and peak output.

Twin-scroll turbochargers use a divided exhaust housing with two separate passages that pair cylinders whose exhaust pulses do not interfere with each other. On an inline four with a 1-3-4-2 firing order, cylinders 1 and 4 feed one scroll and 2 and 3 feed the other. Keeping those pulses separated all the way to the turbine preserves pulse energy and prevents one cylinder's exhaust pulse from stepping on another's scavenging, which noticeably improves turbine response and low-end torque. Twin-scroll does not mean two turbines or two turbos; it is one turbine wheel fed by a divided housing.

Bearings and Failure Modes

Inside the center housing, the shaft rides on either journal bearings (a film of pressurized oil) or ball bearings. Ball-bearing turbos have less friction, so they spool noticeably faster and tolerate higher shaft speeds, but they cost more and are more sensitive to oil quality and heat. If a customer runs cheap oil and long change intervals, a ball-bearing turbo will not forgive it.

When turbo bearings fail, the shaft develops play and wobbles, which quickly destroys the oil seals at each end of the shaft. Oil then escapes into the compressor housing (getting burned in the intake) and the turbine housing (getting burned in the exhaust). The classic presentation is blue smoke from the tailpipe, measurable shaft play when you rock the compressor wheel, oil pooled in the compressor or turbine housings, and often a low-boost complaint. Bearing failure never improves boost or fuel economy; when you see blue smoke plus shaft play, the turbo is done and needs replacement, along with finding out why it failed, usually oil supply, oil quality, or heat.

📋 Turbo condition quick reference
CheckHealthyFailed
Radial shaft play (rock the compressor wheel)Barely perceptible; wheel never touches housingObvious wobble or wheel-to-housing contact — bearings gone
Axial (in-out) playNearly zeroPerceptible end movement — thrust bearing worn
Oil in compressor/turbine housingLight film from PCV vapor is normalPooled or dripping oil — shaft seals failed
Tailpipe smokeNoneBlue smoke — oil burning via failed seals
Wheel edgesClean, undamaged bladesChipped/rounded blades — foreign object damage
Spool behaviorConsistent, matches baselineLazy spool + noise — bearing drag or boost leak

Exact play limits vary by cartridge design — journal bearings show slightly more radial movement than ball bearings by design. Verify against the turbo manufacturer's spec before condemning on feel alone.

🔩 Turbo condemnation inspection
  1. Pull the intake pipe from the compressor housing. Two minutes of access beats an hour of guessing from the driver's seat.
  2. Look for oil: a light vapor film from the PCV system is normal, pooled oil is not. Pooling means seal failure — or an oil drain problem flooding the bearing housing.
  3. Rock the compressor wheel radially and pull it in and out. Perceptible wobble or end play with any wheel-to-housing contact condemns the cartridge.
  4. Spin the assembly by hand and listen. It should spin freely without rubbing; scraping means contact damage has already happened.
  5. Inspect wheel blades for chips and rounded edges. FOD damage means something got past the filter — find out what, because a replacement turbo will eat it too.
  6. Before installing the replacement, diagnose the kill: oil supply restriction, drain routing, oil quality, or heat. The turbo is usually the victim, not the cause, and a new one dies the same death if the cause survives.
⚠️ Comeback killers
  • Condemning a turbo for a light oil film in the intake pipe. PCV vapor deposits a film on every boosted engine — pooled oil is the failure signature. Replacing a healthy turbo over a normal film is an expensive misread.
  • Replacing a failed turbo without finding why it failed. Oil starvation, a blocked drain, coked lines, or dirty oil killed the first one and will kill the second — the failure analysis is part of the job.
  • Blaming lag on things that cannot cause it. Lag is the time exhaust energy takes to accelerate the turbine, period — chasing 'cold weather lag' or chassis causes wastes diagnostic time that belongs on boost leaks or wastegate faults if spool genuinely got lazier.
🔧 Shop tip Before condemning a turbo, pull the intake pipe and check the compressor wheel for shaft play and oil residue. Two minutes of hands-on inspection beats an hour of guessing from the driver's seat.
✅ Check yourself
A car shows blue tailpipe smoke, low boost, and measurable play at the compressor wheel. What happened, in order?

Bearings wore out first — from oil supply, quality, or heat — letting the shaft wobble. The wobble destroyed the oil seals at each end of the shaft, so oil now escapes into both housings and burns, making blue smoke. The turbo is done, but the diagnosis is not: identify the bearing killer before the replacement goes in.

Why does a twin-scroll housing improve low-end response without changing the turbine wheel at all?

It keeps paired cylinders' exhaust pulses separated all the way to the turbine, so pulse energy arrives intact instead of colliding and canceling. On a 1-3-4-2 four-cylinder, pairing 1-4 and 2-3 means each scroll receives evenly spaced pulses that hit the turbine harder. Better pulse energy at low RPM means faster spool — same wheel, better delivery.

A customer with a ball-bearing turbo runs bargain oil on long intervals. What failure are they scheduling?

Bearing failure through oil degradation. Ball-bearing cartridges are more sensitive to oil quality and heat than journal bearings; sheared-down, contaminated oil cooks and scores the bearings, the shaft develops play, and the seals follow. The spool advantage they paid for is exactly what their oil habits are destroying.

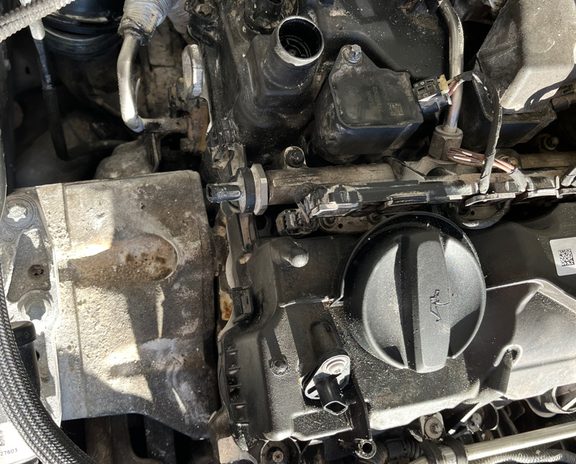

Performance & Forced Induction training photo
Turbo plumbing opened up, coolant and oil lines age faster than the turbo itself.

Supercharger

2 concepts

Superchargers trade the turbo's efficiency for something drivers love: instant throttle response.

At a glance — know these cold
  • Superchargers are belt-driven, giving instant response at any RPM. Roots, twin-screw, and centrifugal designs each have distinct characteristics.
  • Roots blowers displace air but don't internally compress. Twin-screws compress inside the case. Twin-screws produce less heat and are more efficient.

Knowing the differences between the main supercharger designs, and how each one moves and compresses air, tells you which fits a given build.

Belt-Driven Boost and the Main Designs

A supercharger is driven mechanically by a belt from the crankshaft, not by exhaust gas, vacuum, or the electrical system. Because it is geared directly to engine speed, boost is available instantly at any RPM; there is no waiting for exhaust energy to build, which is why supercharged engines feel so responsive off idle. The cost of that response is parasitic drag: the crank has to spend power spinning the blower.

The three common designs are Roots, twin-screw, and centrifugal, and they behave very differently. Roots and twin-screw are positive-displacement blowers that sit on top of the intake and deliver boost essentially from idle. A centrifugal supercharger looks and works like a belt-driven turbo compressor, building boost progressively with RPM.

The Roots versus twin-screw distinction matters. A Roots blower does not compress air internally; its lobes simply trap pockets of air and push them into the manifold, where compression happens as air piles up. A twin-screw's meshing rotors compress the air inside the case as it moves through. Because internal compression is thermodynamically more efficient, a twin-screw produces less heat in the charge and delivers more usable boost for the same drive power. They are not identical, neither is centrifugal, and neither runs on exhaust.

📋 Supercharger design comparison
DesignBoost deliveryCompressionCharge heatNotes
RootsFull boost from idleNone internal — air compressed in the manifoldHottest of the threeInstant response; needs serious intercooling
Twin-screwFull boost from idleInternal — rotors compress as air moves throughCooler than RootsMore efficient; more usable boost per drive horsepower
CentrifugalBuilds with RPM like a belt-driven turboDynamic compressorCoolest at low boostNo low-end hit; easiest packaging
All threeBelt-driven off the crankParasitic drag is the price of instant response

None of these run on exhaust energy — that is the turbo's trick. Choose by where the customer needs the power: positive-displacement for low-end grunt, centrifugal for top-end with easy packaging.

🔩 Supercharged engine inspection
  1. Check the drive belt condition and tension first. Belt slip under load is the classic supercharger 'low boost' complaint, and glazing or dust at the pulleys gives it away.
  2. Check the blower's self-contained gearcase oil where fitted. Roots and twin-screw units have their own lubricant with a service interval almost everyone forgets — burnt or low oil is a rebuild in progress.
  3. Listen at idle and under load: rotor contact rattle or bearing whine on a positive-displacement blower means internal clearance problems that only get worse.
  4. Log intake air temperature on a hard pull. Roots blowers especially heat the charge — climbing IATs with timing being pulled tells you the intercooling is not keeping up with the blower.
  5. Verify boost against spec at redline. Low boost with a good belt points at bypass valve operation or internal wear; correct boost with poor power points elsewhere.
⚠️ Comeback killers
  • Forgetting the blower gearcase oil exists. The self-contained lubricant in Roots and twin-screw units degrades like any gear oil, and running it to failure takes the rotor pack with it — check it at every service.
  • Putting an uncooled Roots setup on a hot-climate street car. The Roots design compresses in the manifold, making the hottest charge of any blower type; without serious intercooling the ECU pulls timing on every summer pull and the customer wonders where the power went.
  • Misreading belt slip as a boost or tuning fault. A glazed, loose, or undersized belt bleeds boost exactly like an internal problem — rule out the five-dollar cause before opening the blower.
🔧 Shop tip Charge temperature is the Roots blower's weakness. If a customer wants a Roots setup on a hot street car, budget for serious intercooling or expect the ECU to pull timing on every hot summer pull.
✅ Check yourself
Why does a twin-screw blower make more usable boost than a Roots blower consuming the same crank power?

Internal compression. The twin-screw's meshing rotors compress air inside the case, which is thermodynamically more efficient than the Roots approach of shoving un-compressed air pockets into the manifold and letting pressure build by pile-up. Less wasted work means less charge heat and more of the drive power ending up as usable boost.

A customer wants instant off-idle torque for towing but is comparing a centrifugal kit's peak numbers. What do they need to understand?

A centrifugal supercharger builds boost progressively with RPM like a belt-driven turbo compressor — its impressive peak boost exists only near redline, exactly where a tow rig spends no time. For off-idle grunt they want positive displacement (Roots or twin-screw), which delivers boost from idle. The peak dyno number is the wrong metric for their use case.

Boost Control

3 concepts

Making boost is easy; controlling it is what keeps engines alive.

At a glance — know these cold
  • Wastegates route exhaust around the turbine when target boost is reached, preventing overboost. Internal wastegates are integrated; external are separate.
  • When the throttle closes, boost pressure has nowhere to go and surges back against the compressor. BOV vents to atmosphere; diverter recirculates to intake.
  • Surge is stress on the compressor wheel and bearings. Fluttering means the check valve/BOV isn't functioning or is incorrectly calibrated.

Wastegates cap turbine speed, and blow-off or diverter valves protect the compressor when the throttle slams shut. Get either wrong and hardware pays the price.

Wastegates: Capping Boost

Left alone, a turbo would keep accelerating as long as exhaust energy increased, driving boost past anything the engine could survive. The wastegate prevents that by bypassing exhaust around the turbine once target boost is reached. With less exhaust energy hitting the turbine wheel, shaft speed stabilizes and boost holds at the target instead of running away into overboost.

There are two packaging styles. An internal wastegate is a flapper valve built into the turbine housing itself, operated by an actuator on the turbo, compact, cheap, standard on OEM turbos. An external wastegate is a separate valve plumbed into the exhaust manifold before the turbine, dumping bypassed exhaust either back into the downpipe or to atmosphere. External gates flow more and control boost more precisely on high-power builds. Either way, the wastegate works on the exhaust side; it does not reduce fuel, restrict intake air, or cool anything.

BOVs, Diverter Valves, and Compressor Surge

A blow-off valve (BOV) or diverter valve is fitted to gasoline turbo engines to deal with what happens when the throttle closes under boost. The compressor is still spinning and pushing air, but the closed throttle plate gives that pressurized air nowhere to go. The pressure wave slams back through the intercooler piping into the still-spinning compressor wheel, that is compressor surge. A BOV vents the trapped charge to atmosphere with the familiar whoosh; a diverter valve recirculates it back into the intake before the compressor, which keeps metered air in the system and keeps MAF-based cars happy. Diesels generally do not need one because they have no throttle plate to trap pressure against.

If you hear an audible fluttering or chatter from the intake at throttle lift, that is surge in action: boost pressure back-feeding through the compressor in pulses. It is not correct operation and not a tire or immediate turbo failure, but it does hammer the compressor wheel, shaft, and bearings with reversed loads every time it happens. The fix is to install a BOV or diverter valve if the system lacks one, or to diagnose the existing valve, a stuck, leaking, torn-diaphragm, or incorrectly adjusted valve will surge just like a missing one.

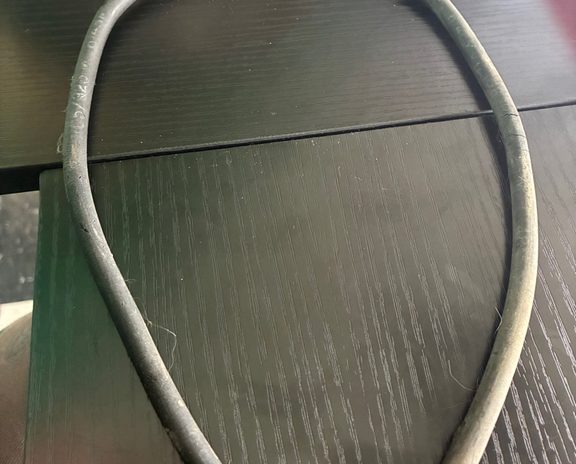

📋 Boost control fault signatures
SymptomLikely causeFirst check
Overboost (P0234)Wastegate stuck closed, failed control solenoid, split signal lineWastegate actuator movement and solenoid function
Underboost (P0299)Charge-pipe leak, wastegate stuck open, weak actuatorPressure-test the boost path, then actuator
Flutter/chatter at throttle liftMissing, stuck, or torn BOV/diverter valveValve diaphragm and operation — surge is hammering the compressor
Rich stumble between shiftsAtmospheric BOV on a MAF-metered carCheck whether a recirculating valve was converted to vent-to-atmosphere
Boost oscillates at steady throttleControl solenoid duty hunting or leaking actuator hoseSignal line integrity, then solenoid

Wastegates work on the exhaust side and BOVs on the intake side — keep the two jobs straight and half of boost-control diagnosis is done.

🔩 Wastegate actuator function test
  1. With a regulated air source or hand pump, apply pressure gradually to the actuator port. You are simulating boost against the diaphragm.
  2. Watch for rod movement at the specified crack pressure (verify the spec for the unit). Movement far above spec means a stiff or failing actuator that will overboost; far below means it bleeds boost early and underboosts.
  3. Stroke it through full travel — movement should be smooth and the rod should return fully when pressure releases. Sticking or lazy return points at the flapper shaft binding in the housing.
  4. Hold pressure and watch the gauge. Bleed-down with the port sealed means a torn diaphragm — the actuator cannot hold the gate against exhaust pressure.
  5. With the actuator disconnected, move the wastegate arm by hand. The flapper itself must swing freely; carbon-seized flappers mimic actuator failure and outlive actuator replacements.
⚠️ Comeback killers
  • Cranking wastegate preload to 'fix' underboost without diagnosis. If the real cause is a leak or a seized flapper, adding preload masks the symptom while creating an overboost trap when the underlying fault shifts — diagnose, then adjust.
  • Installing an atmospheric BOV on a MAF-metered car. The vented air was already measured, so the ECU fuels for air that never arrives — the rich stumble and smell between shifts is built into the modification. Recirculating valves exist for exactly this reason.
  • Treating surge flutter as a cool sound. Every flutter event slams reversed pressure loads through the compressor wheel, shaft, and bearings — the noise is the sound of turbo life being shortened.
🔧 Shop tip Aftermarket atmospheric BOVs on MAF-metered cars dump air the ECU already counted, causing a rich stumble on every shift. If a freshly modified car burbles and smells rich between gears, check whether someone converted a recirculating valve to vent-to-atmosphere.
✅ Check yourself
A freshly modified car burbles, stumbles rich between gears, and smells of fuel. The owner just installed a 'better' blow-off valve. What happened?

The new valve vents to atmosphere on a MAF-metered engine. The MAF already counted that air, so the ECU injects fuel to match a charge that got dumped overboard — a momentary rich stumble on every shift. Convert back to a recirculating valve (or go to a speed-density tune) and the stumble disappears.

Boost hits target then tapers off at high RPM. The wastegate actuator holds pressure and strokes at spec. Where next and why?

The boost path and turbine side. A high-RPM taper with a healthy actuator suggests either a leak that only opens at full pressure — pressure-test the charge pipes — or the turbo running out of flow (undersized, restricted intake, or a partially open flapper from a weak spring at high exhaust drive). The actuator test cleared the usual suspect; now follow the air.

Why do diesels generally run no blow-off valve without suffering compressor surge?

No throttle plate. Surge happens when a closed throttle traps boost against the still-spinning compressor; a diesel controls power with fuel, not an air valve, so the intake path stays open and the pressure wave never reflects back. Remove the cause and the protective valve is unnecessary.

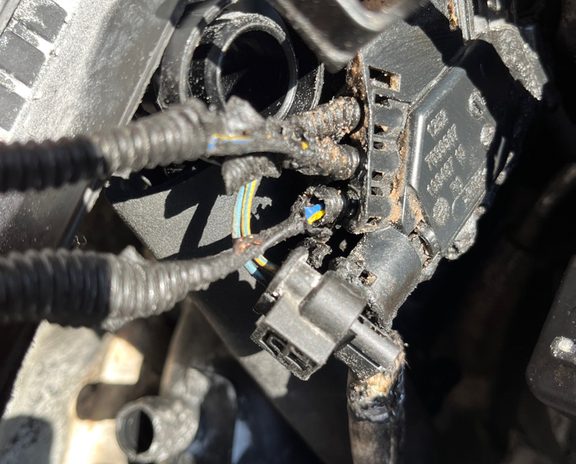

Performance & Forced Induction training photo
Boost-side connectors and vacuum lines, small leaks that erase big power.

Intercooler

2 concepts

Compressing air heats it, and hot air is both less dense and more knock-prone.

At a glance — know these cold
  • Compression heats air. Cooling the charge increases density (more oxygen per volume) and reduces detonation risk. Air-to-air and air-to-water types exist.
  • FMICs get cooler air but require more piping. Top-mounts get hot air from the engine bay but have shorter piping and less lag.

The intercooler is what turns raw boost pressure into safe, usable charge density, and where you mount it changes how the car behaves.

Charge Cooling and Mounting Trade-offs

An intercooler cools the compressed intake charge after the turbo or supercharger and before it enters the engine. It does not cool coolant, oil, or exhaust. The physics is straightforward: compression heats air, and hot air holds fewer oxygen molecules per unit volume. Cooling the charge back down increases its density, so more oxygen reaches the cylinder for the same boost pressure, and it drops the temperature of the mixture, which directly reduces detonation risk. Two architectures exist: air-to-air, where ambient airflow through a core cools the charge, and air-to-water, where a liquid loop with its own small radiator carries heat away, more compact and effective in short bursts, but more complex.

Mounting location is a real trade-off on air-to-air systems. A front-mount intercooler (FMIC) sits in the bumper opening where it receives the coolest ambient air on the road, giving it the best steady-state cooling. The price is long charge piping from turbo to front bumper and back, and all that added pipe volume must be pressurized before the engine feels boost, which adds lag and slows throttle response. A top-mount intercooler sits on the engine, fed by a hood scoop: piping is short so response is crisp, but it breathes hot engine-bay air and heat-soaks in traffic. Neither is universally better; FMIC wins on cooling, top-mount wins on response and packaging.

📋 Intake air temperature interpretation
ReadingMeaningResponse
IAT within ~10-25°F of ambient at steady cruiseHealthy charge coolingBaseline behavior
Spike on WOT pull, quick recovery afterNormal — core absorbed the heat and shed itNo action
IAT climbing 20-30°F+ per back-to-back pull, no recoveryHeat soak — core saturatedBigger core, better airflow, or air-to-water
High IAT at idle/traffic, slow recoveryTop-mount soaking in engine-bay heatDucting/heat shield or relocation
Timing pulled on hot pulls with no knock historyECU protecting against IAT-driven knockFix charge cooling before chasing the tune

Absolute targets vary with climate and boost level — the trend across repeated pulls matters more than any single number. Log IAT; the gauge cluster will not show you this.

🔩 Heat-soak evaluation by datalog
  1. Log IAT from a cold start through warm-up. The gap between IAT and ambient at steady cruise is your healthy baseline for this car.
  2. Make a full pull and note the IAT peak. Some rise is physics; the number tells you how much heat the core is absorbing at full airflow.
  3. Watch the recovery time after the pull. A healthy core sheds the spike within a short cruise; a saturated or undersized core holds the heat.
  4. Run a second and third pull back-to-back and compare peaks. Climbing peaks with no recovery between is the definition of heat soak — the core is full and the ECU will quietly pull timing.
  5. Idle in place for ten minutes and watch IAT, especially on top-mounts. Traffic heat soak that takes miles to recover is a mounting/airflow problem, not a core-size problem.
⚠️ Comeback killers
  • Judging an intercooler in the parking lot. Charge cooling only shows its character under sustained airflow and load — the datalog on repeated pulls is the test, not the idle IAT reading.
  • Assuming a front-mount is automatically the upgrade. FMIC piping adds volume that must pressurize before the engine feels boost — on a responsive street car, a well-ducted smaller core can drive better than a laggy giant one. Match the cooler to the use.
  • Overlooking cracked end tanks and loose couplers as an 'intercooler problem.' A leaking charge path bleeds boost and shows as underboost or trims — pressure-test before condemning core sizing.
🔧 Shop tip Log intake air temperature on back-to-back pulls. If IATs climb 20-30 degrees or more per pull and do not recover, the intercooler is heat-soaking, and the ECU will quietly pull timing long before anything breaks.
✅ Check yourself
Same boost number, better quarter-mile trap speed after an intercooler upgrade. Where did the power come from?

Charge density and timing. Cooler air packs more oxygen per volume at the same gauge pressure, so each cylinder fill burns more fuel — and lower IAT lets the ECU run the timing it was pulling for heat protection. The boost gauge never knew anything changed; the air mass and the spark map did.

A top-mount-equipped car runs strong on the highway but falls on its face after ten minutes of city traffic. Explain the pattern.

The top-mount sits over the engine breathing bay heat through a hood scoop that needs road speed to flow. In traffic there is no scoop airflow and maximum radiated heat, so the core soaks; IATs climb and the ECU pulls timing until sustained airflow cools things down. It is a mounting-location signature, not an engine fault — better ducting, heat shielding, or an air-to-water conversion addresses it.

Fuel

2 concepts

The fuel in the tank sets the ceiling on how much boost and timing an engine can safely run.

At a glance — know these cold
  • Higher octane resists detonation, allowing higher compression or boost. Turbocharged engines often require 91+ octane for peak performance.
  • E85 varies seasonally (higher gasoline % in winter for cold starts). Higher effective octane, lower energy content — requires ~30% more fuel by volume.

Octane rating and ethanol content are the two properties a performance tech has to understand cold.

Octane and What E85 Actually Is

Octane rating measures one thing: a fuel's resistance to auto-ignition, meaning detonation or knock. It says nothing about energy content, sulfur, or water. Higher-octane fuel tolerates more heat and pressure before it self-ignites, which is exactly what lets an engine run higher compression ratios or more boost without knocking. That is why turbocharged engines commonly require 91 octane or better for peak performance; on lower octane the knock sensors force the ECU to retard timing and often reduce boost, costing power.

E85 is the next step up for boosted builds, but the name misleads people. It is not 85 percent gasoline and not pure ethanol; pump E85 is roughly 51 to 83 percent ethanol, with the remainder gasoline, and the blend varies seasonally, winter blends carry a higher gasoline percentage so engines cold-start reliably. Ethanol gives E85 a much higher effective octane than pump gas, but also a lower energy content per gallon, so the engine needs roughly 30 percent more fuel by volume to make the same mixture. That has direct consequences for injector and pump sizing, covered in the tuning lessons.

📋 Fuel properties reference
FuelKey numbersWhat it means under boost
87 AKI regularBaseline octaneKnock margin too thin for most boosted calibrations
91-93 AKI premiumTypical boosted-engine requirementECU pulls timing/boost on lower octane
E85 (pump)51-83% ethanol, seasonal blendEffective octane ~100-105; needs ~30% more fuel volume
E10 pump gasStoich ~14.1:1Standard fuel — most 'gasoline' targets already assume it
Straight gasolineStoich 14.7:1Reference stoichiometry for AFR math

E85 blend swings seasonally — winter blends carry more gasoline for cold starts. Never assume the ethanol content; measure it before tuning decisions.

🔩 Ethanol content check before touching a tune
  1. Pull a fuel sample from the rail or tank — what is in the car right now, not what the pump sticker claimed.
  2. Read actual content: a flex-fuel sensor readout if equipped, or a graduated-tube water test (add a known volume of water, shake, let it settle, and read the phase line — water absorbs the ethanol and the boundary shows the percentage).
  3. Compare measured content to what the current tune assumes. A tune written for E80 running on E55 winter blend is down a large slice of octane.
  4. If content is below the tune's assumption, defer aggressive load testing until the calibration matches the fuel. Knock margin is set by what is in the tank today.
  5. Recommend a flex-fuel sensor for any customer who runs E85 seasonally — measured content beats assumed content every tank.
⚠️ Comeback killers
  • Assuming pump E85 is 85% ethanol. It is legally 51-83% and swings with the seasons; a tune built on a summer blend meets winter fuel with several points less effective octane — that is a knock event scheduled for the first cold-weather pull.
  • Reading octane as an energy or quality rating. Octane measures only auto-ignition resistance; it adds no power by itself. Premium in a low-compression NA commuter buys nothing — while a boosted engine on regular loses power through timing retard.
  • Forgetting E85's volume demand when the fuel system is stock. Roughly 30% more fuel volume for the same mixture means injectors and pump sized for gasoline run out of headroom exactly at peak load.
🔧 Shop tip Because E85 ethanol content swings with the seasons, never assume the blend. A flex-fuel sensor or a test tube ethanol check before tuning on E85 prevents a winter blend from leaning out a tune written on summer fuel.
✅ Check yourself
A knock-limited car gains real power switching from 91 pump gas to E85 at the same boost. Where did the gain come from?

Knock margin. E85's effective octane around 100-105 lets the tuner run the timing advance the 91-octane calibration had to give up, and the large volume of evaporating ethanol cools the charge — a built-in chemical intercooler that suppresses knock further. Same airflow, more of it converted to torque because combustion can be timed properly.

Why does a car tuned on August E85 risk engine damage on a January tank without any hardware changing?

Winter E85 blends drop the ethanol percentage — sometimes to the low 50s — to help cold starting. Lower ethanol means lower effective octane and less charge cooling, so the aggressive summer calibration now runs on fuel that cannot support its timing and boost. Without a flex-fuel sensor letting the ECU adapt, the knock margin the tune assumed simply is not in the tank.

Detonation

2 concepts

Detonation, knock, is the single fastest way to destroy a boosted engine.

At a glance — know these cold
  • Knock is uncontrolled combustion after spark. Extreme pressures damage internals. Modern engines have knock sensors that pull timing to protect the engine.
  • Many contributors. Fixing knock involves addressing octane, cooling (intake temp), tuning (timing/AFR), and boost levels.

Every serious tuning decision is ultimately about staying on the safe side of the knock threshold, so you need to know exactly what knock is and everything that causes it.

What Knock Is and Why It Kills Engines

Normal combustion is a controlled flame front that starts at the spark plug and sweeps smoothly across the chamber. Detonation is uncontrolled auto-ignition: after the spark fires, pockets of unburned mixture elsewhere in the chamber reach their self-ignition point from heat and pressure and explode spontaneously. The colliding pressure waves create violent spikes, the metallic pinging you can sometimes hear, and those spikes hammer the hardware. Detonation is never normal operation and never just a noise: sustained or heavy knock cracks ring lands, holes pistons, bends rods, and pounds out rod and main bearings. In a boosted engine, where cylinder pressures are already elevated, the damage happens fast, sometimes in a single hard pull.

Modern engines carry knock sensors, essentially accelerometers on the block, that detect the characteristic vibration and command the ECU to pull ignition timing to protect the engine. That protection saves engines daily, but it is a safety net, not a tuning strategy: a car constantly pulling timing is telling you something is wrong.

The Causes and How to Attack Them

Knock has many contributors, not one, and it is not limited to any single weather condition or altitude. The common causes are: fuel octane too low for the cylinder pressure being run; boost pressure set too high; a lean air-fuel ratio raising combustion temperature; excessive intake air temperature from heat soak or inadequate intercooling; over-advanced ignition timing; and carbon buildup in the chamber, which both raises effective compression and creates glowing hot spots.

Fixing knock means working through those categories systematically rather than guessing: confirm the fuel octane matches what the tune requires, verify AFR under load with a wideband, get intake temperatures under control with better intercooling or heat management, and correct the tune, timing and boost targets, to match reality. Any one factor can push an otherwise safe engine over the knock threshold, and they stack: a hot day plus heat-soaked intercooler plus marginal fuel is how engines that ran fine all winter die in July.

📋 Knock contributors and first checks
CauseMechanismFirst check
Octane too low for cylinder pressureMixture self-ignites before flame front arrivesVerify fuel matches the tune's requirement
Lean AFR under loadCombustion temperature climbs sharplyWideband on a full logged pull
High intake air tempHot charge sits closer to auto-ignitionIAT log; intercooler heat-soak test
Over-advanced timingPressure peaks too early against rising pistonTune review; knock retard by cylinder
Carbon buildupRaises effective compression; glowing hot spotsBorescope chambers; induction cleaning history
Boost too high for the fuelCylinder pressure beyond knock thresholdBoost log vs target; wastegate control

Contributors stack — a hot day plus a heat-soaked intercooler plus marginal fuel kills engines that ran fine all winter. Fix categories, not just the loudest symptom.

🔩 Knock investigation from the datalog
  1. Log knock retard per cylinder on a full pull. Whether the ECU is pulling timing — and where — is the ground truth your ears cannot give you.
  2. Correlate retard events against IAT, AFR, boost, and load in the same log. The variable that moves just before the knock event is your lead suspect.
  3. Separate one-cylinder from all-cylinder knock: a single cylinder points at a local cause — dying injector, plug, or carbon hot spot — while global knock points at fuel, timing, or heat affecting everything.
  4. Verify fuel quality and octane against what the tune requires. Bad gas and seasonal E85 swings cause a large share of 'sudden' knock complaints.
  5. Fix the identified cause and re-log the same pull. Zero sustained retard under the same conditions is the pass criterion — not 'sounds fine now.'
⚠️ Comeback killers
  • Treating knock-sensor timing retard as free safety margin to tune against. The sensors are a last-resort net, not a control strategy — a calibration that lives on the knock sensors is one hot day or one bad tank from hardware damage.
  • Ignoring knock on a single cylinder because the average looks fine. One cylinder knocking alone usually means a local cause like a leaning injector — and that cylinder is quietly eating its ring lands while the overall log looks acceptable.
  • Raising boost to 'drive through' audible pinging. Detonation is pressure-wave hammering; adding cylinder pressure amplifies exactly the thing breaking the engine.
🔧 Shop tip Datalog knock retard on every tune verification pull. A degree or two of correction on one cylinder is your early warning, chase the cause then, not after you hear it.
✅ Check yourself
An engine that ran clean all winter starts knocking in July with no changes. Walk the logic.

The contributors stacked: summer heat raises IAT, the intercooler heat-soaks sooner, and if the car runs E85 the winter tune met a different blend. Each factor shaved knock margin until the same calibration crossed the threshold. Log IAT and AFR on a hot pull, verify fuel, and restore margin — the engine did not change, its environment did.

Datalog shows 4 degrees of retard on cylinder 3 only, all others clean. Why is this more urgent than 2 degrees across all cylinders?

Global mild retard usually traces to a shared cause — heat or fuel quality — that derates power while the ECU protects things. Single-cylinder knock means something local: an injector going lean, a hot plug, or carbon concentration in that chamber. That cylinder is taking repeated pressure-spike damage while the other seven readings look reassuring, and a leaning injector will only get worse.

Why does sustained detonation crack ring lands and pound bearings rather than just making noise?

Normal combustion is a smooth pressure push; detonation is colliding pressure waves creating violent spikes far above design load. Those spikes hammer the piston crown and ring lands directly and transmit shock through the rod to the bearings. Metal fatigues under repeated impact, so the damage is cumulative — every audible ping is another hit toward the crack.

AFR

3 concepts

Air-fuel ratio is the language of engine tuning.

At a glance — know these cold
  • 14.7:1 = stoichiometric gasoline AFR. Above = lean; below = rich. Boosted engines often run slightly rich (12-13:1) at full load for cooling and knock resistance.
  • Widebands report actual AFR (or lambda). Narrowbands only signal 'lean' or 'rich' near stoich. Widebands are essential for tuning and diagnosis.
  • Lean = insufficient fuel = higher combustion temp = melted pistons and knock. Boosted engines must run appropriate AFR under load — verified with a wideband.

Knowing where stoichiometric sits, why boosted engines run rich under load, and how to actually measure AFR separates real tuners from parts installers.

Stoich, Rich, and Lean

For gasoline, the stoichiometric, chemically ideal, air-fuel ratio is 14.7:1, meaning 14.7 grams of air for every gram of fuel. At that ratio, in theory, all fuel and all oxygen are consumed. Ratios numerically above 14.7:1 are lean (excess air); below are rich (excess fuel). Stoich is where engines cruise for emissions and economy, but it is not where a boosted engine should live at full load.

Under boost at wide-open throttle, tuners deliberately run rich, typically in the 12:1 to 13:1 range. The extra fuel does not all burn; it absorbs heat as it evaporates, cooling the combustion event and the pistons, and that cooling buys knock resistance. Slightly rich at full load is cheap insurance paid in a little fuel.

Why Lean Under Boost Destroys Engines

Running lean under boost is one of the most destructive conditions an engine can experience. With insufficient fuel, there is no evaporative cooling and the combustion temperature climbs dramatically. Hot, high-pressure charge is precisely the recipe for detonation, and the sustained heat itself melts piston crowns and burns exhaust valves even before knock finishes the job. A boost leak, a failing fuel pump, or undersized injectors can each create a lean condition the driver never feels until the engine lets go. Lean under boost is not fuel savings and not better emissions, it is engine damage in progress. Every boosted engine must run an appropriate AFR under load, and that must be verified with real measurement, not assumed.

Wideband vs. Narrowband Sensors

The measurement tool is the oxygen sensor, and the type matters. A narrowband O2 sensor, the standard emissions sensor on older vehicles, only tells the ECU whether the mixture is slightly rich or slightly lean of stoich; its signal swings uselessly at ratios far from 14.7:1. A wideband O2 sensor measures actual AFR with high precision across a broad range, typically about 10:1 to 20:1, and reports it as a real number (or as lambda, where 1.00 equals stoich). That range covers everything from full-load rich targets to dangerous lean spikes, which is why a wideband is essential equipment for tuning and for diagnosing fueling problems on any boosted engine. You cannot verify a 12.5:1 full-load target with a sensor that can only say rich or lean near 14.7.

📋 Wideband AFR targets by fuel and condition
ConditionGasoline AFRLambdaNotes
Cruise / light load14.7:11.00Stoich for emissions and economy
NA wide-open throttle12.8-13.2:10.87-0.90Best-power rich
Boosted WOT11.5-12.5:10.78-0.85Extra fuel cools combustion — knock insurance
E85 stoich9.8:11.00Same lambda, different number — lambda is fuel-agnostic
E85 boosted WOT~7.6-8.0:10.78-0.82Read lambda and the fuel confusion disappears
Danger zone under boostLeaner than ~13.5:1>0.92Lean + boost = heat + detonation — abort the pull

Targets vary by engine, tuner philosophy, and fuel — verify against the calibration's intent. When mixing fuels, work in lambda; the wideband's gasoline-scale AFR display lies on ethanol blends.

🔩 Verifying AFR under load
  1. Install or connect a wideband with the sensor pre-catalyst in the exhaust stream. Placement matters: post-cat or tailpipe-sniffer readings are diluted and read falsely lean.
  2. Sanity-check at steady cruise: lambda should sit at 1.00 in closed loop. A wideband that cannot agree with the ECU at stoich cannot be trusted at full load.
  3. Datalog a full pull recording AFR against RPM and boost. A single glance at the gauge misses the fraction-of-a-second lean spike that kills pistons.
  4. Compare the logged curve to the target: boosted gasoline should hold roughly 11.5-12.5:1 through the pull. Flat and on-target passes; drift or spikes fail.
  5. Investigate any lean excursion at peak torque first — that is where fuel demand peaks, and a sagging pump, undersized injectors, or falling rail pressure show themselves there before anywhere else.
⚠️ Comeback killers
  • Verifying a full-load tune with a narrowband sensor. Narrowbands only resolve mixture near 14.7:1 — at a 12.5:1 target they read a useless flat 'rich' regardless of whether the engine is at 12.5 or drifting toward disaster at 13.4.
  • Trusting your ears and the seat of your pants over the log. A lean spike lasts a fraction of a second on the datalog and feels like nothing from the driver's seat — it is also the moment that melts a piston crown.
  • Reading gasoline-scale AFR numbers on ethanol blends. On E85 the wideband's '12.0' display is not the mixture you think it is — work in lambda, where 1.00 is stoich on every fuel and targets translate directly.
🔧 Shop tip Trust the wideband, not your ears or the seat of your pants. A lean spike at peak torque lasts a fraction of a second on the datalog, and that is the moment that kills pistons.
✅ Check yourself
Why do tuners deliberately run boosted engines rich at full load when stoich burns most efficiently?

The extra fuel is coolant. Fuel beyond stoich absorbs heat as it evaporates, dropping combustion temperature and buying knock resistance exactly where cylinder pressure and heat peak. The cost is a little fuel; the alternative — lean, hot combustion under boost — is the recipe for detonation and melted pistons. Slightly rich at full load is cheap insurance.

A logged pull shows AFR on target until 5,800 RPM, then a drift lean to 13.4:1 through redline. What is the story?

Fuel supply falling behind demand at peak flow — a tiring pump, undersized injectors approaching max duty, or rail pressure sagging. The system delivers at moderate demand and runs out of headroom up top, which is why the drift appears at high RPM rather than randomly. Check injector duty cycle and logged rail pressure before the next pull; this is the classic pre-failure signature.

Your wideband shows lambda 0.95 at full boost on E85. The gauge's AFR display reads 13.9. Is the car safe?

No — and the lambda number is the one telling the truth. Lambda 0.95 is barely richer than stoich, dangerously lean for boosted full load where you want roughly 0.78-0.82. The AFR display is converting to a gasoline scale that means nothing on ethanol. Trust lambda, abort the pull, and find the fueling shortfall.

Tuning

5 concepts

Bolting on hardware only creates potential; the tune is what turns airflow into safe, repeatable power.

At a glance — know these cold
  • A tune is software. It adjusts what the ECU commands. Hardware changes (bigger injectors, turbo, cams) require corresponding tune adjustments.
  • Canned tunes work if hardware matches the tune's design. Custom tunes account for the specific engine's variances, altitude, and mods — best for unique builds.
  • E85's high octane resists knock; its higher volume required cools intake charge. Common on high-boost builds for the octane and thermal benefits.
  • E85 requires larger injectors, higher-flow pumps, and alcohol-compatible materials. Older fuel systems can corrode with E85; upgrades required.
  • Flex-fuel sensors read ethanol content in the fuel line. Tuners use this to blend E85 and pump gas with real-time ECU compensation.

This covers what an ECU tune actually changes, canned versus custom calibration, and why E85 has become the go-to fuel strategy for high-boost builds.

What a Tune Actually Is

An ECU tune is software, not hardware. It modifies the tables and targets the engine computer uses: fuel maps, spark timing, injection timing, boost targets, and rev limits. It does not physically alter parts or rewire anything. That is also why the relationship runs both directions: change the hardware, bigger injectors, a larger turbo, different cams, and the tune must change with it, because the ECU's tables were calibrated around the old parts. Bigger injectors without a fueling recalibration run pig rich; a bigger turbo on stock boost tables either underperforms or overboosts.

Tunes come in two flavors. A canned or off-the-shelf tune is pre-made for a common, defined combination of parts, and it works well when the vehicle's hardware actually matches what the tune was designed for. A custom tune is developed on a dyno for that specific vehicle, accounting for its exact modifications, its engine's individual variances, local fuel, and altitude. They are not identical products differing only in price or warranty: for a unique or heavily modified build, custom tuning is the correct answer, because no canned map anticipated that combination.

Tuning on E85

E85 is popular in the tuning world for reasons beyond price. Its effective octane is around 105, far above premium pump gas, which lets a tuner run more boost and more timing before knock appears. And because the engine must inject roughly 30 to 40 percent more fuel by volume to hit the same AFR, all that extra evaporating alcohol pulls heat out of the intake charge, a built-in chemical intercooler. High octane plus charge cooling is why serious high-boost builds gravitate to E85.

The fuel system has to be built for it. Injectors and pumps must flow that 30 to 40 percent additional volume with headroom, and every wetted component must be alcohol-compatible: ethanol corrodes bare aluminum and degrades older rubber lines and seals. Tuning a big E85 fuel load through a stock gasoline fuel system is how cars go lean at the top of third gear.

Flex-Fuel: Letting the ECU Adapt

Because pump E85 content varies seasonally and many owners mix E85 with pump gas, a fixed tune written for one blend is always slightly wrong. A flex-fuel sensor solves this: installed in the fuel line, it reads the actual ethanol content in real time, and the ECU (with flex-fuel tuning) continuously adjusts fueling, ignition timing, and boost targets to match whatever blend is in the tank. The car can run pump gas at conservative settings, full E85 at maximum-effort settings, or any blend between, with the calibration scaling automatically. It is the difference between hoping the fuel matches the tune and knowing the tune matches the fuel.

📋 Tune verification datalog reference
ParameterPass criterionFailure meaning
Fuel trims (LTFT + STFT)Within ±10% (±5% ideal)ECU fighting a metering error — leak, sensor, or fueling mismatch
Knock retardZero sustained; no recurring per-cylinder eventsCalibration or hardware over the knock threshold
AFR vs target at WOTWithin ~0.2-0.3 AFR of target across the pullFueling calibration or delivery problem
Boost vs targetWithin ~1 psi, no overshoot spikesBoost control or leak issue
Injector duty at redlineAt or below 80-85%Out of fueling headroom — bigger injectors, not more pulse width
IAT behaviorRecovers between pullsHeat soak eating the calibration's assumptions

Pass bands are general practice — a given tuner or platform may hold tighter. The principle is universal: software is only verified against a datalog, never against a feeling.

🔩 Post-flash validation sequence
  1. Cold start and idle watch: stable idle, trims settling near zero. A tune that cannot idle clean has fueling-model problems that full load will amplify.
  2. Part-throttle drive while logging trims. Sustained trims beyond ±10% mean the ECU is correcting for something — find it before adding load.
  3. One moderate pull logging AFR, boost, and knock before any full-power pull. This is the cheap test that catches gross calibration errors while they are recoverable.
  4. Full pull logging AFR vs target, knock retard, boost vs target, injector duty, and IAT. Compare against the reference table — every parameter passes or the session stops.
  5. Repeat the pull heat-soaked. Plenty of tunes pass cold and knock when IATs climb; the second pull is the honest one.
  6. Archive the datalogs with the tune revision. That file pair is your proof of a healthy delivery and your baseline when the car returns.
⚠️ Comeback killers
  • Flashing a canned tune onto hardware that does not match its definition. Off-the-shelf maps are calibrated for a specific parts list; bigger injectors or a different turbo make the tables wrong everywhere — and wrong fueling tables fail rich at best, lean at worst.
  • Delivering a tuned car without a verification datalog. 'It drives great' is not data; the lean spike, the marginal knock event, and the pegged injector all hide from a test drive and show plainly in a log.
  • Tuning around a mechanical fault. Software cannot fix a boost leak, a tired pump, or a heat-soaked intercooler — a tune that compensates for broken hardware becomes dangerous the moment the hardware is repaired.
🔧 Shop tip After any hardware change, even a small one, verify the tune with datalogs before letting the car leave at full power. Fuel trims, knock counts, and wideband AFR on a full pull tell you whether software still matches hardware.
✅ Check yourself
After installing 30% larger injectors without touching the tune, the car idles rich and stalls. Why?

The ECU's fueling tables still assume the old injectors' flow rate, so every commanded pulse width now delivers 30% more fuel than the model expects. At idle, where pulse widths are tiny, the percentage error is proportionally huge. Hardware changed, software did not — the injector data in the calibration has to match the injectors in the rail.

What does a flex-fuel sensor actually buy over a fixed E85 tune?

It makes the calibration track reality. Pump E85 swings from roughly 51% to 83% ethanol seasonally, and owners blend tanks. The sensor reads actual content in real time so the ECU scales fueling, timing, and boost to the fuel in the rail — pump gas runs safe, full E85 runs maximum effort, and any blend in between lands correctly. A fixed tune is always calibrated for a fuel the tank only sometimes contains.

When is a canned tune the right answer, and when is it malpractice?

Right: the vehicle's hardware exactly matches the combination the tune was developed for — then it delivers well-tested calibration at low cost. Malpractice: a unique or heavily modified build, where no canned map anticipated the combination and the mismatched assumptions land in fueling and timing tables. The dividing line is hardware match, verified by parts list, not by hope.

Regulation

2 concepts

Performance work lives inside a legal framework, and the penalties for ignoring it have gotten serious.

At a glance — know these cold
  • Modifying emissions equipment on on-road vehicles violates Clean Air Act. CARB and EPA have prosecuted tuners and installers with major fines.
  • CARB EO is proof of emissions-legal status. Parts without an EO are not legal on CA roads (or in states that follow CARB rules).

A professional shop has to know what the Clean Air Act prohibits and what a CARB EO number actually certifies.

Emissions Law and CARB EO Numbers

Aftermarket tuning or modification that removes emissions equipment, or that increases a vehicle's emissions, is a federal violation of the Clean Air Act on any on-road vehicle, everywhere in the United States, not just in California or New York. It is frequently a state violation as well, especially in California under CARB and in the growing list of states that adopt CARB rules. This is not a theoretical risk: the EPA and CARB have prosecuted tuning companies and installing shops, with fines running into the millions. Deleting a catalytic converter, disabling EGR, or flashing a tune that defeats emissions strategies exposes the shop that does the work, not just the vehicle owner.

The legitimate path for aftermarket parts in California is the CARB Executive Order. An EO number on a part means CARB has tested and certified that part as emissions-legal for street use on the specific year, make, and model applications listed in the order. It is not a random ID, a discount code, or a race-only marking, it is proof of street-legal status. A performance part without an EO number is not legal on California roads, or in CARB-following states, regardless of what the marketing says. Verify the EO covers the customer's exact vehicle before installing.

🔩 Verifying a part's CARB EO before installation
  1. Get the exact part number and the EO number the manufacturer claims. 'CARB legal' in marketing copy is a claim, not a credential.
  2. Look the EO up in CARB's Executive Order database and confirm it is current. Fabricated and expired EO numbers both circulate.
  3. Confirm the customer's exact year, make, model, and engine appear in the EO's application list. An EO for one application does not cover a different year or engine of the same model.
  4. Verify the physical part matches the EO description — same part number, unmodified. A 'similar' part is not the certified part.
  5. Keep a copy of the EO documentation with the repair order. If the car is flagged at a smog check, that paperwork protects the customer and the shop.
⚠️ Comeback killers
  • Reading '50-state legal' on the box as proof of anything. Street legality in CARB states comes from an EO number covering the specific application — marketing language carries zero weight at a smog referee.
  • Believing a 'race only' or 'off-road use' disclaimer protects the installing shop. EPA and CARB enforcement has hit shops that installed defeat parts regardless of the sticker — the installation on a road-registered vehicle is the violation.
  • Treating emissions rules as a California problem. The Clean Air Act applies federally to every on-road vehicle; deleting a cat or flashing an emissions-defeat tune is a federal violation in all fifty states, plus state penalties where they apply.
🔧 Shop tip Keep copies of EO documentation with the repair order for any emissions-related performance part you install. If the car is ever flagged at a smog check, that paperwork protects both the customer and the shop.
✅ Check yourself
A customer brings a catless downpipe and a defeat tune for you to install, offering to sign a waiver. Does the waiver protect the shop?

No. Tampering with emissions equipment on an on-road vehicle violates the federal Clean Air Act, and enforcement targets the shop that performs the work — with fines that have run into the millions for tuners and installers. A customer's signature cannot waive federal law. The professional answer is declining the work and offering the emissions-legal alternative.

What exactly does a CARB EO number certify, and what does it not?

It certifies that CARB tested the specific part and found it emissions-legal for street use on the exact year/make/model applications listed in the order. It does not cover other vehicles, modified versions of the part, or combinations with other non-certified modifications. Verification means matching the EO's application list to the customer's exact vehicle — not just seeing a number on the box.

Cooling

4 concepts

Every extra horsepower is extra heat, and heat is what actually kills boosted engines and turbos.

At a glance — know these cold
  • Water-cooled turbos continue thermal-siphon cooling after shutdown, preventing coked oil in the bearing housing. Air-cooled turbos benefit from a cool-down period before shutdown.
  • Turbos glow hot after boost. Immediate shutdown causes oil in the bearing to coke. Idle time reduces temp gradually. Turbo timers automate this.
  • More power = more heat. Upgraded radiators, higher-flow water pumps, and additional fans help maintain safe temps under sustained load.
  • Water absorbs heat via evaporation. Methanol adds octane and cools further. Together, allows more boost and timing safely — must be reliable to avoid lean-out.

Managing it, in the turbo's bearing housing, the coolant system, and the intake charge itself, is as much a part of a performance build as the power parts.

Keeping the Turbo Alive: Oil Coking and Cool-Down

A turbo's center housing sits inches from a glowing turbine housing and runs on a thin film of oil. Shut a hot engine off immediately after hard driving and oil flow stops while the housing is still at peak temperature; the trapped oil literally bakes into hard carbon deposits, called coking, that clog oil passages and grind the bearings on every future start. The habit that prevents this is simple: after hard driving, let the engine idle for 30 to 60 seconds so circulating oil and coolant carry heat out of the housing gradually. Do not shut it down hot, do not rev it, just let it idle. Turbo timers exist to automate exactly this, keeping the engine idling briefly after the key is pulled.

Water-cooled turbos add a second layer of protection. Coolant lines feed the bearing housing, and their real value shows after shutdown: thermosiphon effect keeps coolant circulating through the housing on its own as it heats, pulling heat out of the bearings even with the engine off. That is why those water lines matter, they are not just for warm-up and not optional plumbing. Air-cooled (oil-only) turbos have no such backstop, which makes the idle cool-down period even more important on them.

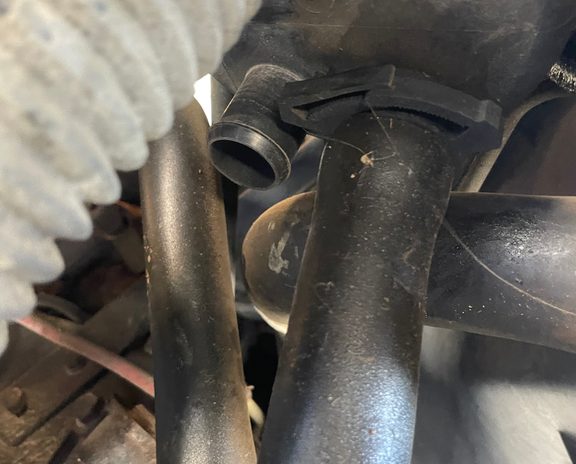

Coolant System Upgrades and Water/Meth Injection

More power always means more heat rejected into the cooling system, and a stock system sized for stock output will fall behind under sustained load. Boosted builds commonly need an upgraded radiator with more core capacity, a higher-flow water pump, and sometimes auxiliary electric fans to keep temperatures safe during long pulls, track sessions, or towing. Ignoring the coolant side of a build is how freshly tuned cars end up heat-soaked and pulling timing, or overheating outright.

Water/methanol injection attacks heat on the intake side. A pump sprays a fine mist of water and methanol into the charge air, and the water absorbs enormous heat as it evaporates, dropping intake temperatures sharply. The methanol contributes additional charge cooling and acts as an octane booster, suppressing knock. Together they let the tuner run more boost and more ignition timing safely, which is where the power gain comes from, it is not about sound or weight. The critical caveat: the tune now depends on that spray. If the pump fails or the tank runs dry while the aggressive map is active, the engine is suddenly running boost and timing it cannot support, so any serious water/meth setup needs failsafes that detect loss of flow and revert to a safe tune.

📋 Performance thermal reference
ParameterTypical rangeNotes
Coolant temperature195-220°F normal operatingSustained climb under load = capacity shortfall
Oil temperature (street)200-250°FSustained higher = oil cooler and heavier grade territory
Turbo idle cool-down after hard driving30-60 secondsPrevents oil coking in the bearing housing
Water/meth injection mixCommonly 50/50 water-methanolCooling from water, octane assist from methanol
IAT after intercoolerShould recover between pullsTrending upward = charge cooling falling behind

Limits vary by engine and oil — verify against manufacturer and builder specs. The universal rule: heat that climbs and never plateaus under sustained load is a system that has run out of capacity.

🔩 Post-build heat validation
  1. Instrument coolant temp, oil temp, and IAT — logging, not glancing. The factory gauge is damped to keep customers calm and will hide the trend you need.
  2. Run a sustained-load test: a long grade or repeated dyno pulls, not one street hit. Heat problems are accumulation problems; only sustained load reveals them.
  3. Watch whether each temperature plateaus or climbs. Stabilizing means the system sheds heat as fast as the build makes it; a steady climb means capacity is exhausted and shutdown is just a matter of minutes.
  4. Verify fan strategy: electric fans commanded on at the right thresholds and moving real air. Plenty of 'overheats under load' are fan control problems wearing a radiator costume.
  5. Heat-soak restart check: shut down hot, wait ten minutes, restart and watch temps. This catches after-run problems — and reinforces the turbo idle-down habit that prevents oil coking.
⚠️ Comeback killers
  • Shutting a turbo engine down immediately after hard driving. Oil flow stops with the housing at peak temperature, and the trapped oil bakes into carbon that grinds the bearings on every future start — the 30-60 second idle-down is the cheapest turbo insurance there is.
  • Adding power without touching the cooling budget. Every extra horsepower is extra heat rejected into a system sized for stock output — the freshly tuned car that heat-soaks and pulls timing on every summer pull is the predictable result.
  • Running water/meth with no failsafe. The tune's boost and timing depend on that spray; a dry tank or dead pump under the aggressive map means the engine is suddenly running settings it cannot support. Flow-detecting failsafes that revert to a safe map are not optional on a serious setup.
🔧 Shop tip Teach customers the 30-60 second idle-down habit on any turbo car, and if you plumb water/meth, wire in a flow-based failsafe. The systems that fail quietly are the ones that take engines with them.
✅ Check yourself
Why do water-cooled turbo bearing housings survive hot shutdowns that cook oil-only turbos?

Thermosiphon. After shutdown, coolant in the bearing housing heats, rises, and keeps circulating on its own, pulling heat out of the bearings with the engine off. An oil-only turbo has no such backstop — when the engine stops, oil flow stops, and whatever oil sits in the hot housing cokes. That is why the idle cool-down habit matters most on oil-only turbos.

A tuned car makes great dyno numbers but falls off badly on the third back-to-back pull. Temps show IAT climbing pull over pull. What is happening and does it hurt anything?

The intercooler is heat-soaking: it absorbs each pull's heat faster than it sheds it, so charge temps ratchet upward and the ECU pulls timing to protect against knock. Power falls as protection ramps. It is not immediately damaging — the protection is working — but it means the charge-cooling capacity does not match the build, and a hot day plus one more variable could push past protection into knock.

Performance & Forced Induction training photo

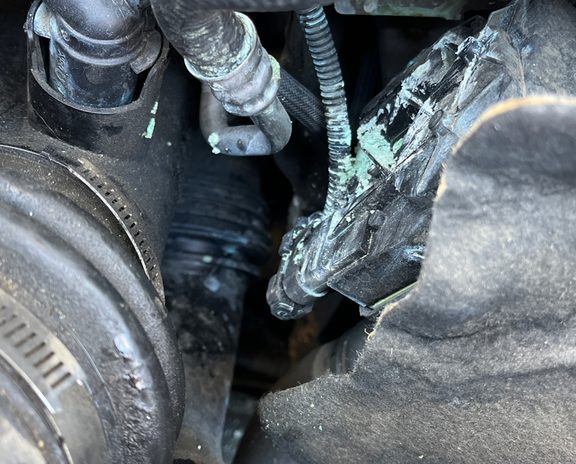

Cooked turbo coolant lines, heat is the tax on boost.

Fuel System

2 concepts

The fuel system is the supporting cast that decides whether a power goal is safe or a lean-out waiting to happen.

At a glance — know these cold
  • More power = more fuel needed. Undersized fuel systems lead to lean conditions at high RPM/load. Match fuel system capacity to power target.
  • Running injectors at 100% means they can't add more fuel if needed. Staying under 85% peak provides safety margin and reduces injector heat.

Sizing pumps and injectors with headroom is one of the most fundamental disciplines in performance building.

Sizing Fuel Delivery to the Power Target

More power requires more fuel, in direct proportion. When a build adds significant boost or output, the stock fuel system usually cannot keep up, and the upgrade list is predictable: larger injectors, a higher-flow fuel pump, and often larger fuel lines and an upgraded pressure regulator to hold stable pressure at the new flow rates. The danger of skipping this is not that the car will not run, it is that it will run lean exactly where it hurts most, at high RPM and high load, where demand peaks and the undersized system falls behind. Tuning alone cannot inject fuel the hardware cannot deliver. Match the fuel system's capacity to the power target before chasing the number.

Injector duty cycle is the key sizing metric. Duty cycle is the percentage of available time the injector is actually open and spraying. At 100 percent the injector is a solid stream with nothing left to give: the ECU cannot add fuel no matter what the wideband says, and the injector itself overheats. Good practice keeps peak duty cycle at or below roughly 80 to 85 percent, leaving headroom for hot days, fuel pressure sag, ethanol blends, and future tune adjustments, and keeping the injectors within their thermal comfort zone. If a datalog shows injectors pegging past 85 percent at redline, the answer is bigger injectors, not more pulse width.

📋 Fuel delivery sizing reference
ParameterGuidelineWhy
Peak injector duty cycleAt or below 80-85%Headroom for heat, pressure sag, blends, and tune drift; 100% = solid stream, no control
Base fuel pressure (port injection)Typically 43.5 psi (3 bar); some systems 58 psi (4 bar)Verify the spec — pressure is the foundation of every flow number
Pressure under WOTHolds steady at specSag at load = pump, wiring, or regulator falling behind
E85 flow requirement+30-40% volume vs gasolineSame power needs more fuel volume — size injectors and pump for it
Sizing targetNext power goal, with headroomFuel components bought once beat an engine bought twice

Injector flow ratings are quoted at a reference pressure — the same injector flows differently at different rail pressures. Verify ratings and pressure spec against the actual system.

🔩 Fuel system health check under load
  1. Log fuel pressure through a full pull — mechanical gauge teed in, or the rail pressure sensor if trusted. Steady pressure is the pass; any sag under load is the failure telling you where to look.
  2. If pressure sags, measure voltage at the pump under load. A wiring drop starves a healthy pump — degraded grounds and connectors mimic pump failure and outlive pump replacements.
  3. Log injector duty cycle at redline. Past 85% the system is out of headroom regardless of how the car feels — the fix is bigger injectors, not more pulse width.
  4. Review fuel trims across the log. Positive trims climbing with load mean the ECU is already adding fuel to cover a delivery shortfall — the polite early warning before the lean-out.
  5. Cross-check the wideband at peak torque and peak RPM. Delivery problems appear first where demand peaks; on-target AFR at both points closes the case.
⚠️ Comeback killers
  • Accepting injector duty past 90% because 'it still runs.' At 100% the injector is a solid stream with nothing left to give and no ability to correct — a hot day or a pressure sag away from a lean-out at full load.
  • Upgrading injectors while keeping the stock pump. Larger injectors at the same rail pressure demand more volume than the stock pump delivers at high duty — the system leans exactly at the top of the pull, which is why 'injectors only' upgrades die at redline.
  • Ignoring pump wiring on a high-demand build. Voltage drop across aged wiring and grounds cuts pump output right when amp draw peaks — a rewire kit or relay upgrade is cheaper than the misdiagnosed 'bad pump' it prevents.
🔧 Shop tip Size the fuel system for the next power goal, not the current one. Injectors and pumps with headroom cost a little more once; a lean-out at redline costs an engine.
✅ Check yourself
A built engine runs clean to 6,000 RPM and goes lean from there to redline. Fuel pressure log shows sag starting at the same point. What is the diagnostic order?

Follow the pressure. Sag under peak demand means supply cannot keep up: check voltage at the pump under load first (wiring drop is the cheap, common cause), then pump capacity against the power target, then filter and pickup restrictions. Injector duty matters too, but pressure sag upstream makes every injector number a lie — restore pressure, then re-evaluate duty.

Why does the same power target need roughly a third more injector on E85 than on gasoline?

E85 carries less energy per gallon, so hitting the same mixture and power requires roughly 30-40% more fuel volume per cycle. An injector set sized comfortably for gasoline runs out of duty-cycle headroom on E85 at the same output. Sizing for E85 from the start is what lets a flex-fuel build switch fuels without hitting the fueling ceiling.

Ignition

2 concepts

Boost changes the rules on the ignition side: cylinder pressures climb, knock margin shrinks, and the spark itself has a harder job.

At a glance — know these cold
  • Colder plugs remove heat from the electrode faster, preventing them from becoming ignition sources under high cylinder pressures.
  • Higher cylinder pressures reduce knock margin. Advanced timing causes knock, so tuners pull timing at high load to protect the engine.

Plug heat range and timing strategy both have to adapt.

Colder Plugs and Retarded Timing

Spark plug heat range describes how quickly a plug sheds heat from its electrode and insulator tip into the head. For boosted engines, the rule is to run plugs one or two heat ranges colder than stock. Under high cylinder pressures and temperatures, a stock-heat plug's tip can stay hot enough to glow, and a glowing tip becomes an unintended ignition source, lighting the mixture before the spark ever fires. That is pre-ignition, and it is catastrophic. A colder plug pulls heat away from the electrode faster, keeping the tip below the temperature where it can self-ignite the charge. Hotter plugs, or treating heat range as irrelevant, is the wrong direction under boost.

Ignition timing follows a similar logic. Compared to a naturally aspirated calibration, timing at full boost is retarded, less advanced, not more. Boost raises cylinder pressure and temperature, which shrinks the knock margin: the same advance that was optimal naturally aspirated will push a boosted cylinder into detonation. So tuners pull timing at high load, giving up a little theoretical efficiency to keep combustion controlled and protect the engine. The general shape of a boosted timing map is normal advance at light load and progressively less advance as boost and load climb.

📋 Boosted ignition reference
ParameterGuidelineWhy
Plug heat range1-2 steps colder than stockKeeps the tip below self-ignition temperature under boost
Common guideline~1 step colder per 75-100 hp addedRule of thumb — verify against plug and tuner guidance
Plug gap under boostCommonly tightened to ~0.024-0.028 inDense mixture raises voltage needed to jump the gap
Timing at full boostRetarded vs NA calibrationBoost shrinks knock margin; less advance keeps combustion controlled
Misfire only under boostIgnition-strength problemCylinder pressure overwhelms marginal spark before anything else fails

Heat range steps and gap targets vary by plug brand and engine — verify against the plug manufacturer's chart and the tune's requirements.

🔩 Boost-only misfire diagnosis
  1. Confirm the misfire appears only under load — cruise-clean, boost-dirty is the ignition-strength signature, distinct from a mechanical or injector miss that shows everywhere.
  2. Pull and read the plugs: heat range against what the build requires, gap against the boosted spec, and deposits. A stock-heat plug with a wide gap on a tuned engine is the whole diagnosis half the time.
  3. Correct gap and heat range first — it is the cheapest fix on the list and the most common cause. Retest before spending on coils.
  4. If the miss persists, inspect the secondary side under load: aging wires arcing to ground (watch in the dark), boots, and coil condition. A scope on the secondary shows the collapsing spark that a visual misses.
  5. Verify with a full logged pull: zero misfire counts at peak cylinder pressure closes the ticket. A quiet idle proves nothing about spark under boost.
⚠️ Comeback killers
  • Installing hotter plugs for 'a stronger spark.' Heat range has nothing to do with spark energy — it is how fast the tip sheds heat. A hot plug under boost becomes a glowing ignition source, and the pre-ignition it triggers is catastrophic, not theoretical.
  • Keeping the NA gap spec after adding boost. Dense charge between the electrodes raises the voltage needed to jump the gap; the coil that managed 0.044 at atmospheric pressure gets blown out at 15 psi. Tighter gap, reliable spark.
  • Chasing a boost-only misfire through the fuel system. Fuel problems show in AFR data; a clean-AFR miss at peak load is spark being extinguished by cylinder pressure — plugs, gap, coils, in that order.
🔧 Shop tip When a boosted car gets new plugs, also check the gap, high cylinder pressure can blow out a spark across a wide gap. Many boosted applications run gaps tightened to around 0.024-0.028 inch.
✅ Check yourself
Why is timing at full boost retarded compared to the naturally aspirated calibration, when advance normally makes power?

Boost raises cylinder pressure and temperature, which moves the mixture closer to auto-ignition. The advance that was optimal at atmospheric pressure now pushes peak pressure too early and too hot, straight into detonation. Pulling timing at high load trades a little theoretical efficiency for controlled combustion — the boosted map runs normal advance at light load and progressively less as load climbs.

A turbo car developed a stumble at full boost right after the owner installed plugs gapped to the NA factory spec. Connect the dots.

The wide gap is the stumble. Under boost, the denser mixture between the electrodes needs more voltage to ionize; at the factory gap the coil's output can no longer reliably jump it at peak cylinder pressure, so the spark blows out and the cylinder misses — only under boost, never at cruise. Regap to the boosted spec (commonly 0.024-0.028) and the miss disappears.

Cams

2 concepts

Camshafts are the engine's breathing schedule, deciding when valves open, how far, and for how long.

At a glance — know these cold
  • Larger cams move more air, increasing peak power (usually at higher RPM). Trade-off: rougher idle, less low-end torque, and possibly emissions issues.
  • Duration = crank degrees the valve is off the seat past a lift point (typically 0.050" for hot-rod cams, or 0.006" advertised).

Performance cams reshape that schedule to move more air, with trade-offs every builder needs to explain honestly to customers.

Lift, Duration, and the Trade-offs

Aftermarket performance camshafts make power by increasing valve lift (how far the valve opens), duration (how long it stays open), and/or overlap (the window when intake and exhaust valves are open together). All three changes serve one purpose: improving airflow through the engine at the target RPM range. More air in and out per cycle means more power, usually concentrated at higher RPM where the extra breathing capacity gets used. Cams do not make power by reducing lift or by cooling anything, and the sound is a side effect, not the mechanism.

The trade-offs are real. A big cam's long duration and overlap wreck low-RPM cylinder filling, so the engine gives up low-end torque and idles rough, the classic lopey idle. Overlap also lets unburned mixture escape into the exhaust at low speed, which can create emissions problems and make a street car fail testing. Cam selection is always about matching the profile to the engine's intended operating range, not just buying the biggest grind in the catalog.

Duration has a precise definition worth knowing: it is measured in degrees of crankshaft rotation during which the valve is open beyond a specified lift point, not in inches or millimeters. Because the lift checkpoint matters, two conventions exist: advertised duration is typically measured at 0.006 inch of lift, while the more comparable industry standard measures at 0.050 inch. Comparing one cam's advertised number against another's 0.050-inch number is comparing apples to oranges, always compare at the same checking height.

📋 Camshaft spec reading reference
SpecDefinitionWhat it changes
LiftHow far the valve opensPeak flow potential
DurationCrank degrees the valve stays open past a lift checkpointWhere the powerband lives — more duration moves power up the RPM range
Advertised durationMeasured at ~0.006 in liftFlatters every cam — not comparable between brands
Duration @ 0.050 inThe industry comparison standardThe number to compare cams with
Overlap / LSAWindow both valves are open / lobe separation angleIdle quality, low-end torque, emissions behavior

Always compare cams at the same checking height — advertised versus 0.050-inch numbers are apples to oranges. Bigger numbers are not better; matched-to-use numbers are.

🔩 Cam selection sanity walkthrough
  1. Define the engine's real operating range and use: daily street, tow, strip. The cam must match where the engine actually lives, and this answer disqualifies most of the catalog immediately.
  2. Compare candidates by 0.050-inch duration and LSA, never advertised numbers. Same checking height or the comparison is meaningless.
  3. Check the street realities of overlap: lopey idle, weak low-end, and unburned mixture into the exhaust that can fail emissions testing. A street car in a testing state has a legal ceiling on cam size.
  4. Verify the supporting cast: valve spring pressure and coil-bind clearance for the lift, piston-to-valve clearance for the duration and overlap. The cam that hits a piston makes zero power.
  5. Confirm the tune, torque converter, and gearing match the new powerband. A big cam with a stock stall speed is a package mismatch the customer feels at every stoplight.
⚠️ Comeback killers
  • Buying the biggest grind in the catalog. Long duration and overlap wreck low-RPM cylinder filling — the street car loses the bottom-end torque it uses daily to gain top-end it visits twice a month.
  • Comparing one cam's advertised duration against another's 0.050-inch figure. Advertised specs are measured so early in the lift curve they flatter every cam; cross-standard comparison picks the wrong part with confidence.
  • Installing a cam without checking piston-to-valve clearance and spring requirements. More lift and duration move the valves closer to the pistons at overlap — assumptions here are how engines eat their own valves on the first start.
🔧 Shop tip Compare cams by their 0.050-inch duration figures, not advertised numbers, advertised specs are measured so early in the lift curve that they flatter every cam.
✅ Check yourself
A customer's new big cam idles rough and lost torque below 3,000 RPM, exactly as the old forum post promised power. What happened?

The cam is working as designed — for a different use. Long duration and overlap improve breathing at high RPM at the direct cost of low-speed cylinder filling: at low RPM the overlap lets charge escape and reversion pollute the intake, so torque drops and the idle lopes. The engine now makes its power where the customer rarely drives. Matching profile to operating range was the skipped step.

Why do two cams that both claim '280 degrees duration' behave completely differently?

Different checking heights. One brand's 280 is advertised duration measured near 0.006-inch lift; the other's is at 0.050. The 0.050 cam is enormously bigger in real terms — the valve spends far longer meaningfully open. Duration numbers only compare at the same checkpoint, which is why the 0.050-inch standard exists.

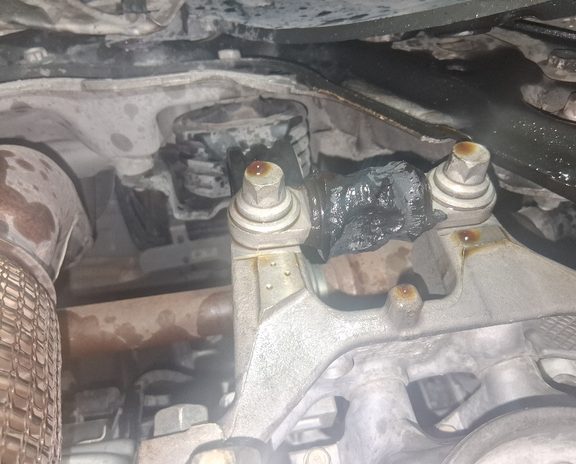

Exhaust

2 concepts

The exhaust side is half of the airflow equation, and it is full of half-truths.

At a glance — know these cold
  • Balanced exhaust reduces pumping losses without losing scavenging. Too free-flowing can lose torque, especially on NA engines. Boosted engines like more flow.
  • Cast manifolds are compact and cheap; tubular headers are engineered for scavenging. Headers gain power but often cost noise, heat, and cost.

Understanding backpressure, scavenging, and the real difference between a manifold and a header keeps you from selling myths.

Backpressure, Scavenging, Manifolds and Headers

A performance exhaust makes power by reducing backpressure, the resistance the engine must pump against on the exhaust stroke, and by improving scavenging, the use of exhaust pulse energy to help pull spent gas out of the cylinder and fresh charge in. Less pumping loss and better cylinder evacuation both add power. But the popular idea that zero backpressure is always best is wrong for naturally aspirated engines: an exhaust that is too large and too free-flowing kills gas velocity, and without velocity the scavenging pulses weaken, costing low-end torque. NA exhausts are a sizing exercise, big enough to flow, small enough to keep velocity. Boosted engines are different: the turbine has already extracted the pulse energy, so downstream of the turbo, more flow is essentially always better, which is why turbo cars respond so well to large downpipes and free-flowing exhausts.

On the manifold end, know the difference between the two constructions. An exhaust manifold is a cast iron or cast steel piece, the typical stock part: compact, quiet, cheap to produce, and extremely durable against heat cycling. A header is a fabricated tubular assembly with individual tubes of designed length and diameter for each cylinder, engineered to keep exhaust pulses separated and time their arrival for maximum scavenging. Headers flow more freely and gain power, but the trade is more noise, more radiated underhood heat, higher cost, and generally less durability than a lump of cast iron. They are not the same thing with different names, and the construction is not reversed: manifolds are cast, headers are tubular.

📋 Exhaust sizing guidance (typical)
ApplicationTypical sizingReasoning
Mild NA street (up to ~250 hp)2.25-2.5 in singleKeeps velocity for scavenging and low-end torque
NA 300-400 hp2.5-3 in single or moderate dualFlow without killing pulse energy
Turbo — downpipe3 in or larger typicalPost-turbine, more flow is essentially always better
Turbo — full systemSize generouslyTurbine already extracted the pulse energy; velocity argument no longer applies
Backpressure check at O2 bungRoughly under 1.5 psi idle, under ~3 psi at 2,500 RPMHigher readings = restriction (commonly a clogged cat)

Sizing is combination-specific — cam, heads, and RPM range all move the ideal diameter. These are starting-point conventions; verify against the builder's or tuner's spec for the combo.

🔩 Exhaust restriction (clogged cat) check
  1. Install a pressure gauge at the upstream O2 sensor bung. This reads backpressure ahead of the suspected restriction without dropping the exhaust.
  2. Read at idle: roughly under 1.5 psi is normal. An elevated idle reading already points at restriction.
  3. Hold about 2,500 RPM and read again: under roughly 3 psi typical. Pressure climbing well past that — or climbing steadily while RPM holds — is a restriction signature (verify thresholds for the application).
  4. Correlate with symptoms: a restricted cat mimics underboost on turbo cars and 'runs out of breath' up top on NA cars, because the engine is pumping against a wall.
  5. Confirm the culprit: rattle test the cat, inspect with a borescope or by temperature difference across it, and retest pressure after repair to prove the restriction is gone.
⚠️ Comeback killers
  • Oversizing an NA exhaust because bigger looked better. Too much diameter kills gas velocity, the scavenging pulses weaken, and the customer pays for the privilege of losing the low-end torque they feel every day.
  • Applying the NA velocity argument to a turbo car. Downstream of the turbine, pulse energy is already spent — the turbine ate it. Post-turbo, restriction is pure loss, which is why turbo cars respond so well to big downpipes and free-flowing systems.
  • Blaming the turbo for a clogged cat. A restricted exhaust raises turbine backpressure, slows spool, and caps boost — a five-minute pressure test at the O2 bung sorts it before a turbo gets replaced for nothing.
🔧 Shop tip On a turbo car, spend the exhaust budget from the turbine outlet back, the downpipe is where the restriction lives. On an NA car, resist the temptation to oversize; a 3-inch system on a mild 2.0 costs bottom-end torque the customer will feel every day.
✅ Check yourself
Why does 'zero backpressure' hurt a naturally aspirated street engine but help a turbo engine?

The NA engine uses exhaust pulse energy: properly sized pipes keep gas velocity high so each pulse helps evacuate the cylinder and pull in fresh charge. Oversize the pipe and velocity collapses, scavenging weakens, and low-end torque goes with it. On a turbo engine the turbine has already extracted that pulse energy, so downstream flow is all that matters — bigger is better after the turbine, sized-for-velocity is better without one.

A turbo car has lazy spool, capped boost, and no leaks on a pressure test of the charge pipes. What cheap test comes before condemning the turbo?

Backpressure at the upstream O2 bung. A clogged cat or crushed pipe raises pressure behind the turbine, and the turbine cannot spin freely against it — lazy spool and low peak boost follow, mimicking a tired turbo. Elevated readings at idle and 2,500 RPM point at the exhaust, not the turbo, and the fix costs a fraction of a turbo swap.

Performance & Forced Induction training photo

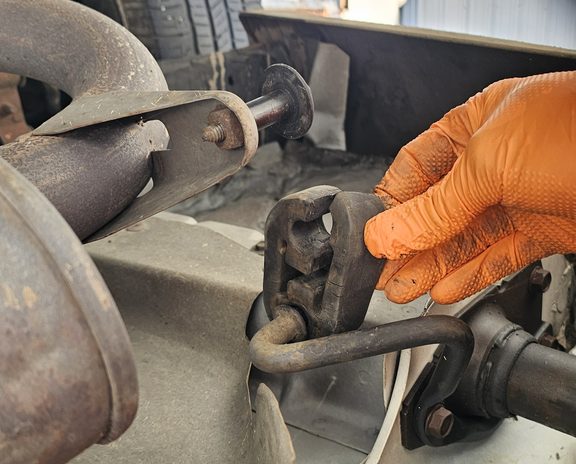

Exhaust flex section and hangers.

Intake

1 concept

The intake is usually the first modification a customer buys, so you should be able to explain exactly what it does and, just as importantly.

At a glance — know these cold
  • Cooler air is denser (more O2 per volume). Small power gain, but only if intake location gets truly cool air (not just heat-shielded).

The intake is usually the first modification a customer buys, so you should be able to explain exactly what it does and, just as importantly, what it does not.

How a Cold-Air Intake Actually Works

A cold-air intake works on one principle: it relocates the filter and inlet so the engine draws cooler ambient air, typically from behind the bumper or a fender well, instead of hot air from inside the engine bay. Cooler air is denser, carrying more oxygen molecules per unit volume, so each intake stroke ingests slightly more oxygen and can burn slightly more fuel. That is the whole mechanism; an intake adds no boost, removes nothing significant, and certainly adds no meaningful weight.

Be honest about the magnitude: the power gain is small, and it only exists if the inlet location genuinely reaches cool air. Many aftermarket intakes are just an exposed cone filter in the engine bay with a heat shield, which can actually pull hotter air than the stock airbox once the bay heat-soaks in traffic. Placement is everything, if the filter breathes engine-bay air, the shield is decoration.

🔩 Intake evaluation by datalog
  1. Log IAT versus ambient with the stock airbox through a mixed drive — cruise, load, and a stint of idling in traffic. This is the baseline the shiny replacement has to beat.
  2. Note the heat-soak recovery: how fast IAT falls back toward ambient after the traffic stint. OEM cold-air routing is often better than buyers expect.
  3. Repeat the identical log with the aftermarket intake installed. Same route, similar weather, or the comparison is noise.
  4. Compare both IAT traces and any MAF-related behavior — rough idle or trim shifts after an oiled filter install point at MAF contamination.
  5. Deliver the verdict from data: an intake that reads hotter than stock in traffic is a downgrade with a nice sound, and the datalog settles the argument politely.
⚠️ Comeback killers
  • Over-oiling a cotton-gauze filter. The excess oil migrates to the MAF sensor element, skews airflow readings, and causes trims, stumbles, and codes — a classic self-inflicted 'tune problem' that a MAF cleaning and lighter oiling fix.
  • Installing an exposed cone in the engine bay and calling it cold-air. Once the bay heat-soaks in traffic, that filter breathes hotter air than the stock box ever did; without a real duct to ambient air, the heat shield is decoration.
  • Selling intake gains as significant. The honest mechanism is modest: cooler, denser air if — and only if — the inlet genuinely reaches cool air. Overselling small gains costs credibility that performance shops live on.
🔧 Shop tip Log intake air temperature versus ambient on a stock airbox before recommending an intake, OEM cold-air routing is often better than the shiny replacement, and the datalog settles the argument.
✅ Check yourself
A customer's car idles rough and set lean codes two weeks after they installed and re-oiled a cotton filter. What is the likely chain?

Filter oil migrated onto the MAF sensor element. The contaminated sensor under-reports airflow, the ECU fuels for less air than actually enters, and trims climb until codes set. Clean the MAF with dedicated cleaner, re-oil the filter sparingly per instructions, and the 'mystery lean condition' resolves without a single part.

Why can a stock airbox outperform an aftermarket 'cold air' intake in traffic?

Location and ducting. The factory box typically draws through a dedicated duct from outside the engine bay, while many aftermarket kits sit an exposed cone in bay air behind a token shield. At road speed both see similar air; in traffic the bay heat-soaks and the cone breathes it. Cooler air is the entire mechanism of an intake — lose that and the modification is sound and looks only.

Performance & Forced Induction training photo

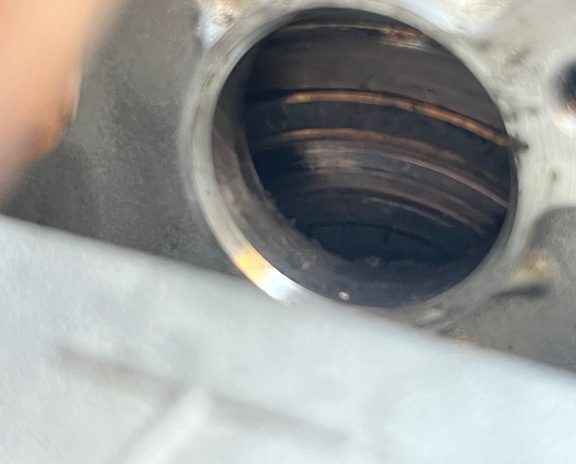

Carbon-caked throttle bore, airflow lost to buildup.

Nitrous

2 concepts

Nitrous oxide is the oldest and cheapest big-power chemical in the book, and also one of the least forgiving.

At a glance — know these cold
  • N2O dissociates at ~570°F, releasing oxygen. Extra oxygen + extra fuel = big power gain. Requires precise tuning to avoid lean-out and detonation.
  • Wet systems have both N2O and fuel jets. Dry systems only nitrous, using the OEM fuel system to compensate. Dry is simpler but requires ECU tune.

Understanding what N2O actually does in the cylinder and how wet and dry systems differ is mandatory before touching a bottle-fed car.

The Chemistry and the System Types

Nitrous oxide is not a fuel, it is an oxidizer carrier. When N2O enters the combustion chamber and the temperature climbs past roughly 570 degrees Fahrenheit, the molecule dissociates and releases its oxygen. That liberated oxygen is the payload: with more oxygen available, more fuel can be injected and burned per cycle, and that extra fuel burning is where the power comes from. The nitrous itself adds a helpful side benefit, it exits the bottle as a very cold expanding gas that chills the intake charge, but the power mechanism is oxygen enabling fuel, not cooling and not sound. The unforgiving part is the balance: every shot of extra oxygen demands a matching shot of extra fuel, and if fueling falls short even briefly, the mixture goes violently lean at exactly the moment cylinder pressures are highest, detonation and melted pistons follow. Nitrous requires precise tuning, period.

Systems come in two architectures. A wet system injects both nitrous and additional fuel through its own dedicated nozzles or plate, the fuel enrichment is built into the kit, jetted to match the nitrous flow, so the system carries its own insurance. A dry system injects only nitrous into the intake and relies on the vehicle's existing fuel injectors, commanded by the ECU, to supply the extra fuel. Dry is mechanically simpler, no fuel solenoid, no fuel plumbing to the nozzle, but it absolutely requires an ECU tune so the computer adds the right enrichment when the nitrous flows, and it depends on the stock injectors having enough headroom to deliver it. Neither system uses water, and neither is inherently illegal; they are just two ways of solving the same fuel-matching problem.

📋 Nitrous safety reference
ParameterGuidelineWhy
Bottle pressure~900-950 psi at the solenoidJetting charts assume it — low pressure leans the shot's fuel matching
Ignition retardCommonly ~1.5-2 degrees per 50 hp of shotN2O raises cylinder pressure and burn rate — verify against the kit's chart
Plug heat range1-2 steps colderSame logic as boost: keep the tip from glowing
Minimum fuel octane91+ for typical street shotsExtra oxygen raises knock tendency sharply
ActivationWOT switch plus RPM window (above ~3,000)Part-throttle or low-RPM spray spikes cylinder pressure dangerously
Fuel pressure during sprayMust hold spec through the shotA sag mid-shot is instant lean-out at maximum cylinder pressure

Always jet and retard per the kit manufacturer's chart for the specific shot size — these are the industry conventions the charts are built around, not substitutes for them.

🔩 Pre-spray system verification
  1. Verify bottle pressure at the gauge — around 900-950 psi. Low pressure delivers less nitrous than the jetting assumes, skewing the nitrous-to-fuel balance the kit was matched for.
  2. Test fuel pressure static, then during a brief test activation. Pressure that holds through the shot is the single most important safety reading on the car — most nitrous kills are fuel sag mid-spray.
  3. Confirm activation logic: spray only at WOT (verify the switch) and only inside the RPM window. Test the lockouts by attempting activation outside them — they must refuse.
  4. Check plugs for heat range and gap per the kit's requirement. Stock-heat plugs under a shot are a pre-ignition source.
  5. Arm the smallest jetting first and datalog the maiden shot — AFR through the spray, knock, fuel pressure. Prove the balance at 50-75 hp before anyone talks about the big jets.
⚠️ Comeback killers
  • Spraying at part throttle. The mixture and timing are only matched for the shot at WOT; a part-throttle spray dumps oxidizer into a cylinder that has neither the fuel nor the timing to handle it — this is the classic self-inflicted nitrous failure.
  • Trusting fuel delivery without testing it during a spray. Static pressure means nothing if the shot's added demand sags the rail — and the lean-out happens at exactly the moment cylinder pressures are highest.
  • Ignoring bottle temperature and pressure. A cold bottle at 700 psi flows far less nitrous than the jet chart assumes; the 'safe' tune built on full pressure now runs an unknown mixture. Bottle pressure management is mixture management.
🔧 Shop tip On any nitrous install, wire the activation through a wide-open-throttle switch and an RPM window, and verify fuel pressure holds during a spray. Most nitrous kills happen from a fuel system that sagged mid-shot.
✅ Check yourself
Why is a dry system's demand on the stock injectors so much stricter than a wet system's?

A wet system carries its own fuel: nitrous and enrichment fuel arrive together through the kit's nozzle, jetted to match. A dry system adds only nitrous and relies on the ECU commanding the stock injectors to supply the extra fuel — which requires a tune that knows the shot is coming and injectors with enough headroom to deliver it. Without both, the dry shot is un-fueled oxygen, and that is a melted piston, not a power adder.

What does nitrous oxide actually contribute to combustion, since it is not a fuel?

Oxygen. Above roughly 570°F in the chamber, N2O dissociates and releases its oxygen — allowing more fuel to be injected and burned per cycle. That extra burned fuel is the power. The cold, dense charge from the expanding gas is a side benefit. The whole discipline of nitrous is matching every unit of released oxygen with fuel, every time, without exception.

Diagnostics

8 concepts

Boosted engines add a pressurized air path, boost control hardware, and higher demands on fuel and spark.

At a glance — know these cold
  • Surging = fluctuating fueling or airflow. Diagnostic path: smoke-test intake for leaks, check MAF/MAP data with scan tool, and review fuel trims.
  • P0234 sets when actual boost exceeds commanded by too much. Check wastegate actuator, boost control solenoid function, and pipe integrity.
  • P0299 = actual boost below target. Focus on air path leaks, actuator function, and wastegate/VGT operation. Smoke test intake tract.
  • Boost overpressures blow off silicone or clamps. Visual inspection often reveals a disconnected pipe. Check every clamp when troubleshooting boost issues.
  • Rich = too much fuel or too little air being measured. Common causes: injector leaks, MAF sensor errors, or FPR failures. Diagnose with scan tool and fuel trim data.
  • Boost increases cylinder pressure, making it harder for spark to jump the gap. Cooler plugs, tighter gap, upgraded coils, and better dielectric prevent boost misfire.
  • Blue smoke = oil (turbo seals). Black smoke = rich (fuel/air imbalance). White = coolant. Boost pressure test to confirm airtight boost path.
  • Fixed high reading suggests damaged sensor, wiring short to reference, or connection issue. ECU falls back to default or limp mode with a bad sensor.

Boosted engines add a pressurized air path, boost control hardware, and higher demands on fuel and spark, which means new failure modes stacked on top of the usual ones. A disciplined diagnostic approach, codes, datalogs, smoke tests, and eyes on the plumbing, sorts them out fast.

Overboost and Underboost Codes

Two codes anchor boost-side diagnosis. P0234 is turbocharger or supercharger overboost: it sets when actual boost exceeds commanded boost by too large a margin. The usual suspects are a wastegate stuck closed (nothing bypassing the turbine, so boost runs away), a failed boost control solenoid no longer bleeding pressure to the actuator correctly, or a split intercooler pipe fooling the control loop. Work through the wastegate actuator's movement, verify the boost control solenoid functions, and inspect pipe integrity.

P0299 is the mirror image, underboost: actual boost falls short of the target. Focus on air path leaks first, then actuator function: a boost leak anywhere in the charge piping, a damaged wastegate actuator, a wastegate stuck open dumping exhaust past the turbine, or on diesels, sticking VGT vanes that will not close down to build drive pressure. A smoke test of the intake tract is the fastest way to find the leak half of that list, pressurize or smoke the boost path and watch where it escapes.

Drivability Symptoms: Surging, Power Loss, and Boost Misfire

Not every problem sets a code. A boosted engine surging at part throttle, power rising and falling rhythmically, points to fluctuating airflow or fueling: a boost leak, a MAF or MAP sensor feeding bad data, or a fuel trim problem. The diagnostic path is methodical: smoke-test the intake for leaks, watch MAF and MAP data on a scan tool for plausibility, and review fuel trims for evidence the ECU is fighting a metering error.

Catastrophic, sudden power loss with no code stored usually means a physical failure in the boost plumbing, and the most common culprit is a snapped or blown-off intake coupler. Boost pressure is very good at shoving silicone couplers off their pipes when a clamp is loose, and the failure is usually visible on inspection and often audible as a loud rush of air under throttle. When troubleshooting any boost complaint, put hands and eyes on every coupler and clamp before anything else.

A misfire that appears only under boost is an ignition-strength problem. Boost raises cylinder pressure, and denser mixture between the electrodes requires more voltage to jump the gap; a marginal ignition system that works fine at cruise gets overwhelmed exactly at peak load. Typical causes are plugs with too hot a heat range or too wide a gap, aging plug wires arcing to ground, or weak coils. The fixes follow directly: colder plugs, a tighter gap, upgraded coils, and sound insulation and dielectric in the secondary ignition.

Reading Fueling, Smoke, and Sensors

A rich condition under boost, AFR reading lower than target, means either too much fuel is being delivered or the ECU thinks less air is entering than actually is. The classic causes: a stuck or leaking injector, a leaking fuel pressure regulator raising rail pressure, or a MAF or MAP sensor under-reporting airflow so the ECU over-fuels relative to reality. Diagnose it with a scan tool and fuel trim data, big negative trims tell you the ECU is already trying to pull fuel out.

Smoke color is a diagnostic language of its own on turbo engines, gas or diesel. Blue smoke is oil burning, and on a boosted engine the prime suspect is failed turbo shaft seals feeding oil into the intake or exhaust. Black smoke is a rich mixture, a fuel-to-air imbalance from over-fueling or a major intake-side airflow problem such as a cracked intercooler or a large boost leak starving the cylinders of air relative to the fuel being injected. White smoke is coolant entering combustion. Excessive smoke is never correct operation; confirm the boost path is airtight with a boost pressure test as part of the diagnosis.

Finally, trust but verify the sensors themselves. A boost pressure (MAP) sensor reading pegged at maximum regardless of conditions is not perfect operation and not underboost, it indicates a damaged sensor, a wiring short pulling the signal to the reference voltage, or a disconnected vacuum/pressure line to the sensor. The ECU, seeing an implausible fixed value, falls back to default values or limp mode. Whenever data looks impossibly steady, suspect the sensor and its circuit before condemning the system it monitors.

📋 Boost-side diagnostic quick reference
Symptom / codeMeaningFirst check
P0234Overboost — actual exceeds commandedWastegate stuck closed, control solenoid, split signal line
P0299Underboost — actual below targetBoost path leak, gate stuck open, weak actuator, sticking VGT vanes
Blue smokeOil burningTurbo shaft seals; check play and housing oil
Black smokeRich — fuel/air imbalanceOver-fueling or major intake-side airflow fault
White smokeCoolant entering combustionHead gasket / cooling system tests
Flutter at throttle liftCompressor surgeBOV/diverter valve missing, stuck, or torn
Sudden total power loss, no codePhysical boost plumbing failureBlown-off coupler — hands and eyes on every clamp

The majority of boost mysteries are air leaks. Test the plumbing before trusting any sensor story.

🔩 Boost-leak pressure test
  1. Cap the intake at the turbo inlet with a boost-leak tester (a plug with a regulated air fitting). You are pressurizing the entire charge path — turbo outlet, intercooler, piping, and manifold — engine off.
  2. Regulate compressed air in gradually to roughly the car's normal peak boost — commonly 15-20 psi. Testing at 5 psi misses the leaks that only open under real pressure.
  3. Listen, then soap: hissing locates the big leaks, soapy water pinpoints the small ones. Check every coupler, clamp, intercooler end tank, the BOV seat, and vacuum/PCV connections.
  4. Watch the gauge with the air source valved off. Rapid pressure loss with no audible leak points at valves — a BOV weeping, or air escaping past open valves into the crankcase (some bleed-down is normal through the engine).
  5. Repair what you found, retest to confirm the path holds, then verify boost against target on a road pull. The pressure test proves the plumbing; the datalog proves the system.
⚠️ Comeback killers
  • Testing at token pressure. A coupler that seals at 3 psi and blows open at 15 is the most common boost leak there is — test at the pressure the system actually runs or the test lies to you.
  • Replacing MAP/MAF sensors before touching the plumbing. Split couplers and cracked end tanks cause most underboost, surge, and trim mysteries; sensors get condemned daily for what a hose clamp did.
  • Ignoring an implausibly steady sensor reading. A boost sensor pegged at one value regardless of conditions is a damaged sensor, shorted wiring, or a disconnected line — the ECU's limp mode is responding to bad data, not a bad engine.
🔧 Shop tip Own a smoke machine and use it first on any boost complaint. The majority of underboost, surge, and rich/lean mysteries on boosted cars are air leaks, and smoke finds in five minutes what parts-swapping never will.
✅ Check yourself
A turbo car lost all boost suddenly with a loud rush of air under throttle and no stored code. Where do you look and why is there no code?

A blown-off or split intake coupler. Boost pressure shoved a silicone coupler off its pipe — usually at a loose clamp — so the charge dumps overboard with a whoosh. Depending on where it let go relative to the sensors, the ECU may see plausible-enough data to store nothing. Hands and eyes on every coupler and clamp finds it in minutes; it is the most common catastrophic 'failure' in boosted cars and costs a clamp to fix.

P0299 on a diesel with a VGT and no leaks found on a pressure test. What is the prime suspect?

Sticking VGT vanes. The variable geometry must close down to build drive pressure at low flow; carbon-seized vanes that will not close leave the turbine lazy and boost short of target. The pressure test cleared the charge path, which is exactly what moves actuator and vane function to the top of the list — command the actuator through its range and watch actual position versus commanded.

Big negative fuel trims and black smoke under boost — what two families of cause does that combination suggest?

Either too much fuel is being delivered (stuck/leaking injector, leaking pressure regulator raising rail pressure) or the ECU thinks less air is entering than actually is (MAF/MAP under-reporting). The negative trims show the ECU already pulling fuel to fight the richness. Compare measured airflow against expected for the boost level, and check rail pressure — the data separates the fuel-side from the air-measurement-side in one log.

Reliability

4 concepts

Adding power without adding strength is a countdown timer.

At a glance — know these cold
  • Stock fasteners are designed for stock power. Higher pressures require stronger fasteners. Head studs prevent gasket lifting; rod bolts prevent rod stretch under load.
  • Forged cranks are hammered/pressed into shape, giving directional grain. Stronger under load. Cast cranks are cheaper and adequate for stock output but risky at extreme power.
  • Thin oil reduces friction but may lose film strength at high load/heat. Follow tuner or engine builder recommendation — often 5W-40 or 10W-60 for track use.
  • PCV routes blow-by (with oil vapor) into the intake. Under boost, this can foul intercooler and intake valves. Catch cans separate oil vapor before it enters.

Reliability work, fasteners, rotating assembly, oil, and crankcase ventilation, is what makes a fast car a fast car that lasts.

Fasteners and the Rotating Assembly

Stock fasteners are engineered for stock cylinder pressures, and boosted pressures exceed their design margin. That is why high-power builds routinely upgrade to aftermarket rod bolts and head studs, ARP being the common name. Head studs clamp the head harder and more evenly so the head gasket does not lift and leak under boost spikes; upgraded rod bolts keep the rod's big end round and prevent rod bolt stretch under high RPM and load, the failure that lets a rod let go. These are not cosmetic parts, and OEM-only is not a rule; matching fastener strength to cylinder pressure is basic engineering.

The crankshaft tells a similar story. A cast crank is poured into a mold, cheap to make and perfectly adequate at stock output, but its random grain structure makes it the risky choice at extreme power. A forged crank is hammered or pressed into shape from a billet, which aligns the metal's grain directionally along the crank's structure. That grain gives it substantially better strength and fatigue resistance, letting it survive more power and higher RPM. For serious builds, forged is the standard; the two are not identical and cast is not the stronger of the pair.

Oil Strategy and Catch Cans

Oil viscosity on a performance engine should match the manufacturer's or the tuner/builder's recommendation, not a blanket rule. Thin oil reduces friction and helps economy, but under sustained high load and heat its film can shear down and lose the strength that keeps bearings from touching. Engines that run hotter and harder often benefit from a heavier weight, track-focused builds commonly run 5W-40 or even 10W-60, because film strength at temperature matters more than a fraction of a horsepower in friction. Thinnest-possible is not a virtue, one grade does not fit all, and viscosity absolutely matters.

Crankcase ventilation is the other quiet reliability item. Every engine passes some combustion gas past the rings, blow-by, and the PCV system routes it, along with the oil vapor it carries, back into the intake to be burned. Under boost, blow-by volume rises, and that oil vapor coats the intercooler (hurting its heat transfer) and bakes onto intake valves, especially on direct-injection engines where no fuel spray washes the valves. An oil catch can is installed in the PCV line to separate and trap the oil vapor before it reaches the intake, keeping the intake tract, intercooler, and valves clean. It is not an oil reservoir, an oil cooler, or a fuel filter, it is a trap for blow-by oil, and it needs to be drained periodically to keep working.

📋 Boosted-engine reliability reference
ItemGuidelineWhy
Oil temperature (street)200-250°F sustainedBeyond this, film strength and additive life suffer — cooler or heavier grade
Track-duty oil grades5W-40 / 10W-60 commonly specifiedFilm strength at temperature beats a fraction of friction hp
Catch can serviceDrain at least every oil changeA full can stops separating and pulls oil into the intake
Head studs / rod boltsMatch fastener strength to cylinder pressureStock fasteners are engineered for stock pressures
CrankshaftForged for serious powerDirectional grain = fatigue resistance a cast crank lacks
Blow-by trendRising catch-can volume = rising blow-byEarly warning of ring seal going away

Oil grade and temperature limits are engine- and builder-specific — follow the manufacturer's or builder's recommendation, not a blanket rule.

🔩 Reliability audit on a boosted build
  1. Run compression and leakdown annually or pre-season. Trending numbers catch ring seal decline while it is a freshen-up, not a failure.
  2. Send an oil sample for analysis at intervals. Fuel dilution flags injector or tuning trouble; bearing metals flag the bottom end — both show in oil long before they show in symptoms.
  3. Track catch can volume between drains. A can that fills faster than it used to is measuring rising blow-by — the cheapest ring-wear gauge you will ever own.
  4. Verify the tune revision and hardware still match — unauthorized 'adjustments' and drifted hardware are found here, not at the failure inspection.
  5. Pressure-test and temperature-verify the cooling system under sustained load. Reliability dies of heat more often than of power.
⚠️ Comeback killers
  • Keeping stock head bolts on a big-boost build. Cylinder pressure beyond the fastener's design margin lifts the head microscopically under spikes, and the gasket erodes until it fails 'suddenly' — studs and proper clamp are basic engineering, not jewelry.
  • Chasing dyno points with the thinnest oil that survives a pull. Under sustained heat and load, sheared-down thin oil loses the film strength that keeps bearings apart — track engines specify heavier grades for a reason.
  • Never draining the catch can. A full can separates nothing; the blow-by oil it was trapping now rides into the intercooler and intake valves, and the 'protection' becomes a bypass.
🔧 Shop tip Build the bottom end for the power you will eventually run, not the power you start with. Fasteners and a forged rotating assembly installed once cost far less than a second engine.
✅ Check yourself
Why do direct-injection boosted engines need crankcase ventilation management more than port-injected ones?

Port injection washes intake valves with fuel spray; direct injection never touches them. PCV blow-by vapor bakes onto DI intake valves as carbon, and boost raises blow-by volume — so a boosted DI engine coats its valves fastest of all. A catch can traps the oil vapor before it reaches the valves, which is why the modification is near-mandatory on boosted DI builds.

What does a forged crank's 'grain' actually buy over a cast crank at high power?

Fatigue resistance. Forging hammers the metal so its grain flows along the crank's shape, like wood grain following a curved beam, while casting leaves random grain from solidified liquid. Under repeated high loads, cracks start and travel far more easily across random grain. At stock power both live fine; at serious power and RPM the forged crank's aligned structure is the difference between fatigue life and a windowed block.

Dyno

2 concepts

The dyno is where claims meet numbers, but the numbers only mean something if you understand what the machine actually measures and why wheel and crank figures never match.

At a glance — know these cold
  • Dynos measure torque via load cell and RPM. Power is calculated. Chassis dynos measure at the wheels (wheel HP); engine dynos measure at the crank.
  • Losses from transmission, differential, and axles are 10-20%. Applied to wheel HP figures to estimate crank HP. Comparisons between dyno types requires care.

What a Dyno Measures and Drivetrain Loss

A dyno does not directly measure horsepower, and it certainly does not measure speed, weight, or fuel flow. It measures torque, via a load cell resisting the engine's twist, at a given RPM. Horsepower is then calculated from those two values with the standard formula: HP = torque times RPM divided by 5252. That constant is also why every dyno chart's horsepower and torque curves cross at exactly 5252 RPM. There are two machine types: an engine dyno bolts to the engine itself and reads output at the crankshaft (crank HP), while a chassis dyno runs the whole car on rollers and reads output at the wheels (wheel HP).

Wheel horsepower is always lower than crank horsepower because the drivetrain consumes power on the way to the pavement. The transmission, driveshaft, differential, and axles all lose energy to friction and inertia, typically 10 to 20 percent depending on the drivetrain layout, a manual RWD car sits near the low end, an AWD automatic near the high end. Shops apply that loss percentage to a wheel figure to estimate crank output, but treat such conversions carefully: comparing numbers across different dyno types, brands, correction factors, and days is an easy way to argue about horsepower that only exists on paper. The honest use of a dyno is before-and-after runs on the same machine under the same conditions.

📋 Dyno interpretation reference
ItemValueNotes
Horsepower formulaHP = torque x RPM / 5252The dyno measures torque; HP is calculated
Curve crossoverExactly 5252 RPMEvery honest HP/TQ chart crosses there
FWD drivetrain loss~10-15% typical estimateWheel-to-crank conversions are estimates, not measurements
RWD drivetrain loss~12-18% typical estimateManual toward the low end, automatic higher
AWD drivetrain loss~18-25% typical estimateMost loss, widest variance
Correction factorsSAE vs STD differ by a few percentNote which was used before comparing anything

Loss percentages are conventional estimates that vary with drivetrain, tires, and dyno type — treat any wheel-to-crank conversion as an estimate. The only honest comparison is before-and-after on the same dyno under the same conditions.

🔩 Running a valid before/after comparison
  1. Baseline and verification runs on the same dyno — same day if possible. Machine, correction, and weather differences swamp small gains.
  2. Standardize the setup: same tie-down tension, same tire pressures, same fuel. Strap tension alone moves wheel numbers noticeably.
  3. Run in the same gear each time — typically the closest to 1:1 — so drivetrain multiplication and losses stay constant across runs.
  4. Record ambient conditions and the correction factor used. A chart without its correction noted cannot be compared to anything.
  5. Make multiple runs and compare averages, not the single best pull. Run-to-run scatter is real; the average is the measurement, the hero run is marketing.
⚠️ Comeback killers
  • Comparing numbers across different dynos, brands, or days. Load control, correction factors, and even strap-down technique differ enough to manufacture or erase real gains — cross-dyno comparison is how horsepower arguments start.
  • Quoting crank horsepower from a wheel figure plus a guessed loss percentage. The conversion is an estimate stacked on an estimate; present wheel numbers as wheel numbers and let before/after deltas tell the story.
  • Celebrating the single best run. If five pulls read 402, 398, 411, 400, 399, the car makes about 400 — the 411 is scatter, and tuning decisions built on it chase noise.
🔧 Shop tip Baseline every car on the same dyno you will tune it on, same day if possible. A gain measured against someone else's dyno sheet is marketing, not measurement.
✅ Check yourself
Why do the horsepower and torque curves on every dyno chart cross at exactly 5252 RPM?

Because horsepower is defined as torque times RPM divided by 5252. At 5252 RPM the multiplier equals one, so HP and torque are numerically equal — the curves must intersect there. A chart where they cross anywhere else has mismatched scales or manipulated data, which makes the crossover a quick honesty check.

A shop advertises a 40 hp gain: baseline on a friend's dyno last month, verification on their own dyno today. What is wrong?

Everything that matters was uncontrolled: different machine, different load control and calibration, different weather and correction, different strapping. Any of those can move numbers by more than the claimed gain. A valid gain is before-and-after on the same dyno under the same conditions with the same correction — otherwise the 40 hp exists on paper, not necessarily in the car.

Safety

2 concepts

A handful of installation and monitoring details separate turbo systems that last from ones that fail in the first thousand miles.

At a glance — know these cold
  • Undersized return, blocked return, or improper routing floods the turbo bearing housing, causing oil in exhaust and eventual failure. Proper drop and diameter is critical.
  • Boost gauges tap manifold pressure. Vacuum reading at idle/cruise, positive pressure under boost. Used to verify boost target is being reached and to catch issues.

Oil line routing and a properly read boost gauge are two of the cheapest insurance policies in performance work.

Oil Line Routing and Reading Boost

When installing a turbo, the oil supply line is the easy half; the return (drain) line is where installs go wrong, and routing is anything but arbitrary. The return is a gravity drain: it must be generously sized, run steadily downhill, and enter the oil pan above the oil level. A return that is undersized, kinked, routed uphill, or dumped below the pan's oil level cannot evacuate oil as fast as it arrives, so oil backs up and floods the turbo's bearing housing. Flooded seals push oil into the intake and exhaust, you see smoke, oil consumption, and eventually a dead turbo that gets blamed on the part instead of the plumbing. Proper drop and proper diameter on the drain are critical on every turbo install.

A boost gauge is the basic monitoring tool on any boosted car, and you should know exactly what it displays: manifold pressure, positive numbers are boost, negative numbers are vacuum. It is not a fuel pressure or oil pressure gauge, and it does not read only vacuum. At idle and light cruise the needle sits in vacuum; under load it swings positive as the turbo builds pressure. That one gauge verifies the system is hitting its boost target and catches problems early: boost that sags below target hints at a leak or wastegate issue, boost that spikes past target warns of overboost before the ECU or the head gasket has to intervene.

📋 Turbo oil plumbing and monitoring reference
ItemRequirementFailure if wrong
Oil drain routingContinuous downhill, no kinks or low spotsOil backs up and floods the bearing housing
Drain entry pointInto the pan above the oil levelSubmerged entry cannot gravity-drain; seals flood
Drain sizeGenerous — commonly -10 AN class for journal-bearing turbosUndersized drains cannot evacuate aerated oil (verify per turbo)
Feed restrictorPer turbo manufacturer — often required on ball bearingOver-oiling pushes past seals; under-oiling kills bearings
Boost gauge at idleReads vacuum (negative)Manifold-referenced gauge — vacuum at idle is correct
Boost gauge under loadSwings positive to targetSag = leak/gate issue; spike past target = overboost warning

Drain diameter and restrictor requirements are turbo-specific — verify against the turbo manufacturer's installation spec.

🔩 Post-install first-drive verification
  1. Prime the oil system before first start: crank with the engine disabled from starting until oil pressure registers. A dry turbo on first fire is a bearing insult it never forgets.
  2. Idle and inspect: oil feed and drain fittings, coolant lines, charge pipe joints. Small weeps now are big leaks after ten heat cycles.
  3. Drive gently and watch the boost gauge through the vacuum-to-boost transition. Smooth transition and normal vacuum at idle confirm the gauge plumbing and basic system health.
  4. Make a moderate pull watching peak boost against target. This thirty seconds catches a misadjusted wastegate before a full-power pull turns it into an engine problem.
  5. Recheck every fitting and clamp after the first full heat cycle. Thermal cycling loosens fresh connections — the recheck is part of the install, not an option.
⚠️ Comeback killers
  • Routing the oil drain uphill, kinked, or into the pan below the oil level. The drain is gravity-only; anything impeding it floods the bearing housing, pushes oil past both seals, and the 'defective' new turbo smokes within weeks — blamed on the part instead of the plumbing.
  • Skipping the feed restrictor on a turbo that specifies one. Ball-bearing cartridges often meter oil deliberately; full unrestricted feed pressure overwhelms the seals from the inside. The manufacturer's spec sheet is the authority.
  • Going straight to full boost on the maiden drive. The first pull is a test, not a celebration — peak boost versus target on a moderate pull is what stands between a misadjusted wastegate and a head gasket.
🔧 Shop tip After any turbo install, watch the boost gauge on the first drive before you enjoy the car. Thirty seconds of attention to peak boost versus target catches a misadjusted wastegate before it costs an engine.
✅ Check yourself
A fresh turbo install smokes from the exhaust within a week. The turbo checks out fine on the bench. What did the installer likely get wrong?

The drain. An undersized, kinked, uphill-routed, or submerged oil return cannot evacuate oil as fast as it arrives, so oil floods the bearing housing and pushes past the seals into both housings — smoke, consumption, and a condemned-but-healthy turbo. Rework the drain: generous diameter, continuous downhill run, entry above the pan's oil level.

Why does the boost gauge read negative at idle, and when is that a problem?

The gauge reads manifold pressure: at idle the throttle plate restricts flow and the engine pulls vacuum, so negative readings are correct and healthy. It becomes a problem only if vacuum is abnormal (weak = leak or mechanical issue) or if the needle fails to swing positive under load. Idle vacuum plus on-target boost under load is exactly what a healthy gauge should show.

Documentation

1 concept

The last step of a performance build is paperwork, and it is not optional busywork.

At a glance — know these cold
  • Comprehensive documentation protects the shop, informs future technicians, aids warranty discussions, and helps the owner sell the vehicle with credibility.

Documentation is what protects the shop, the owner, and the next technician who touches the car.

What to Record and Why

Every performance build should leave a paper trail: a complete parts list, the tune revision installed, dyno sheets from before and after, and written disclosure of what was modified and any warranty implications. Receipts alone are not documentation, and photos alone are not either; the record needs to capture the whole configuration.

The reasons are practical. For the shop, documentation is protection: if a component fails later, the record shows exactly what was installed, how it was calibrated, and what the customer was told. For future service, the next technician, who may be you in two years, needs to know the car is not stock before diagnosing it; a tuned car throws data that looks wrong against factory specs. For warranty discussions, disclosure up front prevents disputes later. And for the owner, a documented build with dyno sheets and tune history is worth real money at sale time, because a buyer can verify the work instead of taking a seller's word.

🔩 Building the performance documentation package
  1. Record the complete parts list with part numbers — the whole configuration, not just the headline parts. The next tech diagnosing this car needs to know exactly what is not stock.
  2. Archive the tune file with date and revision note before flashing, and after every change. When the car returns running strangely, diffing current against delivered calibration answers the first question instantly.
  3. File before-and-after dyno sheets with correction factors and conditions noted. Numbers without context cannot defend a claim later.
  4. Write and have the customer sign the modification disclosure: what was changed and the warranty implications. Disclosure up front prevents the dispute later.
  5. Deliver a copy of the package to the owner. A documented build is worth real money at resale — and it makes your shop the obvious place for the car's future work.
⚠️ Comeback killers
  • Flashing without archiving the previous tune. When something goes wrong you have no baseline to compare or revert to — the thirty-second save is the cheapest insurance in tuning.
  • Leaving mods undisclosed in the record. The next technician — possibly you, in two years — diagnoses against factory specs a modified car will never match, and burns hours proving what a note would have said.
  • Treating receipts as documentation. Receipts prove purchases; the record needs configuration — what is installed, how it is calibrated, and what the customer was told.
🔧 Shop tip Save a copy of every tune file with a date and revision note before flashing anything. When a car comes back months later running strangely, being able to diff current against delivered calibration answers the first question instantly.
✅ Check yourself
A car you tuned a year ago comes back running poorly. What single archived item shortens this diagnosis the most, and how?

The delivered tune file with its revision note. Reading the current calibration and diffing it against your archive immediately answers whether the software changed — another shop's flash, an owner's 'adjustment,' or corruption — before any mechanical diagnosis. If the calibration matches, you have equally valuable information: the problem is hardware, and the tune is off the suspect list.

Why does written modification disclosure protect the shop even when the customer asked for the modifications?

Because memory is not a record. If a modified component contributes to a later failure or a warranty dispute, the signed disclosure proves what was installed, that implications were explained, and that the customer accepted them. Without it, the conversation becomes recollection against recollection — with it, there is nothing to argue about.

READY TO PROVE IT?

Studied the material? Get PRF certified.

The Performance & Forced Induction exam turns what you just learned into a verifiable credential drivers and shops can look up. 60 questions · 75 minutes · 75% to pass · $19.99.

Studying here is free forever. There's no obligation to take the exam.

Standards and further reading

Primary sources behind this page. Federal safety, emissions and consumer-protection references, worth reading before you authorize any repair.
