Climate Control (HVAC / A/C)

Cold air in summer, warm in winter.

19 skill areas 60 key concepts $0 to learn

Climate Control (HVAC / A/C) covers automotive air conditioning, refrigerant systems, and cabin heating. Does not replace EPA 609 certification, which remains legally required to purchase refrigerant. Everything below is free, no login, no paywall. Work through the skill areas, drill them in Study Mode, and when you're ready, prove it with the certification exam.

0%
ready
NOT STARTED

Your readiness to certify

Drill all 60 concepts in Study Mode. Mark each one "Got it" once you know it cold. When every concept is cleared, you're ready for the HVA exam.

0 got it 0 to review 60 untouched

What you'll be able to do

Skill areas

Jump to any area, each lesson teaches the system from the ground up, then recaps the key takeaways you'll drill in Study Mode.

Regulation

4 concepts

Mobile A/C work is one of the most heavily regulated jobs in the shop.

At a glance — know these cold
  • EPA Section 609 certification is required for anyone who services motor vehicle A/C systems containing regulated refrigerants. This program supersedes 608 for MVAC.
  • R-1234yf has largely replaced R-134a in new-vehicle mobile A/C for its lower global-warming potential. R-134a itself replaced R-12 in the mid-90s.
  • On-site recycling to SAE J2788/J2843 purity standards allows same-shop reuse. Reclaim (off-site laboratory purification) is stricter and always OK.
  • California layers state CARB rules on top of federal EPA rules. Check current requirements for record-keeping and waste refrigerant handling in CA.

Federal law controls who can buy refrigerant, how it must be handled, and what happens to it after recovery — and getting it wrong carries real fines, not just a warning.

EPA Section 609 Certification

Anyone who services motor vehicle air conditioning (MVAC) systems containing regulated refrigerants must hold EPA Section 609 certification. This is the mobile-specific program: Section 608 covers stationary equipment like building HVAC and refrigeration, but for automotive work 609 is the credential that applies and supersedes 608. You need 609 to legally purchase refrigerant for mobile A/C service and to open and work on vehicle systems. It is a one-time certification earned by passing an approved test, and it is the first thing an apprentice on the A/C bench should get.

Certification comes with paperwork obligations too — the EPA expects certified shops to document their refrigerant handling, which is covered in more detail under record-keeping requirements.

The Refrigerant Timeline and Reuse Rules

Know the lineage of automotive refrigerants, because you will see all of them in the field. R-12 was the original refrigerant, phased out in the mid-1990s because it depletes the ozone layer. R-134a replaced it and dominated for two decades. Now R-134a itself is being phased out of new light-duty vehicles in favor of R-1234yf, which has a much lower global-warming potential. A tech working today services both R-134a and R-1234yf systems regularly and may still meet the occasional R-12 survivor.

Recovered refrigerant is not garbage, but it cannot go straight back into a vehicle either. Under EPA rules, refrigerant pulled from a vehicle may be reused once it has been recycled or reclaimed to the appropriate purity standard. On-site recycling with a machine that meets SAE J2788 (R-134a) or J2843 (R-1234yf) purity standards lets your shop reuse that refrigerant on other vehicles. Reclaiming is the stricter route — refrigerant goes off-site to a laboratory-grade purification facility — and reclaimed refrigerant is always acceptable for reuse. What you cannot do is recover dirty refrigerant and pump it into the next car untreated.

State Rules Stack on Top of Federal Rules

Federal EPA 609 rules are the floor, not the ceiling. States can add their own layers, and California is the classic example: shops there must comply with EPA 609 plus CARB (California Air Resources Board) regulations, which can add reporting and waste-refrigerant tracking requirements beyond what the EPA demands. If you work in California — or move a shop there — check the current CARB requirements for record-keeping and waste refrigerant handling rather than assuming federal compliance is enough.

📋 Mobile A/C regulatory quick reference
ItemRequirementNotes
EPA certification for MVAC workSection 609 — one-time, test-basedSection 608 covers stationary equipment and does not substitute
Refrigerant purchase609 certification required to buy service quantitiesSmall self-sealing consumer cans follow separate rules that vary by state
Recovery machine standardSAE J2788 (R-134a) / J2843 (R-1234yf)Must recover at least 95% of the system charge
Recovered refrigerant reuseRecycle on-site to SAE purity, or reclaim off-siteNever transfer recovered refrigerant untreated into another vehicle
Illegal venting penaltyFines can exceed $37,500 per violationApplies to all refrigerants, including low-GWP R-1234yf
Record retentionTypically 3 years minimumStates like California add CARB requirements on top — verify locally

Regulatory details change — verify current EPA and state requirements rather than relying on memory.

🔩 Five-minute shop compliance check
  1. Confirm every tech who opens A/C systems holds a 609 card and knows where it is. No card means no refrigerant purchases and no legal MVAC service — it is the first thing an inspector asks for.
  2. Verify the recovery machine's certification label reads J2788 (R-134a) or J2843 (R-1234yf). An uncertified or wrong-standard machine puts every job it touches out of compliance.
  3. Pull the refrigerant purchase log and match it against cylinder inventory. Gaps between what was bought and what is on the shelf are exactly what audits flag.
  4. Check the recovery log against recent repair orders. Every job that opened a system should show a recovered weight — missing entries mean either venting or missing paperwork, and both are problems.
  5. Confirm where recovered refrigerant went: recycled on-site to SAE purity or shipped with a reclaimer manifest. A full recovery cylinder with no disposition plan is a finding waiting to happen.
⚠️ Comeback killers
  • Assuming a Section 608 card covers automotive work — 608 is for stationary equipment. Mobile A/C requires 609, and an inspector will not accept the substitution.
  • Treating R-1234yf as exempt from venting rules because it is low-GWP. The Clean Air Act prohibition applies to it just like R-134a, and the fines are the same.
  • Recovering refrigerant and charging it straight into the next car. Recovered refrigerant must be recycled to SAE purity or reclaimed before reuse — untreated transfer is a violation even though nothing was vented.
🔧 Shop tip Keep a copy of your 609 card at the shop and know where your refrigerant purchase and recovery logs live. When an EPA or state inspector shows up, being able to produce records in five minutes ends the visit quickly.
✅ Check yourself
A new hire has an EPA 608 Universal card from HVAC school and wants to start on the A/C bench. Can they legally service vehicle systems?

No. Section 608 covers stationary refrigeration and building HVAC; motor vehicle A/C requires Section 609. The 608 background will make the 609 test easy, but until they pass it they cannot legally buy refrigerant for mobile work or open vehicle systems.

Your recovery cylinder is full of R-134a pulled from several vehicles, and the next car in the bay needs a charge. What are your legal options?

Either recycle it on-site through a machine meeting SAE J2788 purity standards and then reuse it, or send it to an off-site reclaimer and charge the car with new or reclaimed refrigerant. Pumping recovered, untreated refrigerant into another vehicle is prohibited — you do not know what moisture, air, or sealer it is carrying.

Why does a shop in California need more than EPA 609 compliance?

Federal rules are the floor, not the ceiling. California layers CARB requirements on top — additional reporting and waste-refrigerant tracking beyond the EPA baseline. A shop compliant with 609 alone can still be out of compliance with state law, so local requirements have to be verified wherever you operate.

Refrigerant

3 concepts

Refrigerant is the working fluid of the whole system, and it is also the part of the job with legal and safety teeth.

At a glance — know these cold
  • Intentionally venting refrigerant violates the Clean Air Act. Recovery is required — fines can exceed $37,500 per violation.
  • R-1234yf is A2L (mildly flammable, low toxicity). It requires manufacturer-approved recovery equipment and care around ignition sources.
  • Fittings are different by design to prevent this. Cross-mixing damages the vehicle and contaminates your recovery machine so it can't service other vehicles.

Knowing what you can and cannot do with it — and why the two modern refrigerants must never mix — keeps you, the customer's car, and your shop equipment out of trouble.

Venting Is a Federal Violation

Intentionally venting refrigerant to the atmosphere during service is a violation of the Clean Air Act — not a gray area, not acceptable in small quantities, and not excused because the refrigerant is a newer low-GWP type like R-1234yf. Every service that opens the system starts with recovery into an approved machine. Fines for illegal venting can exceed 37,500 dollars per violation, and the EPA does pursue shops. If refrigerant is in the system, it gets recovered. Period.

R-1234yf: Mildly Flammable, and Never Cross-Charged

R-1234yf carries an A2L safety classification: mildly flammable with low toxicity. It is not gasoline, but it will ignite under the right conditions, so it demands manufacturer-approved recovery equipment and real care around ignition sources — open flames, hot surfaces, sparking tools. Treat any yf service bay as a no-smoking, no-torch zone while the system is open.

The other cardinal rule is never to add R-134a to a system designed for R-1234yf, or vice versa. The service fittings on the two systems are deliberately different so the hoses will not connect — that is the engineers telling you not to do it. The refrigerants use different lubricants and operate at different design points, so cross-charging damages the vehicle's system. Worse, it cross-contaminates your recovery machine: once mixed refrigerant enters the machine, that machine can no longer legally or safely service other vehicles until the contamination is dealt with. One shortcut can take a multi-thousand-dollar machine out of service. Evacuating first does not make it acceptable, dye does not make it acceptable, and there are no emergencies that justify it.

📋 R-134a vs R-1234yf side by side
PropertyR-134aR-1234yf
Safety classificationA1 — nonflammableA2L — mildly flammable, low toxicity
Boiling point at atmosphere-15°F (-26°C)-22°F (-30°C)
Global warming potential1,430Under 4 — roughly 99% lower
Service fittingsUnique quick-couple sizesDeliberately different sizes — hoses will not interchange
Recovery machine standardSAE J2788SAE J2843
Leak detector standardSAE J2791SAE J2913 — higher sensitivity required
Operating pressuresBaselineWithin roughly 5-10% of R-134a — similar gauge behavior

Similar pressures make cross-charging tempting and catastrophic — the fittings differ on purpose. Never adapt hoses between the two.

🔩 Identifying refrigerant before you connect
  1. Read the underhood A/C label and the service port style before touching anything. The label states refrigerant type and charge weight; mismatched or retrofit-style fittings are your first contamination warning.
  2. Connect a refrigerant identifier to the low-side port and sample. The readout gives purity — anything under roughly 98% pure, or showing hydrocarbons, means the system does not go on your recovery machine.
  3. If the identifier flags a blend or hydrocarbons, stop and quote recovery into a dedicated contamination cylinder. One contaminated sample pulled into your machine takes it out of service for every car after this one.
  4. If it reads clean, compare the refrigerant type against the label. A yf label with R-134a inside means someone cross-charged it — treat the system as contaminated and plan full recovery, a flush evaluation, and the correct recharge.
  5. Log the identifier reading on the repair order. It documents what you found before you touched the system, which matters if the last shop's shortcut turns into a dispute.
⚠️ Comeback killers
  • Skipping the identifier because the car 'looks stock.' DIY cans of blends and stop-leak sealer are everywhere, and the fitting tells you what the system was built for, not what is in it now. One mystery charge can contaminate a machine worth more than a month of your labor.
  • Adapting fittings to put R-134a into a yf system 'just to get them through the summer.' The fittings differ by design — different oils, different design points, and an A2L safety package the R-134a hardware never had. It damages the vehicle and cross-contaminates your equipment.
  • Venting 'just a little' residual refrigerant to speed up a job. The Clean Air Act has no small-quantity exception — recovery comes first on every opened system, every time.
🔧 Shop tip Before connecting your recovery machine to an unfamiliar vehicle, use a refrigerant identifier. Cheap DIY cans of mystery blends and sealers are common, and a five-minute identity check protects a machine that costs more than a week of your labor.
✅ Check yourself
The identifier on a 2019 vehicle labeled R-1234yf reads 85% R-134a. What happened and what do you do?

Someone cross-charged it, likely with an adapter and a cheap can of R-134a. Do not connect your yf recovery machine. Recover into a dedicated contamination cylinder, evaluate the system for lubricant-compatibility damage, replace the drier, evacuate, and recharge with yf by weight. The mixed refrigerant goes to a reclaimer as contaminated.

Why is R-1234yf's A2L rating a bigger deal in a shop than it sounds?

A2L means mildly flammable — it will ignite under the right conditions. That changes shop practice: no torches, smoking, grinding, or hot surfaces near an open yf system, ventilation in the bay, and yf-approved recovery equipment built to handle a flammable refrigerant. It is not gasoline, but it is not inert like R-134a either.

A customer wants you to top off their R-134a system with a can of R-1234yf they bought because 'it's better for the environment.' Your answer?

Refuse — the refrigerants are not interchangeable. They use different lubricants, different fittings, and different system designs, and mixing them damages the vehicle and contaminates recovery equipment. The environmentally sound move is finding and fixing the leak that made the top-off necessary.

Climate Control (HVAC / A/C) training photo

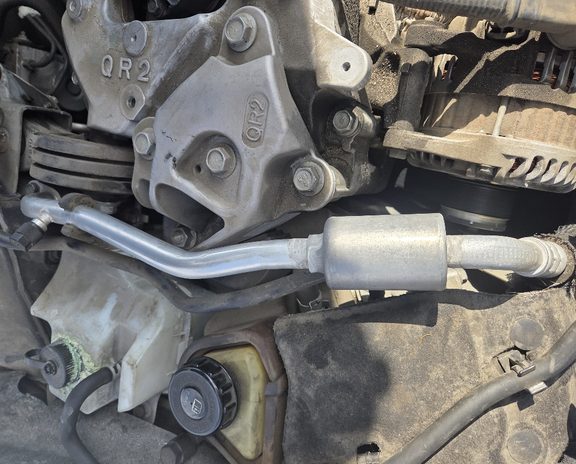

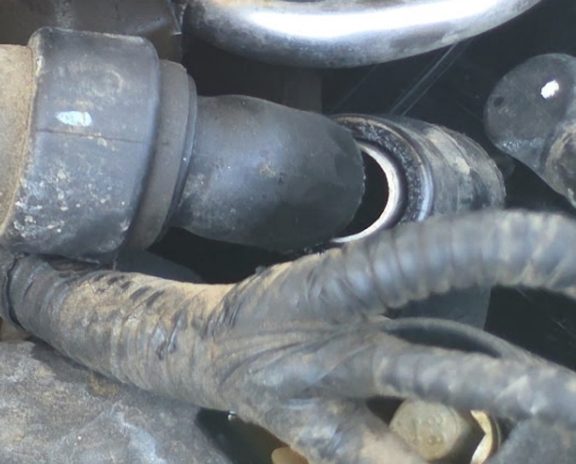

A/C lines traced through the engine bay during a recharge and leak check.

Components

8 concepts

You cannot diagnose an A/C system until you can walk the refrigerant loop in your head.

At a glance — know these cold
  • The compressor is the pump of the A/C circuit — it raises pressure and temperature so the condenser can reject heat.
  • The evaporator is inside the HVAC case. Cold liquid refrigerant boils in the evaporator, absorbing heat from air blowing through it.
  • The condenser is the front-mounted heat exchanger. High-pressure hot gas from the compressor condenses to liquid as it rejects heat to ambient air.
  • Orifice tube systems use an accumulator on the LOW side. TXV systems use a receiver-drier on the HIGH side. Both dry the refrigerant, but placement differs.
  • A TXV modulates refrigerant flow to keep the evaporator outlet at the correct superheat — maximizing capacity without flooding the compressor.
  • Desiccant traps water molecules to prevent ice formation and acid formation. Once saturated (or after opening the system), the drier must be replaced.
  • Any significant service that exposes the system to atmosphere saturates the desiccant. Always replace with major service.
  • Debris caught in an orifice tube signals a bigger problem — often the source (compressor, drier) must be inspected. Change the tube AND fix the source.

You cannot diagnose an A/C system until you can walk the refrigerant loop in your head: what each component does, where the pressure and temperature change, and what happens when one piece fails. Every gauge reading you will ever interpret comes back to these components doing — or failing to do — their jobs.

The Refrigeration Cycle, Component by Component

The A/C system moves heat from inside the cabin to the outside air by circulating refrigerant through four main stages. The compressor is the pump of the circuit. It takes in low-pressure refrigerant gas from the evaporator and compresses it into a high-pressure, high-temperature gas. Raising the pressure raises the temperature, and that matters because heat only flows from hot to cold — the refrigerant has to be hotter than the outside air before it can dump heat into it.

That hot, high-pressure gas flows to the condenser, the heat exchanger mounted at the front of the vehicle ahead of the radiator. As outside air passes through the condenser fins, the refrigerant rejects its heat to ambient air and condenses from gas to high-pressure liquid.

The liquid then passes through a metering device — an expansion valve or orifice tube — which drops its pressure sharply. Low pressure means a low boiling point, and the now-cold liquid enters the evaporator, which sits inside the HVAC case in the dash. Cabin air blown across the evaporator gives up its heat to the boiling refrigerant, so the air comes out cold and the refrigerant leaves as a low-pressure gas headed back to the compressor. The evaporator is the component that actually absorbs heat from the passenger compartment; the condenser is the one that rejects it outside; the compressor is what drives the whole loop by turning low-pressure gas into high-pressure gas.

Metering Devices: TXV Versus Orifice Tube

Two designs meter refrigerant into the evaporator, and they pair with different drying components. A thermal expansion valve (TXV) is a smart valve: it senses evaporator outlet temperature and modulates refrigerant flow into the evaporator to hold the correct superheat at the outlet. That means the evaporator runs at maximum capacity without flooding liquid refrigerant back to the compressor, which would damage it. An orifice tube, by contrast, is a fixed restriction — simple and cheap, but it cannot adapt, so the system design compensates elsewhere.

Here is the pairing to memorize. TXV systems use a receiver-drier on the HIGH-pressure side, between the condenser and the valve, storing liquid refrigerant and drying it before metering. Orifice tube systems use an accumulator on the LOW-pressure side, between the evaporator and compressor, catching any liquid that slips through the evaporator so it cannot slug the compressor. Both devices dry the refrigerant — the placement is what differs.

Orifice tubes are also the system's canary. Because everything in the loop flows through that tiny restriction, a plugged orifice tube full of desiccant particles, metallic debris, or oil sludge is a warning that something upstream is coming apart — often the compressor shedding metal or a drier breaking down. Never just swap the tube and recharge; find and fix the source of the debris or the new tube plugs too.

Desiccant: Why the Drier Matters and When to Replace It

Inside every receiver-drier and accumulator is a bag of desiccant whose job is to absorb moisture that entered the system during service or seeped in through microscopic leaks. Water is poison in an A/C loop: it freezes into ice at the expansion device and blocks flow, and it reacts with refrigerant and oil to form acids that eat the system from the inside.

Desiccant has a finite capacity. Once it is saturated — or any time the system has been opened to atmosphere — it cannot protect the system anymore. That is why the receiver-drier or accumulator must be replaced whenever the system is opened for major service, such as compressor, condenser, or evaporator replacement, or after any moisture contamination. Reusing an old drier after major work is a false economy that shows up later as icing complaints and acid damage.

📋 State of the refrigerant around the loop
LocationPressureStateField clue
Compressor dischargeHighSuperheated gas150-220°F line — hottest point in the loop, too hot to hold
Condenser outletHighSubcooled liquidNoticeably cooler than the condenser inlet; warm, not hot
Expansion device outletLowCold liquid-vapor mixSharp temperature drop happens exactly at the device
Evaporator outletLowCool superheated gas35-55°F; cool and sweating is right, heavy frost is a flooding clue
Compressor suctionLowGas onlyCool to the touch; frost creeping toward the compressor means liquid is getting through

Line temperatures are touch-and-infrared sanity figures for a healthy R-134a system at moderate ambient — verify exact values against service data.

🔩 Walking the loop with your hand and an infrared thermometer
  1. With the system stabilized at about 1,500 RPM, doors open, A/C on max, shoot or touch the compressor discharge line. It should be hot — too hot to hold. A discharge line barely warmer than ambient means the compressor is not compressing.
  2. Compare condenser inlet and outlet temperatures. A healthy condenser drops the refrigerant significantly across the core; little or no drop means airflow or overcharge trouble, and a cold spot mid-core suggests an internal restriction.
  3. Feel across the expansion device: warm on the inlet side, cold on the outlet side. The sharp change should happen exactly at the device — a line going cold before it marks a restriction upstream.
  4. Touch the evaporator outlet and suction line back to the compressor. Cool and sweating is normal. Frost creeping down the suction line means liquid refrigerant is leaving the evaporator — flooding, not a healthy full charge.
  5. Match what your hands found to the gauges. Component diagnosis is triangulation: pressure, temperature, and the location of the change agree on a healthy system and disagree in a specific, tell-tale way on a broken one.
⚠️ Comeback killers
  • Condemning the compressor on a no-cool complaint without walking the loop first. A plugged orifice tube, restricted condenser, or empty charge makes a good compressor look dead on the gauges.
  • Replacing a plugged orifice tube and recharging without asking where the debris came from. The tube is the system's filter of last resort — desiccant or metal in the screen means a drier or compressor is breaking down upstream, and the new tube plugs just as fast.
  • Mixing up the drier pairing. The receiver-drier goes with a TXV on the high side; the accumulator goes with an orifice tube on the low side. Ordering or diagnosing around the wrong one wastes half a day.
🔧 Shop tip When you cut open an old drier or pull an orifice tube, look at what is in it before you throw it away. Clean desiccant and a clean screen tell you the system was healthy; metal glitter tells you the compressor is eating itself and a recharge alone will come back on a hook.
✅ Check yourself
Why does the compressor raise the refrigerant's pressure so much before the condenser?

Heat only flows from hot to cold. Raising the pressure raises the refrigerant's temperature above the outside air, so the condenser can reject cabin heat into ambient air even on a 100°F day. Without that pressure rise there is no temperature gradient and no heat rejection.

A TXV system and an orifice tube system both meter refrigerant. Why does only the orifice-tube system need an accumulator?

A TXV actively controls superheat, so only vapor leaves the evaporator and the compressor stays safe. A fixed orifice cannot adapt — under some conditions liquid gets through the evaporator unboiled. The low-side accumulator catches that liquid so it cannot slug and destroy the compressor.

During an evaporator replacement, why must the drier or accumulator be replaced too?

The system sat open to atmosphere, and desiccant absorbs airborne moisture quickly. Saturated desiccant cannot protect the fresh system, and moisture left inside freezes at the expansion device and brews acid. A new drier is cheap insurance on any major open-system repair.

Climate Control (HVAC / A/C) training photo

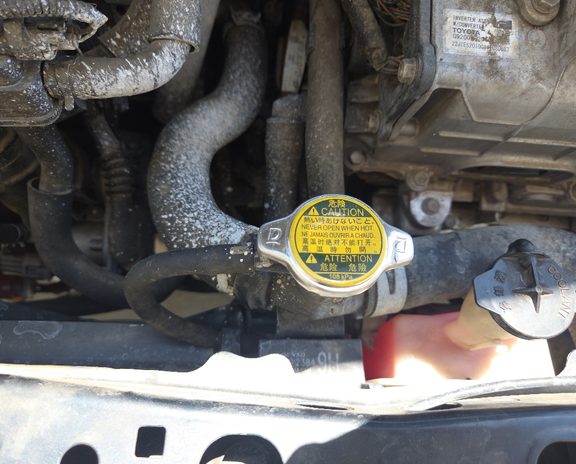

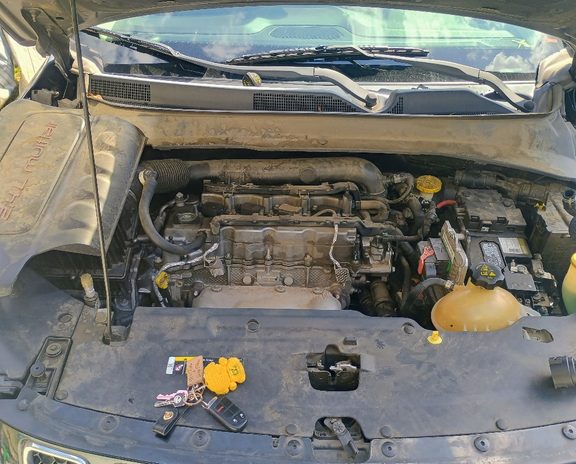

Top of the engine bay during a cooling-system service.

Diagnostics

12 concepts

A/C diagnosis is pattern recognition backed by gauges.

At a glance — know these cold
  • Equal low pressures with no cooling and static readings often mean the system is empty or nearly so. Leak-check before recharging.
  • A compressor unable to develop pressure differential (high not much higher than low) is a weak/failing compressor. Verify belt slip and clutch engagement first.
  • Excessive high-side pressure = poor heat rejection. Check condenser cleanliness, fan operation, and confirm charge isn't excessive.
  • Moisture in the system freezes at the expansion device or evaporator, restricting flow. The receiver-drier/accumulator desiccant is saturated — replace and evacuate properly.
  • Baseline the vent temp against ambient and humidity (charts exist), then take gauge readings. Guessing wastes time and refrigerant.
  • Evaporator condensate is a breeding ground. Use an evaporator antimicrobial treatment through the case, ensure the drain is clear, and replace the cabin filter.
  • Cold, frosted suction lines mean liquid refrigerant is not evaporating fully — often overcharge or a stuck-open TXV. Diagnose before more refrigerant is added.
  • Modern systems use a pressure sensor (PT) reported to the PCM. Check pressure sensor voltage and switch data before assuming component failure.
  • At speed, ram air cools the condenser. At idle, the electric fan must move all the air. Weak fans or blocked condensers show up as heat-related capacity loss at idle.
  • Evaporator drains can plug with leaves or debris. Confirm the drain is clear from underneath; blow it out with compressed air if needed.
  • Ice at the expansion valve/orifice blocks flow. Ice melts as the system warms and sits, so cycling returns. Recover, evacuate for 45+ min, and replace desiccant.
  • Refrigerant doesn't 'lose potency' — if performance dropped, it leaked. Add UV dye during initial service so future leaks are visible under a UV light.

Pressures, temperatures, and the timing of the complaint tell you which component failed before you ever pull a part. Techs who guess burn refrigerant and hours; techs who read the patterns fix cars on the first visit.

Start Every Complaint the Same Way

When a customer says the A/C is not as cold as it used to be, resist the urge to hook up a can of refrigerant. The first step is to baseline performance: measure vent outlet temperature and compare it to ambient temperature and humidity — performance charts exist that tell you what vent temperature a healthy system should deliver at given conditions. Then connect gauges and read low- and high-side pressures. Only with that data do you start pointing at components. Adding refrigerant on a guess wastes time, wastes refrigerant, and can turn a marginal system into an overcharged one.

Remember also that refrigerant does not wear out or lose potency. If a system you serviced correctly comes back a week later blowing warmer, the refrigerant went somewhere — there is a small leak. Bring the car back, check it with UV dye, and repair the leak. This is exactly why adding UV dye during the initial service is smart practice: the next time the car shows up, the leak announces itself under a UV light.

Reading the Gauges

Gauge patterns map to failures. Both sides very low and roughly equal, with no cooling and essentially static readings, usually means the system is empty or nearly empty — a severe undercharge or complete refrigerant loss. Do not just recharge it; leak-check first, because that refrigerant left through a hole that is still there.

A running system where the high side is barely higher than the low side — say 60 psi low and only 120 psi high when both should be further apart — points to a compressor that cannot develop a pressure differential: a weak or worn compressor. Before condemning it, verify the basics: make sure the belt is not slipping and the clutch is actually engaging, because a compressor that is not being driven looks identical on the gauges to one that is broken inside.

The opposite pattern — high-side pressure extreme, 500 psi or more, with poor cooling — means the condenser cannot reject heat. Check airflow across the condenser first: is the cooling fan running, are the fins packed with bugs and debris? Then confirm the system is not overcharged, because excess refrigerant also drives head pressure up. Replacing a compressor for a high-pressure complaint is a classic rookie mistake; the compressor is usually the victim, not the cause.

One more visual clue: a frost line forming on the low-side suction line from the evaporator back toward the compressor means liquid refrigerant is not fully evaporating in the evaporator — the evaporator is flooded. Common causes are a TXV stuck open, an overcharge, or a saturated evaporator. Diagnose before anyone adds more refrigerant, because more charge makes flooding worse and puts liquid at the compressor inlet.

Time- and Condition-Dependent Complaints

Some of the most diagnostic complaints are the ones tied to time or driving conditions. Cold air that turns warm after about 15 minutes of driving is the signature of moisture in the system: water freezes at the expansion device or evaporator as the system runs cold, and the ice restricts refrigerant flow. A close cousin is the system that cools fine for the first 15 minutes, then loses cooling entirely until the car sits — the ice blocks flow, then melts while the vehicle is parked, so the problem cycles. Both mean the desiccant in the receiver-drier or accumulator is saturated and the system is contaminated with moisture. The fix is not more refrigerant: recover the charge, replace the drier or accumulator, and pull a deep vacuum — 45 minutes or more — to boil the moisture out before recharging.

Poor cooling only at idle or in stop-and-go traffic, improving at highway speed, is an airflow story. At speed, ram air through the grille cools the condenser for free; at idle, the electric fan has to move all that air alone. A weak condenser fan or a clogged condenser core shows up exactly this way — heat-related capacity loss at low vehicle speed.

For a compressor clutch that engages and immediately disengages at idle, go to the scan tool before the parts shelf: check the A/C pressure sensor data and the low-pressure switch signal. Modern systems use a pressure transducer reported to the PCM, and the PCM will drop the clutch on a low-pressure reading whether that reading is real (low charge) or false (bad sensor). Verify the sensor voltage and switch data before assuming a component failed.

Smells and Water Where They Do Not Belong

Two comfort complaints round out the pattern library. A sour, vinegar, or wet-dishrag smell from the vents comes from bacteria and mold growing on the perpetually wet evaporator surface. The fix is an antimicrobial evaporator treatment applied through the HVAC case, confirming the condensate drain is clear so the case dries out, and replacing the cabin filter.

Water dripping into the passenger footwell — instead of the normal puddle under the car — means the evaporator condensate drain is plugged, usually with leaves or road debris. Condensate backs up in the HVAC case until it overflows into the cabin. Find the drain from underneath the vehicle, confirm it is blocked, and clear it, blowing it out with compressed air if needed. Do not confuse this with a coolant leak: condensate is plain water, while heater-core coolant is sweet-smelling and slimy.

📋 R-134a gauge and vent-temp expectations by ambient
Ambient tempLow side (psi)High side (psi)Center vent target
70°F25-35135-17538-45°F
80°F30-40150-20040-48°F
90°F35-45175-22542-52°F
100°F40-50200-25045-55°F
Rule of thumbEvaporator saturation 32-45°FRoughly 2.2-2.5 x ambient °F30-45°F below ambient

Typical ranges at ~1,500 RPM, doors open, max A/C, moderate humidity. High humidity raises everything; R-1234yf runs close to these numbers. Always verify against the vehicle's performance chart.

🔩 Vent-temp delta diagnosis ladder
  1. Record ambient temperature and humidity, then run the system at about 1,500 RPM, max A/C, recirc on, doors open, for five minutes. That is the standard condition every performance chart assumes — readings taken any other way are not comparable.
  2. Put a thermometer in the center vent and read it. On target for your ambient means the refrigerant side is healthy — the complaint now points at airflow, blend doors, or expectations, not charge.
  3. If the vent temp misses target, connect gauges and compare both sides to the ambient table. Both sides low points at undercharge; both high points at overcharge or heat rejection; low side high with high side low points at the compressor.
  4. Check the air delta across the evaporator — inlet air versus outlet air temperature. Good refrigerant-side numbers with a small air delta means air is bypassing or blending wrong — blend door territory, not a gauge problem.
  5. Whatever you find, write ambient, humidity, vent temp, and both pressures on the repair order before repairs. The same measurements repeated after the fix are your proof it worked.
⚠️ Comeback killers
  • Adding refrigerant to a 'not cold enough' complaint before measuring anything. Half the time the refrigerant side is fine, and the other half you no longer know what the original charge was — one unknown just became two.
  • Trusting pressures alone on a TXV system. The valve masks charge errors across a wide range, so pressures look normal from moderately undercharged to overcharged — only superheat and subcooling tell you where the charge actually is.
  • Condemning the compressor for extreme high-side pressure. Head pressure at 400-500 psi is nearly always the condenser's problem — dead fan, blocked fins, or overcharge. The compressor is the victim, not the cause.
  • Forgetting that refrigerant does not wear out. A low system leaked, full stop — recharging without leak-checking just schedules the comeback.
🔧 Shop tip Write the ambient temperature, humidity, vent temperature, and both gauge pressures on the repair order before you touch anything. That baseline proves your diagnosis, proves your fix, and settles any comeback dispute.
✅ Check yourself
90°F day, vents at 60°F, low side 55 psi, high side 190 psi. What direction does this point?

The low side is well above the healthy 35-45 psi band while the high side sits at the low end — the evaporator is running too warm because the compressor is not pulling the low side down. Suspects are a weak compressor, a variable-displacement control valve stuck at minimum, or a TXV overfeeding. Verify clutch and valve operation and check superheat before condemning parts.

A system cools well for 15 minutes, then goes warm, and works again after sitting an hour. What is the failure and the correct fix?

Moisture. Water freezes at the expansion device as the system runs cold, ice blocks flow, then melts while the car sits — so the problem cycles with drive time. The fix is recovery, a new drier or accumulator, a deep vacuum of 45 minutes or more to boil the water out, and a fresh weighed charge. More refrigerant fixes nothing.

Why measure both ambient temperature AND humidity before judging a vent-temperature reading?

Humid air carries latent heat — the evaporator spends capacity condensing water before it can drop the air temperature. A 55°F vent on a 95°F swamp-humid day may be a healthy system, while the same reading on a dry 75°F day is a fault. Without both numbers the vent temp is uninterpretable.

Climate Control (HVAC / A/C) training photo

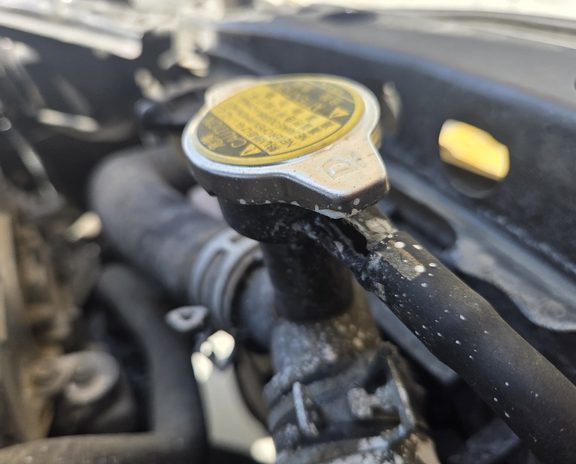

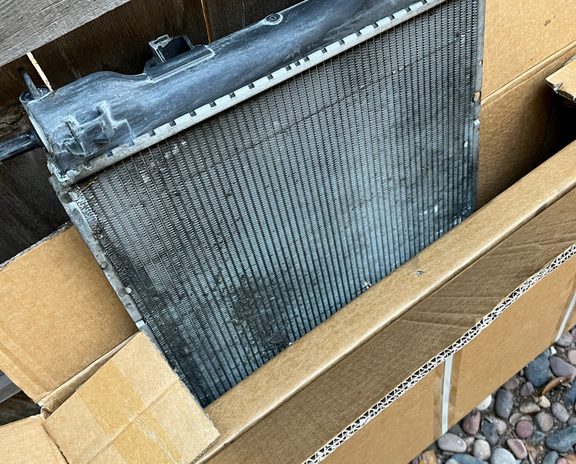

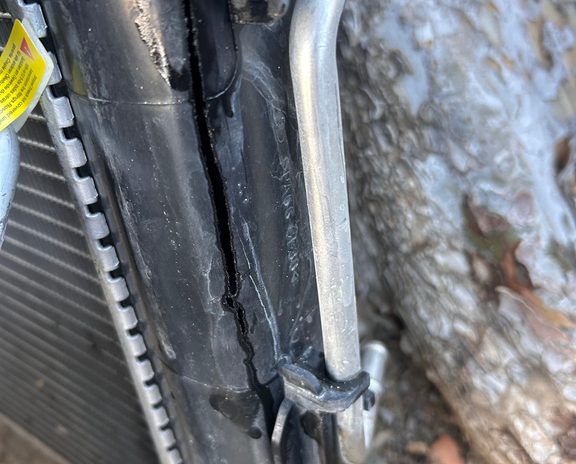

Radiator cap and upper hose, pressure test before parts.

Service

7 concepts

A/C service work is precision work.

At a glance — know these cold
  • Deep vacuum for 30+ minutes boils water. Close the isolation valve and confirm the vacuum holds (no rise) to prove there's no leak before charging.
  • Modern systems have small charges and narrow tolerances. Always charge by weight per spec — 'til it blows cold' overcharges or undercharges the system.
  • PAG is common for R-134a and R-1234yf; POE is used with some retrofits and hybrid/electric vehicles (non-conductive). Always use manufacturer-specified oil.
  • A/C oil circulates with refrigerant. Too little = compressor wear. Too much = reduced heat transfer, potential compressor damage.
  • Sitting can settle oil in low points. After service, running at moderate RPM with A/C on redistributes oil through the system, minimizing compressor wear.
  • Fittings and internal seals differ. Cross-use with residual refrigerant contaminates. Modern shops usually run separate gauge sets or use dedicated recovery machines.
  • SAE standards specify recovery efficiency and oil separation. Uncertified machines may not comply with EPA rules or damage the refrigerant purity.

Modern systems hold small charges with narrow tolerances, and the difference between a system that blows cold for years and one that comes back in a month is almost always procedure: how deep you evacuate, how accurately you charge, and whether the oil is right.

Evacuation: Boiling the Water Out

Any time a system has been opened or recovered, it must be evacuated with a vacuum pump before recharging. The vacuum is not just removing air — it is boiling off moisture. Water boils at room temperature under deep vacuum, and pulling the system down to 500 microns or lower for at least 30 minutes gives trapped moisture time to vaporize and get pumped out. Five minutes of vacuum, or quitting as soon as the gauge needle settles, leaves water behind that will freeze at the expansion device and form acid.

The evacuation ends with a hold test: close the isolation valve on your manifold or machine and watch the vacuum. If it holds without rising, the system is tight and dry. If the vacuum decays, there is either a leak pulling in air or moisture still boiling off — either way, you are not ready to charge. Proving the hold before charging is what separates a professional evacuation from wasted refrigerant.

For systems with confirmed moisture contamination, extend the vacuum well beyond the minimum — 45 minutes or more — and replace the desiccant.

Charging by Weight

After evacuation, refrigerant goes in by exact weight per the manufacturer's specification — found on the underhood label or in service data. Modern systems hold small charges, often under a pound and a half, with tolerances of an ounce or two. Charging until the vents blow cold, or until the high side hits some pressure you like, is guesswork that reliably produces an overcharged or undercharged system: both hurt performance and an overcharge stresses the compressor. Use a charging machine or scale, dial in the spec, and let the weight decide when you are done.

Oil: Type and Quantity Both Matter

Refrigerant oil circulates with the refrigerant, so the compressor's lubrication depends on the whole system. Two families dominate: PAG oil is the common choice for R-134a and R-1234yf systems, while POE (ester) oil is used in some retrofits and in hybrid and electric vehicles, where its non-conductive nature matters for high-voltage electric compressors. The correct oil for any job depends on the compressor manufacturer and the refrigerant type specified for that vehicle — never preference, price, or season. Look it up every time.

Quantity is just as critical as type, which is why oil balance matters when replacing components. Each component that comes out of the system takes some oil with it, and service data tells you how much to add back with each new part. Too little oil starves the compressor and wears it out. Too much oil coats the heat-exchanger surfaces, reducing heat transfer and cooling capacity, and in extreme cases the incompressible liquid can hydro-lock and damage the compressor.

Equipment Standards and Good Habits

Your recovery machine must be certified to SAE J2788 for R-134a or SAE J2843 for R-1234yf. These standards guarantee the machine recovers at least 95 percent of the system's refrigerant and separates oil correctly — requirements tied directly to EPA compliance. An uncertified machine may leave refrigerant in the system, contaminate refrigerant purity, or put the shop out of compliance.

Manifold gauge sets are refrigerant-specific for the same reason. R-134a and R-1234yf use different fittings and different internal seals, and residual refrigerant in a shared set cross-contaminates whatever you connect to next. Run separate dedicated gauge sets — or dedicated recovery machines — for each refrigerant.

Finally, think about oil distribution on vehicles that have been sitting. When a car sits for months, oil settles into low points in the lines and heat exchangers. Service the system normally — recover, evacuate, and charge by weight — then run the compressor with the A/C on at a moderate 1500 to 2000 RPM for a few minutes. That circulates and redistributes the oil through the system so the compressor is not running dry on its first hard use.

📋 Evacuation and charging standards
ItemStandardWhy it matters
Evacuation depth500 microns or lower, measured at the vehicleDeep vacuum boils moisture out at shop temperature
Minimum evacuation time30 min; 45-60 min if moisture is suspectedWater needs time to vaporize and be pumped out
Vacuum hold testIsolate and watch ~10 min with minimal riseSteady climb = leak; rise that levels off = moisture still boiling
Charge accuracyWithin about 0.5 oz (15 g) of the label specModern charges are small — often under 1.5 lb — so ounces matter
Oil balanceAdd per-component amounts from service dataTypical: condenser ~1 oz, evaporator ~2 oz, drier/accumulator ~1-2 oz
Post-service run-in1,500-2,000 RPM with A/C on for several minutesCirculates and redistributes oil before the first hard use

Charge weight and oil quantities are vehicle-specific — the underhood label and service data always override typical values.

🔩 Evacuate-and-hold leak verification
  1. Connect the micron gauge at the vehicle's service port, not at the pump. The pump can read a beautiful vacuum while a restrictive hose leaves the system barely evacuated — you want the truth at the system.
  2. Pull the system to 500 microns or lower and keep pulling for at least 30 minutes. A gauge that stalls in the thousands and refuses to drop usually means moisture is still boiling off — stay on it.
  3. Close the isolation valve and watch the gauge for 10 minutes. Holding steady means the system is tight and dry — go to charging.
  4. If the vacuum rises and keeps rising without leveling, air is entering: there is a leak. Stop, pressurize with regulated dry nitrogen, and find it — charging now just donates refrigerant to the atmosphere.
  5. If it rises but plateaus, moisture is still outgassing. Reopen the valve, continue evacuating, and recheck the hold until it stays flat.
  6. Charge by weight to the label spec with a scale or charging machine. When the weight is in, you are done — do not keep adding because the vents 'could be colder.'
⚠️ Comeback killers
  • Quitting the vacuum as soon as the gauge needle settles. Five minutes removes air but not water — moisture left behind freezes at the expansion device and brews acid. Depth and time both matter.
  • Charging to 'cold vents' or a pressure you like instead of weighing it in. Overcharge and undercharge both degrade cooling, and an overcharge stresses the compressor. The label weight is the only spec.
  • Ignoring oil balance during component replacement. Every part removed took oil with it; skipping the add-back starves the compressor, while a 'safe extra ounce or two' coats the heat exchangers and cuts capacity.
  • Sharing one gauge set between R-134a and R-1234yf jobs with adapters. Residual refrigerant and oil in the hoses cross-contaminates every system the set touches next.
🔧 Shop tip Buy a micron gauge and put it at the system, not at the pump. A pump can pull a beautiful vacuum at its own inlet while a restrictive service hose leaves the system barely evacuated — the micron gauge at the vehicle tells you the truth.
✅ Check yourself
Your vacuum pulls to 800 microns and stalls, then on the hold test rises to 1,500 and levels off. Leak or moisture?

Moisture. A leak climbs continuously because the atmosphere never runs out; moisture outgassing raises pressure until the vapor equalizes, then plateaus. Keep evacuating — and if it drags on forever, replace the desiccant and consider a dry-nitrogen sweep to help carry the water out.

Why is charging by weight non-negotiable on modern systems when older techs charged by sight glass and feel?

Old systems held three or four pounds of refrigerant and tolerated slop. Modern systems hold 14-24 ounces with tolerances of an ounce or two, so techniques that worked on big charges now produce meaningful over- or undercharges. The small charge also means every ounce lost to sloppy hose handling matters.

You replaced a condenser and drier; the compressor was untouched. Do you add oil, and how much?

Yes — each removed component leaves with the oil that was circulating in it. Service data lists per-component amounts, typically about an ounce for a condenser and one to two for a drier. Skipping it under-oils the compressor; guessing high hurts heat transfer. Look it up and measure.

Climate Control (HVAC / A/C) training photo

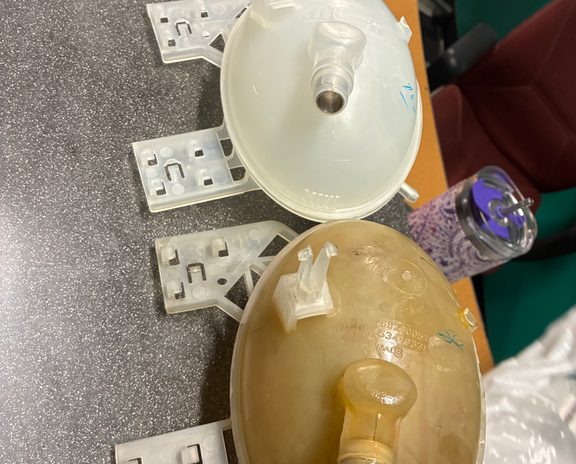

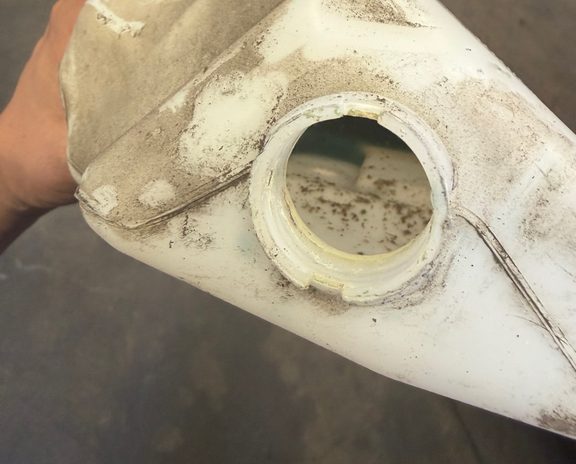

Old and new coolant reservoirs side by side, one look tells the story.

Leak Detection

2 concepts

Refrigerant does not evaporate into thin air legally — if a system is low, it leaked, and your job is to find where.

At a glance — know these cold
  • UV dye or a certified electronic detector finds most leaks. R-1234yf detectors must meet SAE J2913 or J2791 specs and are more sensitive than older units.
  • Dry nitrogen is inert, dry, and safe. Shop air introduces moisture. Oxygen mixed with A/C oil can explode. Never use anything but nitrogen for leak testing.

Leak detection is a skill of method and equipment, and the shortcuts people take here are some of the most dangerous mistakes in the trade.

Finding Leaks the Right Way

For small refrigerant leaks, the reliable tools are UV dye and electronic leak detectors — soap bubbles and visual inspection alone miss the small, slow leaks that cause most comebacks. UV dye circulates with the refrigerant and glows under a UV lamp wherever it seeps out, leaving a permanent witness mark at the leak point. Electronic sniffers detect refrigerant gas directly. For R-1234yf systems, the detector must be certified to SAE J2791 or J2913 specifications — these units are more sensitive than the older R-134a-era detectors, and yf's different chemistry demands it. Work the detector slowly along the low points of lines and connections, since refrigerant is heavier than air.

When a system is too empty to leak-test with refrigerant, or when UV inspection turns up nothing, pressurize the system with dry nitrogen and listen, soap, or gauge-watch for the loss. Nitrogen is inert, bone dry, and safe at test pressures. Never substitute shop air — it pumps moisture straight into the system you are trying to keep dry. And never, under any circumstances, use oxygen: oxygen in contact with A/C compressor oil can explode. Dry nitrogen is the only acceptable pressurizing gas for A/C leak testing.

📋 Leak detection tools and standards
MethodStandard / specBest use
Electronic detector, R-134aSAE J2791 certifiedSmall active leaks; probe low points slowly — refrigerant sinks
Electronic detector, R-1234yfSAE J2913 certifiedRequired sensitivity for yf; older detectors can miss it
UV dyeAbout 1/4 oz of refrigerant-safe dye per systemSlow seepers; leaves a permanent witness mark at the leak
Dry nitrogen pressure testTypically 100-150 psi through a regulator; never exceed the low-side ratingEmpty systems; listen, soap, and watch the gauge over time
Never useShop air or oxygenShop air injects moisture; oxygen plus refrigerant oil can explode

Nitrogen cylinders run over 2,000 psi — always work through a regulator, and confirm the system's low-side pressure rating before testing.

🔩 Leak-finding ladder on a low system
  1. Confirm the system is genuinely low with gauges and note how low. The loss rate frames the search: a system empty in a week has a leak you can hear; one that took three summers needs dye patience.
  2. Sweep with a UV lamp first — every joint, the condenser face, the compressor shaft-seal area, and the evaporator drain. If dye was in the system, the leak is already marked and you are done in minutes.
  3. Sniff with the electronic detector along the bottom of every fitting and component, moving about an inch per second. Refrigerant is heavier than air, so probe below joints, and check the evaporator by sampling at the condensate drain with the blower off.
  4. If there is no hit and the system is too empty to sniff, recover what is left and pressurize with regulated dry nitrogen to 100-150 psi. Listen, soap suspect joints, and watch the gauge over time — a held pressure is also your post-repair proof.
  5. After the repair, evacuate, recharge with dye added, and recheck the repair point with the sniffer. That proves the leak you fixed is fixed, and the dye stands watch for the one you have not met yet.
⚠️ Comeback killers
  • Recharging a low system without finding the leak. Refrigerant does not wear out or seep through intact walls — it left through a hole that is still there, and the customer comes back in a month having paid twice.
  • Pressure-testing with shop air. Compressed shop air is loaded with moisture — you just injected the one contaminant the entire drying system exists to keep out. Dry nitrogen only.
  • Using oxygen for a leak test because the bottle was handy. Oxygen in contact with compressor oil can explode. This is not a judgment call; it is a hard never.
  • Sniffing fast and over the top of fittings. Detectors need slow probe movement, and refrigerant sinks below joints — a quick pass across the top misses exactly the leaks you were sent to find.
🔧 Shop tip Add UV dye as standard practice on every recharge. It costs pennies, and when the car returns months later you find the leak in two minutes with a UV light instead of an hour with a sniffer.
✅ Check yourself
The sniffer alarms at the evaporator condensate drain but everything under the hood is clean. What does that tell you?

The evaporator core is leaking inside the HVAC case. Refrigerant escaping the core pools in the case and exits through the drain, which is why the drain is the standard sampling point. Confirm with dye traces in the drain water or a borescope before quoting — evaporator replacement is usually a dash-out job.

Why do R-1234yf systems require a J2913-rated detector instead of the older R-134a unit on the shelf?

The yf chemistry responds differently and the standard demands higher sensitivity than the R-134a-era spec. An outdated detector can pass a leaking yf system — and with a mildly flammable A2L refrigerant, a missed leak carries a safety dimension R-134a never had.

A nitrogen test holds rock-steady for 30 minutes, but the customer's system arrived empty. What next?

A static nitrogen test does not stress everything. Some leaks only open under operating temperature, vibration, or rotation — a compressor shaft seal that seeps while spinning is the classic. Charge with refrigerant and dye, run the system through real heat cycles, and recheck; some leaks only exist on a hot, vibrating engine.

Climate Control (HVAC / A/C) training photo

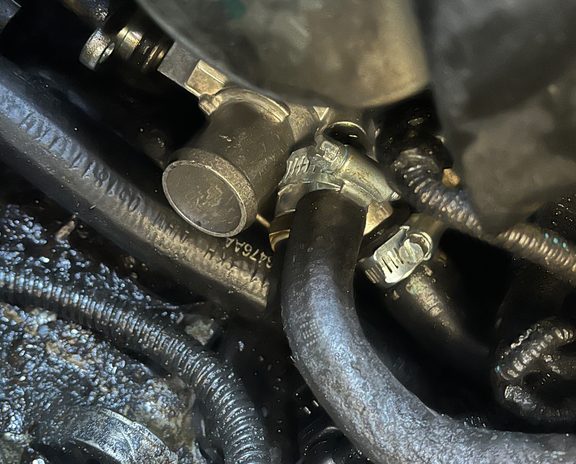

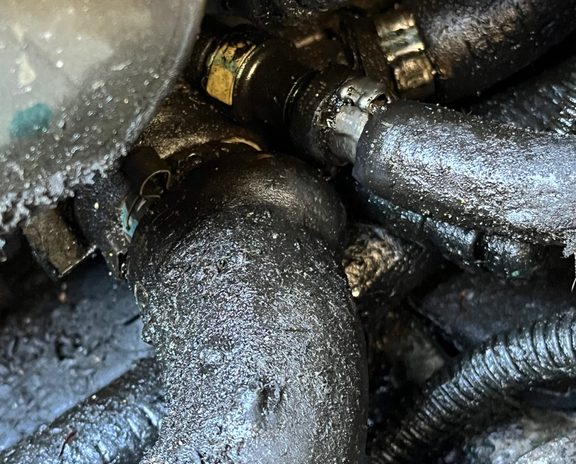

Fittings and clamps checked for seepage before they strand anyone.

Compressor

3 concepts

The compressor is the heart of the system and the most expensive component in it, so compressor diagnosis carries the highest stakes on the A/C bench.

At a glance — know these cold
  • Short cycling is often the low-pressure switch opening to protect the compressor when refrigerant charge drops. Leak-test and recharge, or replace the switch if faulty.
  • Modern variable-displacement compressors run continuously and modulate output. Failure of the control valve causes constant maximum or minimum displacement.
  • Metal debris = compressor breaking apart internally. Full system flush, drier/accumulator/orifice/TXV replacement, and often condenser replacement are needed to prevent immediate re-failure.

Knowing how modern compressors are controlled — and what compressor death looks like — keeps you from replacing one twice.

Clutch Cycling and Modern Compressor Control

A clutch that engages briefly, disengages, and repeats — short cycling — is usually not a compressor problem at all. Most often it is the low-pressure switch doing its job: when refrigerant charge drops, low-side pressure falls below the switch's threshold and it opens to protect the compressor from running without oil-carrying refrigerant. The fix path is to leak-test and recharge the system; if pressures check out fine, then suspect and replace a faulty pressure switch. Either way, do not condemn the compressor for cycling that a five-dollar pressure reading would explain.

Many modern vehicles have moved past the simple cycling clutch to variable-displacement compressors. These run continuously and modulate their pumping output through an internal control valve that adjusts displacement to match system demand — on most current designs the valve is driven electronically by an ECU signal. When that control valve fails, the compressor gets stuck at one extreme: constant maximum displacement (vents freezing, evaporator icing) or constant minimum displacement (barely any cooling). If a variable-displacement system cools poorly but the compressor spins and the charge is correct, the control valve belongs on your suspect list.

When the Compressor Dies: Debris Contamination

Internal compressor failure does not stay inside the compressor. As pistons, bearings, or swash plates break down, the compressor pumps metal debris throughout the entire refrigerant circuit. The tell is metal debris caught in the receiver-drier or accumulator inlet screen — find glitter there and you are looking at a compressor coming apart internally, not a normal condition and not a problem isolated to one valve or heat exchanger.

The repair is a full decontamination, and cutting corners here guarantees a repeat failure. The system must be completely flushed, and the components that trap debris must be replaced: the drier or accumulator, the orifice tube or TXV, and very often the condenser, because modern multi-flow condensers have passages too small to flush clean — debris hides there and destroys the new compressor within weeks. Install the new compressor with the correct oil charge, a new drier, and an inline filter if specified, or plan on doing the whole job again under warranty.

📋 Compressor and clutch reference
ItemTypical specNotes
Clutch air gap0.014-0.026 in (0.35-0.65 mm)Excessive gap shows up as no engagement when hot or engagement slap
Clutch coil resistance3-5 ohms at room temperatureOpen coil = no engagement; shorted coil pops fuses
Clutch coil current draw2-4.5 A at 12-14 VVerify supply voltage at the coil, not just at the relay
Healthy pressure spreadLow side 25-45 psi; high side roughly 2.2-2.5 x ambient °FA narrow low-to-high spread means the compressor is not pumping
Low-pressure cutoutOpens around 20-25 psiProtects the compressor from running without oil-carrying charge
High-pressure cutoutRoughly 350-450 psiRepeated trips point at condenser airflow or overcharge, not the compressor

Air gap, coil values, and switch thresholds vary by design — verify against the compressor manufacturer's data before condemning parts.

🔩 Condemning a compressor the right way
  1. Verify the clutch actually engages: command A/C on and watch the hub. No engagement means diagnose the control side first — pressure switch data, relay, fuse, coil — because a compressor that is never driven looks internally dead on gauges.
  2. With the clutch engaged and charge verified, read both gauges. A wide low-to-high spread inside the ambient bands says the pump is pumping; a narrow spread — say 60 psi low, 120 psi high — is genuine internal weakness.
  3. On a variable-displacement compressor, confirm the control valve is being commanded and responding before blaming the mechanism. Stuck at minimum displacement mimics a dead compressor; stuck at maximum ices the evaporator.
  4. Cut open the old drier or pull the orifice tube screen and look. A clean screen means a straight swap will live; metal glitter means the failure went system-wide, and the quote must include flushing plus the drier, metering device, and usually the condenser.
  5. After replacement, oil-balance per service data, evacuate, charge by weight, and run at moderate RPM for several minutes to distribute oil before any hard use. Skipping the run-in kills fresh compressors.
⚠️ Comeback killers
  • Replacing a compressor for short-cycling. Rapid clutch cycling is almost always the low-pressure switch protecting the compressor from a low charge — leak-check first and you save the customer a four-figure repair.
  • Installing a new compressor into an unflushed system after a debris failure. Modern multi-flow condensers cannot be flushed clean; leftover glitter takes out the new compressor in weeks, and the warranty claim lands on you.
  • Condemning the compressor while the belt slips or the clutch coil is dead. On gauges, a compressor that is not being driven is indistinguishable from one that is broken inside — verify drive before verdict.
🔧 Shop tip Before replacing any compressor, cut open the old drier or check the orifice tube screen. If it is clean, a simple swap will live; if it is full of metal, quote the full flush-and-replace job up front instead of eating a comeback.
✅ Check yourself
A clutch engages for two seconds, drops out, and repeats endlessly. The customer swears the compressor is grinding itself to death. Most likely cause?

A low refrigerant charge. As the compressor pumps, low-side pressure falls below the cutout threshold, the switch opens to protect it, pressures equalize, and the cycle repeats. Leak-check and recharge; only if pressures are healthy do you suspect the switch itself. The compressor is usually the healthiest part in this story.

A variable-displacement system blows barely-cool air. Charge is correct and the compressor turns with the engine. Where do you look?

The displacement control valve. These compressors run continuously and modulate output through an ECU-driven valve — stuck at minimum displacement, the compressor spins while pumping almost nothing. Check the command signal and the valve's response before assuming mechanical failure.

Why does a metal-contaminated system usually need a new condenser even though the condenser still 'works'?

Modern multi-flow condensers use passages too small to flush reliably. Debris lodges there, survives the flush, and washes back out once the new compressor starts moving refrigerant — then grinds through it within weeks. That is why reputable compressor warranties require condenser replacement on debris failures.

Climate Control (HVAC / A/C) training photo

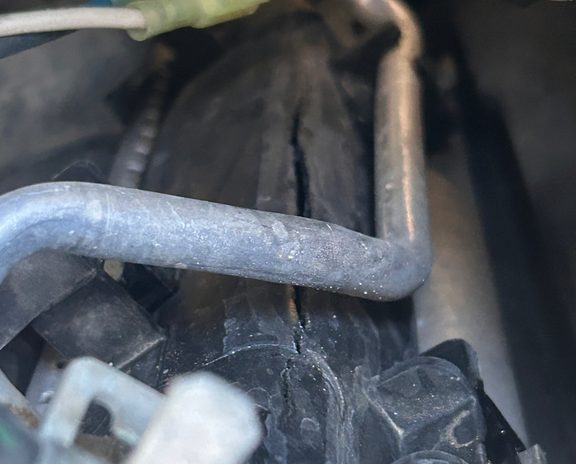

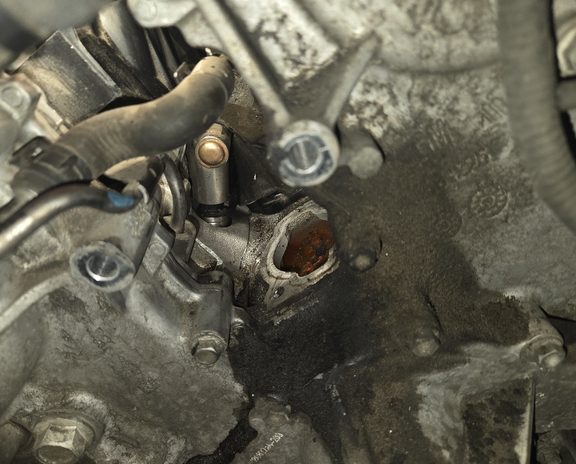

Compressor fittings and lines, oil residue marks the leak.

Heater

2 concepts

The heating half of HVAC runs on engine coolant, not refrigerant, and it generates its own family of complaints.

At a glance — know these cold
  • Leaking heater cores produce sweet-smelling condensation (ethylene glycol) on windows and slow coolant loss. Confirmed by pressure test and dye or visual inspection.
  • Multiple causes: low coolant, air pocket, restricted heater core, stuck-open thermostat causing under-warm coolant, or a blend door not directing air through the heater core.

Heater diagnosis is mostly about coolant flow, coolant temperature, and air routing — and a leaking heater core has a signature you will learn to recognize from the driver's seat.

Heater Core Leaks and Weak Heat

The heater core is a small coolant-to-air heat exchanger inside the HVAC case. When it leaks, coolant escapes into the passenger compartment, and the symptoms are distinctive: a sweet smell inside the cabin (ethylene glycol), windows that fog with an oily film, and a coolant level that drops slowly with no puddle outside. Sometimes carpet on the passenger side gets damp with coolant. Confirm the diagnosis with a cooling-system pressure test and dye or direct visual inspection before quoting the job, because heater core replacement usually means major dash disassembly.

Weak heat output has multiple possible causes, and good diagnosis means checking them in order rather than fixating on one. Low coolant level or an air pocket in the system starves the heater core of hot coolant. A restricted heater core — clogged internally with scale or sediment — passes too little flow; compare inlet and outlet hose temperatures to catch it. A thermostat stuck open never lets the engine reach full operating temperature, so the coolant reaching the core is simply not hot enough — watch the coolant temperature gauge or scan data. And a blend door problem can leave the airflow bypassing a perfectly good heater core entirely. Coolant supply, coolant temperature, core flow, and air routing: check all four before replacing anything.

📋 Heater performance reference
ItemTypical specWhat deviation means
Engine operating temperature195-220°FCoolant below spec = thermostat stuck open, weak heat everywhere
Thermostat rating180-195°F typicalVerify the correct rating went in — a low-temp stat guts the heater
Heater hose feelBoth hot, outlet slightly cooler than inletInlet hot with a cool outlet = restricted core
Full-hot vent outputRoughly 130-155°FWarm-not-hot with good coolant temp = flow restriction or blend door
Coolant level and airFull, no trapped airHeat that comes and goes on hills or turns = air pocket in the system

Vent output varies with blower speed and ambient — judge hose feel and trends together, and verify exact figures in service data.

🔩 Weak-heat diagnosis in order
  1. Verify coolant level and condition cold, then warm the engine and watch actual coolant temperature on scan data. Below about 195°F at full warm-up points at the thermostat — no heater repair fixes coolant that is not hot.
  2. Feel both heater hoses at operating temperature. Both hot means supply and flow are good; inlet hot with a cool outlet means a restricted core — quote a back-flush before a dash-out replacement.
  3. With coolant temperature and flow verified, set full hot and measure vent temperature. Well below expected output now means the air side: blend door position, actuator operation, or air bypassing the core.
  4. Command the blend door through its range, listen for actuator response, and scan the HVAC module for codes on ATC vehicles. The module often names the failed door circuit for you.
  5. If everything above passes and heat is still weak, bleed the cooling system per the vehicle's procedure to rule out an air pocket — some heater cores sit high in the circuit and trap air routinely after coolant work.
⚠️ Comeback killers
  • Replacing a heater core for weak heat without checking coolant temperature first. A thermostat stuck open makes a perfect core deliver lukewarm air — and the thermostat costs a tenth as much.
  • Missing the air-pocket case after cooling-system work. A core mounted high in the circuit collects air, and heat that faded right after a water pump or radiator job is trapped air until proven otherwise — bleed it before diagnosing anything.
  • Confusing a plugged condensate drain (plain water in the footwell) with a heater core leak (sweet-smelling, slimy coolant and oily window film). One is a two-minute fix; the other is dash-out surgery. Smell and touch before you quote.
🔧 Shop tip A quick heater core flow check: with the engine warm, feel both heater hoses. Both hot means good flow; inlet hot and outlet cool means a restricted core — and a back-flush may save the customer a dash-out core replacement.
✅ Check yourself
A customer reports weak heat and windows that fog with an oily film. What is your leading diagnosis before touching a tool?

A leaking heater core. Coolant escaping into the HVAC case atomizes into the airstream — sweet ethylene-glycol smell, filmy windows, a slowly dropping reservoir with no external puddle, sometimes damp passenger carpet. Confirm with a cooling-system pressure test before quoting, because the repair usually means major dash disassembly.

Both heater hoses are hot, coolant temp is 205°F, but the vents blow barely warm. Where is the fault?

The air side. Hot coolant is reaching and flowing through the core, so the problem is air routing: a blend door not reaching hot, a failed actuator, or airflow bypassing the core inside the case. Scan the HVAC module for door-position codes and watch commanded versus actual actuator data.

Why does a thermostat stuck open show up as a heater complaint before an engine complaint?

The engine still runs acceptably a little cool — drivers rarely watch the gauge, and the fuel-mileage penalty is subtle. But the heater core can only deliver the temperature the coolant brings it, so 160°F coolant means lukewarm vents on a cold morning. The heater is the sensitive instrument that exposes the stat.

Climate Control (HVAC / A/C) training photo

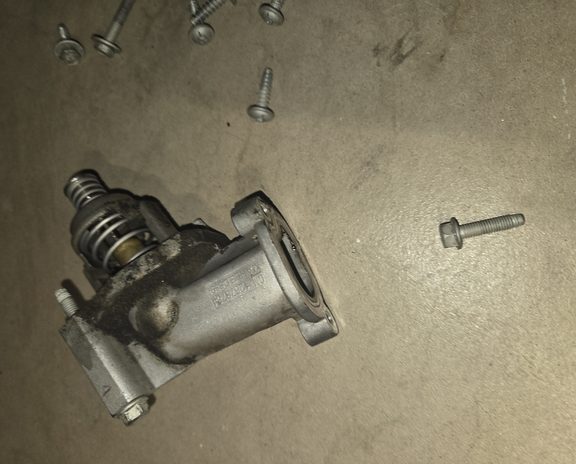

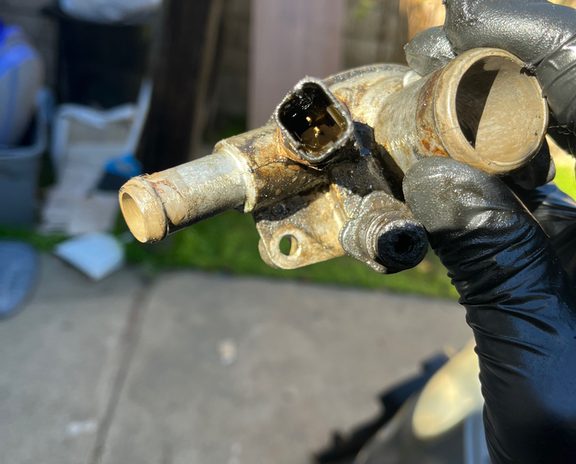

Thermostat housing in hand, the small part behind half of all overheating calls.

Blend Doors

2 concepts

Blend doors are the small plastic flaps inside the HVAC case that mix hot and cold air and route it to the right vents.

At a glance — know these cold
  • Blend door actuators drive plastic doors. Broken doors, stripped gears, or failed actuators cause temperature control failure and diagnostic codes on ATC systems.
  • Clicking from behind the dash correlated with temperature changes is classic stripped-actuator failure. Replace the actuator; check that the door itself is free.

They are cheap parts in an expensive location, and their failures cause some of the most common temperature-control complaints on modern vehicles.

How Blend Door Failures Present

On an automatic climate control system, blend doors are driven by small electric actuator motors turning plastic doors through plastic gear sets. When a door sticks or an actuator fails, the system loses temperature control: you get hot air when the system is calling for cold, or cold air when it is calling for heat, and on ATC systems the control module usually notices the actuator did not reach its commanded position and sets a diagnostic trouble code. So a temperature complaint on an ATC car should always include a code scan of the HVAC module — the system will often tell you which door circuit failed. Broken doors, stripped actuator gears, and failed actuator motors are the three usual culprits.

The classic audible symptom is a clicking or ticking noise from behind the dash that starts or changes when the temperature setting is adjusted. That is a blend door actuator with stripped gears ratcheting against a door it cannot move — the motor turns, the stripped teeth skip, and it clicks. The repair is to replace the actuator, but always verify the door itself moves freely by hand first: if the door is seized or broken, a new actuator will strip its gears the same way within days.

📋 Blend door actuator behavior
SymptomLikely causeConfirmation
Clicking behind the dash on temp changeStripped actuator gears ratchetingRemove the actuator and verify the door moves freely by hand
Stuck full hot or full coldFailed actuator motor or broken doorCommand a sweep with the scan tool and watch for movement
Temperature response reversed or offsetActuator installed out of calibrationRun the HVAC module's relearn/calibration procedure
One zone wrong temp (dual-zone)That zone's blend actuator or doorCompare left/right commanded versus actual position data
Position data frozenFailed feedback sensor in the actuatorFeedback pot should sweep roughly 0.5-4.5 V through full travel

Actuator designs vary — feedback-potentiometer, calibrated stepper, and LIN-bus types all behave differently on the scan tool. Identify the design before trusting position data.

🔩 Isolating a blend door fault
  1. Scan the HVAC module for codes first. ATC systems monitor commanded versus actual door position and usually name the failed circuit — five minutes at the scan tool beats an hour under the dash.
  2. Command the temperature from full cold to full hot and listen at the dash. A smooth motor whir with a real air-temperature change is a working door; clicking is stripped gears; silence with no temp change is a dead actuator, dead circuit, or seized door.
  3. Watch commanded versus actual position on the data list during the sweep. Actual tracking the command clears the actuator; actual frozen while the command moves isolates the fault to the actuator, its wiring, or the door itself.
  4. Pull the actuator and move the door by hand through its full travel. Free and smooth means the actuator was the failure; binding or broken means the door itself — and a new actuator on a seized door strips its gears within days.
  5. After replacement, run the module's calibration or relearn so it learns the door's travel stops, then verify full-cold and full-hot vent temperatures. Skipping the relearn parks doors in the wrong spot and faults new parts.
⚠️ Comeback killers
  • Replacing the actuator without hand-checking the door. If the door is seized or broken, the new actuator's plastic gears strip exactly like the old ones did — same click, same complaint, now on your dime.
  • Skipping the calibration after actuator replacement. Many modules must learn the door's end stops; without the relearn the new actuator can fault out or hold the door off-position, and the 'fixed' car still blows the wrong temperature.
  • Chasing a blend door for what is a refrigerant problem. If vent temperature is wrong in every mode and at every setting, baseline the A/C side first — the door only mixes what the evaporator and heater core give it.
🔧 Shop tip After replacing an actuator on many ATC systems, run the HVAC module's calibration or relearn procedure so it learns the door's travel stops — skip it and the new actuator can fault out or park the door in the wrong spot.
✅ Check yourself
A truck clicks from behind the glovebox whenever the passenger temperature is adjusted, and that side blows hot regardless of setting. Diagnosis and repair plan?

A stripped blend door actuator on the passenger zone — the motor turns, the stripped teeth skip, and it clicks against a door it cannot move. Confirm the door swings freely by hand, replace the actuator, then run the HVAC calibration so the module learns the travel stops.

Why do ATC systems set codes for blend door problems while manual systems just quietly blow the wrong temperature?

ATC actuators report position back to the module, which compares commanded to actual and flags a mismatch as a fault. Manual systems with cables or unmonitored motors have no feedback, so the failure is silent. That feedback loop is why a code scan is the first step on any ATC temperature complaint.

After an actuator replacement the system works, but full cold is not as cold as before. What was likely skipped?

The calibration relearn. Without learning the true end stops, the module stops the door short of full travel, so a slice of warm air keeps blending in at max cold. Run the relearn procedure and re-verify vent temperatures at both extremes.

Climate Control (HVAC / A/C) training photo

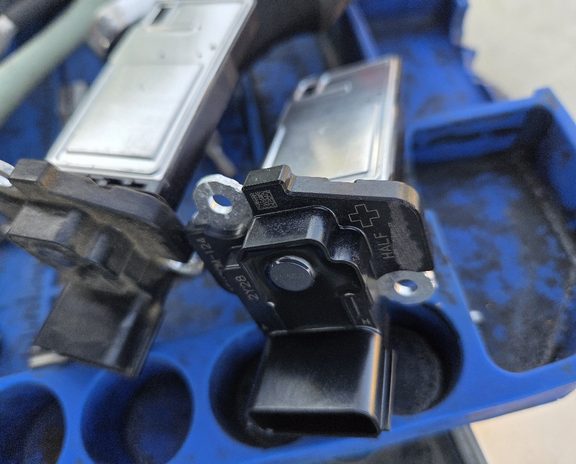

Blend door actuators in the tray, the click behind the dash.

Blower Motor

2 concepts

The blower motor moves every bit of air the HVAC system delivers.

At a glance — know these cold
  • Low speeds go through a resistor pack or PWM control module. High speed usually bypasses that circuit. Failure kills the low speeds only.
  • Wearing bearings or brushes increase current draw. Also, blocked evaporator/cabin filter or debris in the case can load the motor. Check airflow and current draw.

The blower motor moves every bit of air the HVAC system delivers, so blower faults show up as airflow complaints regardless of how healthy the refrigerant side is. The speed-control circuit fails in a very predictable pattern that you can diagnose from the symptom alone.

Speed Control Failures and Excessive Current Draw

A blower that works only on high speed is the classic resistor failure. The lower speeds are fed through a blower resistor pack — or on newer vehicles, a PWM blower control module — that drops voltage or chops the signal to slow the motor. High speed typically bypasses that circuit and feeds the motor full battery voltage directly. So when the resistor or module burns out, the low and medium speeds die while high still works. The motor itself is fine; replace the resistor or control module. As a side note, resistors often burn out because a dragging, high-current motor overheated them, so check the motor's condition when you replace one.

That leads to the second pattern: a blower motor drawing excessive amperage. Inside the motor, worn brushes and dry or failing bearings increase mechanical drag and electrical draw. Outside the motor, a restricted airflow path — a clogged cabin filter, a debris-packed evaporator, or leaves and trash in the HVAC case — loads the motor and forces it to work harder. Diagnose with a current-draw measurement and an airflow check together: high draw with a clear airflow path condemns the motor; high draw that normalizes when the filter comes out points to restriction.

📋 Blower circuit reference
ItemTypical valueNotes
High-speed current draw15-25 AMeasure at the motor feed and compare to the wiring-diagram spec
Dragging-motor tellDraw well above spec, slow spin-upHigh draw with a clear air path condemns the motor
Resistor-type controlLow speeds feed through the resistor pack; high bypasses itHigh-only operation = failed resistor, healthy motor
PWM module controlSpeeds set by duty cycle from the moduleErratic or single-speed behavior = module or its command signal
Feed-circuit voltage dropUnder about 0.5 V at full loadMelted connectors at the resistor or module are common failure points

Current specs vary by vehicle — the pattern (which speeds died, what the draw reads) matters more than any single number. Verify specs in service data.

🔩 Diagnosing a blower complaint
  1. Operate every speed and record which ones work. High-only points straight at the resistor or control module; nothing at all points at power, ground, relay, or the motor; intermittent operation that revives with a thump on the dash is usually worn brushes.
  2. Back-probe the motor feed and measure voltage at each speed. Full battery voltage with a dead motor condemns the motor; missing or low voltage sends you upstream to the resistor, module, relay, or connectors.
  3. Clamp an ammeter on the motor feed and read draw at high speed. At or near spec is a healthy motor; well above spec means drag — worn bearings, debris in the squirrel cage, or a restricted intake loading the fan.
  4. Pull the cabin filter and recheck the draw. Draw that falls back to normal means restriction was the load; draw still high with a clear path condemns the motor no matter how healthy it sounds today.
  5. When replacing a burned resistor or module, inspect its connector for melting and always measure motor draw. A tired motor pulling high current is what killed the resistor, and it will kill the next one on schedule.
⚠️ Comeback killers
  • Replacing a resistor pack without measuring motor current. Resistors usually die of heat from a dragging, high-draw motor — swap the resistor alone and the comeback is booked for next month.
  • Condemning the blower motor when only the low speeds are dead. High speed bypasses the resistor circuit, so a motor that runs on high is proven good — the failure is in the resistor, module, or their wiring.
  • Ignoring melted connectors at the resistor or module. High resistance at a burned terminal drops voltage, cooks the new part, and mimics motor failure — repair the terminal, not just the part it feeds.
🔧 Shop tip When a customer has burned through more than one blower resistor, put an ammeter on the blower before installing the next one — a tired motor pulling high current will keep killing resistors until someone measures it.
✅ Check yourself
The blower works only on speed 4 (high). Walk the logic.

High speed feeds the motor essentially direct battery voltage, bypassing the resistor pack or module that creates the lower speeds. High working proves the motor, main power, and ground. Dead low speeds mean the resistor pack or PWM module — and before installing the new one, measure motor current, because an over-amping motor is what burns resistors.

A new blower resistor lasted three weeks, and the motor 'sounds fine.' What did the first repair miss?

The current measurement. Worn bearings or brushes raise draw long before a motor sounds bad, and the resistor dissipates that extra current as heat until it burns open. Measure draw against spec; if it is high with a clear airflow path, the motor is the root cause and the resistor was only the symptom.

How does a clogged cabin filter shorten blower motor life?

The motor pulls air through a choked inlet, which loads it and raises current draw. More current means more heat in the motor and everything feeding it — brushes, bearings, resistor, and connectors all age faster. A ten-dollar filter neglected long enough takes out a whole parts chain.

Cabin Filter

1 concept

The cabin air filter is the cheapest part in the HVAC system and one of the most neglected.

At a glance — know these cold
  • Clogged cabin filters reduce airflow, strain the blower, and reduce cooling capacity. Follow the OEM schedule and inspect at every service.

A clogged filter quietly degrades everything downstream of it — airflow, cooling performance, and blower life — which is why it belongs in every service inspection.

Inspection and Replacement Intervals

Cabin filters should be inspected and replaced on the manufacturer's schedule, which typically falls between 15,000 and 30,000 miles — sooner in dusty regions or for vehicles parked under trees. Do not wait for a customer complaint: by the time the driver notices weak airflow or odors, the filter has been restricting the system for a long time.

A clogged cabin filter reduces airflow through the HVAC case, which cuts cooling capacity at the vents even when the refrigerant side is perfect, and it strains the blower motor by making it pull air through a choked inlet — raising current draw and shortening motor and resistor life. The habit that prevents all of this is simple: inspect the cabin filter at every service. It takes two minutes on most vehicles, and showing the customer a filter full of leaves sells the replacement honestly.

📋 Cabin filter service reference
ItemTypical guidanceNotes
Standard interval15,000-30,000 miles per the maker's scheduleVerify the vehicle's maintenance chart
Severe service10,000-15,000 milesDusty regions, dirt roads, parking under trees
Filter typesParticulate, activated carbon, fine-particleCarbon filters also help recurring odor complaints
Restriction symptomsWeak airflow at all speeds, noisy blower, musty smellA cooling complaint with healthy gauges — pull the filter first
Install orientationAirflow arrow per the housing markingBackwards install loads the wrong face and can shed debris downstream

Intervals are typical guidance — the manufacturer's schedule and local conditions govern.

🔩 The two-minute filter check that saves a misdiagnosis
  1. On any airflow or weak-cooling complaint, pull the cabin filter before connecting gauges. It is usually behind the glovebox and takes two minutes — and it has embarrassed more refrigerant diagnoses than any other part.
  2. Hold the filter up to light. Light passing through the pleats means serviceable; a gray mat, leaves, or rodent bedding means it was the restriction — and possibly the smell.
  3. Run the blower with the filter out and compare vent airflow. A dramatic improvement confirms the filter was choking the system; little change sends you deeper — evaporator face, case debris, or blower condition.
  4. Install the new filter with the airflow arrow matching the housing marking and note the mileage on the repair order. Orientation matters, and the recorded date sells the next replacement honestly.
  5. Show the customer the old filter. Nothing sells legitimate maintenance better than their own handful of leaves.
⚠️ Comeback killers
  • Quoting refrigerant diagnosis for weak cooling without pulling the filter. A plugged filter cuts airflow across the evaporator, so the vents blow weak-but-cold and the complaint reads like a charge problem. Filter first — it is the cheapest test in HVAC.
  • Waiting for a complaint instead of inspecting at every service. By the time the driver notices airflow loss, the filter has been loading the blower and cutting cooling capacity for months.
  • Ignoring what a long-plugged filter did downstream. It means a strained blower and often a damp, mold-prone case — check motor draw and consider an evaporator treatment while you are in there.
🔧 Shop tip Before condemning an A/C system for weak cooling, pull the cabin filter. A ten-dollar filter has embarrassed plenty of techs who quoted a refrigerant diagnosis for what was really a plugged pleated paper problem.
✅ Check yourself
A car has healthy gauge pressures and a cold evaporator, but weak, slightly-cool airflow at the vents. Where is the money?

Airflow, not refrigerant — and the cabin filter is suspect number one. The refrigerant side is making cold; the air side cannot move enough air across it. Pull the filter, then check the evaporator face and blower operation if the filter turns out clean.

Why does a plugged cabin filter shorten blower and resistor life?

The blower must pull air through a restriction, which raises its load and current draw. That extra current becomes heat in the motor, the resistor pack, and the connectors — so a neglected filter quietly ages the entire air-delivery chain.

When would you steer a customer toward a carbon filter instead of a plain particulate one?

Recurring odor complaints — exhaust smells in traffic, city smog, general mustiness. Activated carbon adsorbs odors and gases that a particulate filter passes straight through. If the smell is sour and biological rather than environmental, pair the filter with an evaporator antimicrobial treatment.

Electric Vehicle A/C

2 concepts

Electric and hybrid vehicles still need cold air, but the compressor that makes it is a fundamentally different animal.

At a glance — know these cold
  • BEV compressors are high-voltage (300-800 V). Servicing requires HV-rated PPE, de-energizing per manufacturer procedure, and non-conductive POE oil.
  • PAG oil is conductive and cannot be used in HV compressors. POE is the standard for hybrid and EV A/C systems.

Electric and hybrid vehicles still need cold air, but the compressor that makes it is a fundamentally different animal — a high-voltage electric machine instead of a belt-driven pump. That change brings new safety procedures and one absolutely unforgiving oil rule.

High-Voltage Compressors and the POE Oil Rule

On a battery-electric vehicle there is no engine belt, so the A/C compressor is driven by its own electric motor running on the high-voltage bus — typically 300 to 800 volts. That makes A/C service on a BEV a high-voltage job: you must wear HV-rated PPE and de-energize the high-voltage system per the manufacturer's procedure before opening anything connected to the compressor. Treat the orange cables with the respect they demand; the refrigerant circuit and the HV electrical system meet inside that compressor.

The oil rule follows directly from the electrical design. The compressor's motor windings are immersed in the refrigerant and oil, so the oil must be an electrical insulator. POE oil is non-conductive and is the standard for hybrid and EV A/C systems. PAG oil — the everyday choice for conventional R-134a and R-1234yf systems — is conductive, and even a small amount introduced into an HV compressor creates a short-circuit risk through the windings, potentially setting isolation faults, disabling the vehicle, or destroying the compressor. This is why cross-contamination matters at the equipment level too: a recovery machine or gauge set that has handled PAG-oiled systems can carry enough residual PAG to contaminate an EV system. Use dedicated equipment or machines rated for hybrid/EV service, and never let PAG near a high-voltage compressor.

📋 Hybrid/EV A/C service reference
ItemSpec / practiceWhy
Compressor drive voltageRoughly 200-800 V DC from the HV busA/C service is high-voltage service on these vehicles
PPEClass 0 insulated gloves (1,000 V) with leather protectors, inspected before each useGlove inspection catches the pinholes that kill
De-energizingFollow the OEM disable procedure and verify absence of voltageCapacitors hold charge — never trust the ignition switch alone
Compressor oilPOE only — non-conductivePAG is conductive; contamination risks isolation faults and shorts
EquipmentDedicated or hybrid-rated machine and hosesResidual PAG in shared hoses contaminates the EV system
Isolation testingInsulation-resistance test per OEM spec after repairsConfirms winding insulation before re-energizing

Voltage thresholds, lockout steps, and isolation specs are OEM-specific — the service procedure for the exact vehicle governs, every time.

🔩 Prepping an EV for compressor-circuit service
  1. Pull the OEM high-voltage disable procedure for the exact vehicle and follow it — service plug, HV disconnect, or scan-tool disable as specified. Every maker's sequence differs, and the sequence is the safety system.
  2. Wait the specified capacitor discharge time, then verify absence of voltage at the compressor connector with a properly rated meter and HV gloves on. Zero on the dash means nothing; zero on your meter is the fact that counts.
  3. Confirm your recovery equipment is hybrid/EV-rated or dedicated to POE systems. Check the machine's history — one that has run PAG-oiled systems can carry enough residue to contaminate the EV loop.
  4. Service the refrigerant side normally — recover, repair, oil-balance with the specified POE, evacuate, and weigh in the charge. The refrigeration physics did not change; the oil chemistry and the electrical hazard did.
  5. Before re-energizing, run the isolation-resistance test per the OEM spec. Passing values prove the windings and oil are electrically sound; a marginal reading found now is a warranty claim prevented.
⚠️ Comeback killers
  • Topping up an EV compressor circuit with PAG oil or using PAG-history equipment. PAG is conductive and the compressor's motor windings live in the oil — even small contamination can set isolation faults, disable the vehicle, or destroy the compressor.
  • Trusting ignition-off as de-energized. HV systems hold charge in capacitors and stay live at the battery; only the OEM disable procedure plus a verified zero-voltage measurement makes the circuit safe to open.
  • Using standard shop gloves for the job because 'it's just the A/C.' The compressor sits on the high-voltage bus — Class 0 gloves, inspected and in date, or the job does not start.
🔧 Shop tip Label your hoses and machines: one set for conventional PAG systems, a dedicated set for hybrid/EV POE systems. Residual PAG in a shared hose is invisible until the isolation-fault warning light comes on.
✅ Check yourself
Why can a few cc of PAG oil disable an entire electric vehicle?

The electric compressor's motor windings are immersed in the refrigerant-and-oil mix, so the oil must insulate. Conductive PAG creates a leakage path from the HV windings to the case; the vehicle's isolation monitoring sees the resistance drop and shuts the HV system down as a shock hazard. The 'A/C problem' becomes a no-drive condition.

What makes A/C work on a battery-electric vehicle a high-voltage job when the refrigerant side works the same in principle?

There is no belt — the compressor carries its own motor fed 200-800 volts from the traction bus, with orange cabling running to its housing. Opening that circuit, or working around it, falls under HV service rules: the OEM disable procedure, verified zero voltage, and HV-rated PPE.

A hybrid arrives after another shop's A/C service with an isolation fault and a dead HV compressor. Leading suspect?

Oil cross-contamination. If the previous shop used a PAG-history machine or added PAG, conductive oil is now in the windings. Verify with the OEM isolation test at the compressor; the fix typically means flushing per procedure or compressor replacement with the correct POE fill — using dedicated equipment this time.

Heat Pump

1 concept

Heating an EV is expensive — there is no hot engine to steal warmth from, and resistive heaters drain the battery fast.

At a glance — know these cold
  • Heat pumps move heat instead of generating it, using the refrigerant cycle in both directions. Much more efficient than resistive heating on EVs.

Heat pumps solve that problem by making the A/C system work in both directions, and they are becoming standard equipment on electric vehicles.

One Refrigerant Circuit, Two Jobs

A heat pump HVAC system uses the same refrigerant circuit for both cooling and heating by reversing or redirecting refrigerant flow through valves. In cooling mode it works like any A/C system, absorbing cabin heat at the interior heat exchanger and rejecting it outside. In heating mode the flow is redirected so the outside heat exchanger absorbs heat from ambient air — even cold air contains extractable heat — and the interior exchanger releases it into the cabin.

The reason EVs use heat pumps is efficiency: a heat pump moves heat rather than generating it, so it delivers far more cabin heat per watt of battery power than a resistive electric heater. That translates directly into winter driving range. For the technician, the practical difference is complexity — extra reversing and shutoff valves, multiple heat exchangers, and control logic that changes which lines are hot and which are cold depending on mode. Always identify what mode the system is in before interpreting pressures or line temperatures.

📋 Heat pump mode behavior
ModeOutside exchangerCabin exchangerField clue
CoolingCondenser — rejects heat, runs hotEvaporator — absorbs heat, runs coldWorks like conventional A/C
HeatingEvaporator — absorbs ambient heat, runs cold, may frostCondenser — releases heat, runs hotThe 'low side' and 'high side' roles swap
Dehumidify / defogVaries by designEvaporator dries the air; heat is added downstreamCompressor running in winter is by design
Frost-shed cycleBriefly warmed to melt frostHeat output dips momentarilyA normal event, not a fault

Valve arrangements and mode logic are highly design-specific — identify the commanded mode on the scan tool before interpreting any pressure or line temperature.

🔩 Reading a heat pump without fooling yourself
  1. Connect the scan tool before the gauges and identify the commanded mode — cooling, heating, dehumidify, or frost-shed. Every pressure and line temperature is meaningless until you know which direction the system is pumping heat.
  2. Map the active circuit from service data for that mode: which exchanger is condensing, which is evaporating, and which valves are open. These systems reroute through multiple shutoff and reversing valves, and the diagram for the wrong mode will mislead you completely.
  3. Verify with your hand or an infrared thermometer that each exchanger matches its commanded role — hot where heat should be rejected, cold where it should be absorbed. A valve stuck between modes shows up as an exchanger doing the wrong job.
  4. Compare compressor speed and pressures against expected values for that mode in service data. Heat pump compressors are usually electric and speed-controlled, so 'normal' is a moving target the data defines.
  5. If heating is weak in deep cold, check the outside exchanger for heavy frost and confirm the frost-shed strategy is cycling. Persistent thick frost kills heat absorption and is a system fault, not weather.
⚠️ Comeback killers
  • Assuming the suction line is the cold one like a conventional system. In heating mode the roles reverse — a hand on the wrong line, or gauges read with cooling-mode logic, sends the diagnosis backwards.
  • Condemning the system for frost on the outside heat exchanger in heating mode. Absorbing heat from cold air drives that exchanger below freezing; light frost with a working shed cycle is normal operation.
  • Diagnosing a heat pump on conventional A/C instincts without service data. Extra valves, mode-dependent flow paths, and variable-speed compressors mean the 'obvious' reading is often the wrong-mode reading.
🔧 Shop tip On a heat pump vehicle, never assume the 'low side' line is the cold one — in heating mode the roles swap. Check service data for the mode you are testing in before trusting your hand on a line.
✅ Check yourself
Why do EVs use heat pumps instead of a simple resistive heater?

A resistive heater converts battery energy to heat one-to-one at best. A heat pump moves existing heat from outside air into the cabin, delivering several times more heat per watt consumed. In winter that efficiency difference translates directly into driving range — the currency EVs care about most.

In heating mode, where does the cabin's warmth actually come from on a 30°F day?

From the outside air. Even cold air contains extractable thermal energy — the outside exchanger runs colder than ambient so heat flows into the refrigerant, the compressor raises its temperature, and the cabin exchanger releases it inside. The compressor's electrical energy adds some heat, but most of it is harvested, not generated.

A heat pump vehicle heats poorly only below freezing but works fine above. Reasonable suspects?

Check the outside exchanger for excessive frost and a failing frost-shed strategy first — frost insulates the exchanger exactly when heat is scarcest. Then verify refrigerant charge: heat pumps are charge-sensitive, and a marginal undercharge shows up first at the temperature extremes where capacity is already stretched.

Safety

3 concepts

A/C service puts you next to pressurized, extremely cold, and in modern systems mildly flammable chemicals.

At a glance — know these cold
  • R-1234yf ignites at concentrated leaks near hot surfaces or open flames. Ventilate and avoid ignition sources during service.
  • Liquid refrigerant evaporates at very low temperatures. Skin contact = frostbite instantly. Wear safety glasses and gloves during service.
  • Refrigerant in the eye can cause serious damage. Flush thoroughly and get medical attention — always wear eye protection during A/C service.

The injuries are instant — frostbite, eye damage, fire — and every one of them is prevented by habits that take seconds.

Flammability, Frostbite, and Eye Protection

R-1234yf is classified A2L — mildly flammable — and that classification has to change how you work. A concentrated refrigerant leak near an open flame or a hot surface can ignite. Keep torches, cigarettes, grinders, and anything else that sparks or glows away from an open yf system, ventilate the work area, and remember that hot exhaust components and heat guns count as ignition sources too. The risk is real fire risk, not merely an environmental or regulatory concern.

Every refrigerant, flammable or not, is a frostbite hazard. Liquid refrigerant escaping a fitting flash-evaporates at very low temperature, and skin contact causes instant frostbite — a cold burn that damages tissue on contact. Gloves and safety glasses are the minimum PPE for any A/C service, every time you connect or disconnect a hose or open a fitting.

The eyes are the highest-consequence target. Refrigerant sprayed into an eye can cause serious, potentially permanent damage. If it happens, flush the eye immediately with large amounts of water and get medical attention — do not wait to see if it feels better, and do not rely on rinsing alone as the end of treatment. The better answer is prevention: eye protection is non-negotiable during A/C work, especially when cracking fittings on a charged system.

📋 A/C hazard quick reference
HazardKey factProtection
FrostbiteEscaping liquid flashes to about -15°F (R-134a) or -22°F (R-1234yf)Gloves and glasses for every connection; crack fittings slowly
Eye exposureSpray can cause serious, potentially permanent damageSealed eye protection; flush immediately with water and get medical care
R-1234yf flammabilityA2L — ignitable near flames, sparks, and hot surfacesNo torches, smoking, or grinding near an open yf system; ventilate
PressureHigh side can exceed 300-400 psi hotRecover before opening; keep your face out of line with joints
DisplacementRefrigerant is heavier than air and pools lowVentilate pits and enclosed bays — it displaces oxygen at floor level

Minimum PPE for any refrigerant handling is gloves plus eye protection — no exceptions for 'quick' connections, which is when most exposures happen.

🔩 Opening a system without getting hurt
  1. Glasses and gloves on before the first hose touches a port. The highest-risk moment of the whole job is the first half-second of a connection or a cracked fitting — dress for it before it can happen.
  2. Identify the refrigerant. If it is R-1234yf, sweep the area: no torches, no grinder sparks, no heat guns, nothing glowing in the work zone, and get air moving through the bay.
  3. Recover the full charge with the correct certified machine and confirm the system sits at zero gauge pressure. 'Mostly recovered' still holds enough pressure to spray liquid at your hands and face.
  4. Crack fittings slowly, a flat at a time, with your face out of line with the joint. Residual pressure vents with a hiss instead of a spray, and a surprise goes past you instead of at you.
  5. If refrigerant hits skin or eyes, flush immediately with large amounts of water — a sustained flush for eyes — and get medical attention for any eye exposure or significant skin contact. Frostbite and eye injuries get worse while you wait and see.
⚠️ Comeback killers
  • Working bare-handed because it is 'just a quick top-off.' Liquid refrigerant flash-evaporates far below zero on contact — instant frostbite happens on exactly the quick jobs where the PPE stayed in the drawer.
  • Treating R-1234yf like R-134a around ignition sources. The A2L rating means a concentrated leak near a flame, spark, or hot surface can ignite — a torch cart parked next to an open yf system is a plan for a fire.
  • Cracking a fitting fast on a system you assume is empty. Systems hold pressure in ways a gauge on one port does not always show; the slow crack with your face offline costs three seconds and prevents the classic A/C injury.
🔧 Shop tip Crack fittings slowly and keep your face out of line with the joint. Most refrigerant injuries happen in the first half-second of opening a connection that still had pressure behind it.
✅ Check yourself
Why is a refrigerant burn called frostbite when nothing was cold until the fitting opened?

Liquid refrigerant at system pressure boils violently the instant it reaches atmospheric pressure, and that flash evaporation absorbs heat from whatever it touches — dropping well below 0°F on your skin. The energy for the boiling comes out of your tissue, which freezes on contact.

A tech takes refrigerant spray in one eye and says it feels better after blinking a minute. Correct response?

Flush the eye immediately with large amounts of water anyway, and get medical attention. Cold and chemical injury to the eye can damage tissue without proportional pain, and 'it feels better' is not an examination. Eye exposures get flushed and seen by a professional — that is the rule.

What extra precautions does an open R-1234yf system demand that an R-134a system does not?

Ignition control and ventilation. Yf is A2L mildly flammable, so the open-system work zone must exclude flames, sparks, smoking, and hot surfaces — including exhaust components and heat guns — and the bay needs airflow so a leak cannot pool into an ignitable concentration. Recovery equipment must also be yf-approved.

Climate Control (HVAC / A/C) training photo
Radiator cap under its warning label, never open one hot.

Automatic Climate Control

2 concepts

Automatic climate control (ATC) systems hold a set cabin temperature by juggling blower speed, blend doors, and compressor operation.

At a glance — know these cold
  • ATC uses an in-car sensor (often with a tiny aspirator fan drawing cabin air across it). A stuck fan or dirty sensor gives inaccurate readings.
  • Sun-load sensors (usually a photodiode on the dash) tell the ATC to add cooling when sunlight raises perceived cabin temperature.

Automatic climate control (ATC) systems hold a set cabin temperature by juggling blower speed, blend doors, and compressor operation — and they can only be as smart as their sensors. When an ATC system misbehaves, the sensors are where the diagnosis usually starts.

The Sensors That Drive ATC Decisions

The in-car temperature sensor tells the ATC module what the cabin actually feels like, and many designs use a small aspirator fan to draw a steady sample of cabin air across the sensor element so it reads moving air instead of the stagnant pocket around the dash. When that aspirator fan sticks or the sensor element gets coated in dust, the module receives an inaccurate cabin temperature — and the system faithfully regulates to a wrong number. The complaint sounds like this: the customer sets 72 and the car holds something noticeably warmer or colder. An ATC system with an inaccurate cabin reading has a bad in-car temperature sensor or its aspirator, and a quiet cab plus a listen near the sensor grille (you should hear the tiny fan) is a quick first check.

The sun-load sensor — usually a photodiode sitting on top of the dash — measures solar intensity so the system can compensate for radiant heat. On a sunny day, occupants feel hotter than the air temperature says because sunlight is heating them directly; the sun-load sensor tells the ATC to add cooling and blower speed to offset that solar gain. A failed or obstructed sun-load sensor typically shows up as a cabin that feels too warm on bright days even though vent temperatures measure fine. Check that nothing is parked on top of it — dash covers, phone mounts, and air fresheners blind it surprisingly often.

📋 ATC sensor roles and failure signatures
SensorWhat it tells the moduleFailure signature
In-car temperature (with aspirator)Actual cabin temperatureSystem holds the wrong temperature confidently; listen for the aspirator fan

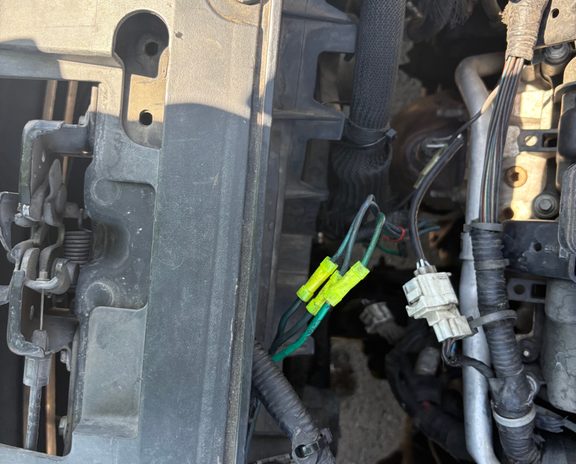

Ambient temperatureOutside air temp for targets and compressor logicWrong auto behavior; readings skewed after idling over hot pavement
Sun load (photodiode on the dash)Solar heating on the occupantsCabin feels warm on bright days though vent temps measure fine
Evaporator temperaturePrevents evaporator icingWrong compressor cycling; icing or poor cooling in humidity
Duct/discharge temperatureVerifies delivered air temperatureModule hunts its targets; erratic blend behavior

Most temperature sensors are NTC thermistors — resistance falls as temperature rises. Compare every reading against a known thermometer; exact curves live in service data.

🔩 Sensor sanity check before opening the dash
  1. Pull the HVAC data list and read every temperature input with the car soaked to one known temperature — first thing in the morning works. Every sensor should agree with your reference thermometer within a couple of degrees.
  2. Flag any input that disagrees with reality. One lying sensor explains most 'possessed' ATC behavior, because the module regulates faithfully to whatever it is told.
  3. For an in-car sensor reading wrong or drifting, listen at the sensor grille for the aspirator fan and check the element for dust felting. No airflow across the element means it reads the stagnant dash pocket, not the cabin.
  4. Cover and uncover the sun-load sensor and watch its data value respond. A dead or obstructed photodiode — dash mat, phone mount, air freshener — quietly removes solar compensation.
  5. Only after the inputs check honest do you chase actuators, doors, and refrigerant. An ATC system with truthful sensors and wrong output has a mechanical problem; one with a lying sensor is already solved.
⚠️ Comeback killers
  • Diagnosing the outputs — doors, compressor, blower — before validating the inputs. The module does what its sensors tell it; a dusty in-car sensor or a blinded sun-load sensor produces 'faulty' behavior from perfectly good hardware.
  • Ignoring the aspirator. The in-car sensor needs a constant air sample drawn across it; a stalled aspirator fan makes a good sensor read a dead-air pocket, and the 'it never holds 72' complaint follows.
  • Missing the customer's dash accessories. Covers, phone mounts, and air fresheners sitting on the sun-load sensor blind it — check the top of the dash before checking anything electrical.
🔧 Shop tip Before chasing an ATC temperature complaint into the HVAC case, pull the sensor data list on your scan tool and sanity-check every temperature input against a known thermometer — one lying sensor explains most 'possessed' climate control systems.
✅ Check yourself
A customer sets 72°F and the cabin reliably holds what feels like 78. Vent temperatures at the extremes are normal. Where do you start?

The in-car temperature sensor and its aspirator. If the sensor reads cooler than the true cabin — dust insulation or no aspirator airflow — the module believes it already reached 72 and backs off the cooling. Compare the sensor's data value to a real thermometer in the cabin; the discrepancy is the diagnosis.

Why does a failed sun-load sensor only generate complaints on certain days?

Its whole job is compensating for radiant solar heating of the occupants. On cloudy days and at night nothing is missing, so the system behaves. On bright days the occupants are sun-heated above air temperature, the dead sensor never requests the extra cooling, and the cabin feels warm while every vent measurement checks out fine.

What is the fastest way to separate an ATC control complaint from an A/C capacity complaint?

Command the system to its extremes — max cold, then max hot — and measure vent temperatures. Full capacity at both ends proves the refrigerant and heater sides, which leaves control: sensors, doors, and module logic. Weak extremes mean capacity, and the ATC logic was never the problem.

Climate Control (HVAC / A/C) training photo

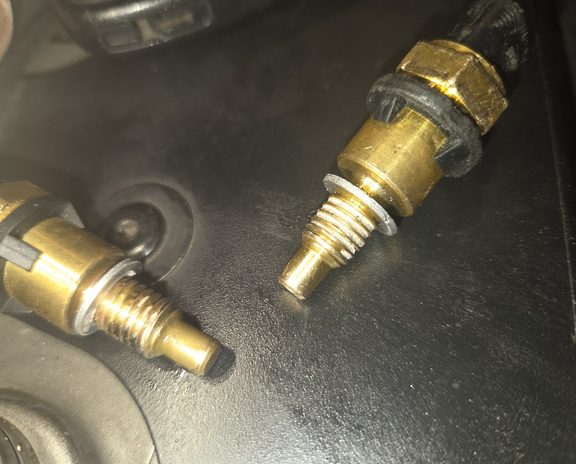

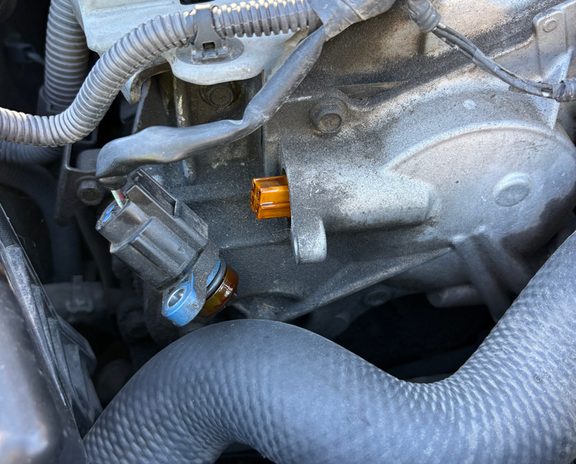

Coolant temperature sensors, the data the climate control lives on.

Windshield Defrost

2 concepts

Defrost is a safety system, not a comfort feature — a driver who cannot see is a hazard.

At a glance — know these cold
  • Defrost dehumidifies air by running it through the cold evaporator before heating. Compressor may cycle at cool temps but shouldn't below a set threshold (~35°F).
  • Modern systems disable the compressor below an ambient threshold. If defrost is slow, verify ambient is above the threshold, then look for pressure switch, charge, or logic faults.

What surprises many apprentices is that good defrost performance depends on the air conditioning compressor, even in the middle of winter.

Why Defrost Runs the Compressor

When you select defrost mode, the system should engage the A/C compressor even in cold weather. The reason is dehumidification: air routed through the cold evaporator drops its moisture as condensate before it is reheated by the heater core and sent to the windshield. Dry, warm air clears fog and frost far faster than warm humid air, which can actually make fogging worse. So the compressor running in January is not a malfunction — it is the design.

There is a limit, though. Compressors are disabled below an ambient temperature threshold — around 35 degrees F — to protect the compressor, since evaporator icing and poor oil circulation become risks in deep cold. Near that threshold the compressor may cycle. So when a customer complains that defrost is slow and the compressor never engages in winter, work the logic in order: first verify the ambient temperature is actually above the cutoff threshold, because below it the system is behaving correctly. If ambient is warm enough, then look for the real faults — a low-ambient or pressure switch cutting the compressor out, a low refrigerant charge dropping the pressure below the switch's threshold, or a fault in the HVAC mode-control logic that is failing to request the compressor in defrost.

🔩 Slow-defrost diagnosis ladder
  1. Verify ambient temperature first. Below roughly 35°F the compressor is locked out by design to protect itself, so 'the compressor never engages in winter' may be correct operation — establish that before diagnosing anything.
  2. Above the cutoff, select defrost and confirm the compressor engages. Defrost should command the A/C on for dehumidification; no engagement points at the pressure switch data, a low charge, or mode-control logic failing to request it.
  3. Confirm strong, warm airflow actually reaches the glass — mode door position, blower output, and coolant temperature all feed defrost performance. Weak or cool airflow is a heater or mode-door problem wearing a defrost costume.
  4. If the glass fogs worse with defrost running, smell the air. Sweet and filmy means a leaking heater core is humidifying the airstream — no amount of compressor operation dries air that is being actively wetted.
  5. Verify recirculation is off in defrost — most systems force fresh air. Recirculating moist cabin air onto cold glass re-fogs it as fast as the system clears it.
⚠️ Comeback killers
  • Condemning the compressor for not engaging on a 28°F morning. Below the low-ambient cutoff — around 35°F — the system is protecting the compressor from evaporator icing and poor oil circulation. That is design, not defect.
  • Treating persistent fogging as an airflow problem when the heater core is leaking. Coolant mist humidifies the very air the system is trying to dry; sniff for sweetness and look for oily film before chasing the A/C side.
  • Forgetting that defrost depends on the A/C system. A low refrigerant charge nobody noticed all winter shows up as slow, weak defrost — the evaporator cannot wring moisture out of the air without a working charge.
🔧 Shop tip A car that fogs badly in defrost with the compressor working may have a different problem entirely — a leaking heater core humidifying the air. Sniff for sweetness before you condemn the A/C side.
✅ Check yourself
Why does the A/C compressor run when the driver selects defrost in January?

Dehumidification. Air routed across the cold evaporator drops its moisture as condensate before the heater core reheats it, so the windshield receives dry, warm air — which clears fog far faster than moist warm air. Compressor operation in defrost is intentional design, not a malfunction.

Defrost is slow, ambient is 50°F, and the compressor never engages in defrost mode. Give the diagnostic order.

Ambient is above the cutoff, so the lockout explanation is gone. Check the pressure sensor and switch data next — a genuinely low charge or a faulty sensor will keep the PCM from granting the compressor. If pressure data is healthy, work the HVAC mode-control logic that should be requesting A/C in defrost.

A car fogs badly only with several passengers aboard, and the defrost system tests healthy. What is the aggravating factor?

Occupant moisture load — every passenger exhales water vapor, and wet coats and snow multiply it. A healthy system can be overwhelmed if recirculation is on or the cabin filter is soaked and plugged, so verify fresh-air operation in defrost and check the filter before condemning hardware.

Retrofit

2 concepts

Refrigerant transitions leave a trail of older vehicles that need service with refrigerants that are scarce or expensive.

At a glance — know these cold
  • Retrofit requires new drier with 134a-compatible desiccant, new O-rings, new oil, retrofit service ports, and often bigger condensers to handle 134a's different properties.
  • 1234yf systems are engineered around the refrigerant's properties. No approved OEM retrofit exists for 134a-to-1234yf; keep systems on their original refrigerant.

Refrigerant transitions leave a trail of older vehicles that need service with refrigerants that are scarce or expensive, and retrofitting is the answer — sometimes. Knowing which conversions are legitimate and which are unsupported keeps you from engineering a failure.

R-12 to R-134a: Supported, but Do It Completely

Converting an old R-12 system to R-134a is an established, supported retrofit, but it is a system conversion, not a refrigerant swap. Done right, it requires a new receiver-drier with XH-9 desiccant (compatible with R-134a, unlike the older desiccant), the correct replacement oil — PAG or ester, since R-134a does not carry R-12's mineral oil — new O-rings compatible with the new refrigerant and oil, and retrofit service ports installed over the old fittings so the vehicle can only be serviced with R-134a equipment from then on. Because R-134a rejects heat differently than R-12, many retrofits also need condenser upgrades — a larger or more efficient condenser — to keep head pressures in line, especially in hot climates. Skipping steps, or worse, dumping in a can of stop-leak and calling it converted, produces a system with poor cooling and a short life.

R-134a to R-1234yf: Not Supported

The newer transition does not work the same way. Retrofitting an R-134a system to R-1234yf is not generally supported by manufacturers — there is no approved OEM retrofit path. R-1234yf systems are engineered around that refrigerant from the start: different lubricants, different fittings by design, different operating pressures, and safety provisions for a mildly flammable refrigerant that an R-134a system was never built with. The correct practice is to keep every system on its original refrigerant — service R-134a vehicles with R-134a and yf vehicles with yf — rather than improvising a conversion the engineering does not support.

📋 R-12 to R-134a retrofit reference
ItemRequirementNotes
Charge amountTypically 80-90% of the original R-12 specR-134a charges lighter — set the weight from retrofit data
DesiccantNew drier or accumulator with XH-9 desiccantThe older desiccant is incompatible with R-134a
OilPAG or ester per the compressor makerR-134a will not carry R-12's mineral oil
FittingsRetrofit ports installed over the R-12 fittingsLocks the system to R-134a service equipment from then on
LabelRetrofit label stating refrigerant, oil, and chargeRequired — and it is the next tech's roadmap
CondenserUpgrade often needed in hot climatesR-134a rejects heat less readily than R-12; watch head pressure

R-134a to R-1234yf has no supported retrofit path in either direction — keep every system on its original refrigerant.

🔩 Evaluating an old R-12 vehicle before quoting
  1. Inspect the service ports before anything else. Original R-12 flare fittings mean an untouched system; retrofit adapters mean someone converted it — well or badly — possibly decades ago.
  2. Sample with a refrigerant identifier. R-12 survivors collect mystery blends, hydrocarbon 'drop-ins,' and sealers, and one bad sample into your machine is a shop-stopping contamination.
  3. If converting, quote the complete job: recovery, a new drier with XH-9 desiccant, the correct PAG or ester oil, new O-rings, retrofit fittings, a deep evacuation, and an 80-90% charge by weight — and assess the condenser for a hot-climate upgrade.
  4. After charging, run the system at idle on a hot day or with load simulated and watch head pressure with the fan verified. A marginal condenser shows itself as climbing head pressure — better found in the bay than in July traffic.
  5. Fit the retrofit label with refrigerant, oil, and charge weight recorded. That label is the difference between a converted classic and a booby trap for the next tech.
⚠️ Comeback killers
  • Doing a 'can-and-adapter' retrofit — R-134a dumped on top of mineral oil and old desiccant. The oil does not circulate, the desiccant breaks down, and the system dies slowly while cooling badly the whole time.
  • Attempting an R-134a-to-R-1234yf conversion. There is no supported OEM path: different lubricants, pressures, deliberately different fittings, and A2L safety provisions the older system was never built with. Keep each system on its design refrigerant.
  • Skipping the identifier on an old system because 'it's original R-12.' Forty-year-old systems have been topped off with whatever was cheap for decades — flammable hydrocarbon blends included.
🔧 Shop tip When an R-12 classic rolls in, check the service ports before quoting — many were retrofitted decades ago, well or badly. Retrofit fittings over original ports with mystery refrigerant inside is exactly when a refrigerant identifier earns its keep.
✅ Check yourself
Why can't you simply vacuum out an R-12 system and fill it with R-134a?

R-134a will not carry the mineral oil an R-12 system holds, so the compressor starves; the old desiccant is incompatible; the seals need compatible O-rings; and heat rejection differs enough that head pressure climbs. A real retrofit changes the oil, drier, O-rings, and fittings — and charges to about 80-90% of the R-12 weight.

A customer's R-1234yf car has an expensive leak, and they ask you to 'just convert it to cheap R-134a.' Your answer?

Decline. There is no supported conversion in either direction between R-134a and R-1234yf — different oils, operating points, fittings that differ by deliberate design, and yf's flammability engineering. A cross-charge damages the vehicle and contaminates shop equipment. The right quote is fixing the leak on the correct refrigerant.

Why do many R-12 retrofits need a condenser upgrade specifically in hot climates?

R-134a rejects heat less readily than R-12, so the same condenser runs higher head pressure. In moderate climates the margin holds; in 105°F traffic the pressure climbs into cutout or compressor-stress territory. A larger or more efficient condenser buys back the margin the refrigerant change spent.

Emerging

1 concept

Refrigerant chemistry keeps evolving as regulations chase lower environmental impact.

At a glance — know these cold
  • R-744 (CO2) has GWP of 1 and no ozone impact but demands specialized transcritical high-pressure systems. Used in some European buses and heat pumps.

Refrigerant chemistry keeps evolving as regulations chase lower environmental impact, and the next candidate is already in service in parts of the world. Understanding where the technology is headed prepares you for the equipment and pressures coming to the bay.

R-744: Carbon Dioxide as a Refrigerant

CO2, designated R-744 as a refrigerant, is being explored for future automotive HVAC because its environmental numbers are hard to beat: zero ozone impact and a global-warming potential of 1 — the baseline against which every other refrigerant's GWP is measured. The trade-off is pressure. CO2 systems run transcritical cycles at far higher pressures than fluorocarbon systems — over 2000 psi on the high side — which demands specialized components, thick-walled heat exchangers, and service equipment built for those pressures. Nothing in a conventional R-134a or R-1234yf service bay is rated for it.

R-744 is not just theoretical: it is already used in some European buses and in heat pump applications, where its performance in heating mode is a genuine strength. If it spreads into passenger vehicles, expect dedicated training and dedicated high-pressure equipment to come with it.

📋 Automotive refrigerant generations
RefrigerantGWPSafety classService reality
R-12 (legacy)About 10,900, plus ozone depletionA1Phased out mid-1990s; survivors need retrofit or scarce supply
R-134a1,430A1Two decades of dominance; being phased out of new vehicles
R-1234yfUnder 4A2L — mildly flammablePressures within ~5-10% of R-134a; dedicated equipment required
R-744 / CO21 — the GWP baselineA1, but extreme pressureTranscritical cycle over 2,000 psi; nothing in a conventional bay connects safely

R-744 pressures are roughly ten times fluorocarbon service pressures — equipment ratings are a safety issue, not paperwork.

🔩 Meeting an unfamiliar refrigerant system
  1. Read the underhood label and nameplate before touching a hose — refrigerant designation, charge weight, and any pressure warnings. The designation tells you whether your equipment can even legally or physically connect.
  2. Look up the refrigerant's classification: GWP, flammability class, and design pressures. An unfamiliar R-number can mean anything from a mild blend to a 2,000-psi transcritical CO2 system.
  3. Check your gauge, hose, and machine ratings against the system's pressures. R-744 will destroy fluorocarbon-rated equipment — this pressure check is a safety check.
  4. If the shop lacks rated equipment or training for that refrigerant, stop and refer the job. Declining a system you cannot service safely is a professional decision, not a failure.
  5. Document what you found on the repair order — the refrigerant, how you identified it, and why you proceeded or referred. New refrigerants will keep arriving; verifying before connecting is the durable skill.
⚠️ Comeback killers
  • Connecting fluorocarbon-rated gauges to an R-744 system. Transcritical CO2 runs beyond 2,000 psi on the high side — hoses and gauges built for R-134a pressures can burst, and the failure is violent.
  • Assuming every low-GWP refrigerant behaves like R-1234yf. CO2 is nonflammable but extremely high pressure; other candidates differ again. Each refrigerant's class and pressures get looked up, not guessed.
  • Writing off refrigerant transitions as a future problem. R-744 already runs in European buses and heat pump applications — the tech who learns the classifications early is the one who never hooks up to the wrong nameplate.
🔧 Shop tip When you see unfamiliar refrigerant designations on a nameplate, check the pressure rating before connecting anything — an R-744 system will destroy gauges and hoses built for fluorocarbon pressures.
✅ Check yourself
Why is CO2's GWP of 1 the number every other refrigerant is measured against?

GWP is defined relative to carbon dioxide — CO2 is the baseline unit of global warming potential. R-134a at 1,430 traps roughly 1,430 times more heat than the same mass of CO2 over the comparison period, which is why regulators keep pushing refrigerants toward the baseline.

What is the fundamental service-equipment problem with R-744 systems?

Pressure. Transcritical CO2 cycles exceed 2,000 psi on the high side — roughly ten times fluorocarbon service pressures — so every hose, gauge, fitting, and machine must be purpose-built and rated for it. Conventional A/C equipment is not just inadequate; it is dangerous to connect.

Where would a working tech plausibly encounter R-744 today?

European transit buses and heat pump applications, where CO2's strong heating-mode performance is a genuine asset. It has not broadly reached passenger cars yet, but its presence in commercial fleets means the dedicated training and high-pressure equipment are real-world requirements, not speculation.

Documentation

1 concept

The wrench work is only half of legal A/C service — the paper trail is the other half.

At a glance — know these cold
  • EPA requires record-keeping of refrigerant transactions and disposal. Check current retention periods (typically 3+ years) and state-specific extensions.

EPA rules make refrigerant record-keeping a shop obligation, and those records are the first thing an inspector asks for.

What EPA 609 Requires You to Keep

Shops that service motor vehicle A/C under EPA Section 609 are required to keep records of their refrigerant activity: refrigerant purchases, recovery and reclaim activity, and dispositions — where recovered refrigerant ultimately went, whether recycled on-site, sent to a reclaimer, or destroyed. These records must be maintained for a specified retention period, typically three years or more, and states can extend that — California's CARB rules, for example, layer additional reporting and waste-tracking requirements on top of the federal baseline. Check the current federal retention requirement and any state-specific extensions where you operate.

In practice this means logging every refrigerant cylinder purchase, tracking what your recovery machine takes in, and keeping receipts or manifests from any reclaimer you ship to. Good shops fold this into the workflow: the recovery machine's totals get logged per job, and cylinder purchases file into the same binder or software. When compliance is a habit, an audit is an inconvenience instead of a crisis.

📋 Refrigerant record-keeping reference
RecordWhat it must showRetention
Refrigerant purchasesDate, quantity, supplier, refrigerant typeTypically 3 years minimum — verify the current federal and state rule
Recovery activityWeight recovered, logged per repair orderSame retention; job-level entries are what prove compliance
On-site recyclingMachine certification (J2788/J2843) and throughputKeep the machine certificates filed with the records
Reclaimer shipmentsManifests and receipts for refrigerant sent off-siteThe disposition proof inspectors ask for first
Technician certificationA 609 card for every tech who services MVACPermanent — 609 certification does not expire

California and some other states extend both what must be reported and how long records are kept — the strictest applicable rule wins.

🔩 Logging refrigerant per job so audits stay boring
  1. Record the recovered weight from the machine onto the repair order at the moment of recovery, not from memory at day's end. Job-level records prove compliance and expose short recoveries.
  2. Log every charge installed — new, recycled, or reclaimed, and note which. The in-and-out ledger is what ties purchases to inventory to jobs.
  3. File cylinder purchase receipts into the same binder or software where the recovery logs live. Inspectors think in cross-references; scattered records read like hidden records.
  4. Reconcile monthly: purchases minus charges installed should track cylinder inventory. A drift caught monthly is a bookkeeping fix; a drift found at audit is a venting question.
  5. Keep reclaimer manifests filed with the month they shipped. A full recovery cylinder with no disposition trail is the finding auditors write up most easily.
⚠️ Comeback killers
  • Logging recoveries per cylinder instead of per repair order. Cylinder totals satisfy nobody — job-level entries prove each vehicle was recovered, and they also catch the tech whose recoveries run mysteriously light.
  • Treating records as an office chore separate from bay work. If the log entry does not happen at the machine when the job happens, it does not happen accurately — workflow-embedded logging is the only kind that survives an audit.
  • Assuming federal retention is the whole obligation. States can extend both reporting and retention — a shop operating under California's CARB rules discovers the federal binder is only the starting point.
🔧 Shop tip Log recovered weights per repair order, not just per cylinder. Job-level records prove compliance and also catch the tech whose recoveries are mysteriously light.
✅ Check yourself
An EPA inspector asks where the refrigerant from last month's compressor jobs went. What ends the visit fastest?

Producing job-level recovery logs matched to repair orders, plus disposition proof — recycling records from a certified machine or reclaimer manifests for anything shipped out. Records in hand within five minutes signal a shop where compliance is habit; digging and improvising signals the opposite and extends the audit.

Why do recovery logs double as a shop-management tool beyond compliance?

Recovered weights tell on the work. A tech whose recoveries run consistently lighter than expected is either venting, skipping recovery, or working genuinely empty systems that should show leak-repair line items. The same numbers that satisfy the EPA flag training problems and lost refrigerant cost.

What is the practical difference between the 609 certification record and the refrigerant activity records?

The 609 card is a one-time credential that never expires — keep a copy on file per tech, permanently. Activity records — purchases, recoveries, dispositions — are ongoing and time-bound, typically retained three years or more, with states able to extend that. Both must be producible; they answer different audit questions.

READY TO PROVE IT?

Studied the material? Get HVA certified.

The Climate Control (HVAC / A/C) exam turns what you just learned into a verifiable credential drivers and shops can look up. 45 questions · 60 minutes · 75% to pass · $19.99.

Studying here is free forever. There's no obligation to take the exam.

WHAT THIS WORK PAYS / COSTS

Real-world cost guides for this system.

See what customers pay for the jobs this track teaches, parts, labor hours, and state-by-state ranges from our repair cost estimator.

Standards and further reading

Primary sources behind this page. Federal safety, emissions and consumer-protection references, worth reading before you authorize any repair.
