EV & Hybrid Systems

Hybrids, plug-in hybrids, and pure electrics share components but behave very differently, and the drivetrain architecture determines how the engine and motor share the job of moving the car.

HEV, PHEV, and BEV: What Each One Actually Is

A hybrid electric vehicle (HEV) combines an internal combustion engine with an electric motor and a traction battery. The defining feature is that both power sources exist on the same vehicle. A battery electric vehicle (BEV) is pure electric: there is no combustion engine anywhere on the car, and all propulsion comes from the battery and motor. A plug-in hybrid (PHEV) is simply a hybrid with a larger battery and a charging port, so it can be recharged from the wall and driven on electricity alone for a meaningful distance before the engine takes over.

Keep the distinction straight, because it drives everything downstream: a BEV has no exhaust system, no fuel system, and no engine oil service, while an HEV or PHEV still has all of the conventional ICE maintenance on top of its high-voltage system.

Series vs. Parallel Architectures

In a series hybrid, the engine never mechanically drives the wheels. It spins a generator, and the electricity produced either drives the traction motors or charges the battery. The wheels are always motor-driven. This is the layout used in extended-range EVs (EREVs) — the early Chevy Volt operated this way in most of its modes. The advantage is that the engine can run at its most efficient speed regardless of road speed; the tradeoff is the energy conversion losses of going mechanical-to-electrical-to-mechanical.

In a parallel hybrid, both the engine and the electric motor can drive the wheels through a shared transmission — sometimes together, sometimes independently. Parallel layouts are mechanically simpler than series but less flexible in how they manage the engine's operating point. Many production hybrids blend the two approaches, but if you can identify whether the engine has a mechanical path to the wheels, you know which family you are working on.

Traction packs carry enough energy to kill instantly, and unlike an ICE fault, an HV mistake usually gives you no second chance. Every procedure here exists because someone learned it the hard way.

De-Energizing Before Any HV Work

Before any high-voltage work, the system must be de-energized following the OE procedure — not a generic shortcut. The standard sequence is: pull the service disconnect (a loop or plug built into the pack circuit), wait the OE-specified interval — typically 5 to 15 minutes — for the capacitors in the inverter to bleed down, and then verify zero volts with a properly rated meter at the designated test points. All three steps matter. Pulling the disconnect alone proves nothing; the inverter capacitors can hold a lethal charge for minutes after disconnection.

Verification is done with a CAT III or CAT IV rated multimeter. And a zero reading is only trustworthy if the meter itself is trustworthy. Follow the safe-by-verification rule: prove the meter works on a known-live source first, then measure the target, and if you have any doubt about a zero-volt reading, wait another five minutes and retest with a known-good meter. Isolation is only ever proven by verified measurement — never by assumption, never by a warning label, never by how long the car has been sitting.

PPE and Cable Identification

The minimum glove protection for HV automotive work is Class 0 insulated rubber gloves, rated for 1000 volts, worn with leather protectors over them. The rubber provides the electrical insulation; the leather protects the rubber from cuts and punctures that would destroy that insulation. Gloves must be inspected before every use, air-tested (rolled and squeezed to check for pinhole leaks), and within their certification window — insulating gloves must be lab-retested every six months, and out-of-date gloves are not PPE, they are a liability.

High-voltage cabling is identified by orange sheathing — this is the universal industry standard across every manufacturer. Any orange-jacketed cable must be treated as live until the system has been de-energized and verified. Never touch, probe, or cut orange cable on an energized system. This matters most on collision and driveability jobs where a tech who does not normally do HV work encounters an orange harness routed through the repair area.

Crashed EVs and Battery Fires

A crashed EV is not a job for any tow driver — it requires trained first responders and trained handling throughout. The danger is that a physically damaged lithium pack can go into thermal runaway hours or even days after the crash, igniting spontaneously with no warning. That is why NFPA guidance calls for crashed EVs to be kept in an isolation or quarantine area, typically for 24 to 48 hours, away from buildings and other vehicles, with awareness training for everyone in the towing and storage chain.

If an HV battery does catch fire, understand what you are up against. Lithium battery fires are fought with large amounts of water — often applied for hours — with continued cooling afterward to prevent reignition. Foam alone, sand alone, or a handheld chemical extinguisher will not put out a pack fire. Specialized equipment such as fire blankets and vehicle immersion tanks may be needed, and even an apparently extinguished pack must be monitored because reignition risk persists long after the flames are out. Your role in the shop is to recognize the hazard, keep damaged-pack vehicles isolated, and call for the right response rather than improvising.

Not all lithium batteries are the same, and the chemistry inside the cells determines range, fire behavior, lifespan, and even the charging advice you give customers. Knowing the major chemistries helps you set expectations and diagnose degradation intelligently.

The Lithium-Ion Family

Nearly every current BEV uses some variant of lithium-ion chemistry — lead-acid, nickel-cadmium, and other legacy chemistries have no place in modern traction packs (NiMH survives mainly in older Toyota hybrids). Within lithium-ion, three cathode chemistries dominate: NCA (nickel-cobalt-aluminum), NMC (nickel-manganese-cobalt), and LFP (lithium iron phosphate).

NCA delivers the highest energy density, which is why Tesla has used it extensively in long-range vehicles — more watt-hours per kilogram means more miles per pound of battery. The tradeoffs are higher cost and a higher fire risk than the alternatives. NMC is the middle-of-the-road choice used by many OEMs, balancing density, cost, and stability.

LFP sits at the other end of the spectrum. It has lower energy density — so a same-size pack gives less range — but it is much more thermally stable (lower fire risk), tolerates far more charge cycles before degrading, and handles cold-weather safety concerns better. It is also cheaper because it uses no cobalt or nickel. Tesla, Ford, and a growing list of OEMs now put LFP in their standard-range packs and reserve the high-density chemistries for long-range trims.

Every cell voltage, every temperature, every amp in or out passes through its supervision, and when something exceeds safe limits, the BMS is what pulls the plug. Understanding it is the foundation of all pack diagnostics.

What the BMS Does and Why Balance Matters

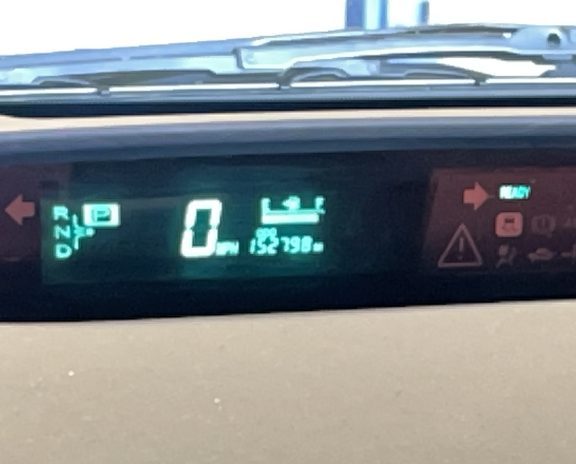

The BMS monitors every cell (or cell group) in the pack and handles four core jobs: cell balancing, thermal management, state-of-charge (SOC) estimation, and safety cutoffs. It watches individual cell voltages and temperatures continuously, commands the cooling system, calculates how much usable energy remains, and opens the contactors to disconnect the pack entirely if a fault exceeds safe limits. When an EV throws a pack-related fault and refuses to enter Ready mode, it is usually the BMS doing exactly what it was designed to do.

Cell balancing deserves special attention because imbalance is one of the most common capacity complaints. A series string of cells is only as strong as its weakest member: the pack's usable capacity is limited by the lowest-capacity cell, because the BMS must stop discharge when that cell hits its floor and stop charging when it hits its ceiling. An imbalanced pack therefore shuts off early and delivers less range even if most cells are healthy. During charging, the BMS actively balances the cells — bleeding down or redistributing charge — to keep them matched and maximize the pack's usable capacity. When you see one cell group consistently sagging below the others on live data, you have found the cell that is dictating the whole pack's behavior.

Thermal management is what keeps a pack alive for a decade, and cooling-system faults on an EV can cascade into electrical safety problems in ways that surprise techs coming from ICE work.

How Packs Are Cooled

High-voltage battery packs are cooled one of two ways. Liquid cooling — coolant circulated through plates or channels in contact with the cells — is used by Tesla, the Chevy Bolt, VW ID.4, and essentially every modern high-power EV, because liquid is far more effective at moving heat than air. Air cooling appears on smaller, lower-power packs, most famously the early Nissan Leaf, which used no active liquid loop at all. Air cooling is cheaper and simpler, but it only works when the pack's power density is modest; the Leaf's well-known hot-climate degradation is the case study in its limits.

Coolant Leaks Inside the Pack: An Electrical Problem, Not Just a Plumbing Problem

A leaking HV pack coolant line is never 'just fix the hose.' Coolant inside a pack enclosure can bridge high-voltage components to the chassis, so the correct procedure is to de-energize the pack, repair the leak, and then check for isolation faults before returning the vehicle to service. Equally important: use only the OE-approved coolant. Some packs specify special low-conductivity or dielectric coolant formulas, and filling with generic coolant can create a conductive path that shorts cells or trips isolation monitoring. This is one of the classic mistakes techs carry over from ICE habits — on an EV, coolant chemistry is an electrical spec, not just a freeze-point spec.

The drive motor has its own thermal limits and its own coolant loop on many vehicles. Motor temperature is monitored constantly, and a coolant flow problem — failed pump, restriction, air pocket — shows up as reduced power output, motor derating, or thermal shutdowns under continuous high load. The vehicle protects its windings by pulling power. A customer complaint of 'the car gets weak on long hills' or during repeated hard pulls points you at pump operation and coolant flow verification, not at the battery.

The traction motor is the heart of an EV drivetrain — quiet, nearly maintenance-free, and capable of tricks no combustion engine can match, like recovering energy while slowing down and steering the car with torque. Understanding motor types and regeneration is core EV literacy.

PMSM and Induction Motors

Two motor types dominate EVs: the permanent magnet synchronous motor (PMSM) and the induction (asynchronous) motor. A PMSM has rare-earth magnets embedded in its rotor, giving it excellent efficiency, especially at partial load — which is why it is the most common choice for primary drive motors. An induction motor has no magnets; its rotor is a squirrel-cage conductor that gets its magnetic field induced by the stator. Induction motors give up a little efficiency but avoid rare-earth costs and can 'freewheel' with almost no drag when unpowered.

Some vehicles use both: Tesla's dual-motor cars pair motor types across the axles to get the best of each. Brushed DC motors and steppers have no role in traction drive — everything in a modern EV powertrain is electronically commutated AC.

Regeneration: The Motor Running Backwards as a Generator

Every traction motor is also a generator. During deceleration, the inverter reverses the energy flow: instead of pushing current into the motor to make torque, it lets the spinning motor push current back into the battery. This is regenerative braking. Kinetic energy that a conventional car would burn off as heat in the friction brakes is converted back into electricity and stored for reuse.

Regen is what lets an EV slow down without touching the friction brakes at all — lift off the accelerator and the motor's generating drag decelerates the car while recharging the pack. How much energy actually comes back depends on vehicle speed, battery temperature, and how much room the battery has to accept charge. Regen slows the vehicle; it does not stop it completely or reverse it — friction brakes still handle the final stop and emergencies.

Torque Vectoring

Multi-motor EVs unlock a capability mechanical drivetrains need complex hardware to approximate: torque vectoring through independent motor control. With a motor per axle — or per wheel on quad-motor vehicles — the vehicle can shift torque side-to-side or front-to-rear instantly and precisely, improving cornering response, stability, and off-road capability without mechanical differentials, clutch packs, or brake-based intervention. When you see a dual-motor EV behave oddly in a turn, remember the torque split is software-controlled; a motor or inverter fault on one axle changes the handling balance, not just the acceleration.

It shifts most braking work from the friction system to the motor, which creates a service profile completely different from an ICE vehicle — and a set of customer complaints you need to interpret correctly.

When Regen Fades and What It Does to the Brakes

Regen depends on the battery being able to accept charge, so it weakens whenever that ability is restricted. The two big cases: a battery at or near full charge simply has nowhere to put the energy, and a very cold battery has restricted charge acceptance until it warms up. In both conditions the vehicle reduces or disables regen and blends in the friction brakes automatically so the driver still gets consistent deceleration. A customer who reports weak regen on a cold morning or right after a full charge is describing normal behavior, not a fault.

On vehicles with strong regen — the 'one-pedal driving' setups — the friction brakes are used so rarely that pads wear far slower than on ICE vehicles, routinely lasting 100,000 miles or more. But disuse creates its own failure mode: rotors rust, caliper pistons and slides seize, and pads can bond to rotors, precisely because the hardware sits idle. On an EV brake inspection, you are looking for corrosion and sticking components, not thin pads. Exercise the friction brakes during the road test and service the caliper hardware on schedule even when pad thickness looks like new.

The inverter and DC-DC converter are the two boxes every electrified vehicle has, and knowing what each one does keeps your diagnostics pointed at the right component.

The Inverter: DC to AC and Back

The traction battery stores DC; the motor runs on AC. The inverter converts between them — and it works in both directions. Driving, it chops the battery's DC into precisely controlled AC waveforms that spin the motor. Decelerating, it takes the AC the motor generates during regen and rectifies it back into DC to charge the battery. The inverter is where torque is actually created and controlled; the accelerator pedal is really an inverter command input.

Modern inverters increasingly use silicon carbide (SiC) semiconductors in place of conventional silicon. SiC switches faster with lower losses, which translates directly into efficiency — meaningful extra range from the same pack — and less waste heat to manage.

The DC-DC Converter: The EV's Alternator

EVs and hybrids still have a 12-volt system running the lights, ECUs, infotainment, and accessories — but no alternator to feed it. That job belongs to the DC-DC converter, which steps the high-voltage pack down to roughly 12-14 volts continuously whenever the vehicle is active, powering the accessories and keeping the 12V battery charged. Think of it as a solid-state alternator fed by the traction pack instead of a belt.

Diagnostically, this matters: a chronically discharged 12V battery on an EV can be a failing DC-DC converter just as easily as a bad battery, the same way an ICE tech checks the alternator before condemning a battery. Measure the DC-DC output with the vehicle in Ready mode before you sell a battery.

Understanding the levels, the connectors, and which box does the actual AC-to-DC conversion tells you immediately which failures are possible and which are not.

Charging Levels: 120V, 240V, and DC Fast

Level 1 charging uses a standard 120-volt household outlet. It is the slowest option, adding roughly 2 to 5 miles of range per hour — fine for a PHEV or a short commute, painful for a big BEV pack. Level 2 uses a dedicated 240-volt circuit and adds roughly 10 to 40 miles of range per hour; it is the standard home and workplace solution. Level 3 is DC fast charging, capable of adding 100 or more miles in about 15 minutes at public stations.

The architectural difference matters more than the speed numbers. Level 1 and 2 deliver AC to the vehicle, and the vehicle's onboard charger (OBC) converts that AC to DC to charge the pack — so AC charging speed is capped by the OBC's rating. DC fast charging moves the AC-to-DC conversion into the station itself: the charger feeds DC directly into the battery, bypassing the onboard charger entirely. That is what allows the much higher power levels.

This split is a gift for diagnosis. An onboard charger fault kills Level 1 and Level 2 charging but usually leaves DC fast charging working fine, because DC charging never touches the OBC. A customer who can fast-charge on the road but cannot charge at home is describing an OBC problem — confirm that pattern before replacing anything.

EVSE, Connectors, and Standards

The box on the wall or the pedestal in the parking lot is the EVSE — Electric Vehicle Supply Equipment. Despite being called a 'charger' colloquially, for AC charging the EVSE is not the charger at all; the real charger is onboard the vehicle. The EVSE's job is to regulate power delivery, provide safety interlocks, and communicate with the vehicle over a pilot signal so both sides agree on available current before any power flows.

On the DC fast-charging side, two connector standards matter in North America: CCS (Combined Charging System), the common standard across the US and Europe, and NACS, the connector Tesla developed, which is now being adopted industry-wide — Ford, GM, Rivian, and most other OEMs have committed to it. Adapters bridge between NACS and CCS during the transition. CHAdeMO is the older Japanese standard, now fading, found mainly on earlier Leafs.

Charging Habits and Battery Life

How a customer charges shapes how the pack ages. Repeatedly DC fast charging to 100% and running the pack down to 0% accelerates degradation compared to living in partial cycles around 20-80%. The pack is happiest in the middle of its charge window; the extremes stress the cell chemistry, and the heat generated by fast charging compounds the aging. This is customer-education territory: daily fast charging to full is a habit, not a defect, but it will show up as capacity loss years earlier than gentle home charging.

Diagnosing Charging Complaints

When an EV suddenly stops accepting fast charging, resist the urge to condemn the pack. The three usual suspects are thermal management protecting the battery — fast charging is heavily throttled or refused when the pack is too hot or too cold — a fault at the charging port itself, or a communication error between the EVSE and the vehicle. Check pack temperature data and pull DTCs before anything else.

And always start with eyes on the charge port. Physical port damage — bent pins, a broken latch, moisture intrusion — causes charging faults, communication errors, and overheating during charging, and it takes thirty seconds to inspect. Plenty of packs have been misdiagnosed over a five-dollar latch. Inspect the port visually before diving into pack diagnostics.

EV diagnostics blends familiar scan-tool work with a category of testing that does not exist on ICE vehicles: proving that high voltage stays where it belongs. Isolation testing, state-of-health assessment, and disciplined re-energization procedures are the core competencies here.

Isolation Faults: The Critical EV-Specific Failure

An isolation fault means current is leaking between the high-voltage system and the vehicle chassis. This is a critical safety issue — a degraded isolation barrier can energize the chassis, turning the whole car into a shock hazard. HV systems monitor isolation resistance continuously, and when it drops below threshold, the vehicle disconnects the pack to protect occupants and responders. Your job is to trace the leak to the specific component — a chafed cable, coolant intrusion, a failing motor winding, a contaminated connector — and repair it before restoring service. Never bypass or ignore an isolation fault to 'get the customer going.'

On hybrids, the code you will see is P0AA6 — hybrid HV system isolation fault. It requires insulation resistance testing to trace the source, and the vehicle must not be operated until it is resolved. The fault memory on many vehicles stores sub-codes indicating which subsystem (pack, motor, A/C compressor, cabling) tripped the monitor — use them to narrow the hunt.

The Insulation Resistance Tester

The tool that finds isolation faults is the insulation resistance tester, or megohmmeter — a meter that applies a controlled DC test voltage, commonly 500V, across the insulation and measures the resistance to chassis in megohms. Healthy insulation reads very high; degraded insulation from moisture, chafing, or contamination reads low and identifies the leaking component. Like your multimeter, the megger and its leads must carry a CAT III or CAT IV rating for HV automotive service.

Use it component by component: disconnect the suspect circuit, test each section to chassis, and let the readings isolate the fault. Remember the tester itself outputs hundreds of volts — treat the circuit under test as live while testing, and never megger a component the OE says cannot tolerate the test voltage (some electronics must be disconnected first).

Returning a Vehicle to Service After HV Work

Re-energizing is a procedure, not a moment. Before power goes back on: verify every HV connection is torqued to spec — both under-torque and over-torque are dangerous, since a loose HV connection arcs and heats while an over-torqued one damages terminals — confirm all barriers, covers, and interlocks are back in place, and then perform an HV isolation test to prove there are no faults before the pack is reconnected. Only after the isolation test passes does the vehicle get re-energized and verified in Ready mode. Skipping the isolation test is how a shop hands back a car that strands the customer — or shocks the next person who touches it.

Interpreting Degradation and Hybrid Behavior Complaints

A range that has dropped significantly over a year with no other symptoms points at battery degradation. The move is to measure state-of-health (SOH) with a scan tool and compare it to what is expected for the vehicle's age and mileage. Most OEMs consider 20 to 30 percent capacity loss over 8 to 10 years within normal expectations, and battery warranties are written around thresholds in that range — so quantify the loss before making claims either way. SOH data also determines whether the customer has a warranty case.

On hybrids, a classic complaint is the engine running constantly and never entering EV-only mode. Hybrids prefer engine-off operation whenever conditions allow, so constant running indicates the system cannot or will not rely on the pack: a HV battery fault, chronically low state of charge, or simply a requested warm-up cycle (engines run until emissions systems reach temperature). Check SOC behavior and pack DTCs on the scan tool — the data will show whether the pack is being protected, is degraded, or the engine is just finishing a normal warm-up.

Cooling design varies more between EVs than most techs expect.

Oil, Liquid, and Air Cooling

EV motor cooling comes in three flavors, chosen by power level and application: oil cooling, liquid (water-glycol) cooling, and air cooling. High-performance motors often spray or circulate oil directly over the windings — the approach used in vehicles like the Tesla Model Y — because putting coolant in direct contact with the copper pulls heat out fastest. More moderate designs run a liquid cooling jacket around the stator, and low-power applications can get away with air cooling.

Whatever the method, motor temperature is monitored, and a motor that overheats protects itself: it loses power and self-limits (derates) rather than cooking its winding insulation. Sustained-load power loss is therefore a cooling clue — check the motor's thermal circuit before suspecting the motor itself.

Access to parts, service information, and pack internals is restricted in ways that shape what an independent shop can realistically take on.

Service Access Realities and the Classic Drive Unit Failure

Tesla's high-voltage battery is, for most independent shops, effectively not serviceable. Tesla restricts HV service through proprietary access requirements, special tooling, and software security, steering most pack work to Tesla Service. A small ecosystem of independent Tesla specialists has developed the access and expertise to do this work, but for the average shop, service information and parts availability remain the barrier. Know your limits before opening a Tesla pack quote.

The most famous Tesla mechanical failure is well within independent reach, though: pre-refresh Model S and Model X drive units developing a milling or whining noise from the reduction gear bearings. It typically appears around 100,000 miles and up, and the fix is drive unit replacement or rebuild. Later drive unit revisions largely resolved the issue, and Tesla-specialist rebuilders now offer rebuilt units and bearing solutions as an alternative to full replacement — often the better value for an out-of-warranty car. Distinguish this gear/bearing noise from battery or 12V complaints; it is a mechanical noise that tracks with road speed.

Hybrids still burn fuel, and even pure EVs are tangled in a web of state-level rules and fees that customers will ask you about.

What Still Applies

Any vehicle with a combustion engine — every HEV and PHEV — remains fully subject to emission regulations for its ICE portion. That means the catalytic converters, evaporative systems, OBD emissions monitors, and inspection requirements all still apply, and a hybrid can fail an emissions test just like any gas car. Hybrids add a wrinkle: because the engine runs intermittently, completing OBD readiness monitors for inspection can take specific drive cycles.

Pure EVs escape tailpipe rules but pick up their own state-level requirements: many states levy EV-specific registration fees to replace the gas-tax revenue EVs do not pay, and incentive programs come with their own registration and eligibility rules. These vary by state and change frequently, so verify current local requirements rather than quoting last year's rules.

Cold-weather regen behavior is the textbook example, and knowing it cold saves you from a misdiagnosis and saves the customer a needless repair bill.

Reduced Regen on Cold Mornings Is Normal

When a driver reports 'reduced regen this morning' after a cold night, the explanation is almost always battery temperature, not a failure. A cold pack has restricted charge acceptance — the chemistry simply cannot absorb energy quickly at low temperature — so the vehicle reduces or disables regenerative braking until the pack warms to operating temperature, blending in friction brakes to keep deceleration consistent. As the battery heats up from driving (or from active pack heating), full regen returns on its own.

The right response is customer education, not parts. Explain the behavior, suggest pre-conditioning while plugged in if the vehicle supports it, and resist the temptation to chase DTCs that are not there. Misdiagnosing normal cold-weather regen limits is a rookie mistake that erodes customer trust.

They are the gatekeepers of high voltage, and their two failure modes sit at opposite ends of the severity scale.

Stuck Open vs. Stuck Closed

The contactors inside the pack are its disconnect: when the vehicle powers up, the BMS closes them to feed HV to the inverter, and when it shuts down (or a fault occurs), it opens them to isolate the pack. A contactor stuck open means no high voltage ever reaches the motor — the vehicle simply cannot move, typically presenting as a no-Ready condition with pack-side DTCs.

A contactor stuck closed is the far more dangerous failure: high voltage remains present on the vehicle side when it should be isolated. That defeats the fundamental safety assumption that shutting down the vehicle de-energizes the HV bus. This is exactly why de-energization procedures require verifying zero volts with a meter rather than trusting that the disconnect worked — a welded contactor looks identical to a healthy one until you measure. Contactors can weld from switching under load or from repeated inrush current, which is also why packs use pre-charge circuits to soften the initial connection.

How a given EV makes cabin heat directly affects its winter range, and heater technology is one of the biggest efficiency differences between EV generations.

Resistive, PTC, and Heat Pump Systems

EV cabin heat comes from three technologies. The earliest EVs used simple resistive heaters — essentially a big electric element — which work fine but draw enormous power straight from the traction pack. PTC (positive temperature coefficient) heaters are the refined version of resistive heating, self-regulating and quick, but still converting battery energy to heat at roughly one-to-one.

Modern EVs increasingly use heat pumps, which run the air conditioning circuit in reverse to move heat from outside air into the cabin. Because a heat pump moves heat rather than generating it, it delivers roughly two to three times more heat per watt than resistive heating — a huge win for winter range. Many heat pump vehicles retain a PTC element as backup for extreme cold, when heat pump efficiency falls off. When diagnosing an EV heating complaint, identify which architecture you have first; a heat pump system is refrigeration diagnosis, while a PTC failure is electrical.

Understanding where the range goes — and how pre-conditioning gets some of it back — makes you the tech who explains instead of the shop that guesses.

Why Cold Kills Range and How Pre-Conditioning Fights Back

Cold-weather range loss comes from three stacked effects: the cabin heater drawing significant power from the pack, the battery chemistry itself becoming less capable at low temperatures, and increased rolling resistance from cold, stiff tires and denser air. Together these can cut range 30 to 40 percent in serious cold. Vehicles with heat pumps fare noticeably better because their cabin heat costs a fraction of resistive heating.

The best countermeasure is pre-conditioning while plugged in: the vehicle warms the cabin and the battery using grid power before departure, so none of that energy comes out of the driving range. A warm battery also accepts regen immediately and delivers full power from the first mile. Far from wasting energy or harming anything, plugged-in pre-conditioning is the manufacturer-recommended winter habit — teach it to every EV customer who complains about winter range.

Incentives shift yearly, and there is no single license that makes someone 'HV certified' — which makes knowing the actual rules more important, not less.

Incentives and Technician Training Requirements

California and a number of other states offer EV purchase rebates, charging infrastructure incentives, and perks like HOV lane access for qualifying vehicles. Federal tax credits layer on top. All of it is a moving target — programs expire, change eligibility, or run out of funding yearly — so the honest answer to a customer is always to check the current programs rather than repeat last year's numbers.

On the technician side, there is no single federal license for high-voltage automotive work. What does exist: OSHA electrical safety rules apply in the shop — OSHA 1910.269 electrical safety standards govern this kind of work — and violating them exposes the shop regardless of any automotive certification. Most OEMs offer their own HV training with certification, which is strongly recommended and often required for warranty work, and ASE offers EV and hybrid certifications (the xEV series) that document competence. Some states add their own licensing requirements for related work such as HVAC or electrical trades. The practical standard of care is OE-specific training plus documented safety qualification, not just a general mechanic's license.

Category ratings are not marketing fluff — they describe how much abuse a meter can survive when the circuit fights back.

Why CAT III/IV Is Mandatory

Multimeter CAT (category) ratings define how much transient voltage protection the meter and its leads provide. Electrical systems produce transient spikes far above their nominal voltage — from switching, faults, and inductive loads — and a meter's CAT rating tells you what environment it can safely measure. CAT III covers industrial-level circuits; CAT IV covers utility-level exposure. High-voltage automotive work requires CAT III or CAT IV rated meters and leads, no exceptions.

The consequence of ignoring this is not a bad reading — it is an arc-flash event. A lower-rated meter subjected to a fault-level transient can fail violently, effectively exploding in the technician's hands. Check the rating printed on the meter and on the leads (both must be rated — a CAT IV meter with bargain leads is a bargain-lead-rated setup), inspect lead insulation before use, and retire anything damaged. This is the same essential-equipment tier as your Class 0 gloves.

Answering it professionally means measuring state of health with proper tooling, not guessing from a voltage reading or the range display.

Measuring State of Health

A battery state-of-health (SOH) test is a scan tool job, not a voltmeter job. A simple voltage check tells you the state of charge at that moment, not how much capacity the pack has lost. OE and capable aftermarket scan tools read the BMS's calculated data: individual cell voltages, measured capacity, and degradation percentage compared to the pack's as-new capacity.

That data does three things for you. It quantifies overall degradation against the vehicle's age and mileage, it exposes cell-level imbalance — one weak cell group dragging down an otherwise healthy pack — and it supports an estimate of remaining service life. SOH numbers are also what warranty determinations hinge on, so document the reading, the tool used, and the conditions of the test whenever capacity is in question.

A complete HV work order proves the job was done to standard — and if something goes wrong months later, it is the record that protects the technician and the shop.

What Belongs on an HV Work Order

An HV work order needs far more than parts and labor. At minimum it should record the de-energization procedure followed, the verification voltage measured (and that zero volts was confirmed before work began), the PPE used, the torque values applied to HV connections, and the post-service verification results, including the isolation test outcome before re-energizing.

The reasons are safety, warranty, and liability all at once. Detailed documentation proves the shop followed the OE procedure, supports any warranty claim on the repair, and is the technician's defense if an incident occurs later — an isolation fault, a thermal event, an injury. 'We always do it right' carries no weight afterward; a work order showing the disconnect was pulled, the wait time observed, 0V verified with a CAT-rated meter, connections torqued to spec, and isolation tested at completion carries all of it.
