Electrical & Electronics
From dead batteries to CAN bus mysteries.
9 skill areas
60 key concepts
$0 to learn
Electrical & Electronics covers 12V systems from batteries and alternators through modern multiplexed vehicle networks. Includes wiring diagnosis and repair. Everything below is free β no login, no paywall. Work through the skill areas, drill them in Study Mode, and when you're ready, prove it with the certification exam.
0%
ready
NOT STARTED
Your readiness to certify
Drill all 60 concepts in Study Mode. Mark each one βGot itβ once you know it cold. When every concept is cleared, you're ready for the ELE exam.
0 got it
0 to review
60 untouched
What you'll be able to do
- Battery, alternator, starter diagnosis and replacement
- Voltage drop testing methodology
- Wiring diagram interpretation
- Ground and power distribution diagnosis
- CAN bus and multiplexed network fundamentals
- Module programming basics (Ford IDS, GM SPS, etc.)
- Wire repair techniques (crimp, solder, heat shrink)
- Diagnosis of parasitic draws
Skill areas
Jump to any area β each one distills the concepts you need to master it.
Fundamentals
8 concepts- Ohm's Law: I = V / R. So 12V / 4Ξ© = 3 amps. This is fundamental to every electrical calculation β knowing what current a bulb, motor, or heater will draw when you know its resistance and applied voltage.
- Series resistances add: 4 + 6 = 10Ξ©. All current flows through each resistor. Voltage drops across each proportionally. This is the model for chained bulbs, series switches, and load-through-fuse circuits.
- Parallel resistors of equal value: total = R/n = 4/2 = 2Ξ©. General formula: 1/Rt = 1/R1 + 1/R2. Parallel resistance is always less than the smallest individual resistance. This models multiple lights on the same circuit, multiple grounds, or parallel wire paths.
- Power (watts) = Volts Γ Amps = 12 Γ 10 = 120W. This is the actual electrical energy consumed. A headlight bulb, cooling fan, or heated seat's wattage helps predict its current draw and its heat generation.
- Vehicles run on DC β battery and all electronics. The alternator generates AC via its rotating rotor field, which is then rectified to DC by the internal diode bridge. Understanding this is important for diagnosing alternator issues β leaky diodes leak AC into the DC system, causing noise and radio interference.
- Power dissipation = IΒ²R = 10Β² Γ 0.5 = 50 watts. Or P = IV where V is the voltage drop across the resistance. This is why excessive resistance in high-current circuits generates dangerous heat β melted terminals, burnt fuse holders, and vehicle fires.
- Each bulb draws 60W/12V = 5A. In parallel, currents add: 3 Γ 5A = 15A. This is why headlight and driving light circuits need substantial wiring and fusing. Adding a fourth 60W bulb takes the circuit to 20A β potentially exceeding fuse ratings or wire capacity.
- A modern vehicle would need thousands of wires without networked communication. CAN bus consolidates data flow β one message on the bus (like engine RPM) can be read by any module that needs it. Weight savings are significant. Features like variable message signage and adaptive lighting are only possible with networked data sharing.
Multimeter
6 concepts- Voltmeters are high-impedance devices measured in parallel β meter leads across the component while it's operating in circuit. Series measurement (breaking the circuit and inserting meter) is for current, not voltage. This distinction is fundamental to safe and correct testing.
- Ammeters have very low resistance and must be placed in the circuit path β series. Direct DMM current measurement is usually limited to 10A or less. Higher currents require an inductive amp clamp that goes around a single wire β no circuit interruption. Fusing on the meter's 10A jack is limited; excessive current blows the fuse.
- Continuity/resistance testing identifies shorts. Disconnect the circuit (no power) and check with the DMM's ohms or continuity function. Zero ohms between points that shouldn't be connected = short. Very high (or open) between points that should be connected = open. Powered testing risks damage.
- 12.6V battery, 8V at the load = 4V lost in the path. That's excessive drop. Systematically test voltage at each connection point back to the battery to locate the problem. Common culprits: corroded connectors, undersized wire (especially aftermarket), damaged fuse holders, or bad relay contacts.
- DMMs average many readings per second, hiding brief events. Scopes plot voltage over time, showing brief spikes, dropouts, transients, and waveform shapes. Injector patterns, ignition secondary, sensor signals, and intermittent faults require a scope. DMMs are indispensable but incomplete for modern diagnostics.
- 12V is low but shorts can create dangerous arcs. Improperly rated DMMs on higher voltage systems (hybrid/EV) can explode. Sharp probes damage insulation causing future faults. Fused current jacks limit damage from wrong-mode usage. Category ratings (CAT III/IV) matter for high-energy circuits.
Voltage Drop
5 concepts- Low-current resistance testing (a DMM's ohms function) uses milliamps and can miss corrosion or partial connections. Under load (full current), these problems manifest as voltage drops. A resistance test may show 0.1Ξ© (looks fine); under 100A load that's a 10V drop β completely broken. Voltage drop is the truth-telling test for real-world circuits.
- Battery cables should have minimal voltage drop under load β typically 0.2V or less. 0.8V means the cable, connection, or terminal has excessive resistance. Common causes: corroded terminals, loose bolts, corroded cable ends, or damaged cable. Excess drop starves the starter.
- Voltage drop must be measured under load β starter cranking gives full current. Meter across the ground path (starter case to battery negative) reveals total resistance in the return path. Spec is typically under 0.2V. Higher values indicate degraded ground straps, corroded connections, or bad cable.
- Voltage drop specs vary by application. Low-current switches (under 5A) may tolerate 0.3V. High-current circuits require lower drops. Compare against manufacturer spec if available. If unsure, compare against a similar circuit on the same vehicle. Voltage drops between switch terminals under load reveal contact resistance.

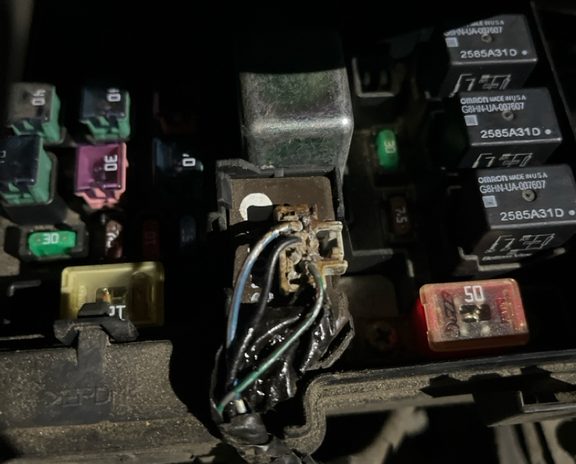

- Relay contacts arc when opening/closing. Over years, this erodes the contact surface, adding resistance. Test method: DMM across the relay's normally-open contact terminals with the headlights on. Above 0.2V voltage drop = worn contacts, replace the relay. Common failure mode for headlight, fuel pump, and cooling fan relays.
Battery

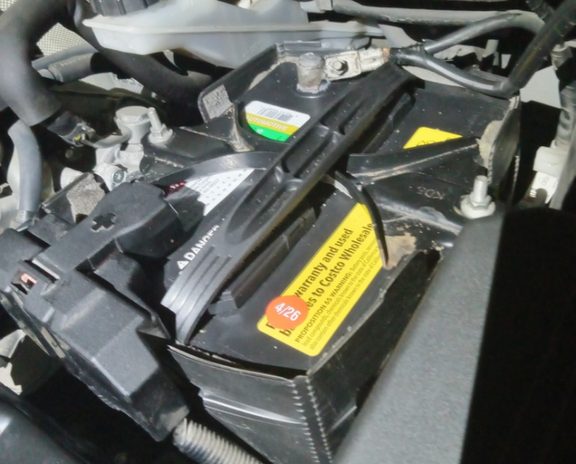

6 concepts- CCA is the industry-standard measure of cold-weather starting capacity. Higher CCA = more current available at cold temperatures. Cold conditions reduce battery output while increasing engine cranking demand. Match or exceed the vehicle's original spec, especially in cold climates.

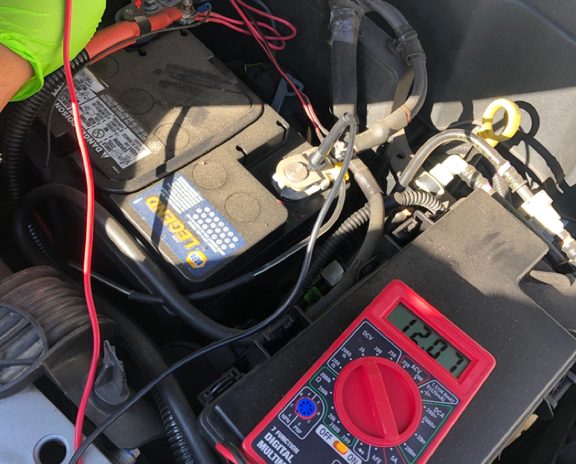

- Open-circuit voltage (no load, no charging, surface charge dissipated) indicates SoC. Surface charge from recent charging can inflate readings β wait 4+ hours or load-drain briefly to eliminate. Rested voltage is the true state of charge indicator.

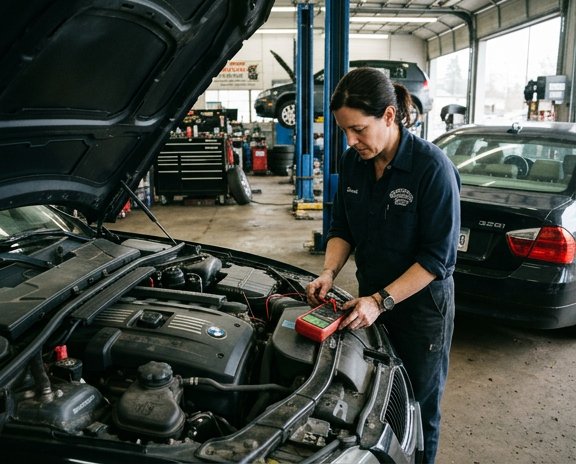

- Load test at half of CCA for 15 seconds is the standard test. Healthy 12V battery holds above 9.6V. Below 9.6V = failing internally, regardless of open-circuit voltage. Modern smart testers (Midtronics) accomplish the same test digitally without dumping heat.
- Positive terminals connect first, then negatives β but the final negative goes to an engine ground point on the dead vehicle, NOT the battery negative. This puts the arc/spark of connection AWAY from the potentially venting battery. Reverse order to disconnect. Safety fundamentals prevent battery explosion.
- European brands especially require battery registration via scan tool β telling the BCM about the new battery's specifications for correct charging management. Skipping this causes short battery life. Additionally, many vehicles need adaptations reset (idle relearn, throttle relearn, window auto-up, sunroof calibration).
- Hybrids have both 12V and high-voltage systems. The 12V battery starts the electronics that enable the high-voltage system to run. Jump-starting the 12V is normal β but manufacturers often specify dedicated jump-start points because the 12V battery may be in the trunk or under a seat. Never touch HV cables β use only the 12V system.

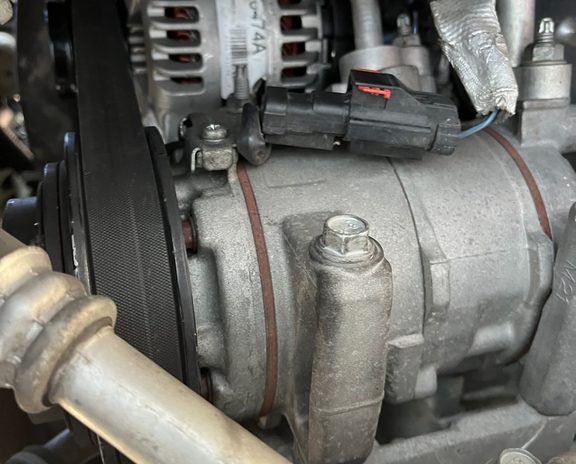

Charging

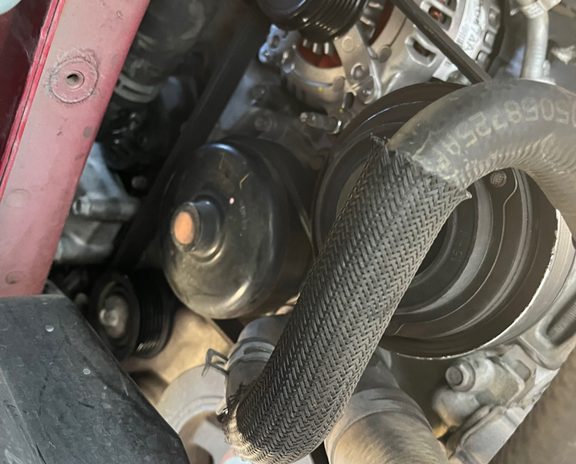

7 concepts- Charging voltage should stay 13.8-14.8V under all load conditions. Dropping to 12.5V under load = alternator can't meet demand. Verify: belt tension (slipping under load), pulley engagement, and internal alternator health. On modern smart-regulator alternators, the ECU/BCM may command reduced output β verify with scan tool data first.
- Alternator diodes rectify AC to DC. Failed diodes leak AC ripple into the DC system. DMM in AC voltage mode at battery terminals with engine running should show under 0.5V AC. Higher (or scope showing pattern) confirms diode failure. Symptoms include radio noise, warning lights flickering, or battery discharge issues.
- Modern vehicles use smart charging where the ECU/BCM commands charge voltage based on battery SoC, temperature, and load. When battery is charged and load is low, output may be intentionally reduced to save fuel. Scan tool shows commanded charge voltage β compare to actual. If actual matches commanded, system is functioning as designed.
- Modern smart charging systems require the ECU/BCM to know about battery health and communicate with the alternator. New alternator installation may require battery relearning (some vehicles) or the exciter/wake signal must reach the new alternator. Not always plug-and-play like older alternators.
- Smart-charging alternators (found on most vehicles from ~2010+) are controlled via LIN bus or similar. The BCM monitors battery current, temperature, and voltage, then commands the alternator to charge harder or less based on demand and battery health. This improves fuel economy and battery life. Scan tool access reveals commanded values.
- Overcharging damages both battery and connected electronics. Voltage regulators fail closed (max output) or open (no output). At 15.2V, the battery boils electrolyte, expensive electronic modules may fail from overvoltage. Verify with scan tool commanded vs. actual β could be regulator failed or regulator commanded high due to sensor issue.
- P0620 is a control circuit code, not an output code. On smart-charging vehicles, if the ECU can't talk to the alternator, this code sets. Check the communication wire (often LIN bus), the connector, and verify the replacement alternator is designed for the smart-charging system (not a simple field-controlled unit).

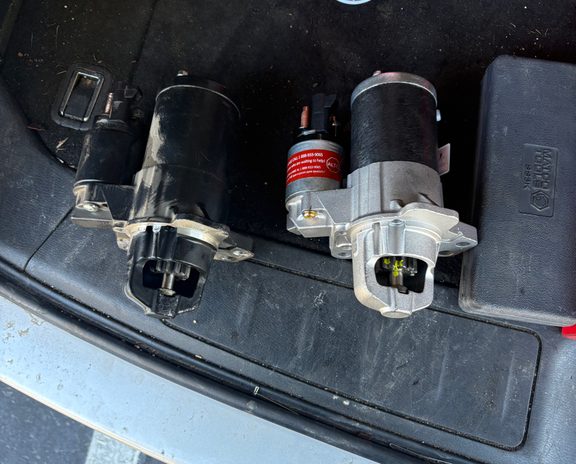

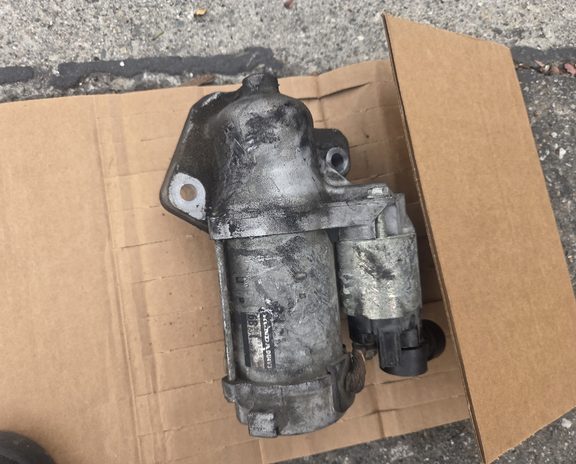

Starter

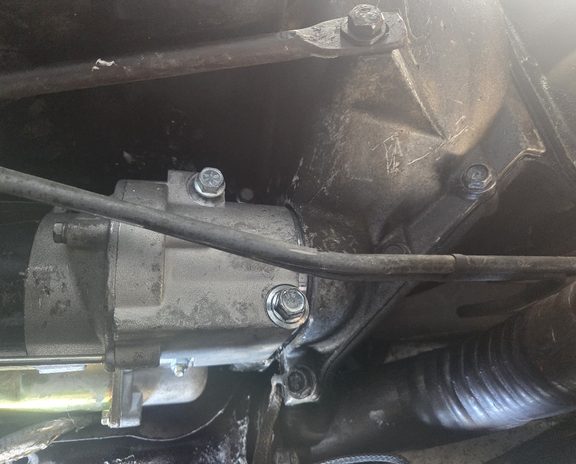

5 concepts- The click is the solenoid trying to engage but the motor not spinning. Causes: insufficient current (weak battery, high resistance in cables) or the starter motor is seized/failed. Voltage drop testing during the click attempt reveals the electrical path. If cables and battery test good, starter is the failure.
- Excessive starter current means either the starter itself is worn (bearings binding, worn windings shorting turns) or engine load is excessive (high compression from carbon buildup, seized accessory drive, hydraulic lock). Amp clamp during cranking reveals the total current β combine with voltage drop to isolate.
- New starter installations often reveal underlying cable issues that were masked by the old starter's tolerance. Voltage drop tests on both power and ground cables ensure they can supply the new starter properly. Loose connections or damaged cables cause premature new-starter failure and comebacks.
- The solenoid is both mechanical (moving the pinion into engagement) and electrical (switching high current). When the ignition switch signals the solenoid, its plunger moves, engaging the pinion AND closing the high-current contacts that power the starter motor. Failed solenoids can cause no-crank, single-click, or partial engagement.
- Grinding means the pinion and ring gear aren't meshed before the starter spins. Causes: solenoid slow to fully engage the pinion, worn Bendix/starter drive slipping, or worn ring gear teeth (usually one worn spot). Damage propagates β worn teeth cause more grinding, causing more wear.
Body Electrical
12 concepts- Premature halogen failures have identifiable causes. Voltage spikes stress filaments. Oil from touching creates thermal stress points. Moisture inside the housing causes cracking. Vibration breaks filaments. Investigate before selling more replacements to avoid the same problem repeating.

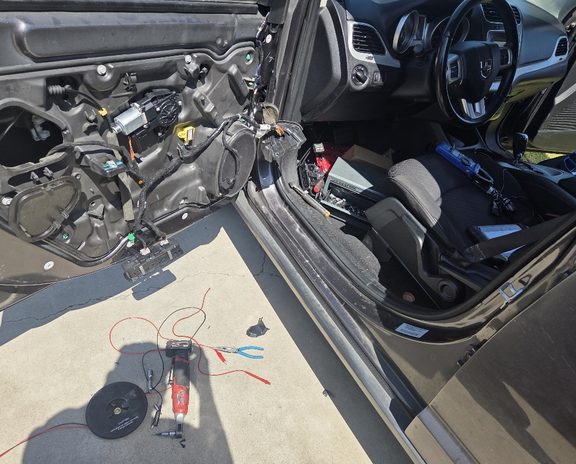

- Power window diagnostics: verify command reaches the motor (switch working, wiring intact), test motor with direct power (rules out motor), check for common door harness breaks in the flexible boot between door and pillar (very common). Systematic testing before parts replacement.
- Traditional HVAC blowers use a resistor pack to provide different speeds. High speed bypasses the resistor entirely. When lower speeds fail but high still works, the resistor elements have burned open. Modern HVAC systems use PWM-controlled motors and blend modules β different failure mode requiring different diagnosis.
- Modern anti-theft systems require the key's transponder to be recognized before allowing start. Worn keys (physical damage), dead key fob batteries (some transponders are battery-powered), or damaged reader antennas cause immobilizer issues. Diagnosis: does a different key work? Does a scan tool show anti-theft codes?

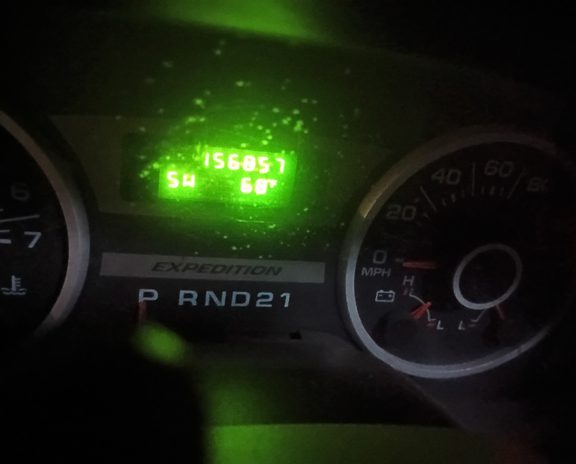

- Multiple dashboard warnings usually trace to a shared cause. Bad cluster ground makes gauges read incorrectly. Below-spec voltage triggers multiple warnings (low battery voltage alone can light 6+ warning lights). CAN bus communication problems light warnings across systems. Diagnose the common denominator first.
- Parasitic draw test measures current with the vehicle at rest. Modern vehicles typically draw 30-50 mA at rest (clock, radio memory, alarm, etc.). Higher draws (200+ mA) drain a battery over a few days. Once elevated draw is confirmed, pull fuses one at a time until the current drops β identifying the offending circuit.
- Load-dependent dimming reveals resistance in the supply. When high-draw items (brake lights, fan, blower) turn on, voltage drops in the shared supply path. If interior lights are on the same power supply, they dim. Voltage drop testing on the shared path identifies the bad connection or undersized wire.
- Wait β need to also verify ground. With 12V at the horn's power terminal and it not working, verify the ground connection is also intact (voltage drop test from horn ground to battery negative under load). If both power and ground are good, the horn is failed. Common failure mode from moisture or corrosion inside.
- Intermittent no-crank has multiple causes. Ignition switch cracks (contacts open intermittently). Neutral safety switch may not signal 'park.' Immobilizer communication issues may block cranking without visible warning. Scan tool during a failed start attempt reveals which system is blocking.
- Door lock actuators wear out from cycling. When one fails at 100k miles, others aren't far behind. Also, driver's door harness bundles flex thousands of times as the door opens/closes β broken wires in that boot are extremely common. Full inspection prevents customer having to return in weeks or months.

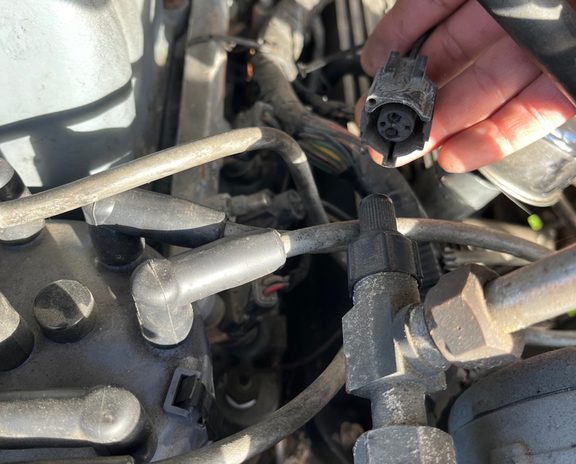

- Water-triggered electrical issues have a physical cause. Water in connectors causes shorts or opens. Damaged wire insulation lets water into conductors. Wet floor mats over control modules cause failures. Common areas: door and trunk seals letting water in, sunroof drains blocked, windshield leaks affecting BCM location under dash.
- Alternator ripple (AC on DC) enters audio equipment through ground loops. When the amplifier's ground shares a path with other components, ripple is coupled into the audio. Solution: dedicated heavy-gauge ground from amp to chassis at a clean, close point; ensure signal grounds and power grounds don't create a loop.
Wire Repair

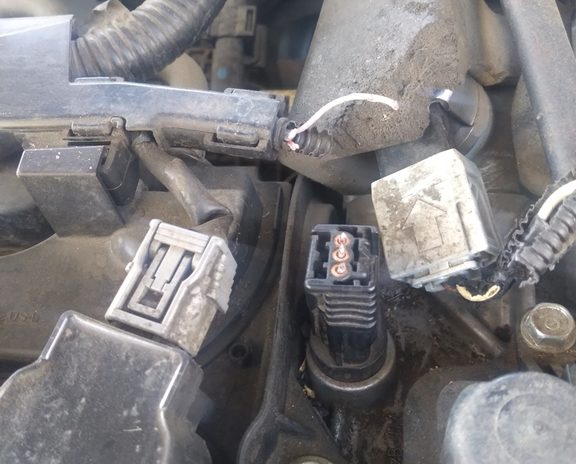

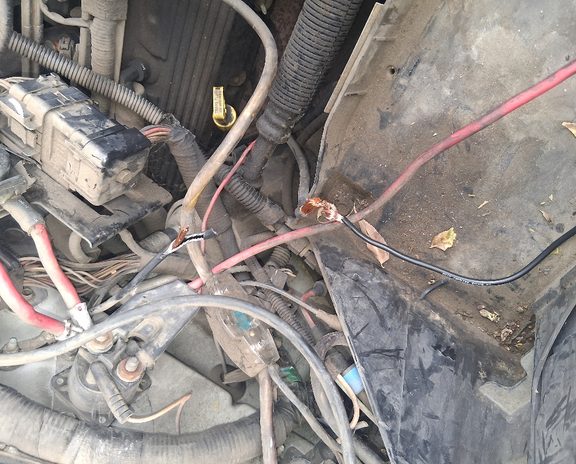

5 concepts- Automotive splices must survive vibration, temperature extremes, moisture, and current cycling. Proper technique: strip wires, insert into a butt-splice or overlap and solder, then cover with adhesive-lined heat shrink for moisture sealing. Twist-and-tape fails within months. Wire nuts are for stationary building wiring β not vehicles.
- CAN bus (and other differential-pair signals) rely on precise twisted-pair geometry. Splices must maintain the twist as much as possible and use quality connections. Impedance mismatches cause signal reflection and network errors that may only appear intermittently. When possible, replace the harness section rather than splicing.
- Automotive electrical solder is rosin-core (acid-core corrodes wiring). Cold solder joints (insufficient heat) look dull and crack under vibration. Proper heat produces bright, shiny, wetted joints. Heat shrink with internal adhesive seals moisture out β critical for underhood or under-vehicle repairs.
- T-tap connectors (like Scotchloks) are quick but degrade over time from vibration and corrosion. Professional additions use butt splices, weather-pack style connectors, or soldered joints with heat shrink. The extra minute spent on quality connection prevents a comeback for intermittent electrical issues.
- SRS/airbag circuits are safety-critical. Manufacturer specifications determine repair vs. replacement. Some allow crimped repairs; others require harness replacement. Yellow-marked SRS connectors and twisted-pair wiring must be maintained. Improper repair risks are catastrophic. When in doubt, replace the entire harness section per manufacturer procedure.
Grounds
6 concepts- Bad grounds are the #1 cause of 'gremlin' electrical problems. When ground connections fail, current finds alternate return paths through other components β causing lights to flicker, gauges to move erratically, or multiple systems to malfunction. Clean and tighten all major ground straps first.
- Visual inspection catches obvious problems but misses corroded connections that look clean. Voltage drop test under load reveals the true resistance. Under normal load, a ground point should show under 0.1V drop from battery negative. Higher = clean and tighten or replace the strap.
- Bad grounds cause components to fail or behave erratically. Replacing the component without fixing the ground creates a comeback. Every electrical diagnostic should include ground verification for the affected component. Voltage drop test from component ground to battery negative under load is definitive.
- Grounds must be at manufacturer-specified locations, on clean metal (paint removed at the contact point), with proper fasteners torqued to spec, and often star-washered to prevent loosening. Random ground attachments to painted body panels or rusted metal cause elevated resistance and unpredictable issues.
- Fuel tank components (level sender, pump) usually ground through the tank itself and a chassis strap. Corroded or loose grounds cause erratic and offset readings. Confirming ground integrity should precede replacing the level sender. Sometimes a $5 ground strap fix beats a $500 fuel pump replacement.
- Modern vehicles have many ground points serving specific purposes. Engine grounds (multiple), transmission grounds, chassis grounds, body grounds, sensitive electronics grounds. Each is designed for specific current levels and noise characteristics. All must be maintained. Some grounds are labeled 'high-current' vs 'signal' β treat accordingly.
