Brakes & ABS

Everything else in brake work sits on top of hydraulic fundamentals: how fluid transmits force, why fluid condition matters, and what pedal feel tells you about the health of the system. Get these basics wrong and you will misdiagnose problems all day long. Get them right and half of brake diagnosis becomes reading the pedal with your foot.

How the Hydraulic System Transmits Force

A brake system is a closed hydraulic circuit. When the driver presses the pedal, the master cylinder pushes brake fluid through the lines to the wheel cylinders and caliper pistons. The fluid itself is the working medium — it is essentially incompressible, so force applied at one end arrives at the other end almost instantly and almost undiminished. That incompressibility is the whole point. The moment air or moisture gets into the circuit, force transfer is compromised, because you now have something in the lines that can compress or boil.

That is why a spongy, low pedal points straight at air in the system. Air compresses; brake fluid does not. When there is air in the lines, part of your pedal stroke goes into squeezing bubbles instead of pushing fluid to the calipers. Proper bleeding removes the air and restores a firm pedal. The standard bleeding order on most vehicles is furthest from the master cylinder first, working closer: right-rear, then left-rear, then right-front, then left-front. That sequence purges the longest lines first. Some manufacturers specify a different order, so always verify in the service information before you start.

Pedal feel is also your master cylinder tester. A pedal that slowly sinks to the floor under steady, constant pressure means fluid is going somewhere it should not. If there is an external leak you will find wet fittings or a puddle. If there is no external leak anywhere, the fluid is bypassing an internal master cylinder seal — the piston is pushing fluid past its own cup instead of building pressure. That master cylinder is done; replace it.

Brake Fluid: DOT Ratings, Moisture, and Disposal

Brake fluids carry DOT ratings because the Department of Transportation specifies their dry and wet boiling points, viscosity, and chemical compatibility. DOT 3, DOT 4, and DOT 5.1 are all glycol-based. They are generally intermixable in a pinch, though mixing is not recommended practice. DOT 5 is the trap: it is silicone-based and completely incompatible with the glycol fluids. Mix DOT 5 into a glycol system and you get seal damage and eventual brake failure. Always check the manufacturer specification — usually printed on the reservoir cap — before adding or topping off fluid.

Glycol fluid is hygroscopic, meaning it pulls moisture out of the air. The reservoir cap has a gasket seal for exactly this reason: it is the first line of defense keeping atmospheric moisture out of the fluid. A missing gasket or a damaged cap accelerates moisture absorption and degrades the fluid prematurely, so make sure the cap seals properly every time you close a reservoir.

Used brake fluid is toxic and glycol-based, and it must never go down a drain or into a storm sewer. Do not mix it with used motor oil either — that contaminates the oil recycling stream. Store it in a dedicated used-fluid container and take it to a hazardous waste facility, an auto parts store recycling program, or a licensed disposal service.

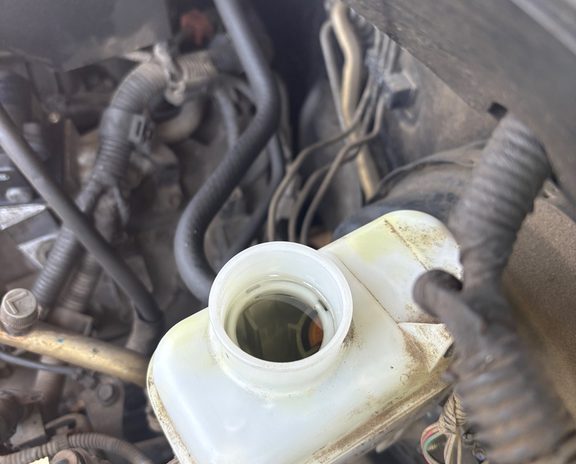

Reservoir Level, Piston Compression, and Hose Diagnosis

A low reservoir with no visible leak anywhere is usually not a leak at all — it is worn brake pads. As pads wear thinner, the caliper pistons extend farther out of their bores to keep the pads against the rotor, and the extra volume behind those pistons is filled with fluid drawn from the reservoir. The level drops in proportion to pad wear. So a low reservoir with dry lines usually means it is time for a pad inspection, not a leak hunt. It also means you should not blindly top off the reservoir, because of what happens next.

When you compress a caliper piston back into its bore during a pad job, all that displaced fluid gets pushed backward through the system into the reservoir. If someone topped the reservoir off while the pads were worn, it will overflow. Watch the level. Many technicians also open the caliper bleeder while compressing the piston, so the old, dirty fluid in the caliper goes into a catch bottle instead of being forced backward through the lines and into the ABS module, where debris and moisture-laden fluid can cause trouble.

Brake hoses can fail internally with nothing visible outside. A hose whose inner liner has delaminated can act like a check valve: pressure gets in to apply the caliper, but cannot bleed back out, so that brake stays applied and the vehicle pulls or drags. The test: jack up the wheel, have an assistant press and hold the pedal, then release. If the wheel stays hard to turn after pedal release, crack the caliper bleeder. If the wheel suddenly frees up when the bleeder opens — but would not release on its own — pressure was trapped downstream of the hose, and the hose is likely collapsed internally. Replace it.

Most of what separates a clean, comeback-free brake job from a noisy one comes down to caliper hardware, surface prep, and proper break-in. This is where inexperienced techs make expensive shortcuts.

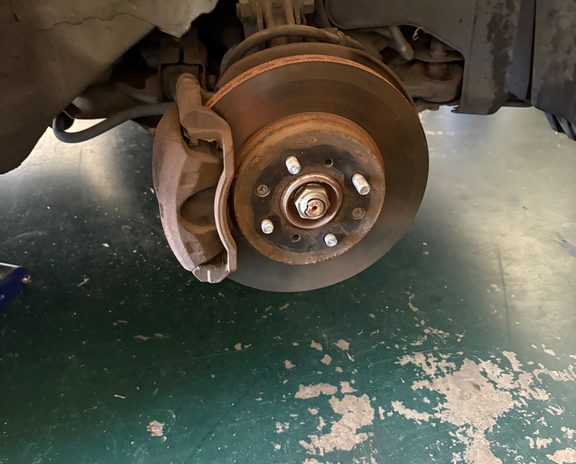

Calipers, Slide Pins, and Reading Pad Wear

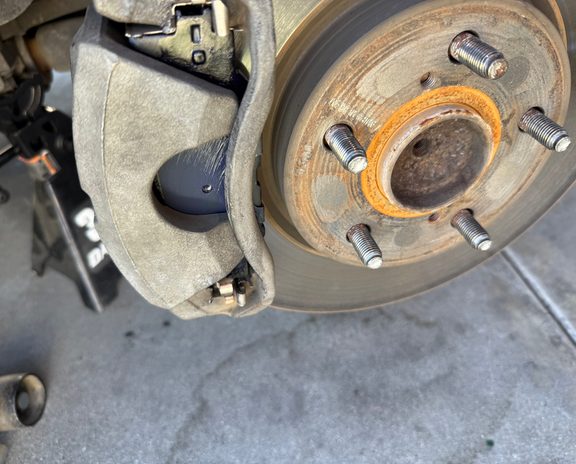

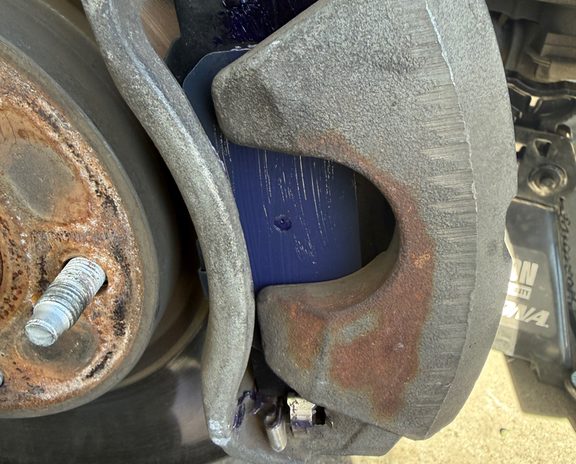

A floating caliper works by sliding on greased pins so that one piston can clamp both pads evenly. When that sliding action fails, the wear pattern tells on it. If you pull a wheel and find one side of the axle worn significantly more than the other, that is almost never normal — it points to a caliper problem: a sticking piston, seized slide pins, or a damaged caliper mount. One side is either dragging constantly or not applying at all. The rookie mistake is slapping new pads on and calling it done; without fixing the underlying caliper issue, the same wear pattern comes right back.

Slide pins fail for a predictable reason: heat. Braking heat soaks into the pins, and they routinely see 300 degrees F and above. Ordinary chassis grease breaks down and hardens at those temperatures, gluing the caliper in place. That is why slide pins require a synthetic high-temperature brake caliper grease — products like Sil-Glyde or Permatex Ultra Disc Brake grease — not whatever is on the general-purpose grease gun.

Caliper problems also explain brake pull. If a car pulls to the left under braking, uneven braking force is the cause: either the left side is braking harder than it should, or the right side is not braking hard enough. The classic culprits are a sticking or seized caliper on the right, or a partially blocked or internally collapsed right-side brake hose. Diagnose systematically — inspect, measure, test — before you start throwing parts at it.

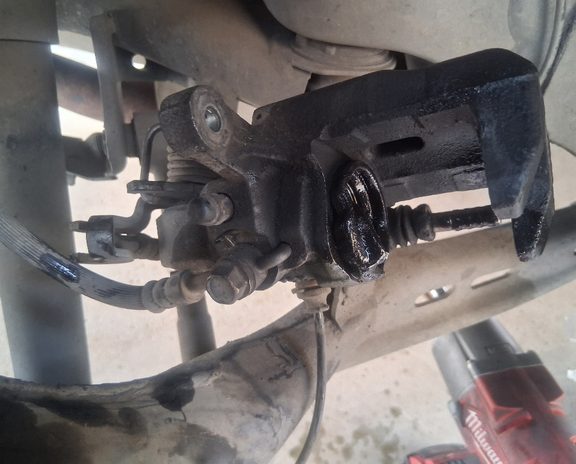

Rear calipers add a twist. Many modern rear calipers have the parking brake integrated into the piston through a threaded mechanism. You cannot push those pistons straight back with a C-clamp; the piston must be rotated back into the bore, typically clockwise, while applying pressure. Forcing one straight in destroys the threaded parking brake mechanism inside. A caliper wind-back tool set belongs in every brake tech's box.

Rotor Prep and Minimum Thickness

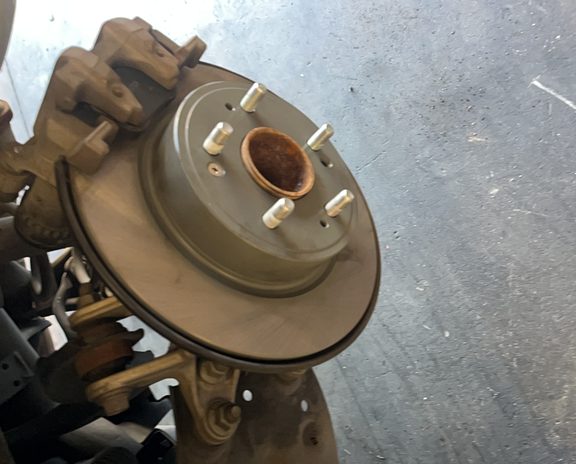

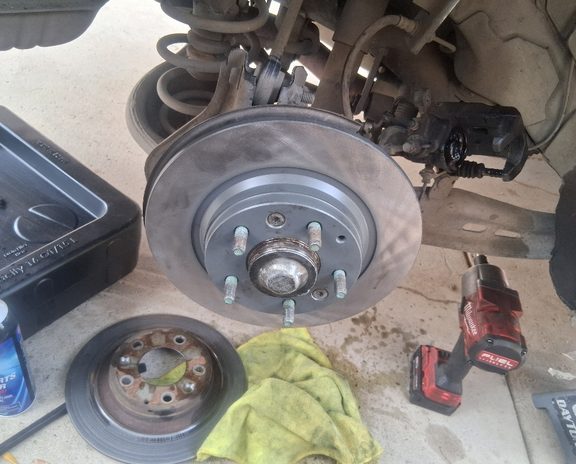

New rotors do not go on straight out of the box. Manufacturers coat them with a rust-preventive oil or film for storage and shipping, and if that coating is still on the friction surfaces at installation, the first miles of braking will be weak and the pads will pick up abnormal transfer material. Clean the coating off completely with brake cleaner, or with soap and water, and make sure the surfaces are fully clean and dry before the pads touch them.

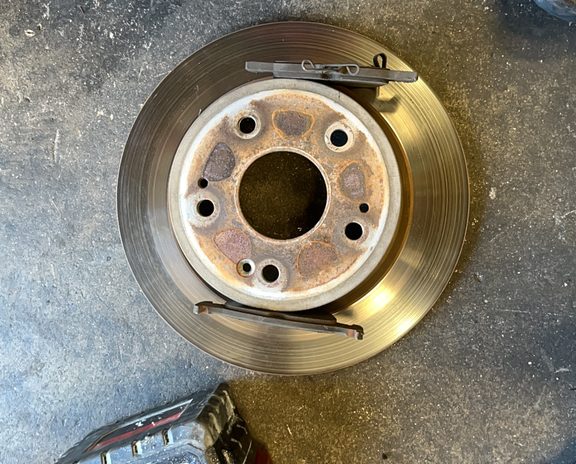

Every rotor has a minimum thickness stamped on it — look for Minimum Thickness or MIN TH on the rotor hat or hub area. Understand what that number means: it is the discard thickness, the point at which the rotor is scrap, not a target to machine down to. If you are resurfacing, the rotor must finish at or above the machine-to spec, which typically sits about 0.030 to 0.060 inch above the discard number. If turning the rotor would take it below discard, it gets replaced, period.

Wear Indicators, Bedding-In, and the Final Pedal Check

Brake pads carry mechanical wear indicators — small metal tabs positioned to scrape the rotor and squeal when the friction material wears down to roughly 3 mm. That squeal is the system's last warning, not a suggestion to schedule service in a few months. Past that point the pad's steel backing plate contacts the rotor, chewing it up fast and drastically reducing braking. When the indicators are singing, replacement is due immediately.

New pads need a proper break-in, called bedding. The purpose is to transfer a thin, even layer of pad material onto the rotor face, which establishes consistent friction and prevents the uneven pad deposits that cause pedal pulsation later. The standard procedure: perform 8 to 10 moderate stops from about 40 mph, slowing firmly but never coming to a complete stop, then drive gently to let the brakes cool. No panic stops, no sitting with a hot pad clamped on a hot rotor.

Before any brake job leaves the shop, run the engine-off pedal test. With the engine off, pump the pedal several times to build pressure. The pedal should get progressively harder and stop at a solid, firm point that holds. A soft pedal, or one that keeps sinking, means air is still in the system — and it is far better to find that in the bay than for the customer to find it at their first hard stop.

• Clean new rotors of rust-preventive coating with brake cleaner or soap and water; dry completely
• Service caliper slide pins with synthetic high-temp brake grease; verify free movement
• Wind back threaded rear pistons with the proper tool — never force them straight in
• Bed the pads: 8-10 moderate slowdowns from 40 mph, no full stops, then cool
• Finish with the engine-off pedal pump test — pedal must build to a firm, holding point

The hydraulic side of the brake system — master cylinder, booster, lines, fluid, and bleed procedure — is where the most safety-critical failures live. Pedal symptoms map cleanly onto hydraulic causes once you understand what each component contributes, and fluid maintenance is a genuine safety item, not an upsell.

The Booster: Hard Pedal Diagnosis and Testing

A hard pedal that takes excessive force is not a hydraulic problem — it is a boost problem. The booster multiplies the driver's pedal force, and when it stops helping, the driver feels like they are standing on a rock. On conventional vehicles the causes are a failed vacuum booster or a vacuum leak at the booster supply hose; on hybrids, EVs, and many newer vehicles, it is a failed electric brake booster. Check the vacuum supply first — it is the cheap, common failure — then diagnose the booster itself.

The standard booster function test costs nothing. With the engine off, pump the pedal several times to deplete any stored vacuum in the booster. Then hold the pedal down firmly and start the engine. On a good booster, the pedal sinks slightly under your foot as engine vacuum arrives and the booster begins assisting. If the pedal does not drop at all, the booster is not doing its job.

There is one master-cylinder failure that takes the booster down with it. If you find brake fluid on the firewall side of the master cylinder — between the master and the booster — the master cylinder's rear pushrod seal is leaking fluid directly into the booster. Glycol fluid attacks the booster diaphragm. That job is a master cylinder replacement plus a booster inspection, and very often the booster needs replacement too.

Dual Circuits and Bleeding Problems

Modern brake systems are dual-circuit by law and by design. The master cylinder contains two chambers feeding two independent hydraulic circuits, usually split diagonally — left-front paired with right-rear, right-front paired with left-rear — though some vehicles split front/rear instead. The payoff is fail-safe operation: if one circuit loses pressure from a blown line, leaking caliper, or failed wheel cylinder, the other circuit still delivers partial braking on two wheels. That is why a single leaking wheel cylinder degrades the brakes but does not cause total failure.

Bleeding usually goes clean caliper by caliper, so pay attention when it does not. If one caliper keeps producing air bubbles long after the fluid should be running clear, you are not still purging old air — the system is drawing new air in somewhere upstream. The usual suspects: worn or leaking bleeder screw threads, a damaged caliper piston seal, a loose banjo bolt at the hose, or a cracked hose. Bleeding forever will never fix an air leak; find the entry point and repair it.

Bleeder screws themselves deserve respect. They are hollow, thin-walled, and snap off cleanly if you put an open-end wrench on them and lean. A snapped bleeder generally means caliper replacement. For a stuck or corroded bleeder: soak it with penetrating oil (Kroil or PB Blaster), apply gentle heat if it is safe to do so, use a flare-nut or line wrench that grips all six flats, and work it back and forth gradually rather than forcing it in one pull.

One more modern wrinkle: after a brake job involving pressure loss, the ABS or traction control light may stay on even after you clear codes. Many ABS systems latch fault codes when they detect pressure loss during service, and a simple code clear does not release them. The fix is a scan-tool-commanded ABS bleed procedure, and some vehicles require additional calibration steps beyond that.

Fluid Condition: Testing and Flush Intervals

Glycol brake fluid absorbs atmospheric moisture continuously — through the reservoir vent, through the hoses, past the seals. Moisture matters because it lowers the fluid's boiling point. Get the brakes hot on a long descent and moisture-laden fluid boils, creating compressible vapor in the lines and a pedal that fades away. That makes fluid service a genuine safety item.

Do not judge fluid by its color; color is unreliable. Measure it. An electronic brake fluid moisture tester (such as the CDI-BFT type) reads moisture percentage directly, and a boil-point tester or refractometer heats a sample and determines its actual boiling point. Those give you objective numbers to justify a flush.

The general guideline: flush brake fluid every 2 to 3 years, or whenever moisture content exceeds 2 to 3 percent. Some manufacturers — European brands especially — now recommend annual flushes. Follow the interval in the service schedule and back it up with a tester reading.

Finally, whenever you replace a caliper or open the hydraulic system, standard post-installation practice is threefold: torque every fastener to spec (banjo bolts, bracket bolts, bleeders), verify there are no fluid leaks after multiple firm pedal applications, and confirm the caliper slides freely on its pins with proper piston retraction. All three checks are cheap insurance against comebacks.

Brake diagnosis is pattern recognition backed by measurement: noise character, when a symptom appears, and what changes with heat all narrow the cause before you turn a wrench. The techs who master this fix the actual problem the first time — and just as importantly, they know when the answer is nothing is wrong.

Reading Brake Noise

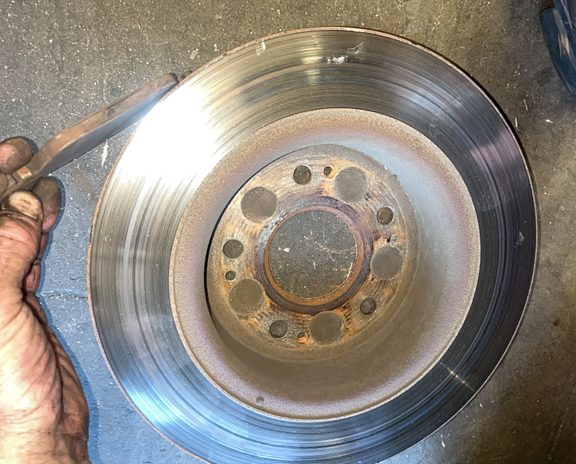

Grinding on braking is the most urgent noise you will hear. It means the pad friction material is completely gone and the steel backing plate is riding directly on the rotor. Every stop from that point carves the rotor deeper. The correct response is immediate pad and rotor service — and at that stage the rotor is almost certainly damaged beyond resurfacing, so plan on replacement.

Not all squeal means trouble, and knowing the difference protects your credibility. Squeal that appears only in wet conditions or on the first stops after the car sat overnight is flash rust — a thin film of surface rust that forms on bare rotor faces from rain or overnight condensation. It causes brief noise and slightly reduced bite until the pads scrub it off, usually within one or two stops. That is normal and needs no repair. The same goes for the customer who hears noise only on the very first brake application on a cold morning: minor thermal fit differences in cold components plus flash rust produce a brief noise that disappears immediately. Educate the customer instead of selling an unnecessary repair.

Constant squeal under all conditions is a different animal with several possible causes: pad wear indicators contacting the rotor, missing or failed anti-rattle hardware letting the pads vibrate, glazed pads or rotors from overheating, or new pads that were never properly bedded. Diagnose systematically — visual inspection of pad thickness first, then the hardware, then the condition of the friction surfaces — and you will land on the root cause instead of guessing.

Heat Fade and Booster Weakness

When brakes work fine cold but progressively lose effectiveness as they heat up — after extended use, or the customer reports fade on long downhill grades — the diagnostic priority is brake fluid moisture content, tested first because it is the most common cause and the cheapest fix. Moisture-degraded fluid boils under braking heat, forming compressible steam bubbles that eat the pedal. Beyond fluid, inspect for pad glazing from overheat damage and check overall rotor condition. If the fluid and friction check out, consider whether the vehicle's use — towing, heavy loads, mountain driving — simply exceeds what the stock brake system was sized for; the honest recommendations there run from a fluid flush up to a higher-temperature pad compound for high-heat use.

A different pattern points at the booster: the vehicle brakes normally under light pedal pressure but feels less responsive than expected under hard braking. Light braking needs very little assist, so a partially failed booster can still deliver it. Hard braking demands maximum boost, and that is where a failing booster runs out of help. This symptom gets misread as weak pads all the time — so rule pads out first with a visual and performance check, then test the booster.

Component-Level Checks: Wheel Cylinders, Sensors, and Runout

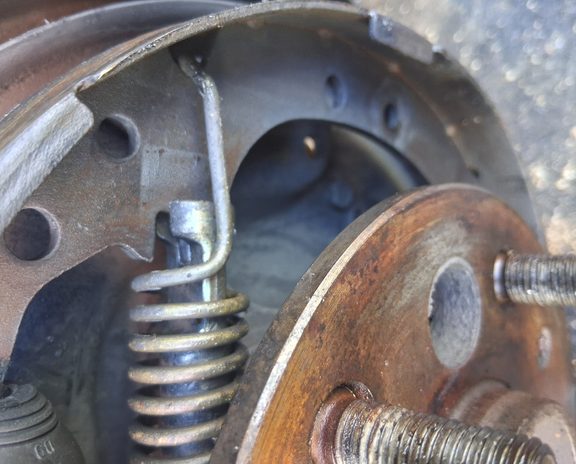

A leaking drum brake wheel cylinder can be confirmed without tearing the brake down. Peel back the wheel cylinder's rubber dust boot: the boots seal the ends of the bore, and if brake fluid is pooled inside the boot, the cup seals are failing and the wheel cylinder needs replacement. Dry boot, healthy cylinder — a ten-second check that saves guesswork.

For an ABS light with a stored wheel speed sensor code, the preliminary check before replacing anything is live data. Watch all four wheel speed sensors on the scan tool during a slow test drive and compare them. A sensor reading zero or jumping erratically while the vehicle is moving is confirmed bad. A sensor reporting correctly even though the code is stored points instead to an intermittent problem — wiring or a connector — that a new sensor will not fix. Five minutes of live data prevents unnecessary sensor replacement.

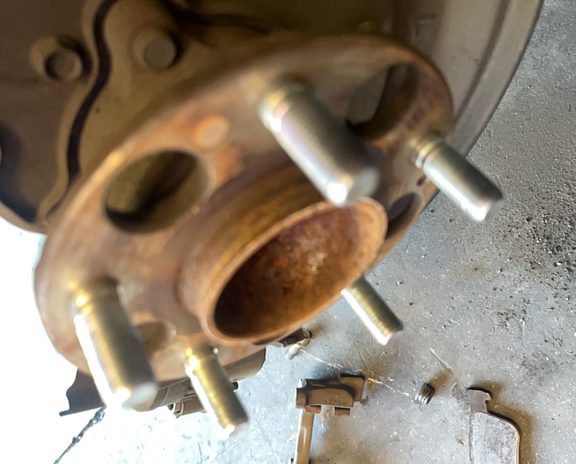

When a runout measurement comes back high — for example 0.006 inch against a 0.003 inch specification — resist the reflex to call the rotor warped. Three causes produce excessive lateral runout: an actually heat-warped rotor, rust or debris contamination between the hub and the rotor mounting surface, or a bent or damaged hub. Clean the hub face thoroughly first and re-measure with the dial indicator; most rotors diagnosed as warped turn out to be clean-hub problems.
